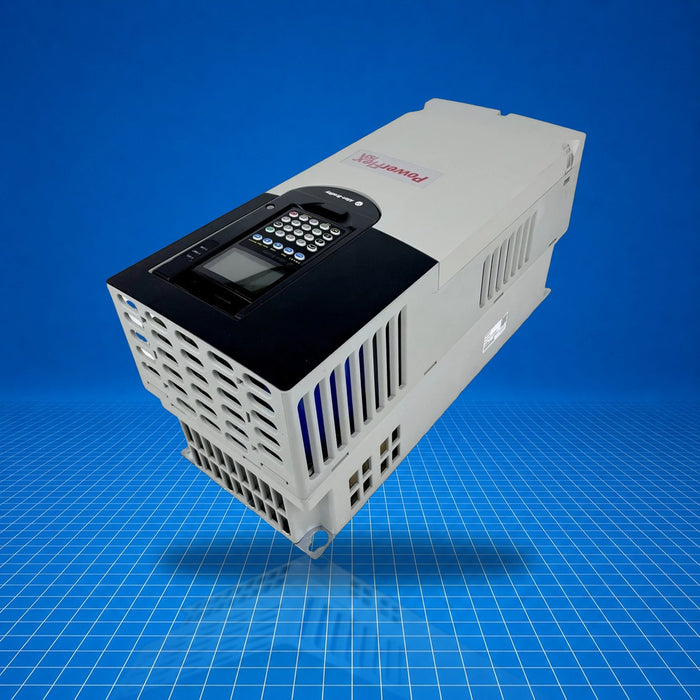

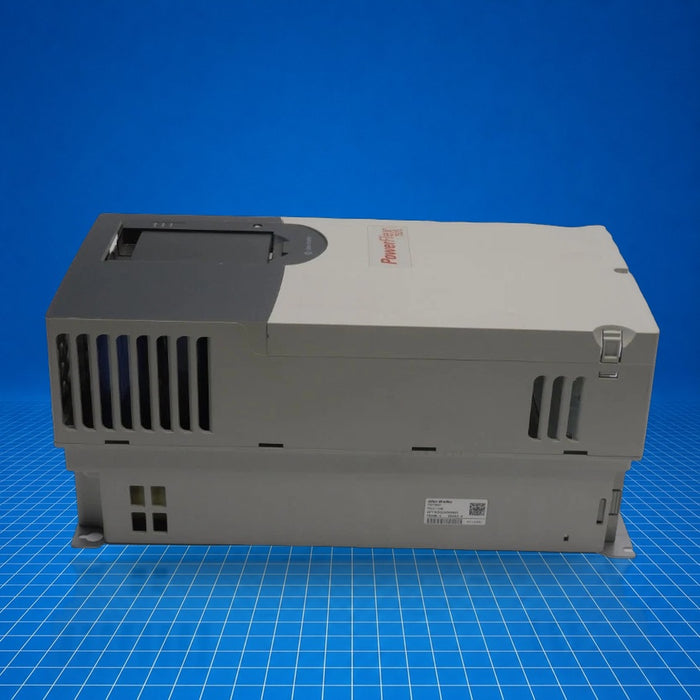

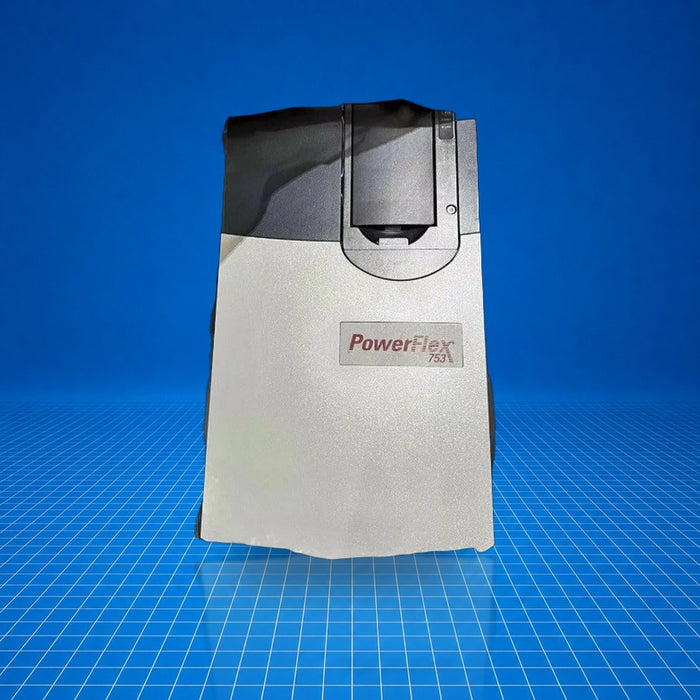

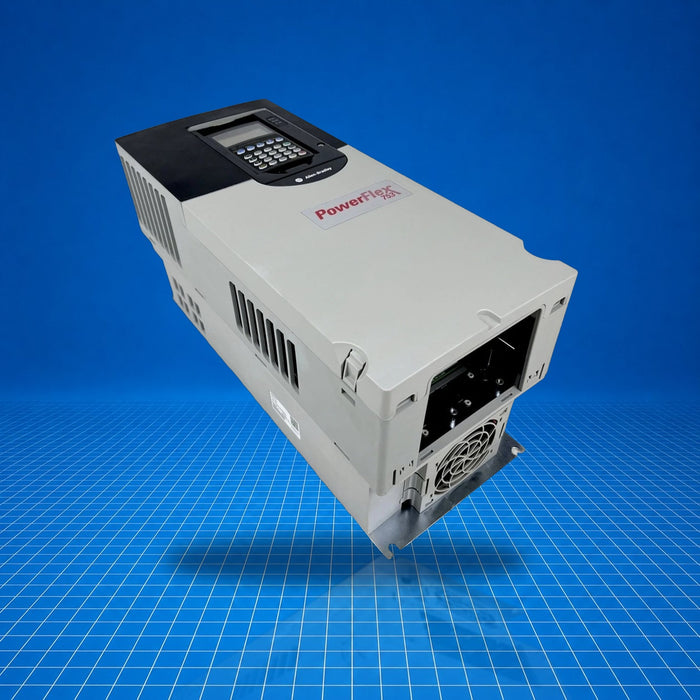

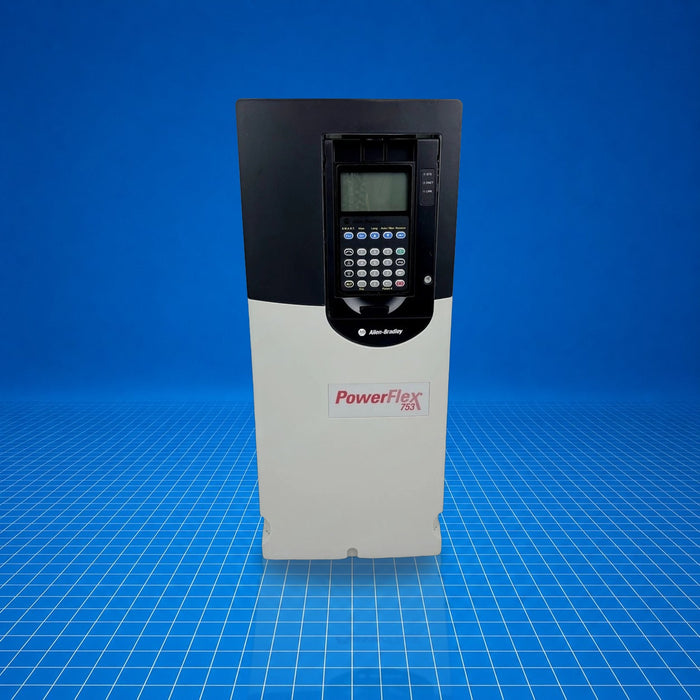

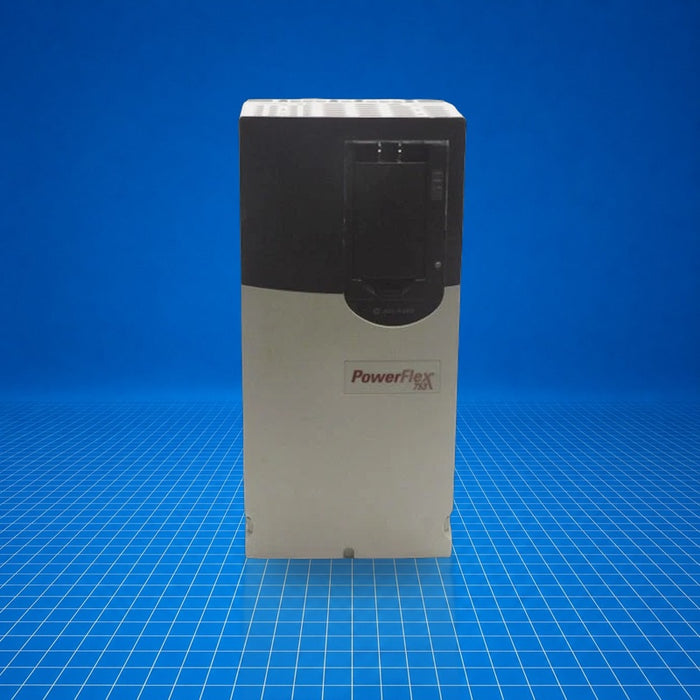

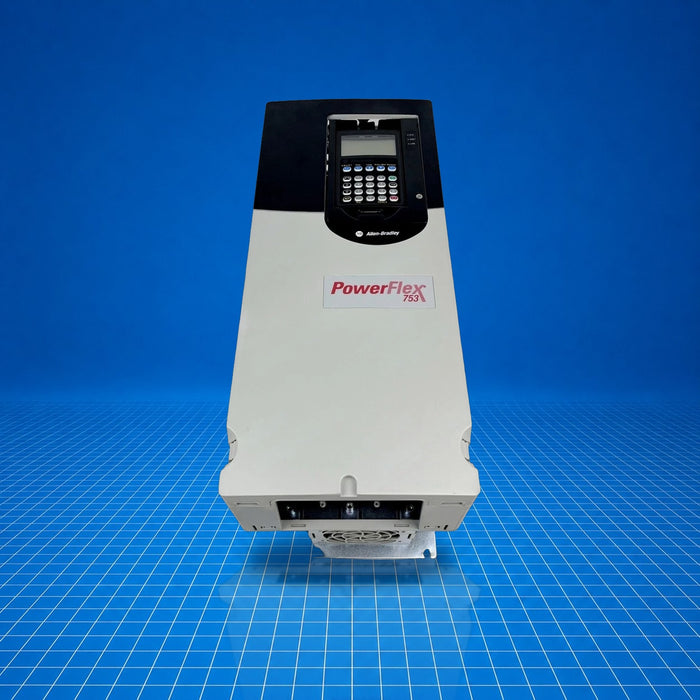

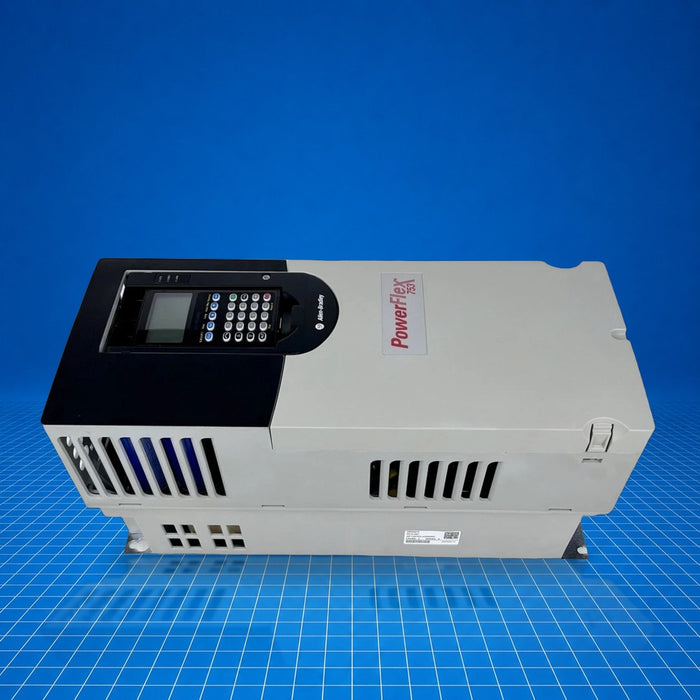

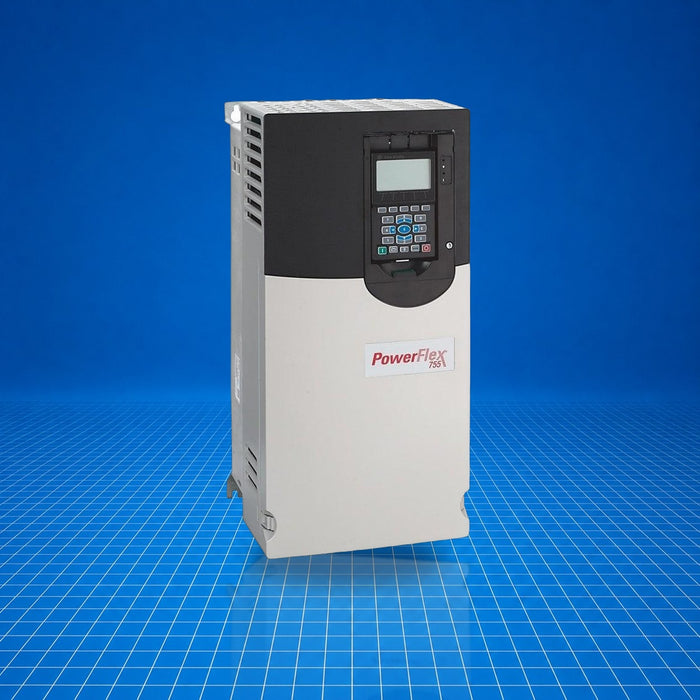

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
20F11ND052JA0NNNNN Allen-Bradley
Original price
$3,185.60
-
Original price
$5,099.98
Original price
$3,185.60
$3,185.60
-
$5,099.98
Current price
$3,185.60
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 20F11ND052JA0NNNNN is an Allen-Bradley PowerFlex 753 series air-cooled AC drive. It delivers a heavy-duty output of 40 A (30 HP) from a 480 VAC (three-phase) input and features embedded I/O, filtered input (common-mode jumper installed), forced-air cooling, dynamic braking via a DB transistor, and IP20/NEMA open-type enclosure. As part of the PowerFlex 750 family of motor control solutions, it is used for motor speed/torque control in industrial applications such as pumps, conveyors, fans, and general-purpose machinery.
Best Suited For
- Open-type cabinet installations
- Three-phase 480 VAC motor control
- Applications requiring vector control and dynamic braking
- Heavy-duty intermittent load applications
Voltage (input)
480 VAC (3-phase)
Output current (heavy-duty)
40 A
Output power
30 HP
Control method
Vector control
Cooling method
Forced air
Technical Specifications
I/O & Electrical
Input voltage range
432 - 528 VAC (3-phase)
Heavy-duty output current
40 A
Heavy-duty output power
30 HP
Dynamic braking
Built-in DB transistor
Overload capability
110 % for 60 s
Communication & Power
Filtering configuration
Filtered, CM jumper installed
Control method
Vector control
Output frequency
Up to 500 Hz
Physical & Environmental
Enclosure type
Open type (NEMA/UL open), IP20
Cooling
Forced air (internal fan)
Weight
50 lbs (22.68 kg)
Dimensions
33.02 cm × 33.02 cm × 55.88 cm
Certifications
UL ListedCEATEXKCEurasian Economic CommunityAustralian RCMRegistro Italiano NavaleSafety
