20F11ND3P4AA0NNNNN Allen-Bradley
Original price
$1,375.00
-
Original price
$3,052.71
Original price
$1,375.00
$1,375.00
-
$3,052.71
Current price
$1,375.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

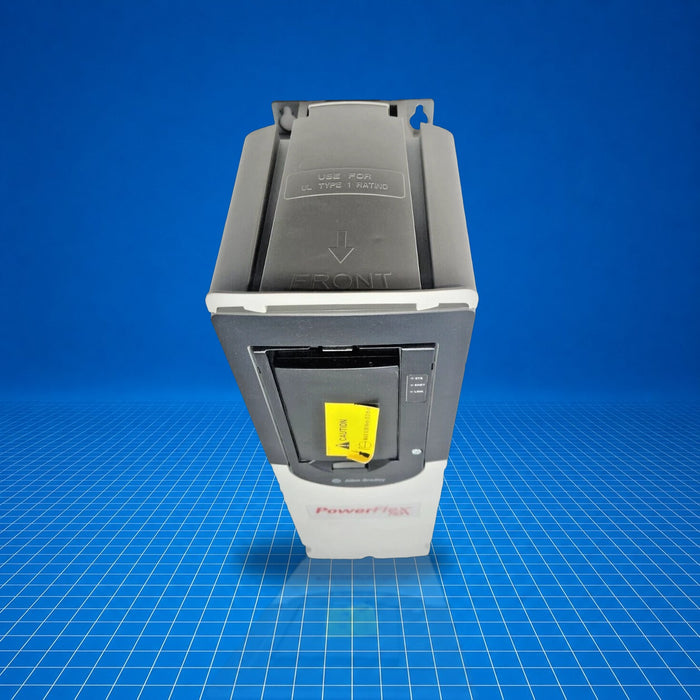

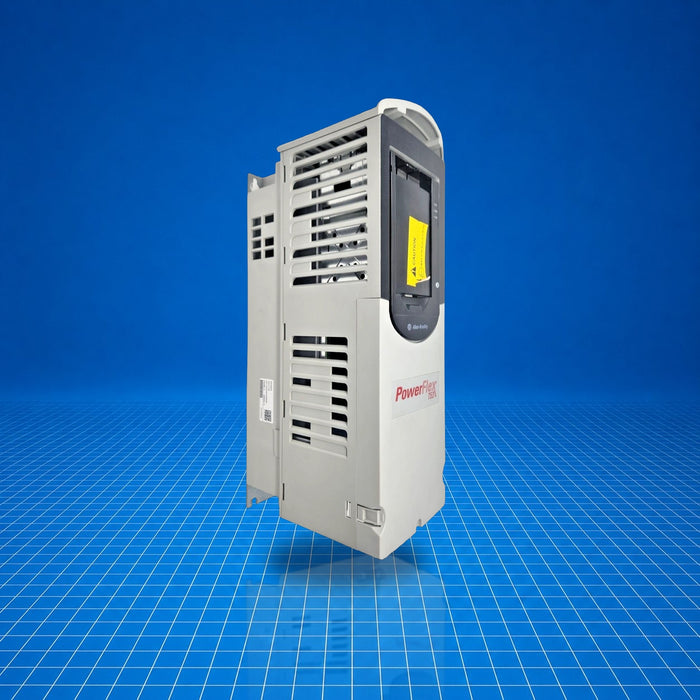

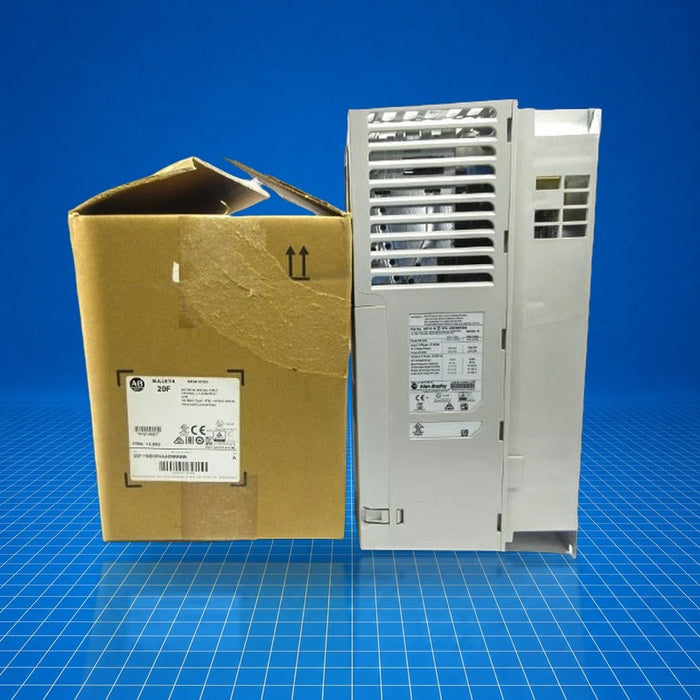

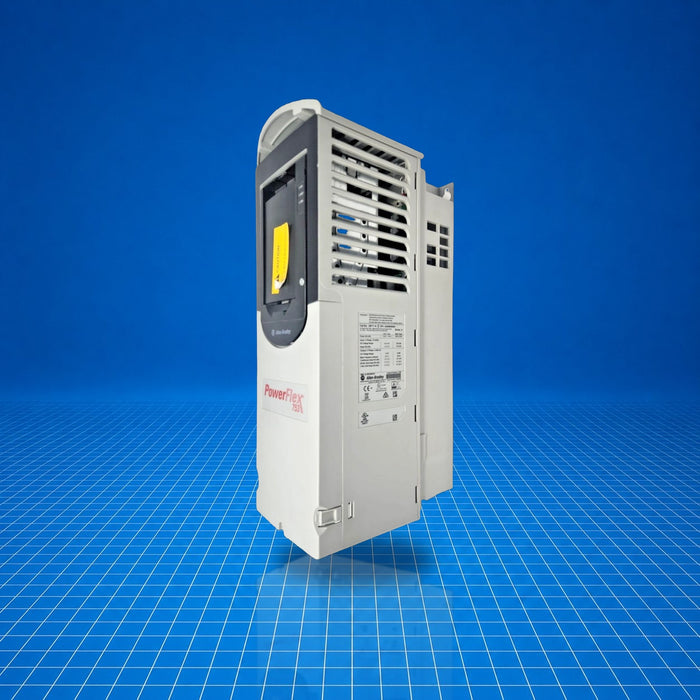

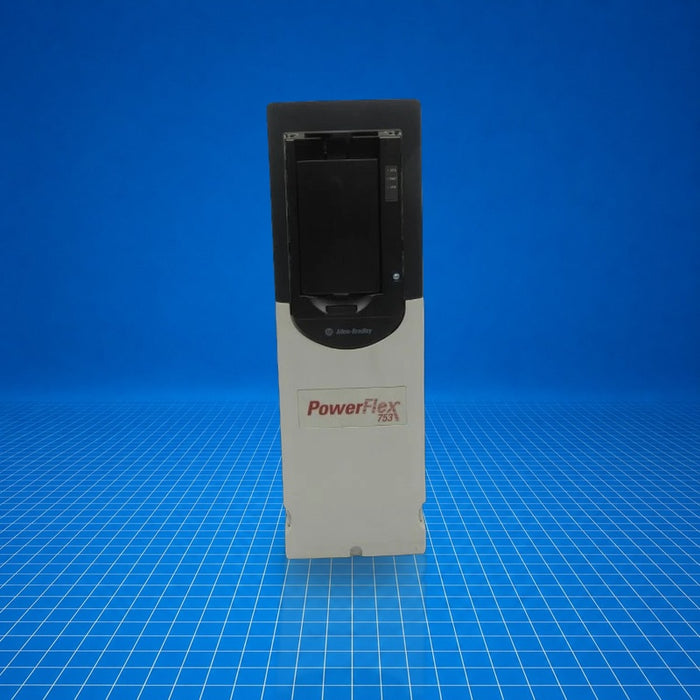

The 20F11ND3P4AA0NNNNN is an Allen-Bradley PowerFlex 753 air-cooled AC drive in Frame Size 2. It provides three-phase AC input, DC bus terminals, and dynamic braking via a transistor. It forms part of the PowerFlex family of low-voltage drives that regulate motor speed and torque in industrial applications such as pumps, conveyors, fans. It is discontinued as of June 30, 2024, with a direct replacement available as 20F11ND3P4JA0NNNNN.
Best Suited For
- Three-phase motor speed and torque control in variable-torque applications
- Retrofit or replacement in systems requiring PowerFlex 753 Frame 2 drives
- Installations using AC input with DC bus connection and dynamic braking
- Applications where IP00/IP20 open-type drive is acceptable
Discontinued Status
Discontinued June 30 2024
Output Current
4.3 A
Voltage Class
480 VAC
Frame Size
2
Enclosure Type
IP00 (IP20 NEMA)
Technical Specifications
I/O & Electrical
Input type
AC input with DC terminals
Voltage class
480 VAC
Output current
4.3 A
Phase count
Three
Communication & Power
Dynamic braking
DB Transistor
Physical & Environmental
Frame size
2
Enclosure type
IP00 (IP20 NEMA)
Weight
17.2 lbs
Dimensions
16.70 × 5.30 × 8.35 in
