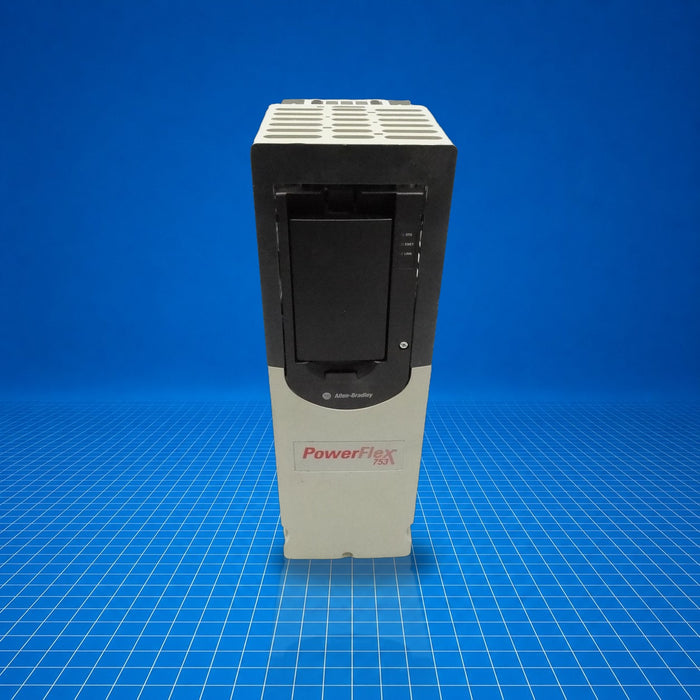

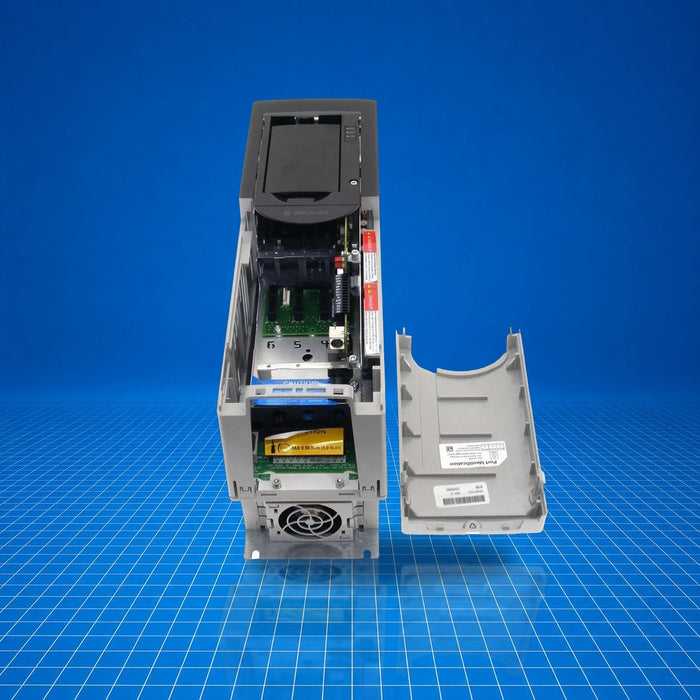

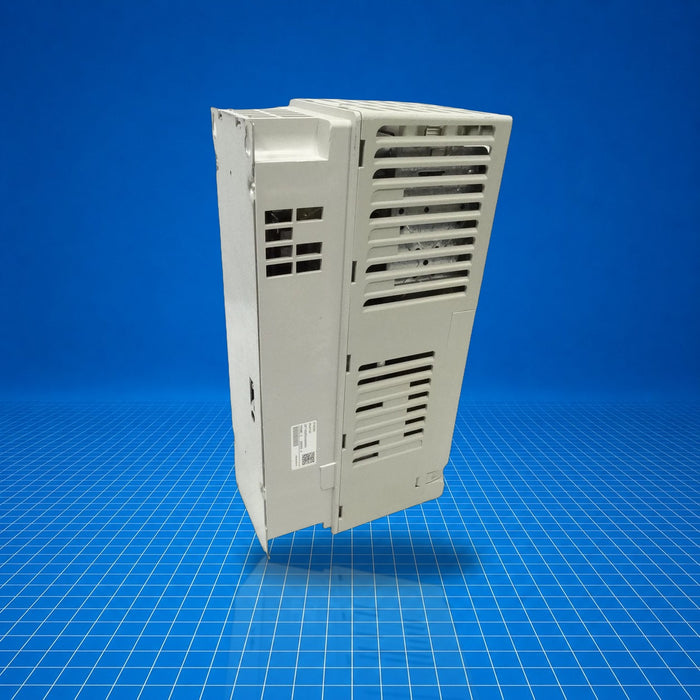

20F11ND5P0AA0NNNNN Allen-Bradley
Original price
$1,625.00
-
Original price
$2,706.75
Original price
$1,625.00
$1,625.00
-
$2,706.75
Current price
$1,625.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 20F11ND5P0AA0NNNNN is an Allen-Bradley PowerFlex 753 air-cooled adjustable frequency AC drive. It provides variable-speed motor control by adjusting output voltage and frequency. Rated for 480 VAC (also capable of 650 VDC input), the drive delivers 2.2 kW (3 HP) with up to 5 A continuous output current. It includes internal dynamic braking (DB transistor), EMC filtering, and is panel-mountable with IP20/IP00 enclosure. Suited for industrial conveyors, pumps, mixers, and general-purpose motor control where 2-3 HP drives are required.
Best Suited For
- Variable-speed control of 3 HP (2.2 kW) motors
- Panel-mounted motor applications
- Installations requiring internal dynamic braking
- Standard industrial environments for conveyors, pumps
Output power (ND)
2.2 kW / 3 HP
Output current
5 A
Input voltage
480 VAC / 650 VDC
Enclosure rating
IP20 / IP00
Dynamic braking
DB transistor (internal)
Technical Specifications
I/O & Electrical
Input voltage
480 VAC / 650 VDC
Input type
AC with precharge
Output current
5 A
Output power (ND)
2.2 kW / 3 HP
Communication & Power
EMC filtering
Included
Common-mode jumper
Removed
Dynamic braking method
Internal DB transistor
Physical & Environmental
Cooling method
Air cooled
Enclosure rating
IP20 / IP00
Mounting style
Panel mount
Weight
10.00 lbs (4.54 kg)
