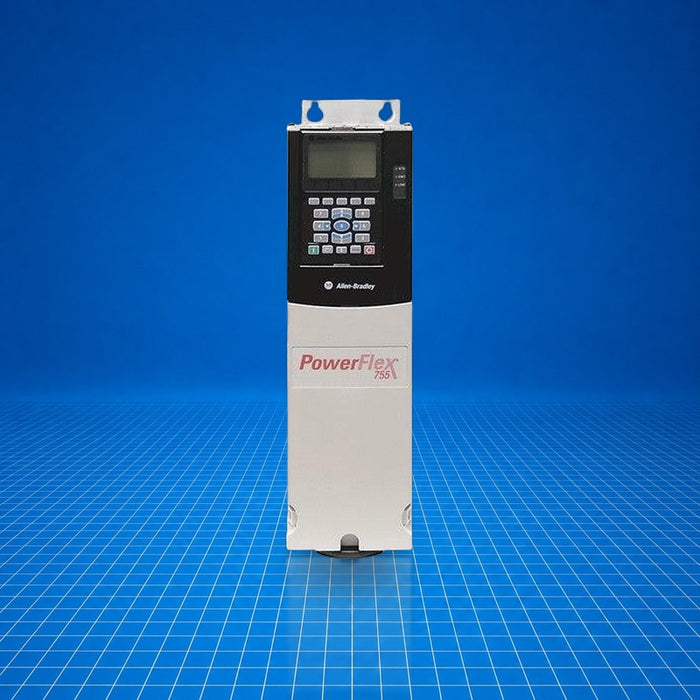

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
20F11RD3P4AA0NNNNN Allen-Bradley
Original price
$0.00
-
Original price
$1,237.50
Original price
$1,237.50
$0.00
-
$1,237.50
Current price
$1,237.50
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 20F11RD3P4AA0NNNNN is an Allen-Bradley PowerFlex 753 air-cooled AC drive, frame size 1, designed to regulate three-phase motor speed in industrial automation systems. It is part of the PowerFlex 753 series, intended for general-purpose drive applications where precise motor control is required. The drive accepts 460-480 V AC input and delivers up to 3.4 A continuous output, with higher short-term ratings. It is commonly used for pump, fan, conveyor, and OEM machine applications.
Best Suited For
- Three-phase motor speed control (frame 1, 460-480 V)
- OEM machine integration with embedded I/O
- Pump and fan drive applications requiring IP00/IP20 open-type installation
- Replacement or refurbishment of existing PowerFlex 753 drives
Continuous output current
3.4 A
Heavy-duty output current (60 s)
3.7 A
Heavy-duty output current (3 s)
5.1 A
Motor horsepower (normal duty)
2 hp
Motor horsepower (heavy duty)
1 hp
Technical Specifications
I/O & Electrical
Input voltage
460…480 V AC, three-phase
Continuous output current
3.4 A
Short-time output current (60 s)
3.7 A
Short-time output current (3 s)
5.1 A
Communication & Power
Dynamic braking
DB Transistor
Filtering & common-mode capacitor configuration
EMC Filter
Physical & Environmental
Frame type
Frame 1, air-cooled, IP00/IP20 low-voltage, NEMA/UL open type
Certifications
Australian RCMSafetySemiconductor Inds Immunity
