20G11ND014JA0NNNNN Allen-Bradley
Product image is representative; revision or series may vary.
Contact us to request a specific version.

20G11ND014JA0NNNNN Allen-Bradley

$3,150.00 - $4,118.00
$3,150.00
$3,150.00 - $4,118.00
$3,150.00
Surplus - Tested (With Warranty)
Need a Specific Revision?
$3,150.00
4 in stock
New / Open-Box Surplus
Need a Specific Revision?
$4,118.00
2 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (4) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

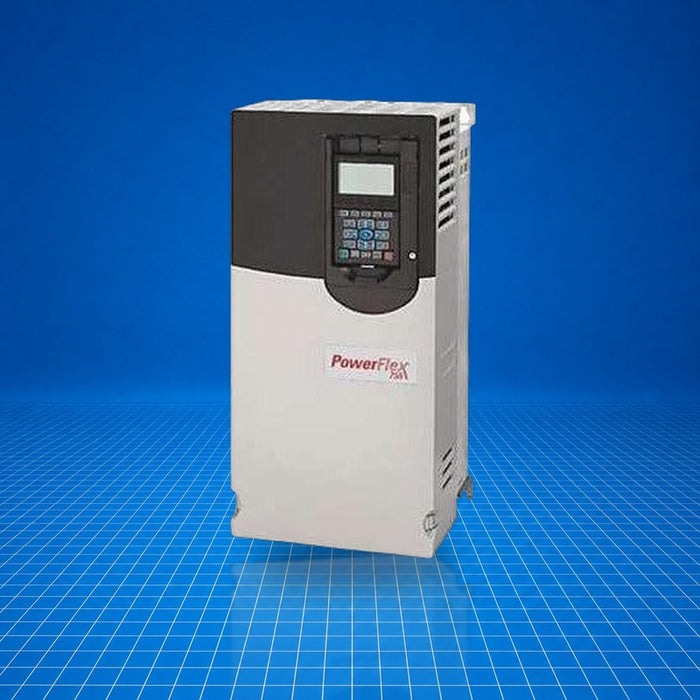

The 20G11ND014JA0NNNNN is an Allen-Bradley PowerFlex 755 air-cooled packaged AC drive, Frame 2, for three-phase input. It features embedded Ethernet/IP and standard protection. It provides up to 10 hp (normal-duty) or 7.5 hp (heavy-duty) performance at a 480 VAC rating. It omits an HIM (Human Interface Module), and includes filtered input with common-mode jumper installed and DB transistor dynamic braking. The unit is used for motor speed and torque control in industrial automation systems.

Best Suited For

  • Three-phase motor control (10 hp ND, 7.5 hp HD)
  • Embedded Ethernet/IP network integration
  • Panel-mounted air-cooled applications
  • Replacement for discontinued 20G11ND014AA0NNNNN units
Rated voltage
480 VAC / 650 V DC
Rated current
14.0 A
Duty ratings (hp)
10 hp ND, 7.5 hp HD
Input topology
AC input with precharge + DC terminals

Technical Specifications

I/O & Electrical

Rated voltage
480 VAC / 650 V DC
Rated current
14.0 A
Power rating (normal duty)
10 hp
Power rating (heavy duty)
7.5 hp
Input topology
AC input with precharge and DC terminals
Dynamic braking
DB transistor

Communication & Power

Embedded communication
Ethernet/IP

Physical & Environmental

Frame size
2
Protection rating
IP20
Operating temperature range
0 °C to 40 °C
Max operating humidity
80 % (non-condensing)
Installation altitude
up to 1000 m
Weight
20 lbs (9.07 kg)

Certifications

UL ListedCEATEXKorean KCABSRegistro Italiano NavaleSemiconductor ImmunityEurasian Economic Community

UL Listed, CE, ATEX, Korean KC, American Bureau of Shipping, Registro Italiano Navale, Semiconductor Immunity, Eurasian Economic Community (certified as of May 19, 2026).
