Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

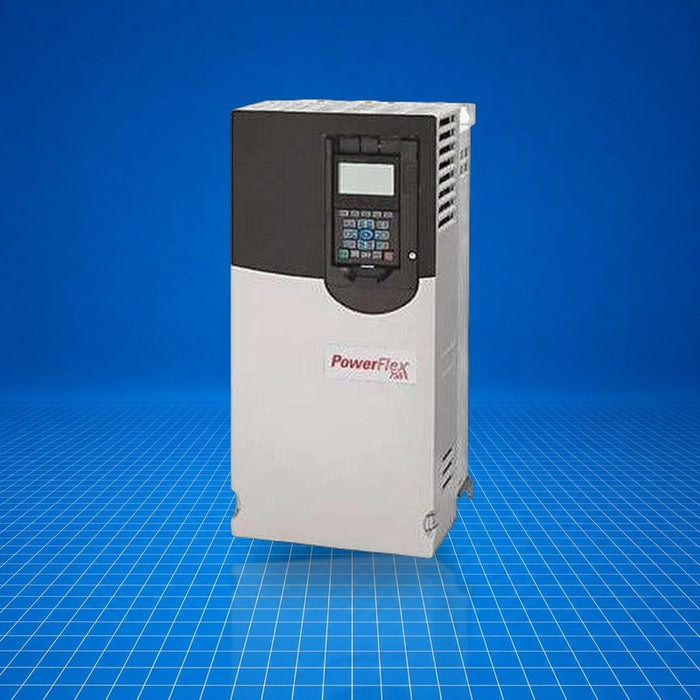

The 20G11ND2P1AA0NNNNN is an Allen-Bradley PowerFlex 755 air-cooled AC drive in an open-type (IP00/IP20) NEMA/UL frame, designed for three-phase motor control with pre-charge AC input and DC terminals. It operates at 380-480 VAC, frame size 2, delivering continuous output at 2.1 A, suited to low-horsepower industrial motor applications. The drive has been discontinued as of June 30, 2024, with direct replacement available as 20G11ND2P1JA0NNNNN for continued use in control systems.
Best Suited For
- Low-horsepower three-phase motor control
- Air-cooled open-frame installations
- Pre-charge input AC drive applications
- Replacement for discontinued PowerFlex 755 units
Discontinued
Yes (as of June 30, 2024)
Replacement
20G11ND2P1JA0NNNNN
Continuous Output Amps
2.1 A
Voltage Input Range
380-480 VAC 3 ph
Technical Specifications
I/O & Electrical
Continuous output current
2.1 A
Line frequency
50/60 Hz
Communication & Power
AC input type
Pre-charge AC input
DC terminals
Included
Physical & Environmental
Enclosure rating
IP00/IP20, NEMA/UL open type
Cooling
Air-cooled
Certifications
ULCE
Lifecycle discontinued; replacement available as 20G11ND2P1JA0NNNNN
