Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

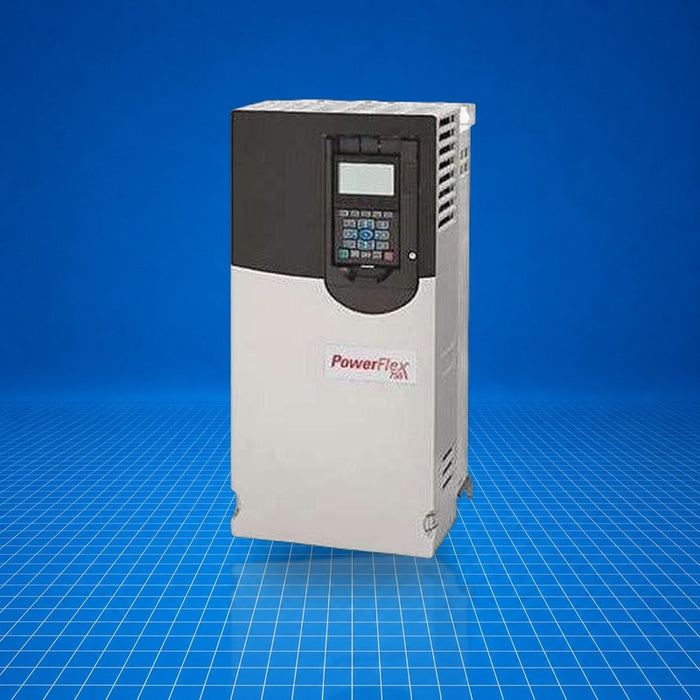

The Allen-Bradley PowerFlex 755 air-cooled AC drive, part number 20G11NE017AA0NNNNN, is a medium-voltage motor control device in the PowerFlex 755 series, Frame Size 3. It regulates three-phase AC motors by converting AC input with precharge circuitry and delivering controlled output up to 11.2 kW (15 HP). The drive features built-in filtering, dynamic braking via an internal transistor, and various enclosure options suited for open or NEMA environments. It is commonly applied in pump, fan, compressor, and conveyor systems requiring precise speed control and deceleration.
Best Suited For
- Medium-power motor speed control (up to ~15 HP)
- Applications requiring dynamic braking
- Environments with open or NEMA-type enclosures
- Retrofit or replacement in existing PowerFlex 755 installations
Voltage rating
600 VAC / 810 VDC
Current rating (normal duty)
17 A
Output power
15 HP / 11.2 kW
Frame size
3
Operating temperature
0 to 40 °C (32 to 104 °F)
Technical Specifications
I/O & Electrical
Voltage rating
600 VAC / 810 VDC
Input type
AC input with precharge (includes DC terminals)
Current rating (normal duty)
17 A
Output power
15 HP / 11.2 kW
Communication & Power
Line frequency
50/60 Hz
Dynamic braking
Internal transistor
Filtering
Yes; default CM cap configuration with jumper removed
Physical & Environmental
Frame size
3
Enclosure
IP00 / IP20 / NEMA Open / NEMA 1
Operating temperature
0 to 40 °C (32 to 104 °F)
Storage temperature
-40 to 70 °C (-40 to 158 °F)
