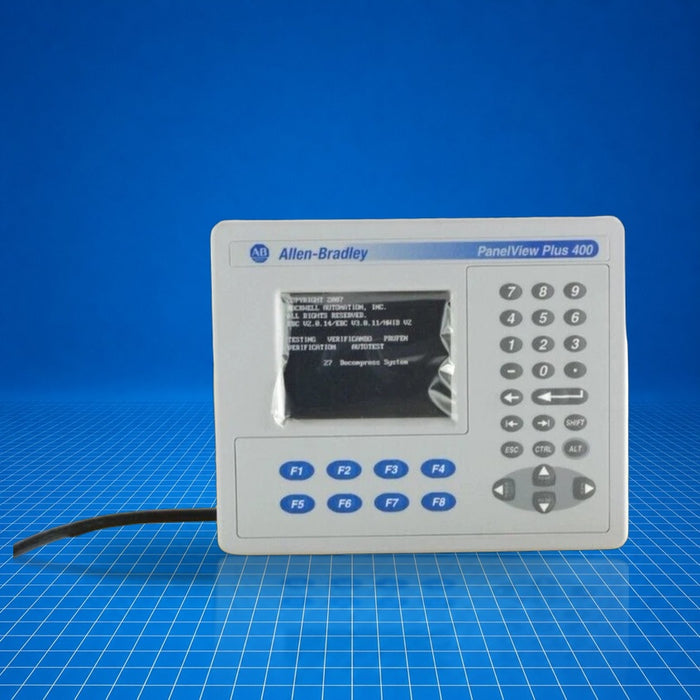

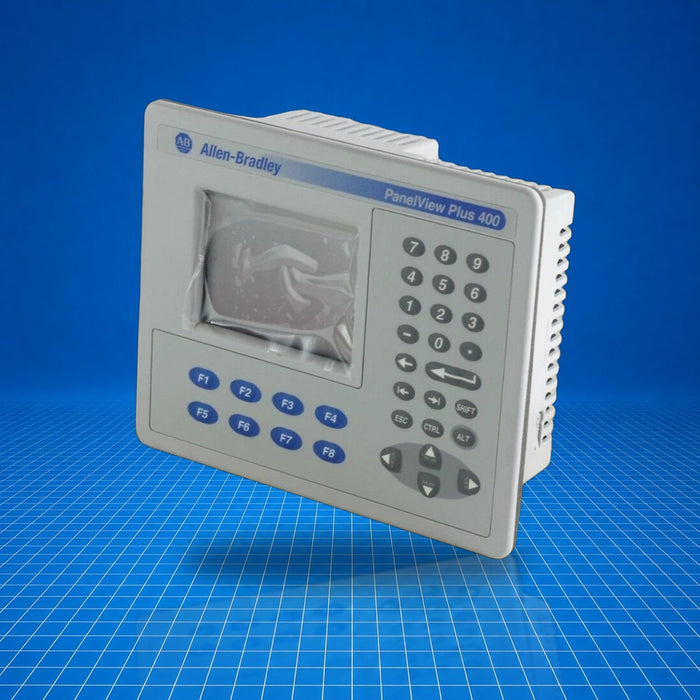

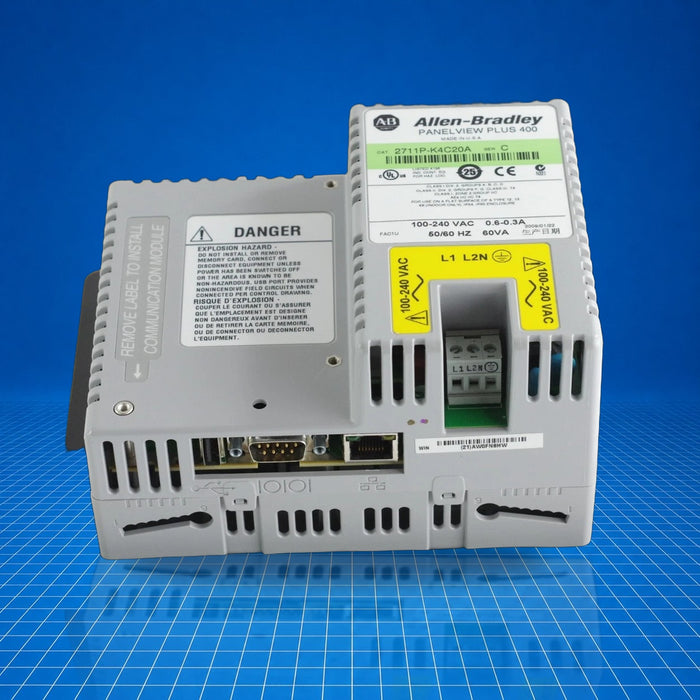

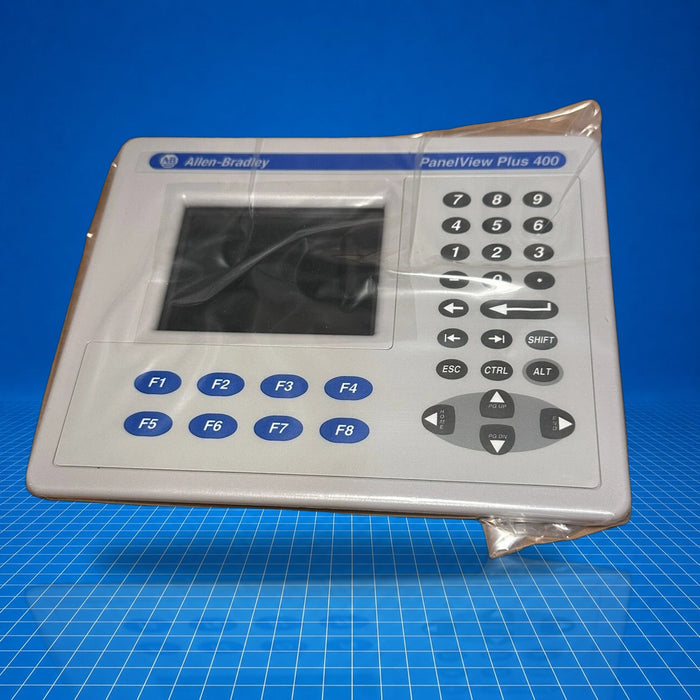

2711P-K4C20A Allen-Bradley
Original price
$2,204.98
-
Original price
$2,762.76
Original price
$2,204.98
$2,204.98
-
$2,762.76
Current price
$2,204.98
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

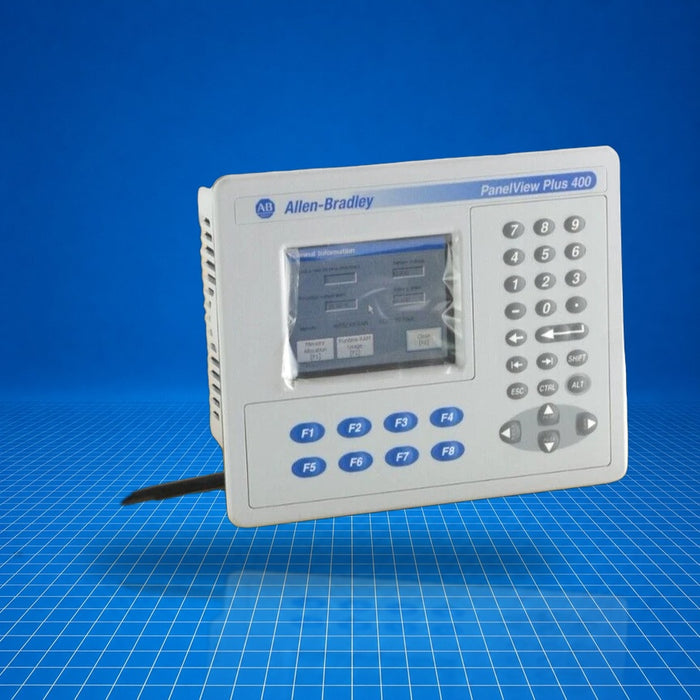

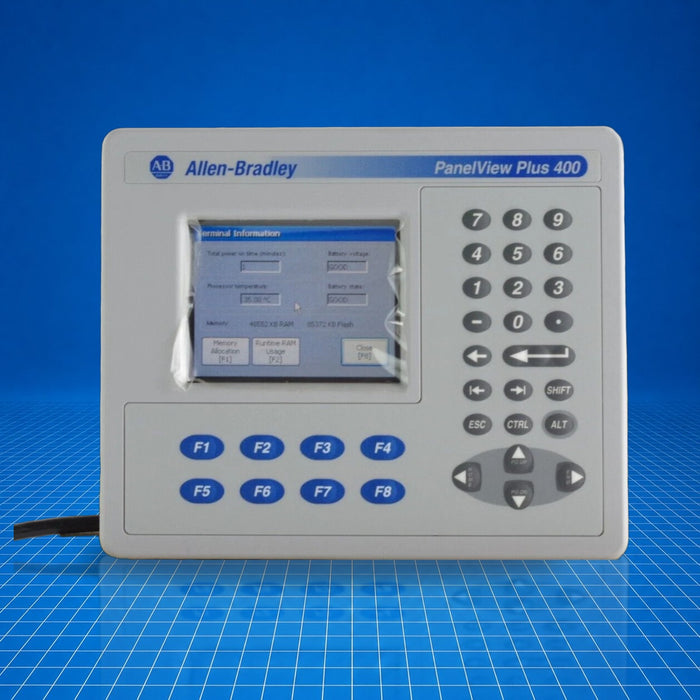

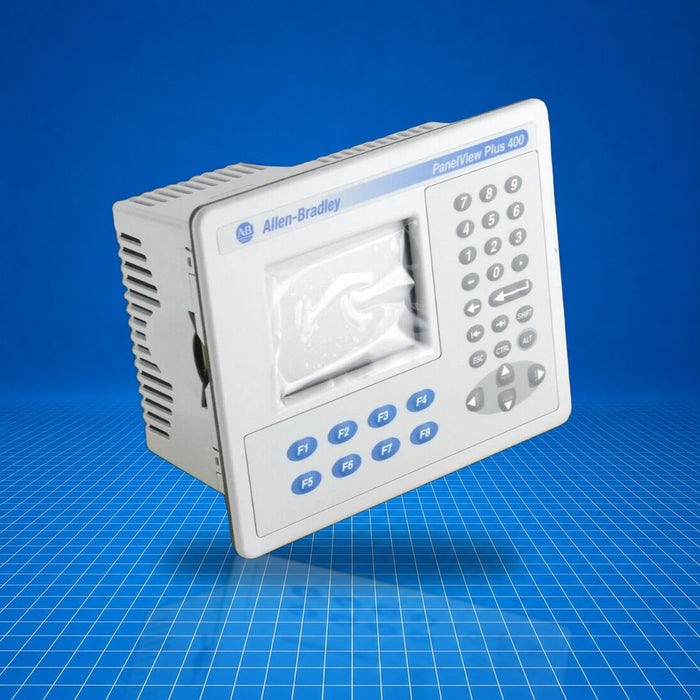

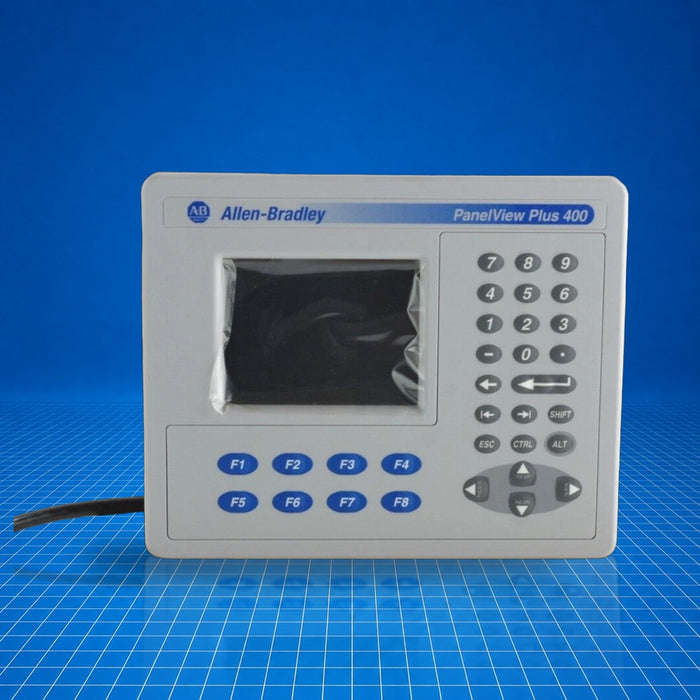

The 2711P-K4C20A is an Allen-Bradley PanelView Plus 400 series operator interface terminal. It provides a 3.5-inch color TFT display with keypad input, Ethernet and RS-232 communication, and operates on 100-240 V AC. Intended for HMI interaction with CompactLogix or ControlLogix controllers, it is typically used for machine-level monitoring and control, recipe selection, process value display, and basic file transfers within industrial control systems. Part number 2711P-K4C20A.
Best Suited For
- Machine-level operator interface on CompactLogix or ControlLogix systems
- Small footprint panel installations requiring keypad input
- Displaying process values and recipe entry in discrete machinery
- Situations needing both Ethernet and serial communication
Display
3.5 in color TFT
Operator input
Keypad
Comm ports
Ethernet (10/100 Mb)/RS-232
Power
100-240 V AC
Memory
~73 MB user memory (73152 KB)
Technical Specifications
I/O & Electrical
Input voltage
100 ... 240 V AC @ 50 ... 60 Hz
Power consumption
35 VA maximum, 20 VA typical
Heat dissipation
84 BTU/hr
Communication & Power
Communication ports
Ethernet (10/100 Mb Auto-MDI/MDI-X), RS-232, 1 USB host, 1 USB device
Protocol support
EtherNet/IP, TCP/IP
Physical & Environmental
Display resolution
320 × 240, 18-bit color graphics
Backlight
White LED, non-replaceable, ≥25 000 h at 25 °C
Operating temperature
0 °C to +… (not specified)
Enclosure rating (front)
NEMA 4X, 12, 13; IP54, IP65
Shock
Operating: 15 G @ 11 ms; Non-operating: 30 G @ 11 ms
Vibration
10-57 Hz, 0.012 mm; 57-500 Hz, 2 G
Relative humidity
5…95 % non-condensing
Weight
≈ 473 g
Dimensions (H × W × D)
152 × 185 × 60 mm; cut-out: 123 × 156 mm
