2711P-K4M20A Allen-Bradley
Original price
$0.00
-
Original price
$1,500.00
Original price
$1,500.00
$0.00
-
$1,500.00
Current price
$1,500.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

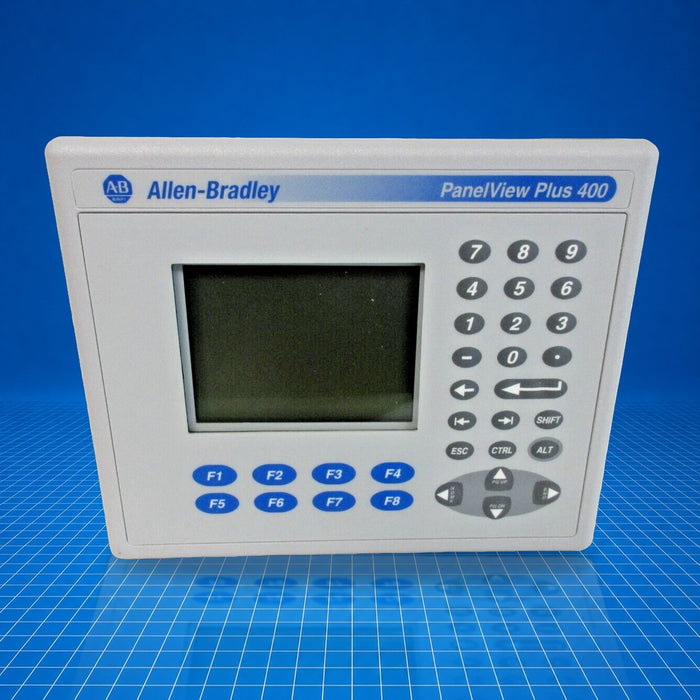

The 2711P-K4M20A is an Allen-Bradley PanelView Plus 400 operator terminal. It serves as a human-machine interface (HMI) in control systems, providing grayscale display information and keypad input to interact with PLC or PAC systems. It is typically used for local process monitoring and control in industrial environments, facilitating operator commands and status visualization. This part, 2711P-K4M20A, is suited to replace or maintain legacy PanelView Plus 400 installations.
Best Suited For
- Replacement in existing PanelView Plus 400 installations
- Grayscale display applications where color is not required
- Control panels requiring keypad operator input
- AC-powered control stations in manufacturing
- Legacy systems with Ethernet or RS-232 communication
Display
3.8 in grayscale, 320 × 240 pixels
Operator interface
Keypad, 8 function keys
Power
85-264 VAC 47-63 Hz
Communication
Ethernet, RS-232, USB host
Memory
5 MB-10 MB flash, 64 MB RAM
Technical Specifications
I/O & Electrical
Input voltage range
85-264 VAC, 47-63 Hz
Power supply type
AC
Input type
Keypad
Communication & Power
Communication ports
Ethernet, RS-232, USB host
Communication protocols
EtherNet/IP, DF1, DH-485 (medium)
Physical & Environmental
Display size
3.8 in; viewing area 77 × 58 mm
Resolution
320 × 240 pixels
Display type/backlight
Grayscale FSTN, CCFL, 50 000 h min (medium)
Enclosure/installation
Flush-mount in NEMA 12/13/4X indoor; IP54/65 (medium)
Operating temperature
0-55 °C (32-131 °F) (medium)
Actuation lifespan
1 million key presses (medium)
