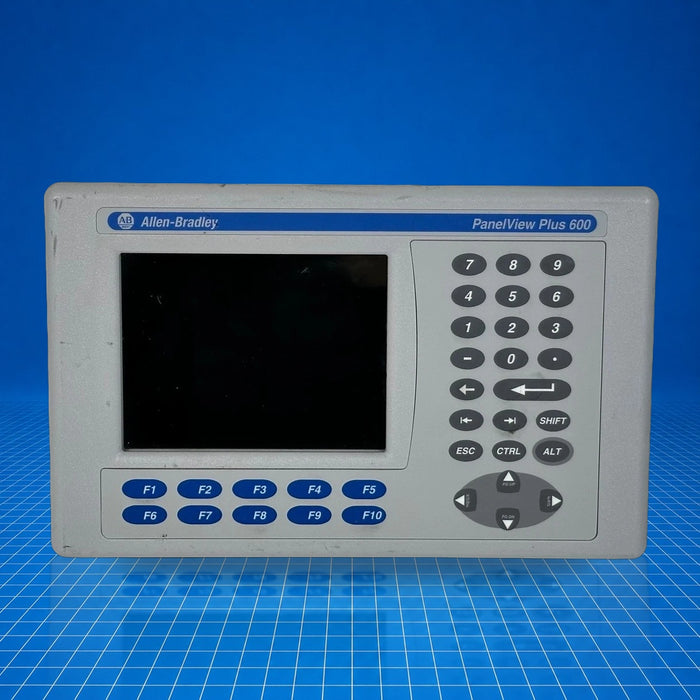

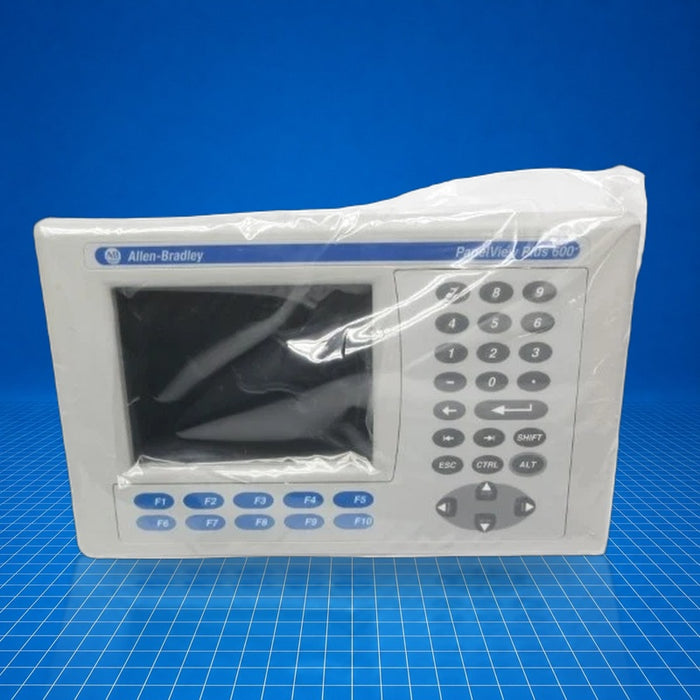

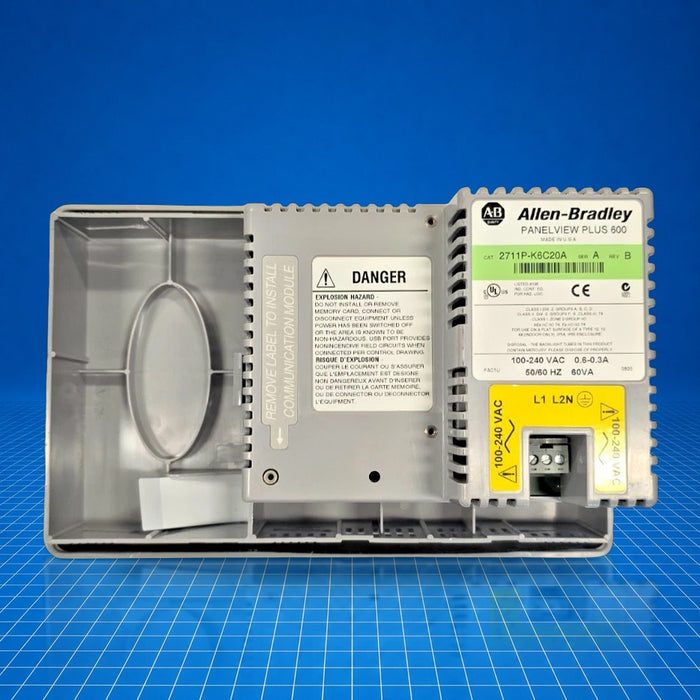

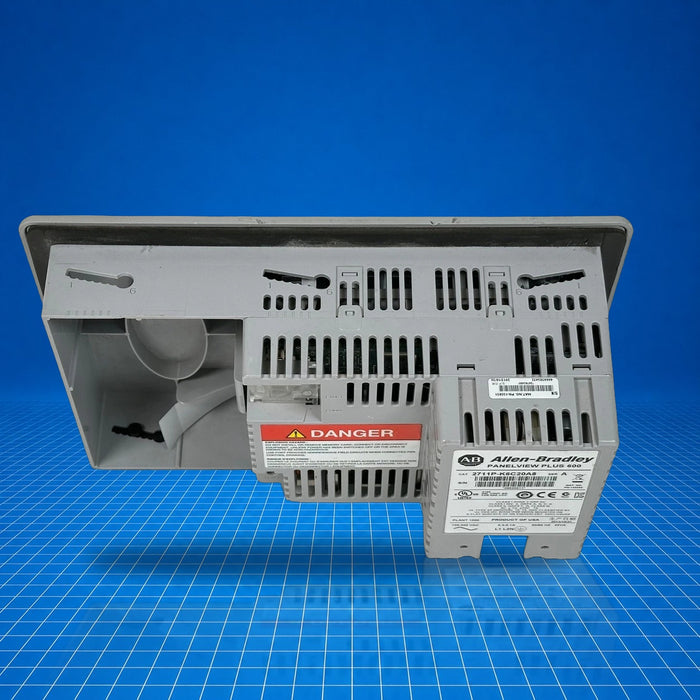

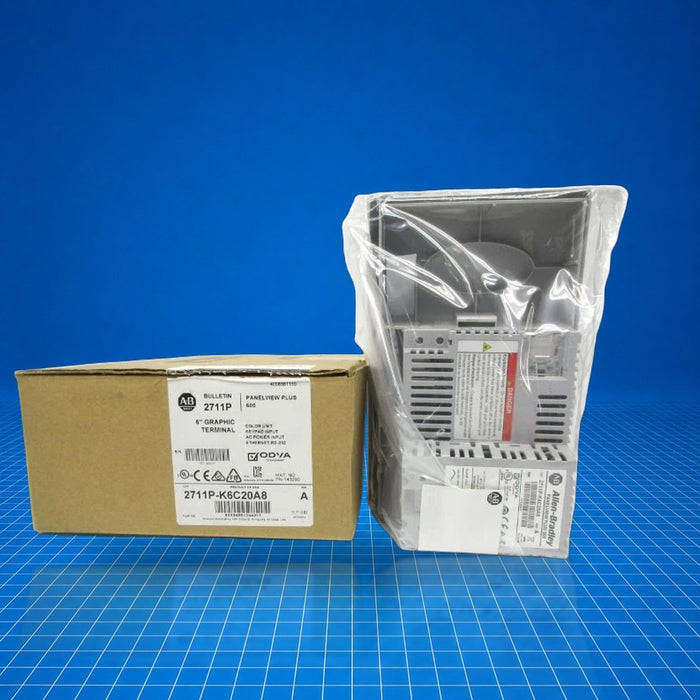

2711P-K6C20A Allen-Bradley
Original price
$1,749.88
-
Original price
$11,880.00
Original price
$1,749.88
$1,749.88
-
$11,880.00
Current price
$1,749.88
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 2711P-K6C20A is an Allen-Bradley PanelView Plus 600 series operator interface terminal. It provides a color graphic display and keypad-based input for visualization and control in industrial automation systems. The unit functions as an HMI on machine-level or panel-level applications such as discrete machinery, process control stations, and centralized operator stations. 2711P-K6C20A integrates with Allen-Bradley control systems via standard communication ports and is often used where a compact, keypad-driven operator interface is required.
Best Suited For
- Machine-level operator interface with keypad input
- Panel installations requiring color graphic display
- Integration with RS-232, USB and Ethernet-based control systems
- Replacement in PanelView Plus 600 legacy HMI applications
Display
5.7 in. color TFT, 320 × 240 (18-bit)
Input interface
Keypad (membrane, ≥1 million presses, 340 g)
Memory
256 MB RAM, 512 MB non-volatile
Power
100-240 VAC, 50/60 Hz
Communications
Ethernet, RS-232, USB host and device
Technical Specifications
I/O & Electrical
Input voltage range
100-240 VAC, 50/60 Hz
Power consumption
20 VA nominal, 35 VA max
Communication & Power
Communication ports
1 × 10/100 Mbps Ethernet, 1 × RS-232, 1 × USB host, 1 × USB device
Memory
256 MB RAM, 512 MB non-volatile
Physical & Environmental
Display size & resolution
5.7 in., 320 × 240, 18-bit color, backlight LED ≥ 25 000 h
Panel cut-out
142 × 241 mm cut-out; unit front 266 × 167 mm, depth ~98 mm
Dimensions & weight
≈ 728 g; 266 × 167 × 98 mm
Environmental ratings
NEMA 12, 13, 4X (front), IP66 front; operating temp 0 °C to ??? (non-operating -25 °C)
Certifications
UKCANEMA 12NEMA 13NEMA 4XIEC IP66
