2711P-K6M20A8 Allen-Bradley
Original price
$1,960.00
-
Original price
$3,571.42
Original price
$1,960.00
$1,960.00
-
$3,571.42
Current price
$1,960.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

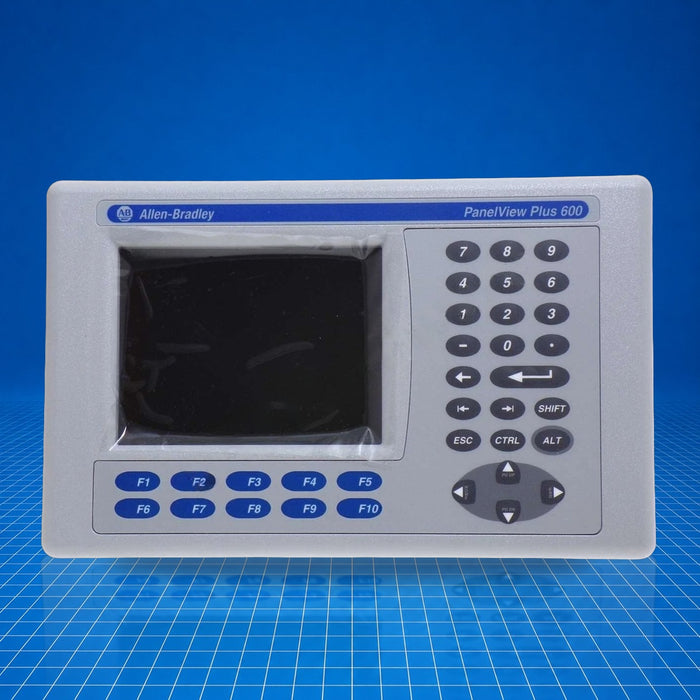

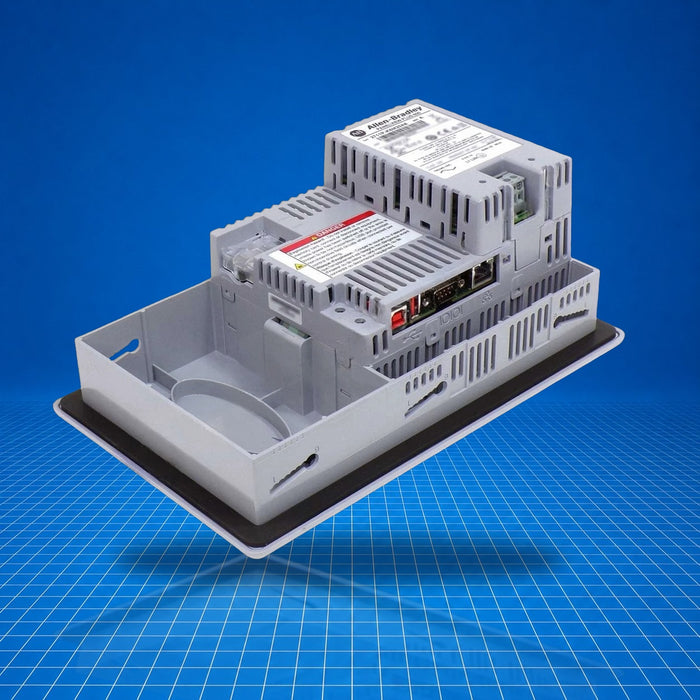

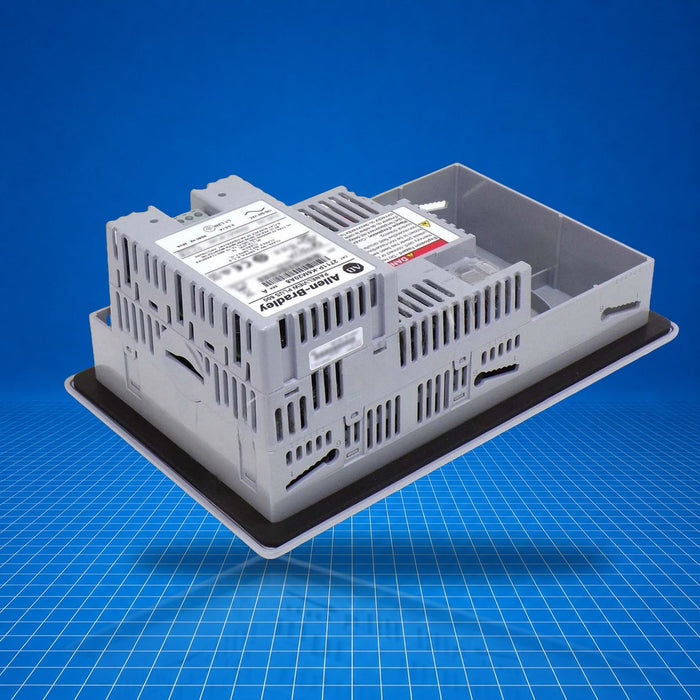

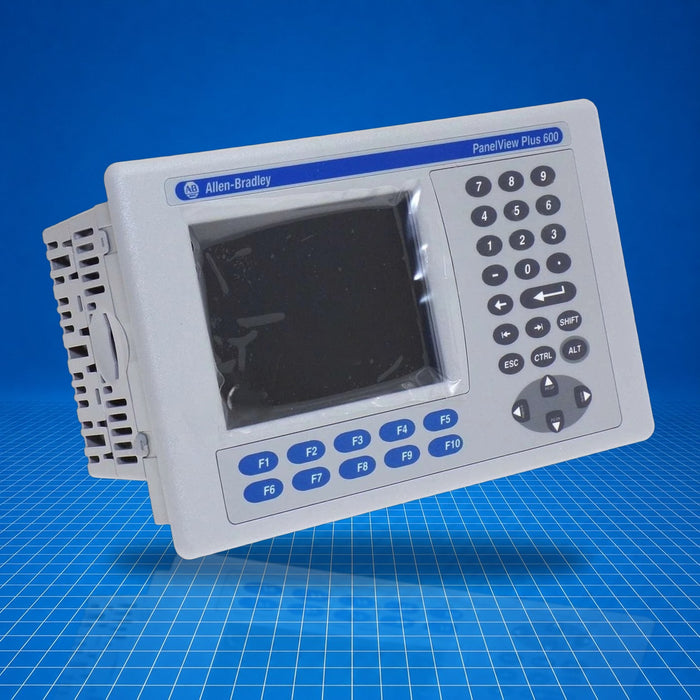

The Allen-Bradley 2711P-K6M20A8 is a PanelView Plus 6 operator terminal, 600-series, with a 5.7-inch grayscale TFT display and keypad input. It is used in control systems to provide operators with display and input capabilities via Ethernet and RS-232 interfaces. It typically interfaces with PLCs in industrial automation applications such as machinery control, process monitoring, or batch operations.
Best Suited For
- Grayscale display requirement in operator HMI applications
- Ethernet-based connectivity to PLC systems
- RS-232 communication legacy interfaces
- Environments requiring front-side NEMA 4X / IP66 protection
Display size
5.7 in
Resolution
320 × 240 pixels
Memory (RAM / non-volatile)
256 MB RAM / 512 MB non-volatile
Power consumption
35 VA typical, 35 VA max (20 VA typical, 35 VA max)
Ingress protection
Front: NEMA 4X, IP66
Technical Specifications
I/O & Electrical
Input voltage
100 V AC (50/60 Hz)
Power consumption
20 VA typical, 35 VA maximum
Heat dissipation
85 Btu/hr
Communication & Power
Communication ports

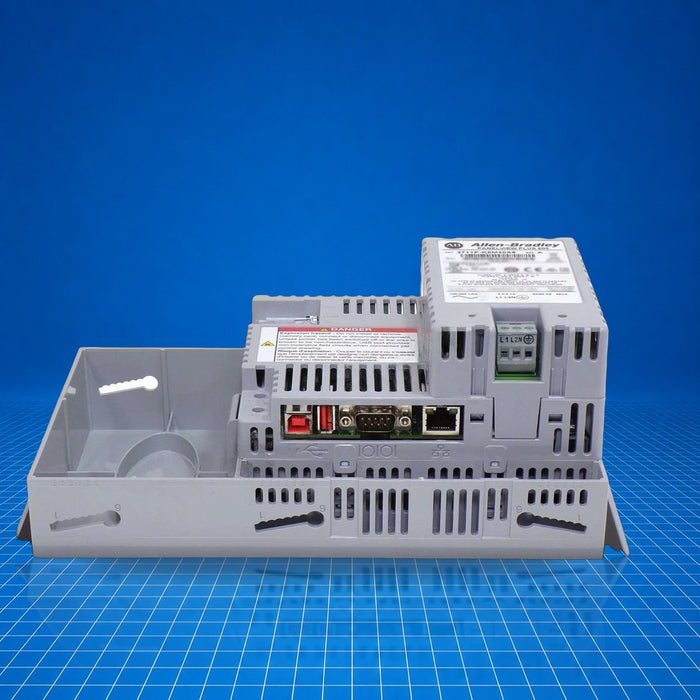

RS-232, 1 USB host, 1 USB device, Ethernet (10/100 Base-T, auto-MDI/MDI-X)
Physical & Environmental
Operating temperature
0 °C
Non-operating temperature
-25 °C
Relative humidity
5 - 95 % non-condensing
Shock
15 G at 11 ms
Vibration
10-57 Hz, 0.012 mm p-p; 57-500 Hz, 2 g
Altitude, operating
2000 m
Front ingress protection
NEMA 12, 13, 4X; IP66
Cut-out dimensions
142 × 241 mm
Dimensions (W × H × depth)
266 × 167 mm; built-in depth 98 mm
Weight
728 g
