2711P-T6M20A8 Allen-Bradley

Original price $3,077.80 - Original price $4,529.49
Original price
$4,529.49
$3,077.80 - $4,529.49
Current price $4,529.49
Surplus - Tested (With Warranty)
New / Open-Box Surplus
Need a Specific Revision?
$4,529.49
2 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (2) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

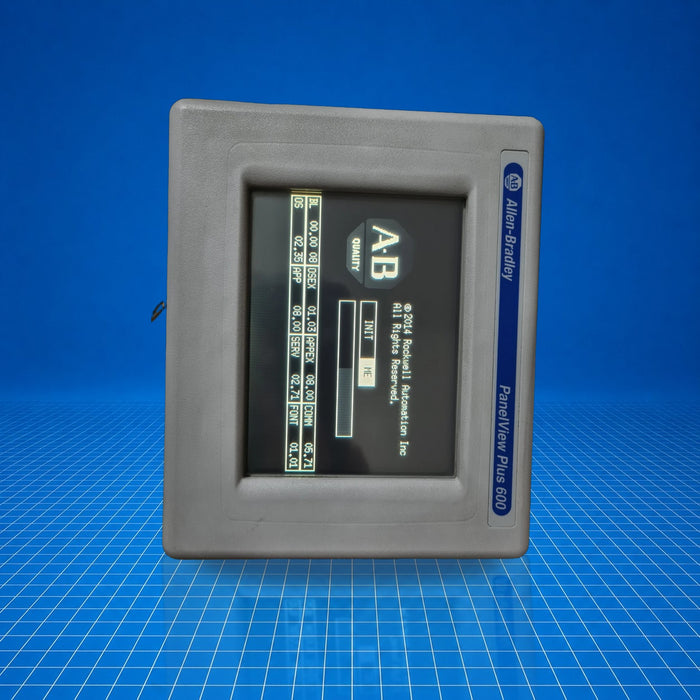

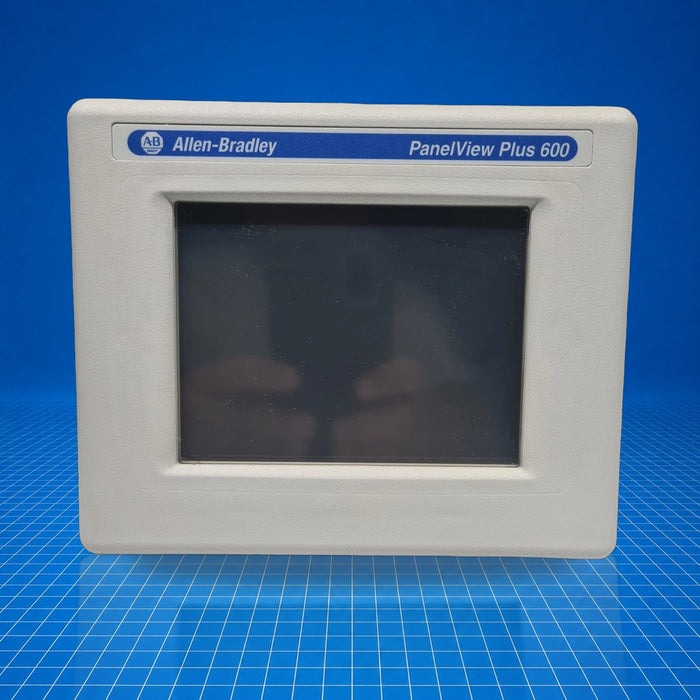

The Allen-Bradley 2711P-T6M20A8 is a PanelView Plus 6 operator terminal featuring a 5.7-inch grayscale TFT-LCD and resistive touch input. Designed for industrial automation monitoring and control, it provides Ethernet and RS-232 connectivity along with USB ports, running Windows CE 6.0 and FactoryTalk View Machine Edition. It mounts in control panels and is typically used in machine-level HMI applications such as packaging, material handling, or batch control systems. 2711P-T6M20A8 integrates panel-mount functionality with local operator interaction.

Best Suited For

  • Machine-level HMI interface in discrete or batch control
  • Panel-mount use in production or packaging lines
  • EtherNet/IP-connected control systems
  • Legacy system replacement or refurbishment
Display size
5.7 in
Resolution
320 × 240, 16-level gray
Memory (RAM/non-volatile)
256 MB RAM, 512 MB non-volatile (≈79 MB user)
Input voltage range
100-240 V AC @ 50-60 Hz
Power consumption
20 VA typical, 35 VA max

Technical Specifications

I/O & Electrical

Input voltage
100-240 V AC @ 50-60 Hz
Power consumption (typical)
20 VA
Power consumption (maximum)
35 VA

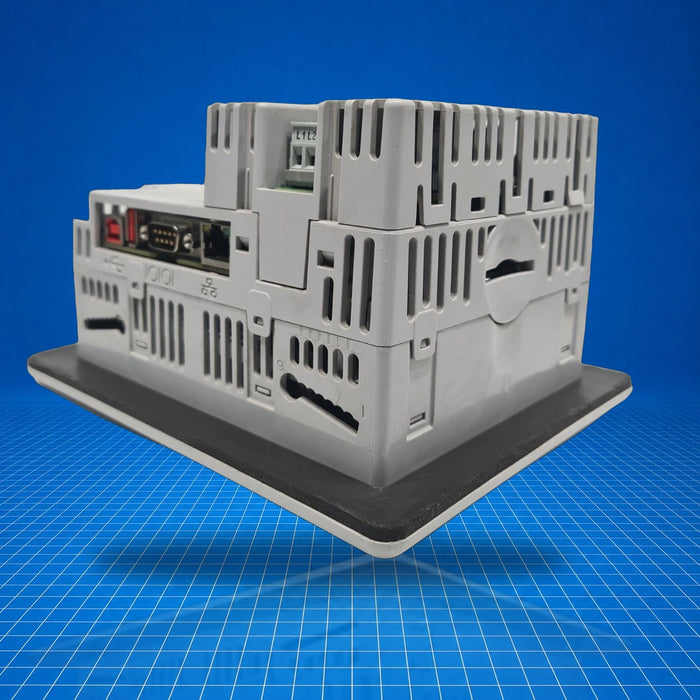

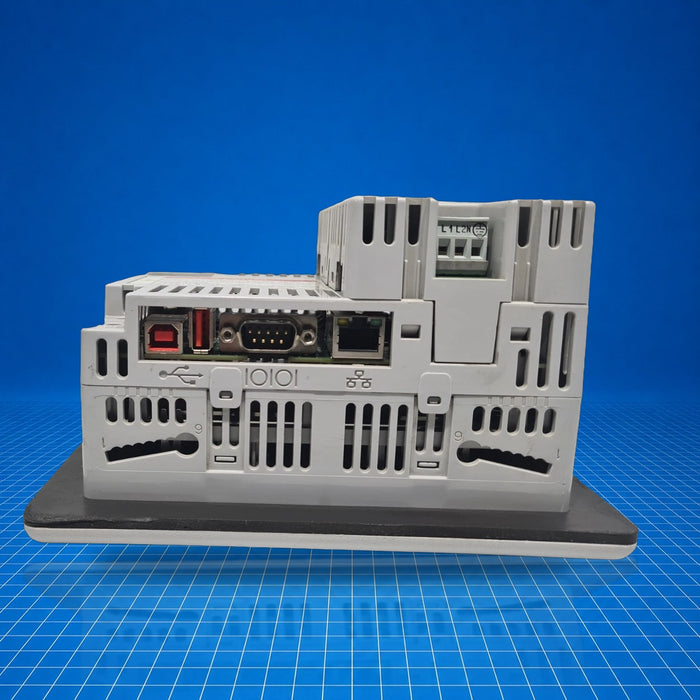

Ethernet ports
1 (10/100 Mbps, Auto-MDI/MDI-X)
Serial port
1 × RS-232
USB ports
1 USB host, 1 USB device

Communication & Power

Protocols
EtherNet/IP, TCP/IP
OS & software

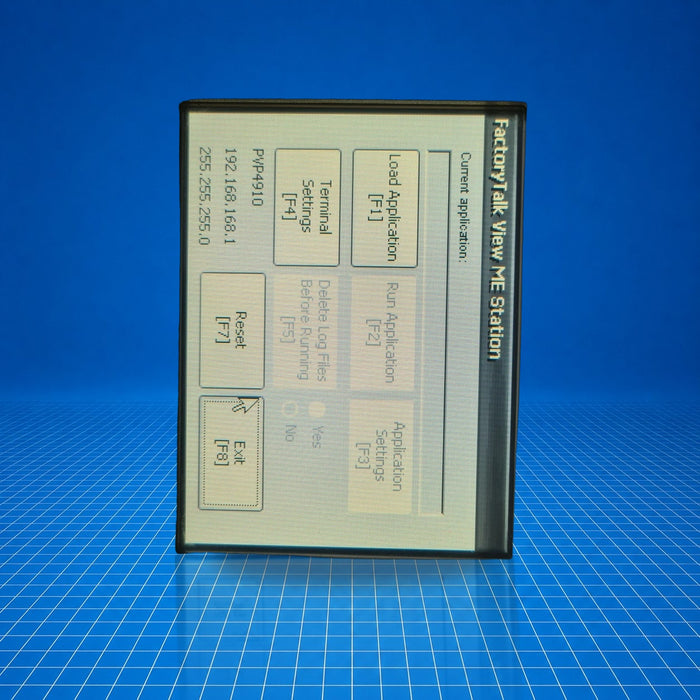

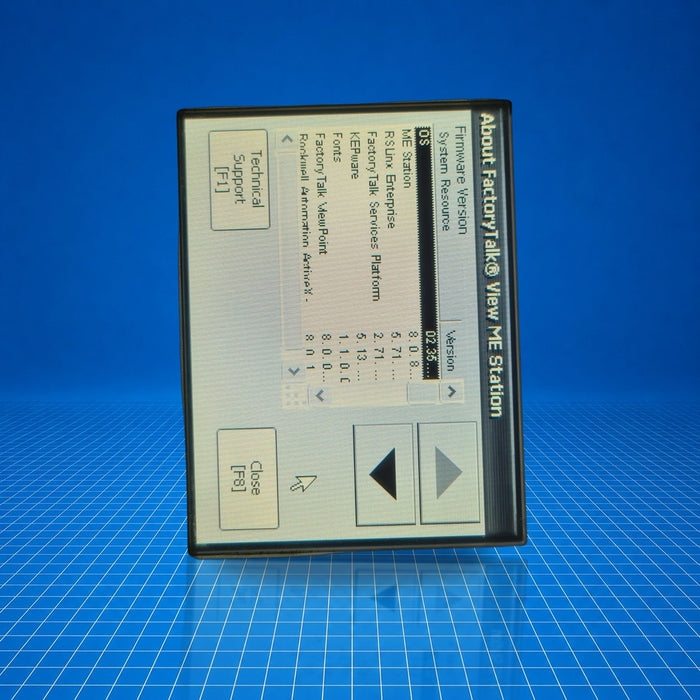

Windows CE 6.0; FactoryTalk View Machine Edition 6.10+

Physical & Environmental

Dimensions (W × H × D)
152 × 185 × 68 mm (front 152×185 mm, depth 98 mm)
Cutout size
123 × 156 mm
Weight
594 g
Touch technology
4-wire analog resistive, 10-110 g actuation
Backlight
White LED, non-replaceable, 25 000 hr at 25 °C
Operating temp
0 °C and up (exact range not specified)
Enclosure/IP
Front: NEMA Type 4X,12,13; IP 54,65; Indoor only
