3RA6120-1BB32 Siemens-Siemens-Never Used Surplus-PLC Department
Product image is representative; revision or series may vary.
Contact us to request a specific version.

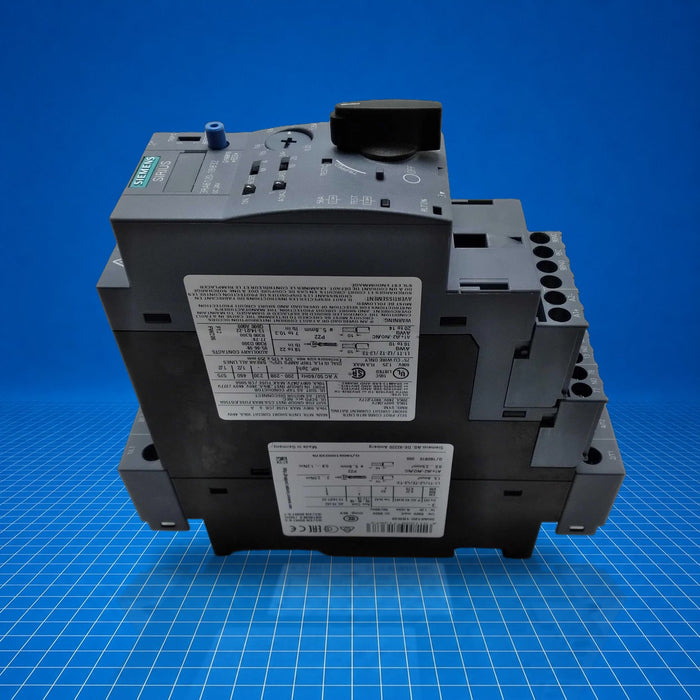

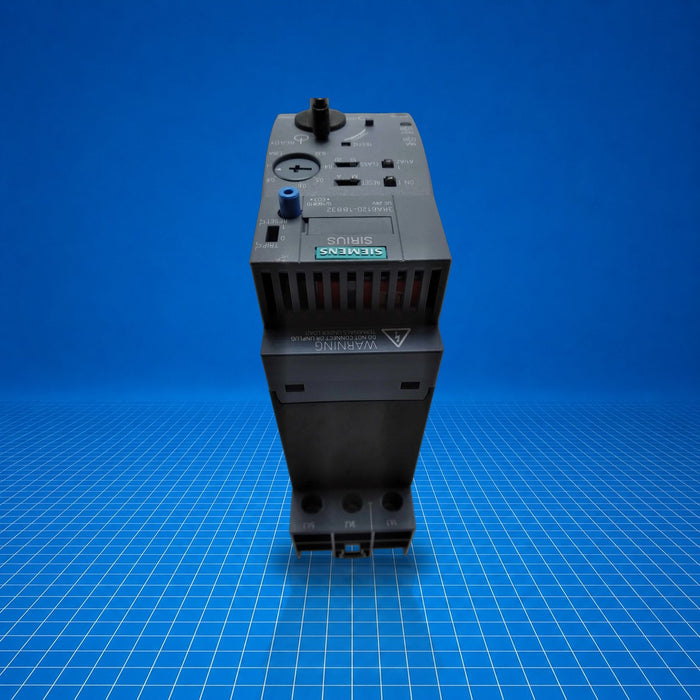

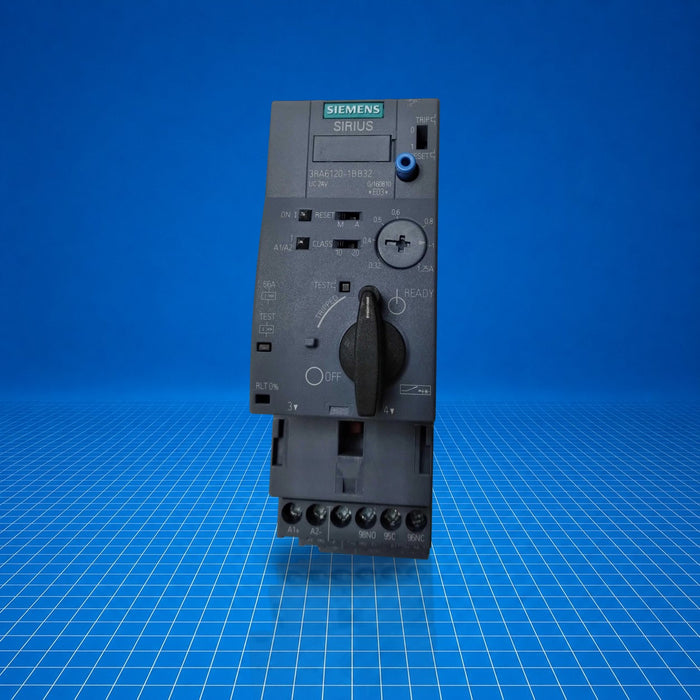

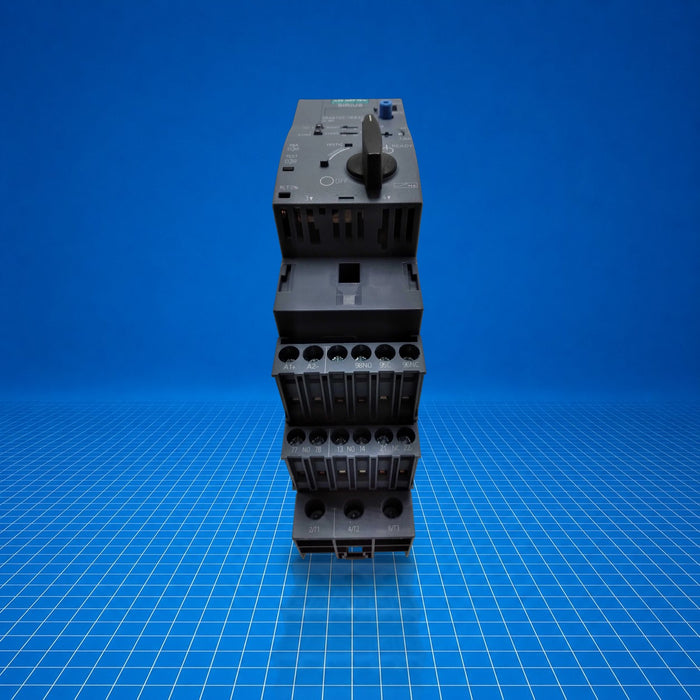

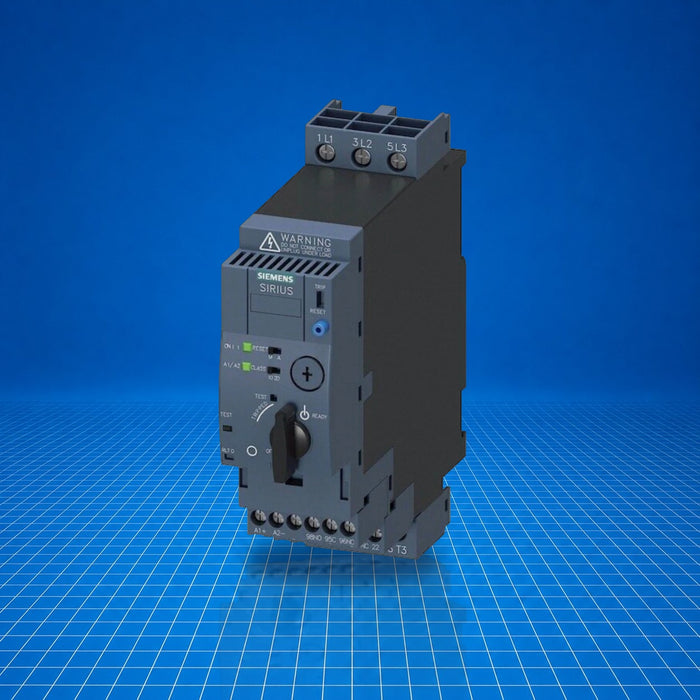

3RA6120-1BB32 Siemens

$449.97 - $1,237.50
$449.97
$449.97 - $1,237.50
$449.97
Surplus - Tested (With Warranty)
Need a Specific Revision?
$449.97
2 in stock
New / Open-Box Surplus
Need a Specific Revision?
$1,237.50
4 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (2) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 3RA6120-1BB32 is a Siemens SIRIUS Compact load-feeder direct-on-line (DOL) starter, part of the 3RA61 family. It enables direct switching of three-phase motors up to 690 V with a control voltage of 24 V AC/DC (50-60 Hz) and a rated current adjustment range of 0.32 to 1.25 A. Installed via screw-terminal connections for both main and auxiliary circuits, it finds use in standard motor control schemes for conveyor systems, pumps, fans, compressors, and other industrial motor applications.

Best Suited For

  • Starting small to medium three-phase motors
  • Integration into control panels with compact footprint
  • Applications requiring low voltage control (24 V AC/DC)
  • Installation in non-harsh environments (IP20 rated)
  • Replacement in existing SIRIUS 3RA61 starter arrangements
Control Voltage
24 V AC/DC
Rated Current Range
0.32-1.25 A
Rated Insulation Voltage
690 V
Protection Rating
IP20

Technical Specifications

I/O & Electrical

Control voltage
24 V AC/DC 50…60 Hz
Current adjustment range
0.32-1.25 A
Rated insulation voltage
690 V
Surge voltage resistance
6 000 V
Power loss (hot, AC)
0.1 W
Power loss per pole (hot, AC)
0.03 W
Power loss no-load typical
2.9 W

Communication & Power

Main-auxiliary circuit separation
400 V
Aux-aux circuit separation
250 V
Control-aux circuit separation
300 V

Physical & Environmental

Degree of pollution
3
Shock resistance
60 m/s² (6 g), 10 ms, 3 shocks/axis
Vibration resistance
4…5.8 Hz d=15 mm; 5.8…500 Hz a=20 m/s², 10 cycles
Mechanical service life (main contacts)
10 000 000 cycles
Auxiliary contacts life
10 000 000 cycles
Signaling contacts life
10 000 000 cycles
Electrical endurance DC-13 (6 A, 24 V)
30 000 cycles
Electrical endurance AC-15 (6 A, 230 V)
200 000 cycles
Mounting protection rating
IP20
Net weight
1.49 kg
Installation altitude max
2 000 m
