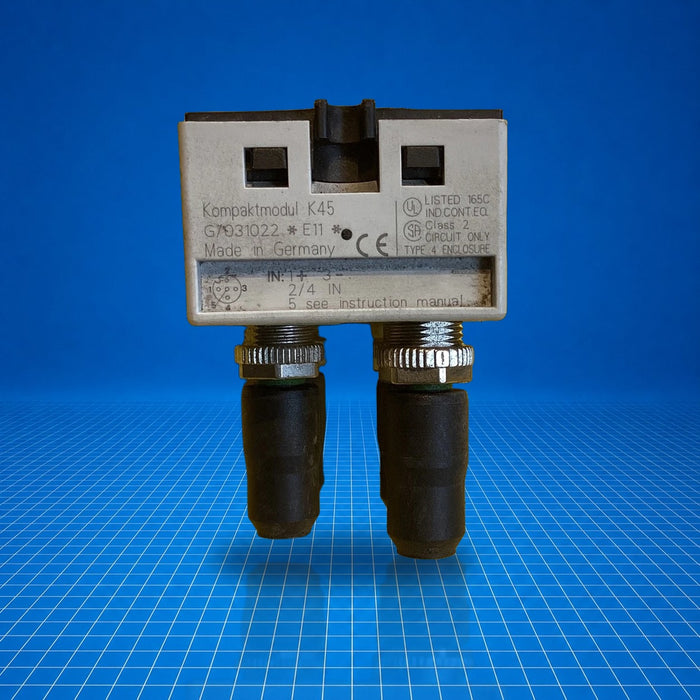

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
3RK2200-0CQ20-0AA3 Siemens
Original price
$400.00
-
Original price
$783.75
Original price
$400.00
$400.00
-
$783.75
Current price
$400.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

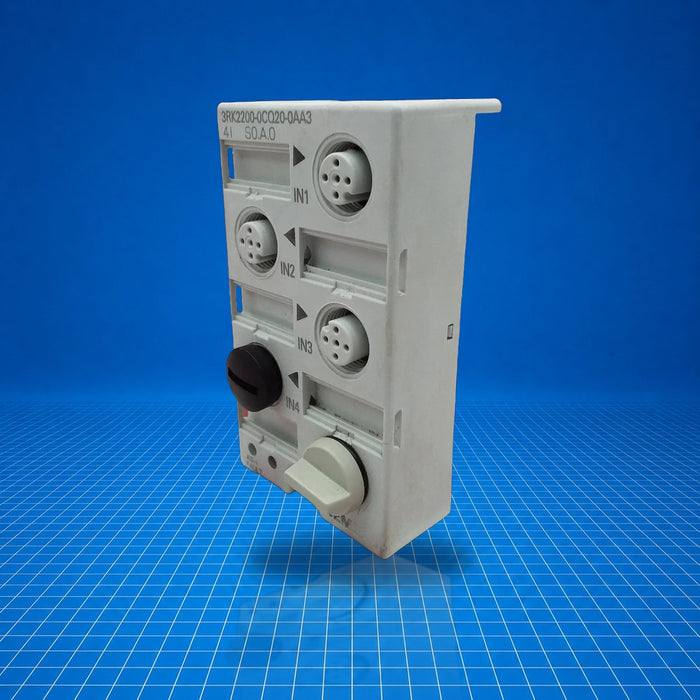

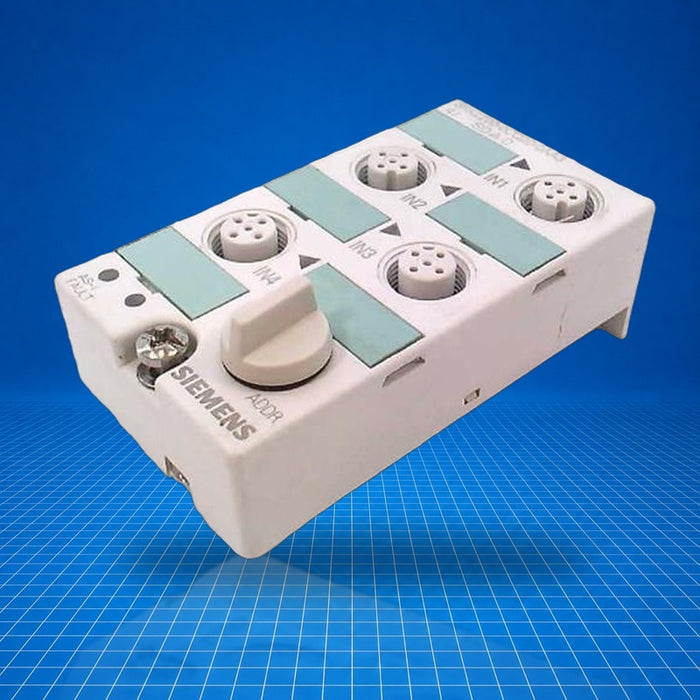

The Siemens 3RK2200-0CQ20-0AA3 is an AS-Interface (AS-i) compact digital I/O module (K45 series) functioning as an A/B-slave. It provides four digital input channels in a robust IP67 field-mount design, connecting via 4 M12 sockets. It integrates directly into AS-i networks to capture discrete signals for machine-level and field-level control tasks. The module, 3RK2200-0CQ20-0AA3, is suitable for conveyor systems, pick-and-place stations, and packaging machinery where sealed, distributed digital input monitoring is required.
Best Suited For
- Field-level digital input acquisition in AS-Interface networks
- IP67-rated installations in wet, dust-exposed environments
- Compact distributed I/O for packaging and conveyor systems
- Applications requiring plug-and-play M12 sensor connectivity
Digital inputs
4
Interface type
AS-Interface A/B slave
Protection class
IP67
Total current capacity (≤40 °C)
200 mA
Connection
4 × M12 sockets
Technical Specifications
I/O & Electrical
Number of digital inputs
4
AS-Interface slave type
A/B-slave
Total current capacity (≤ 40 °C)
200 mA
Input voltage
20 … 30 V DC
Sensor supply overload- and short-circuit resistant
Yes
Input current (signal "1" minimum)
6 mA
Input current (signal "0" maximum)
1.5 mA
Communication & Power
Interface
AS-Interface
Power consumption (AS-i bus)
≤ 270 mA
Physical & Environmental
Protection class
IP67
Ambient operating temperature
-25 … +85 °C
Ambient storage temperature
-40 … +85 °C
Mounting
Standard rail or wall via K45 mounting plate (ordered separately)
Width
45 mm
Height
80 mm
Depth
30 mm
Shock resistance
15 g / 11 ms
