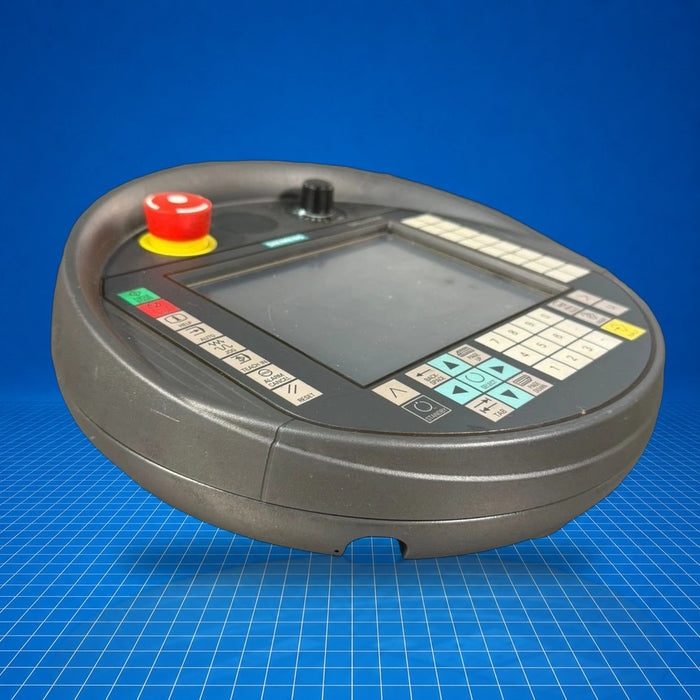

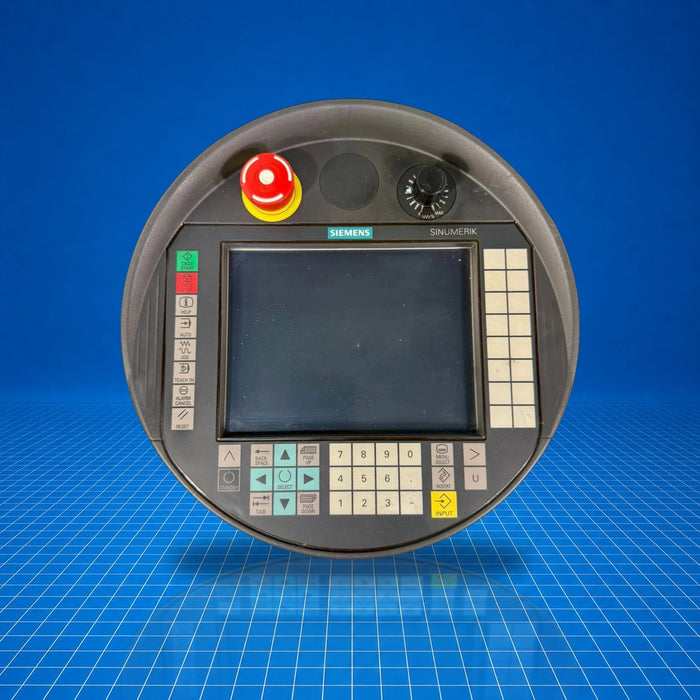

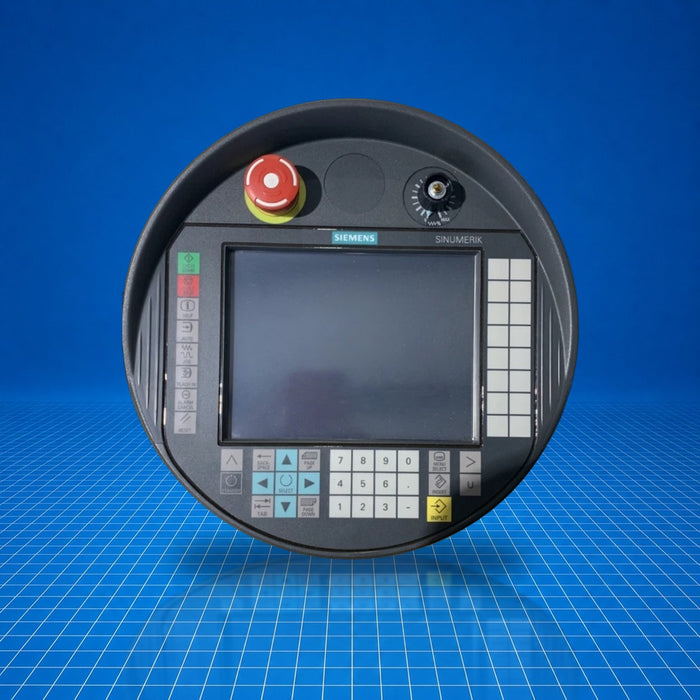

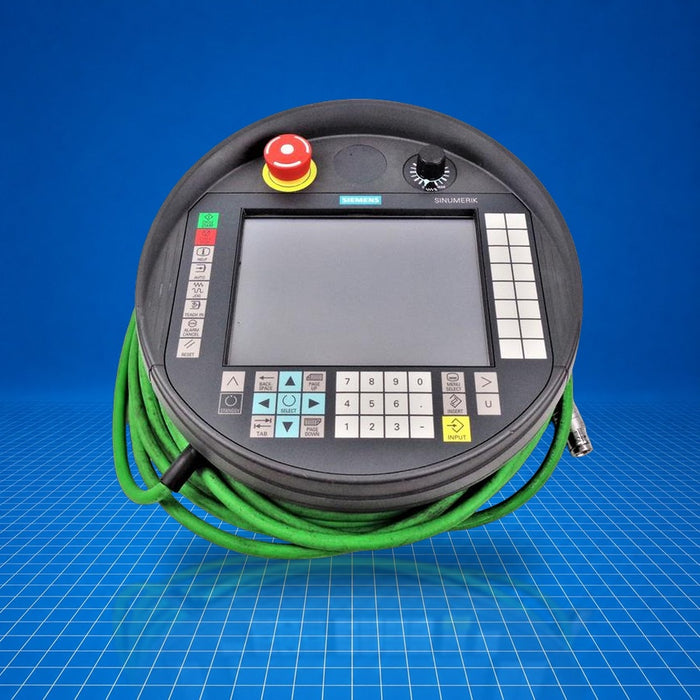

6FC5403-0AA20-0AA0 Siemens
Original price
$0.00
-
Original price
$1,347.23
Original price
$1,347.23
$0.00
-
$1,347.23
Current price
$1,347.23
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens 6FC5403-0AA20-0AA0 is a SINUMERIK HT 8 handheld terminal used in CNC control systems. It provides operator interface capabilities for machine set-up, diagnostics, and manual control in industrial machining applications. As a mobile input device within the SINUMERIK platform, it connects to NCUs or PCUs, enabling flexible operator access. Typical uses include manual mode operations, tool loading/unloading, and operator-assisted programming.
Best Suited For
- Manual operator interaction with SINUMERIK CNC controls
- On-machine control during setup or diagnostics
- Use in environments requiring IP65 protection
- Mobility in CNC machining operations
Display
7.5 in TFT color, VGA 640 × 480
Power
24 V DC, 13 W max
Protection rating
IP65
Operating temp range
-20 … +55 °C
Weight
1.73 kg
Technical Specifications
I/O & Electrical
Input voltage
24 V DC
Power consumption (max)
13 W
Physical & Environmental
Display diagonal and type
7.5 in TFT color
Display resolution
640 × 480 pixels
Protection class
IP65
Ambient temperature, operation
-20 … +55 °C (-4 … +131 °F)
Relative humidity, operation
5 … 95 % (condensation/icing excluded)
Weight
1.73 kg (3.814 lb)
Dimensions, diameter
290 mm (11.417 in)
Dimensions, height
65 mm (2.559 in)
Certifications
CEcULus
CE, cULus; complies with Machinery Safety, Electrical Equipment (Safety), EMC, RoHS per UK Declaration of Conformity.
