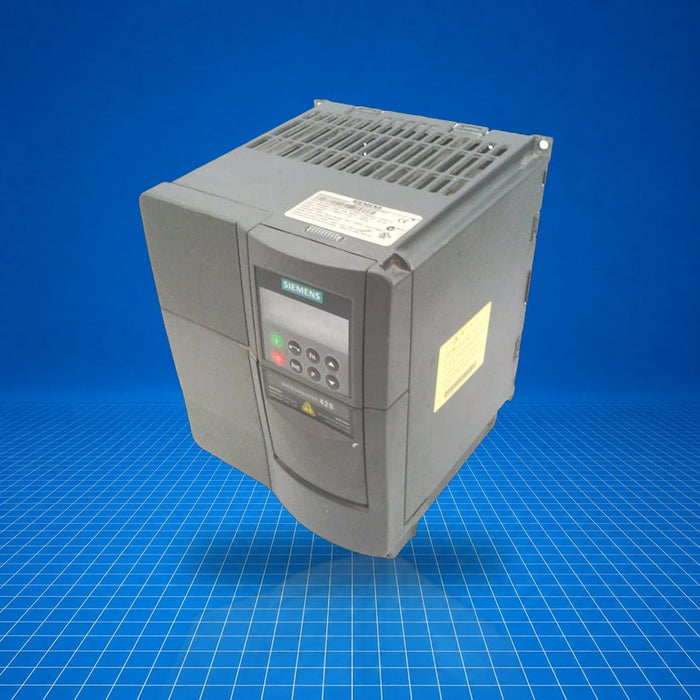

Product image is representative; revision or series may vary.
Contact us to request a specific version.

6SE6420-2UD25-5CA1 Siemens

Name: 6SE6420-2UD25-5CA1 Siemens
Brand: Siemens
SKU: 6SE6420-2UD25-5CA1
Price: 880.0 USD
Availability: InStock

$880.00 - $10,516.50

$880.00

$880.00 - $10,516.50

$880.00

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (4) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Siemens distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The Siemens 6SE6420-2UD25-5CA1 belongs to the MICROMASTER 420 series of AC drives. It provides variable-frequency motor control with constant torque output of 5.5 kW (7.5 hp) for three-phase motors, accepting 380-480 V AC input. Designed for integration into industrial motor control systems, it handles start-up and peak loads with 150 % overload for 60 s. Typical applications include conveyor systems, pumps, fans, and general-purpose motor control in manufacturing environments. MICROMASTER 420 drives offer modular flexibility and straightforward field replacement. Part number 6SE6420-2UD25-5CA1 is used throughout the description.

Best Suited For

Three-phase motor speed and torque control
Applications requiring 5.5 kW / 7.5 hp output
Installations with 380-480 V AC supplies
Situations needing short-term overload capacity (150 % for 60 s)

Input voltage range

3 AC 380…480 V ±10 %

Output power (CT)

5.5 kW / 7.5 hp

Overload capability

150 % for 60 s

Cooling

Fan

Degree of protection

IP20 / UL open type

Technical Specifications

I/O & Electrical

Rated current (HO)

15.60 A

Rated voltage (output)

480 V

Input frequency range

47…63 Hz

Output frequency (V/f control)

0…650 Hz (limit 550 Hz in production)

Pulse frequency

4 000 Hz

Overload capability

150 % for 60 s then 100 % for 240 s in 300 s cycle

Communication & Power

Power factor (λ)

0.95

Efficiency (η)

0.96

Physical & Environmental

Ambient temperature - operation

-10…50 °C

Ambient temperature - transport/storage

-40…70 °C

Net weight

5.00 kg

Dimensions (W×H×D)

185 mm × 245 mm × 195 mm

Degree of protection

IP20 / UL open type
