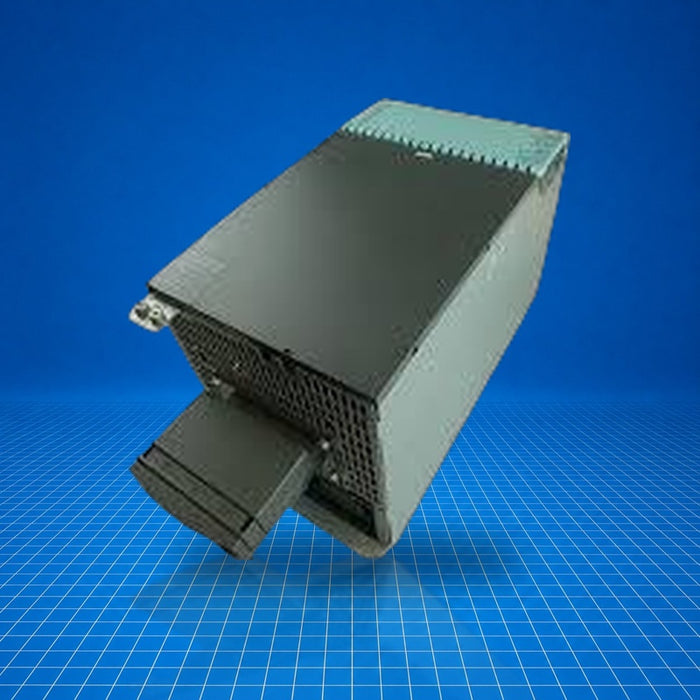

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
6SL3120-1TE28-5AA3 Siemens
Original price
$2,812.50
-
Original price
$6,300.00
Original price
$2,812.50
$2,812.50
-
$6,300.00
Current price
$2,812.50
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 6SL3120-1TE28-5AA3 is a SINAMICS S120 Single Motor Module in booksize format, used in medium-voltage drive systems to convert DC link voltage into three-phase AC motor output. It supports internal air cooling and integrates with DRIVE-CLiQ for communication and safety functions. Typically deployed in machine tool axes, conveyor drives, and motor feedback systems in industrial automation, 6SL3120-1TE28-5AA3 offers safety and precise motor control integration.
Best Suited For
- Medium-voltage single motor drive in SINAMICS S120 systems
- On-machine axis applications (e.g. machine tools, spindles)
- Systems requiring integrated safety (Safety Integrated)
- Internal air-cooled installations in cabinet environments
DC Link Voltage
DC 510 … 720 V
Rated Output Current
85 A
Construction Format
Booksize, internal air cooling
Safety Compliance
SIL 2 / PL d / Cat 3
Technical Specifications
I/O & Electrical
DC link voltage
DC 510 … 720 V
Output current (rated)
85 A
Communication & Power
Electronics power supply
DC 24 V -15 %/+20 %
Physical & Environmental
Dimensions (W × H × D)
200 mm × 380 mm × 270 mm
Weight (net)
≈ 15.0 kg
Degree of protection
IP20 / UL open type
Motor cable max length
Shielded: 100 m; Unshielded: 150 m
Certifications
CEcULusSIL 2PL d
Complies with CE, cULus standards; Safety Integrated: SIL 2 per IEC 61508, PL d and Category 3 per EN ISO 13849-1.
