Product Overview

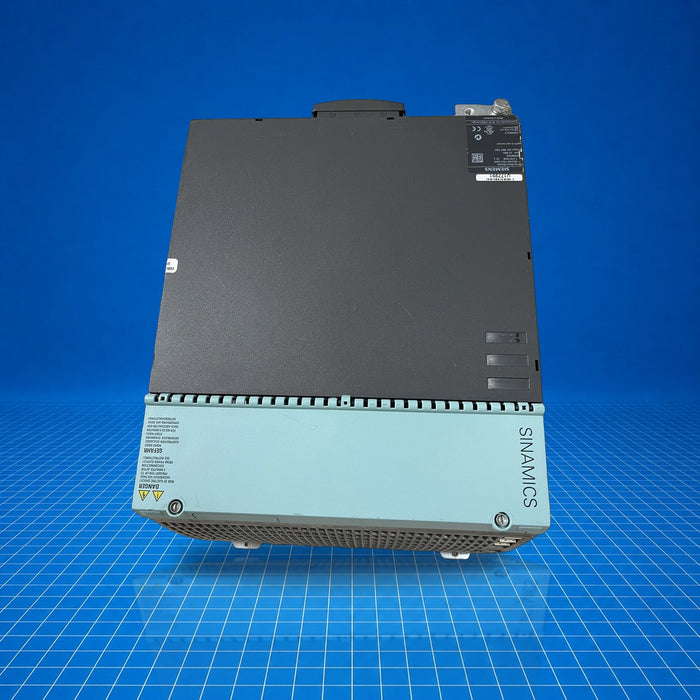

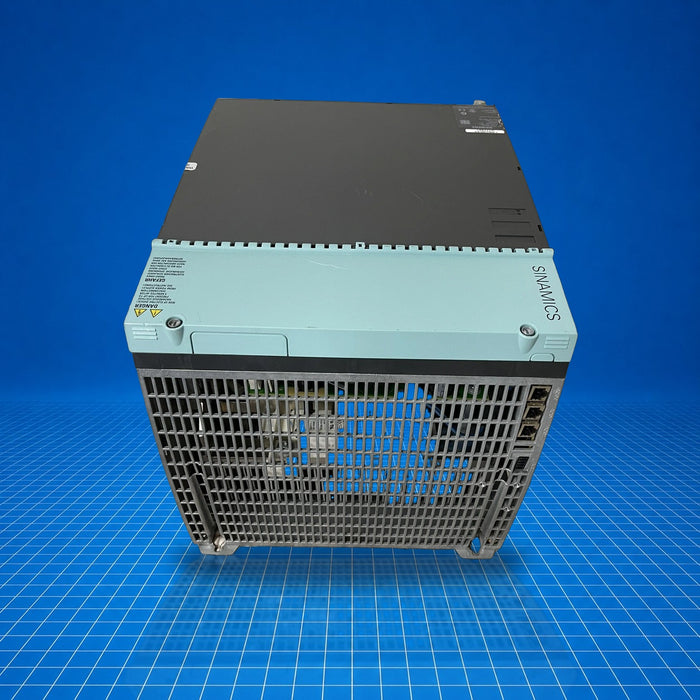

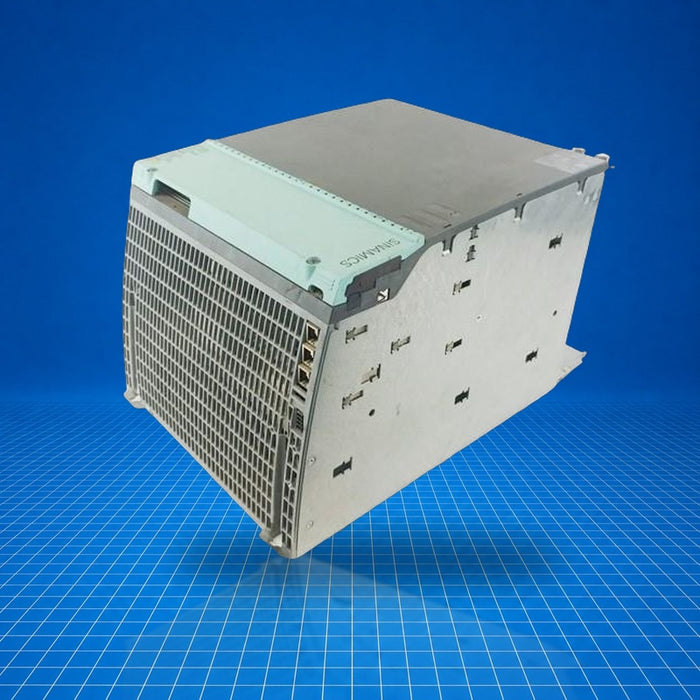

The Siemens 6SL3120-1TE31-3AA3 is a SINAMICS S120 single-motor module in the booksize format. It converts a DC link voltage into a three-phase AC output (up to 132 A nominal), and includes integrated safety (SIL 2 / PL d). It is intended for drive control in industrial automation systems-such as machine tools, packaging lines, or conveyor systems-where precise motor control and integrated safety are required. 6SL3120-1TE31-3AA3 meets standard performance needs within SINAMICS modular drive configurations.
Best Suited For
- Modular SINAMICS S120 drive configurations
- Integrated safety applications (SIL 2 / PL d)
- Booksize-format installations with space constraints
- DC-link supplied motor control under 720 V DC
DC link voltage range
DC 510 ... 720 V
Continuous output current (I N)
132 A
Base load current (I H)
105 A
Intermittent output (S6, 40 %), I S6
150 A
Degree of protection
IP20 / UL open type
Technical Specifications
I/O & Electrical
DC link voltage
DC 510 ... 720 V
Electronics power supply
DC 24 V -15 % / +20 %
Max current demand
1.50 A
DC-link current (I d)
158.0 A
Output current (I N)
132.0 A
Base-load current (I H)
105.0 A
S6 (40 %) current (I S6)
150.0 A
Maximum current (I max)
210.0 A
Physical & Environmental
Cooling
Internal air cooling
Cooling air requirement
0.144 m³/s
Ambient temperature (operation)
0 ... 40 °C (32 ... 104 °F)
Installation altitude (no derating)
1,000 m (3,281 ft)
Width
300.00 mm (11.81 in)
Height
629.00 mm (24.76 in)
Depth
270.00 mm (10.63 in)
Net weight
21.0 kg (46.30 lb)
Certifications
CEcULusSIL 2PL d
Safety Integrated: SIL 2 per IEC 61508; PL d, Category 3 per EN ISO 13849-1. Compliance: CE, cULus.
