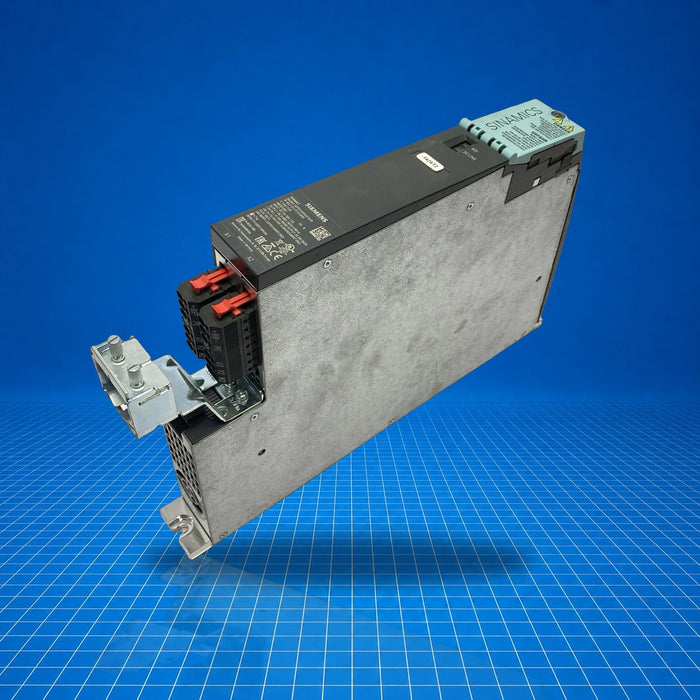

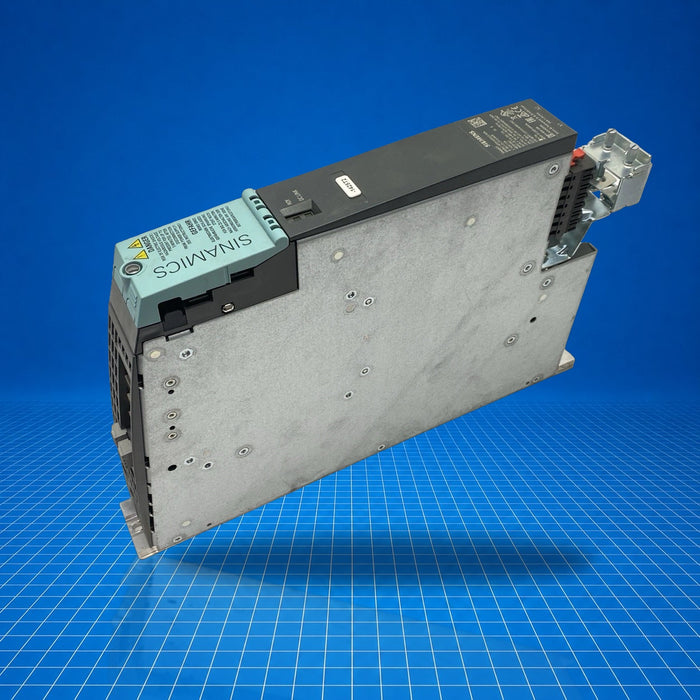

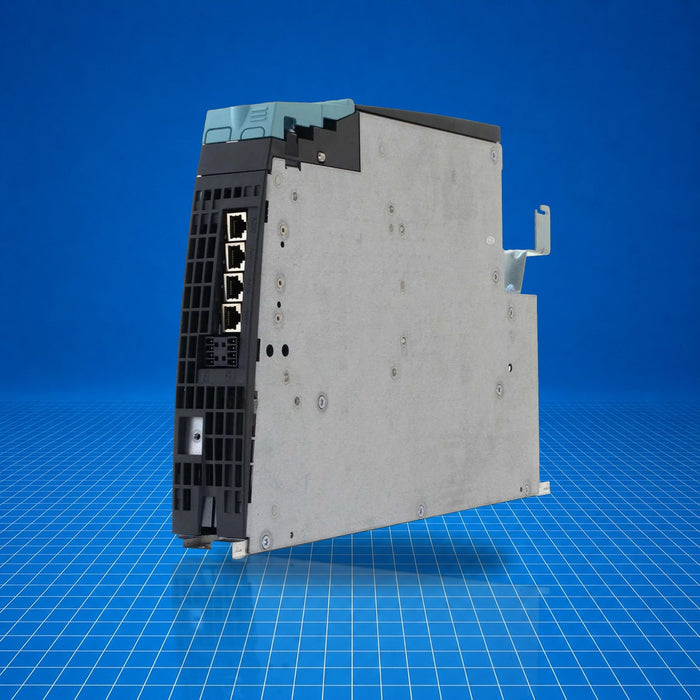

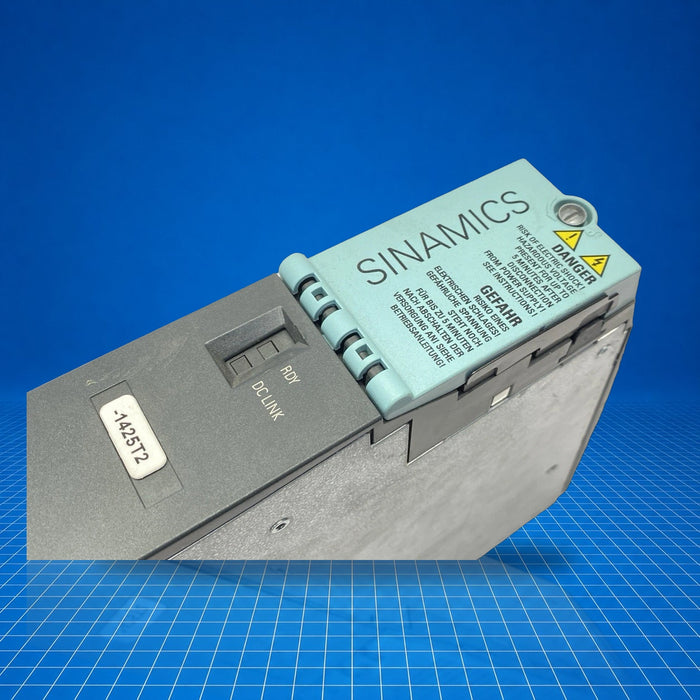

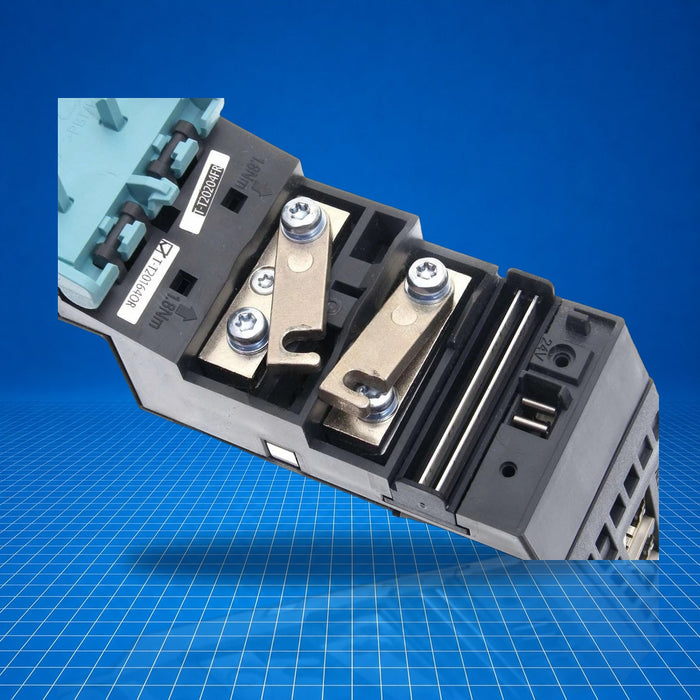

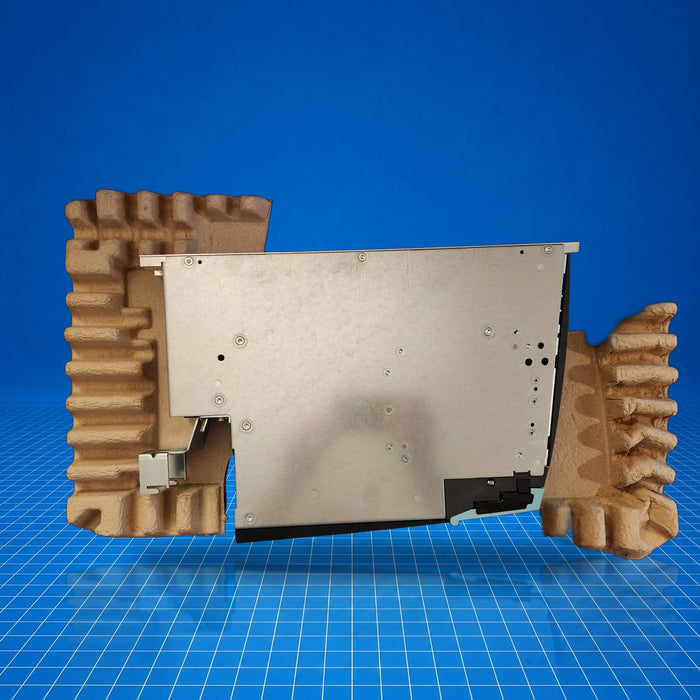

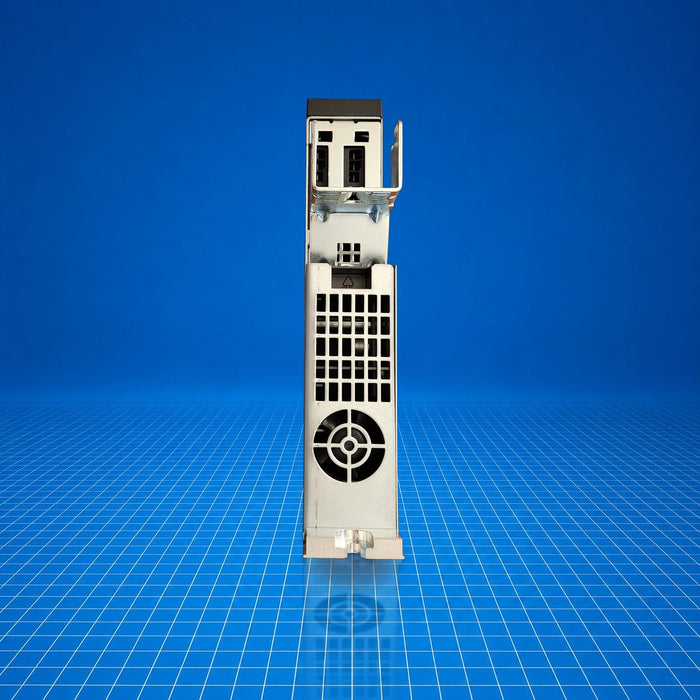

6SL3120-2TE13-0AD0 Siemens
Original price
$618.75
-
Original price
$1,374.97
Original price
$618.75
$618.75
-
$1,374.97
Current price
$618.75
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens 6SL3120-2TE13-0AD0 is a Double Motor Module in booksize format from the SINAMICS S120 platform. It functions as a drive module capable of powering two motors with integrated safety functions (Safety Integrated) and internal air cooling. It operates on a DC link and supplies two separate 3 A outputs, providing controlled motor driving in industrial automation systems such as multi-axis machinery, conveyor systems, or robotic setups.
Best Suited For
- Simultaneous control of two servo or asynchronous motors
- Integration in SINAMICS S120 drive systems
- Installations requiring SIL 2 / PL d safety integration
- On-machine or cabinet-mounted motor drive applications
DC link voltage
510 … 720 V DC
Rated output current
2 × 3.0 A
Weight
4.7 kg (10.36 lb)
Operating temperature
0 … 40 °C (32 … 104 °F)
Cooling airflow requirement
0.009 m³/s
Technical Specifications
I/O & Electrical
DC link voltage
510 … 720 V DC
Electronics power supply
DC 24 V -15 % / +20 %
Max current demand
0.90 A
DC-link current Id
7.2 A
Rated output current (Iₙ)
2 × 3.0 A
Base-load current (Iₕ)
2 × 2.6 A
S6 duty (40 %) current (Iₛ₆)
2 × 4.0 A
Maximum current (Iₘₐₓ)
2 × 9.0 A
Communication & Power
DC-link capacitance
220 µF
DC-link busbar capacity
100 A
24 V busbars capacity
20 A
Rated pulse frequency
4.00 kHz
Servo control output frequency
650 Hz
V/f control output frequency
600 Hz
Vector control output frequency
300 Hz
Physical & Environmental
Cooling
Internal air cooling
Cooling airflow requirement
0.009 m³/s
Operating temperature
0 … 40 °C (32 … 104 °F)
Installation altitude
1 000 m (3 281 ft) without derating
Dimensions (W × H × D)
50.00 mm × 380.00 mm × 270.00 mm
Protection rating
IP20 / UL open type
Net weight
4.7 kg (10.36 lb)
Motor cable length (shielded)
50 m (164 ft)
Motor cable length (unshielded)
75 m (246 ft)
Certifications
CEcULusSIL 2PL d (Category 3)
Safety Integrated: SIL 2 per IEC 61508, PL d per EN ISO 13849-1, Category 3. CE and cULus compliance.
