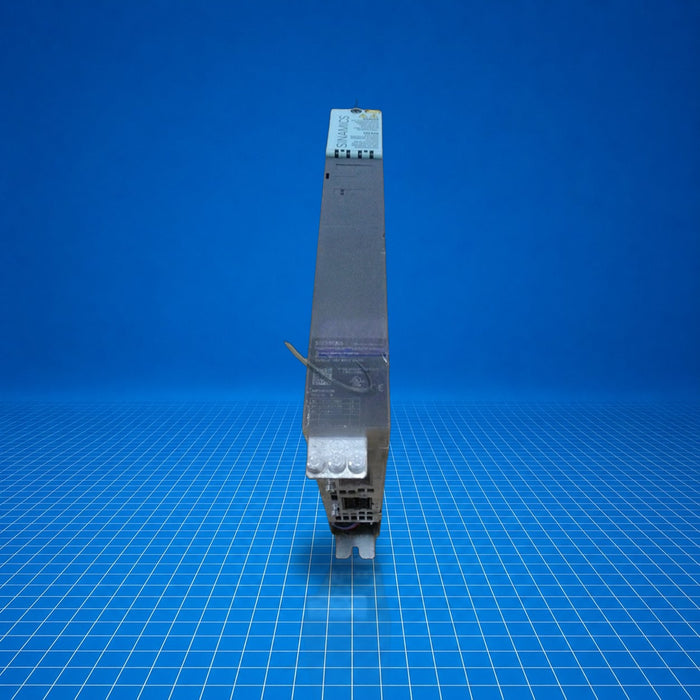

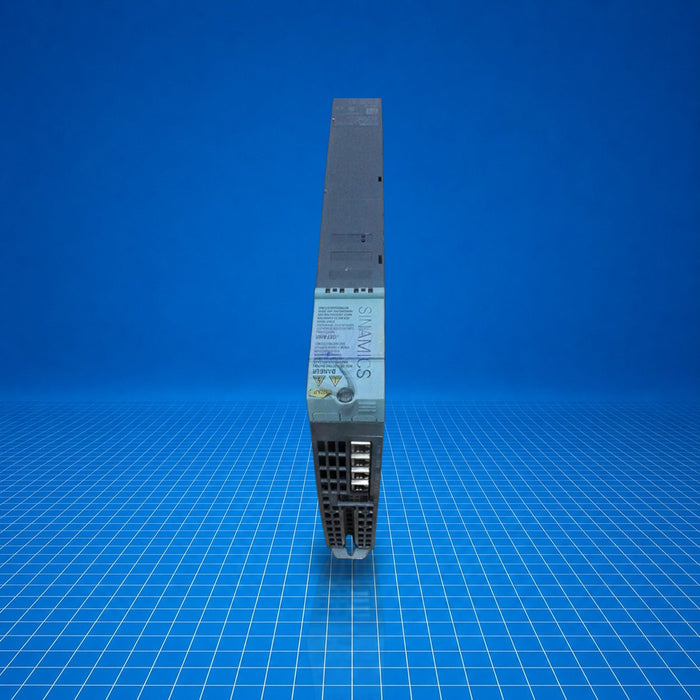

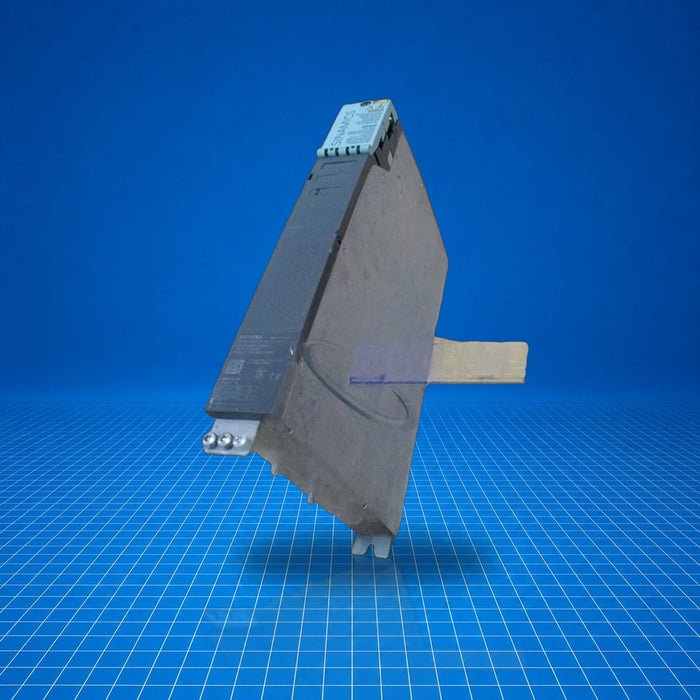

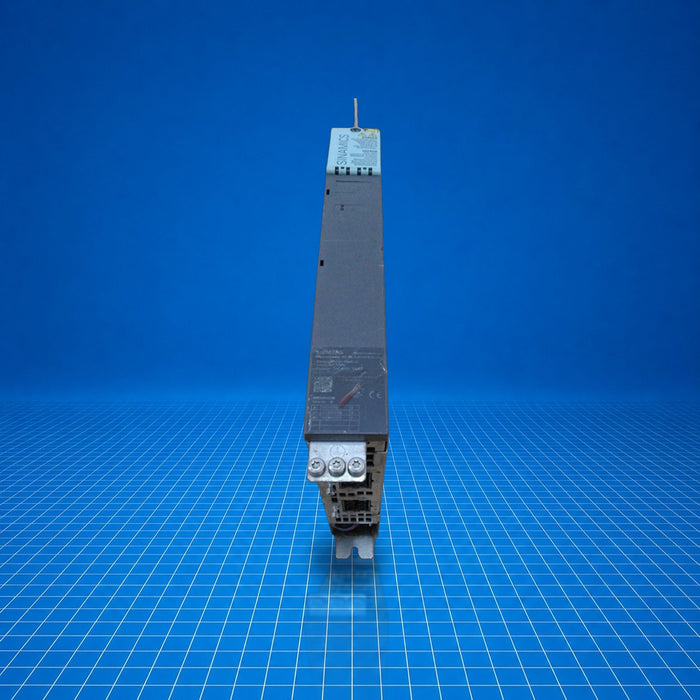

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
6SL3120-2TE15-0AA4 Siemens
Original price
$0.00
-
Original price
$1,375.00
Original price
$1,375.00
$0.00
-
$1,375.00
Current price
$1,375.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens 6SL3120-2TE15-0AA4 is a dual-motor power module within the SINAMICS S120 family, serving as a book-size, internally air-cooled motor controller. It interfaces with the DC-link (510-720 V DC) to drive two motors, each up to 5 A rated current. Typically deployed in motion control or drive systems where compact dual-axis drive capability with Safety-Integrated support is required. 6SL3120-2TE15-0AA4 is designed for industrial automation platforms requiring precise motor control and integrated safety.
Best Suited For
- Dual motor applications within SINAMICS S120 drives
- OEMs needing book-size, dual-axis drive modules
- Retrofitting or spare-part replacement for discontinued units
- Environments requiring internal air cooling and safety-integrated features
DC-link voltage range
510 - 720 V DC
Rated current
2 × 5 A
Peak current
2 × 6.7 A (S6, 40 %) / 2 × 15 A (I max)
Power loss typ./max.
0.08 kW / 0.13 kW
Cooling type
Internal air cooling
Technical Specifications
I/O & Electrical
DC-link voltage range
510 - 720 V DC
Electronics supply
24 V DC -15 % / +20 %
Rated current (IN)
2 × 5 A
Base load current (IH)
2 × 4.3 A
Intermittent current (S6)
2 × 6.7 A (40 %)
Maximum output current (I max)
2 × 15 A
DC-link capacitance
220 µF
Communication & Power
Power loss (typical / maximum)
0.08 kW / 0.13 kW
Physical & Environmental
Dimensions (W × H × D)
50 × 380 × 270 mm
Weight
4.7 kg (10.36 lb)
Cooling
Internal air cooling
Degree of protection
IP20 / UL open type
Ambient temperature (operating)
0 … 40 °C (32 … 104 °F)
Certifications
CEcULusSIL 2PL d / Cat 3
Safety-Integrated: SIL 2 per IEC 61508, PL d / Category 3 per EN ISO 13849-1; CE, cULus.
