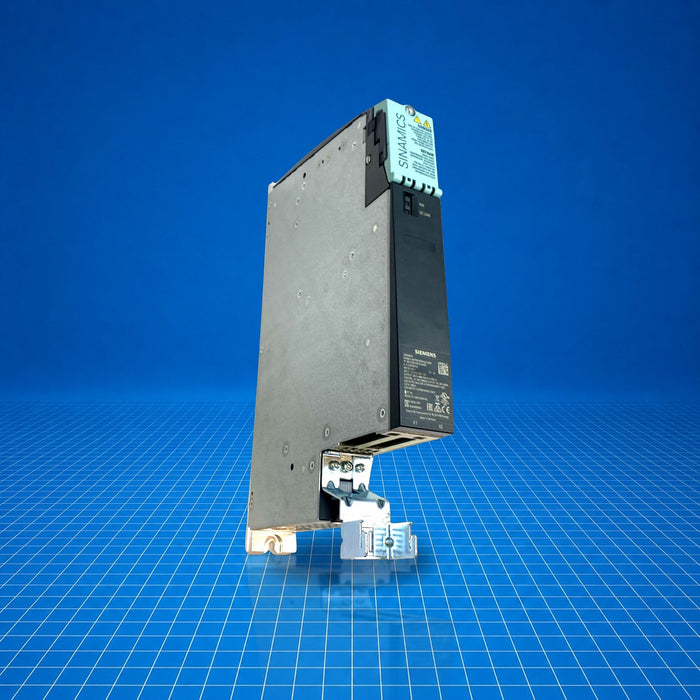

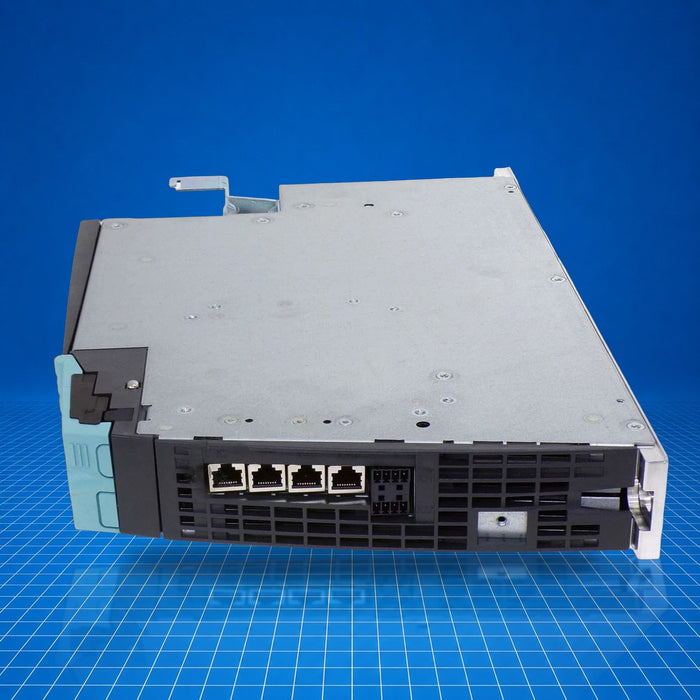

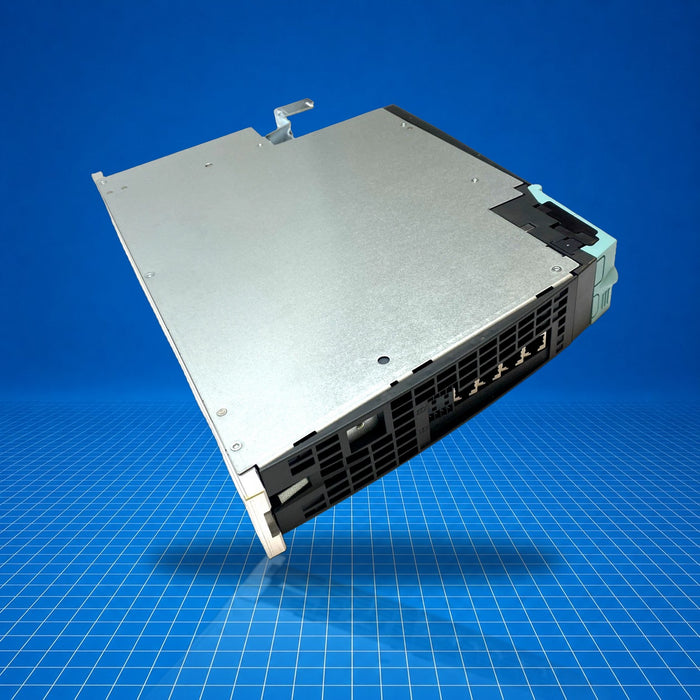

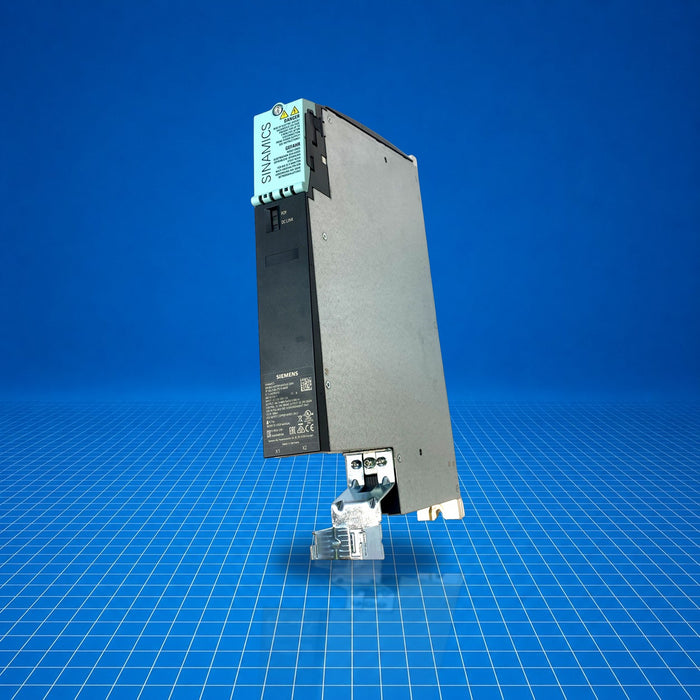

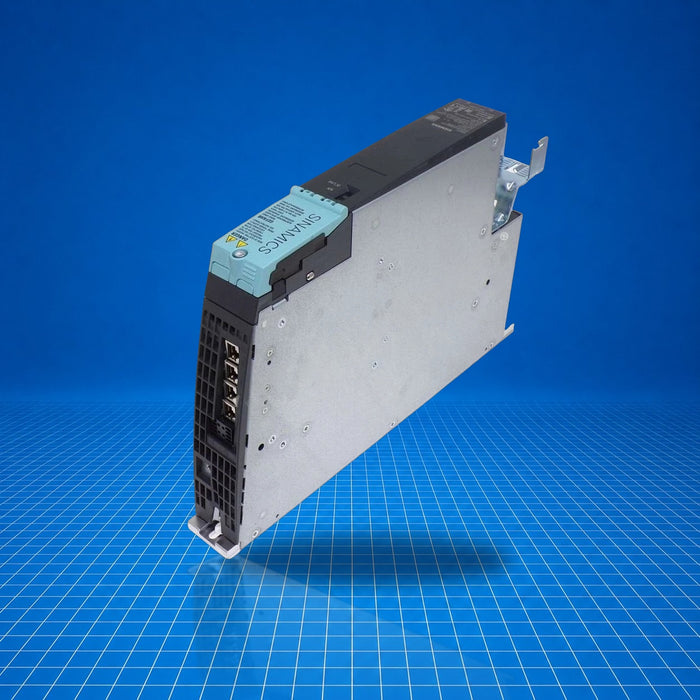

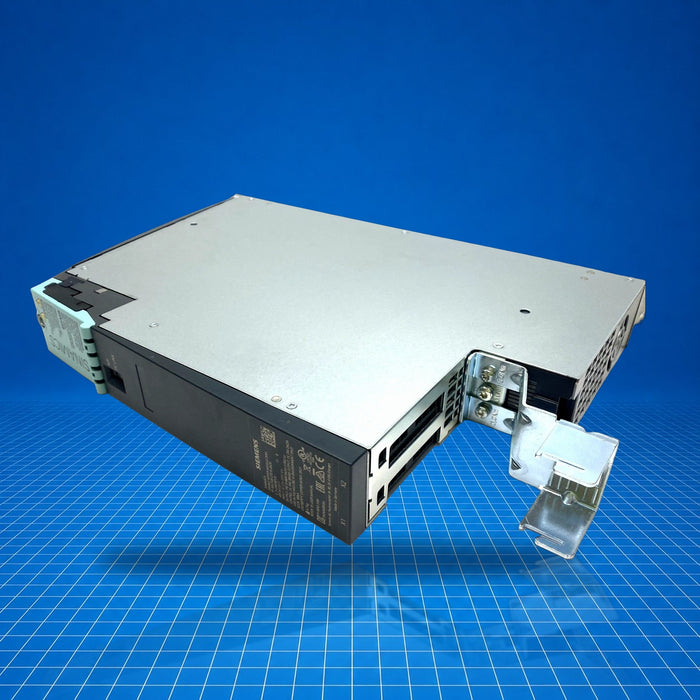

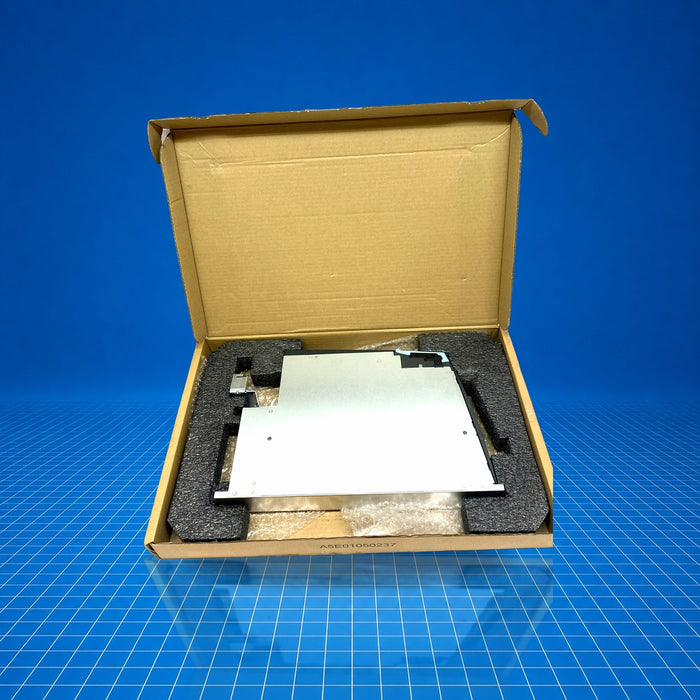

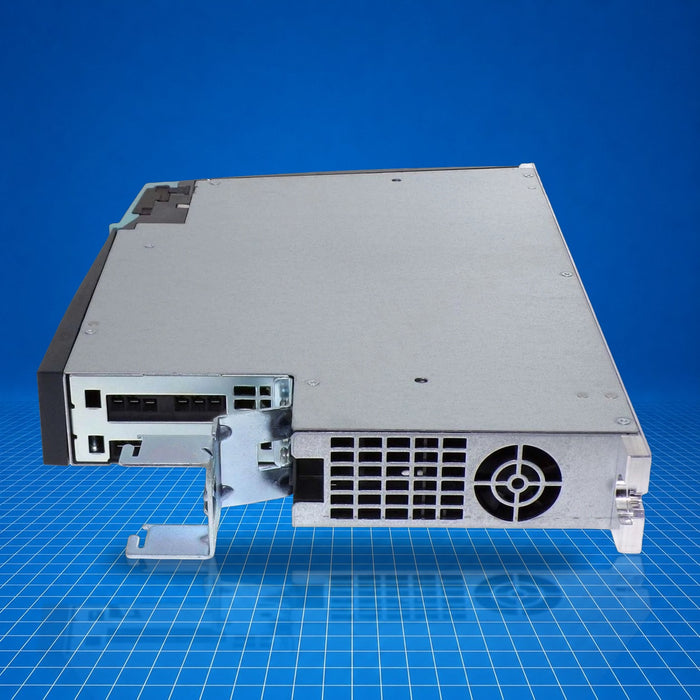

6SL3120-2TE15-0AD0 Siemens
Original price
$1,207.25
-
Original price
$1,397.50
Original price
$1,397.50
$1,207.25
-
$1,397.50
Current price
$1,397.50
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 6SL3120-2TE15-0AD0 is a Siemens SINAMICS S120 double motor module in booksize D-type format. It serves as a modular drive component in multi-axis systems, enabling simultaneous control of two three-phase motors via a common DC link. Its function in a control system is to deliver coordinated motor control for position, speed, or torque applications. Typical uses include machine tools, packaging machinery, and multi-axis automation equipment.
Best Suited For
- Multi-axis drive systems
- Servo and induction motor applications
- Machine tool automation
- Packaging and handling machinery
DC link voltage
510 … 720 V DC
Rated output current
2 × 5 A
Cooling method
Internal air cooling
Enclosure rating
IP20
Net weight
4.7 kg
Technical Specifications
I/O & Electrical
DC link voltage
510 … 720 V DC
Electronics power supply
DC 24 V -15 % / +20 %
Rated output current (Rated Irated)
2 × 5 A
Base-load current (IH)
2 × 4.3 A
Intermittent (S6 40 %) current
2 × 6.7 A
Peak current (Imax)
2 × 15 A
Communication & Power
Electronics power supply
DC 24 V -15 % / +20 %
Physical & Environmental
Cooling method
Internal air cooling
Degree of protection
IP20 / UL open type
Construction type
Booksize D-type
Dimensions (W × H × D)
50 mm × 380 mm × 270 mm
Net weight
4.7 kg
Operating ambient temperature
0 … 40 °C
Installation altitude
≤ 1,000 m (without derating)
Cooling air requirement
0.009 m³/s
Max motor cable length (shielded)
50 m
Max motor cable length (unshielded)
75 m
Certifications
CEcULusSIL 2PL d
Safety Integrated: SIL 2 per IEC 61508; PL d per EN ISO 13849-1 Category 3; compliance with CE, cULus
