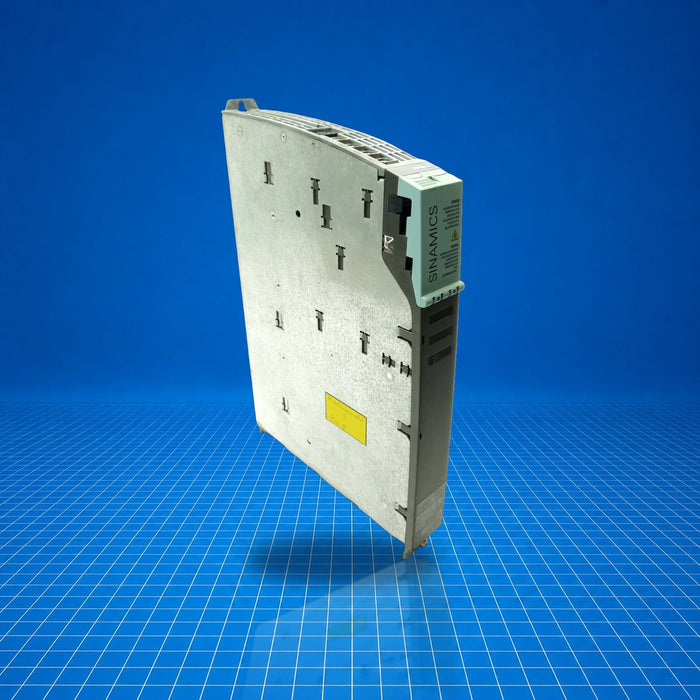

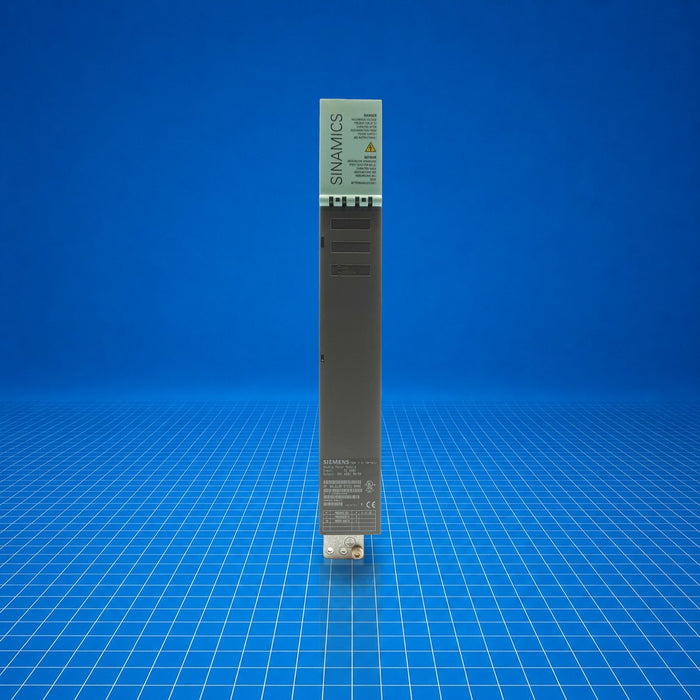

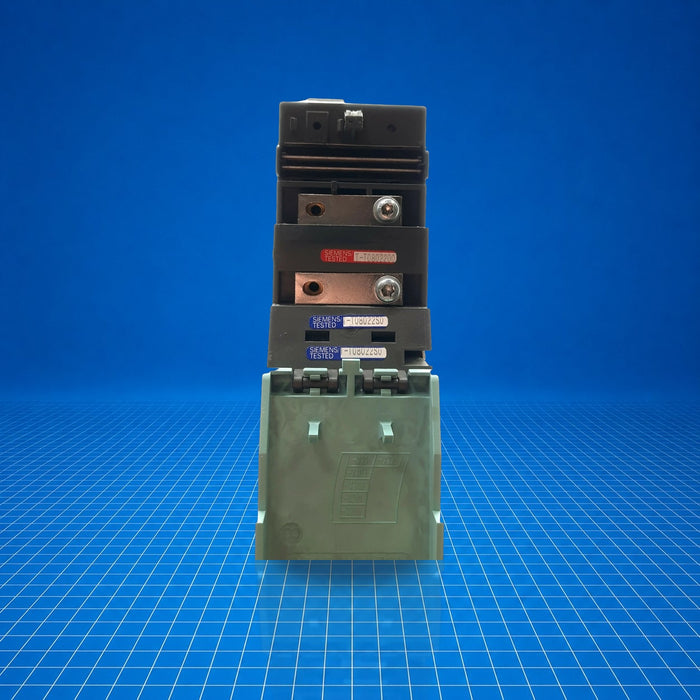

6SL3120-2TE21-0AA0 Siemens
Original price
$0.00
-
Original price
$2,677.50
Original price
$2,677.50
$0.00
-
$2,677.50
Current price
$2,677.50
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Siemens 6SL3120-2TE21-0AA0 is a Double Motor Module (DMM) within the SINAMICS S120 drive family. Installed in a booksize, D-type frame, it converts a DC-link voltage of 600 V into two three-phase 400 V AC outputs at 9 A each. It includes integrated air-cooling and is equipped with DRIVE-CLiQ interface. Typical use cases include multi-motor control in machine tools, automation systems, and modular production lines.
Best Suited For
- Multi-motor control in compact drives racks
- Vertical cabinet mounting arrangements
- Integration via DRIVE-CLiQ in SINAMICS S120 systems
- Applications requiring SIL2/PL d safety functions
DC-link voltage
600 V DC
Output
400 V 3 AC, 9 A ×2
Cooling
Internal air-cooling
Frame size
Booksize D-type
Protection class
IP20
Technical Specifications
I/O & Electrical
DC-link voltage
600 V DC
Output voltage
400 V 3 AC
Output current (IN)
2 × 9.0 A
Output current (IH base load)
2 × 7.7 A
Output current (S6 40 %)
2 × 12.0 A
Output current (Imax)
2 × 27.0 A
Communication & Power
Electronics power supply
DC 24 V -15 % / +20 %
Drive-CLiQ interface
Included
Physical & Environmental
Cooling method
Internal air-cooling
Frame size
Booksize D-type
Mounting position
Vertical
Protection class
IP20
Ambient temperature
0 to 40 °C
Certifications
CEcULusSIL 2PL d
Safety-Integrated: SIL 2 (IEC 61508), PL d (EN ISO 13849-1), Category 3; Standards: CE, cULus
