6SL3420-2TE15-0AA1 Siemens
Original price
$0.00
-
Original price
$3,066.62
Original price
$3,066.62
$0.00
-
$3,066.62
Current price
$3,066.62
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

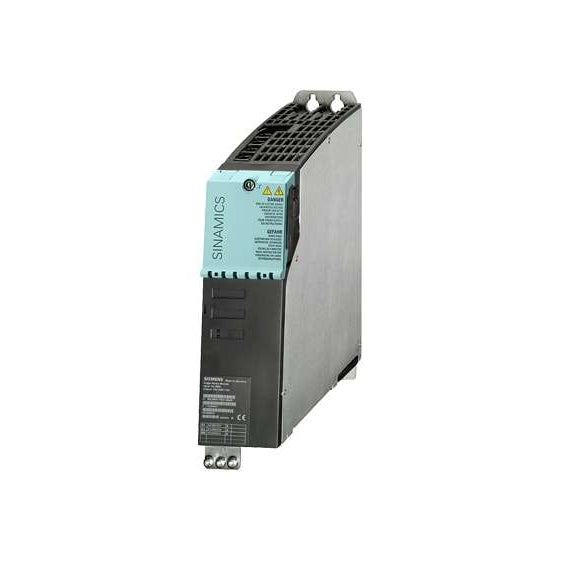

The Siemens 6SL3420-2TE15-0AA1 is a double motor module within the SINAMICS S120 booksize compact family. It functions as a power conversion module, accepting DC link voltage and delivering dual 3-phase AC outputs for motor control. In a motion control system, it resides downstream of the DC bus, driving two servo or asynchronous motors. Typical industrial uses include multi-motor machine tools, packaging systems, and robotic motion axes.
Best Suited For
- Multi-motor motion control applications
- Booksize-compact mounting environments
- Integrated safety-function drive systems (Safety Integrated)
- Internal air-cooled installations
DC link voltage range
DC 510 … 720 V
Output current
2 × 5.0 A (Iₙ)
Control voltage supply
DC 24 V, -15 % / +20 %
Cooling type
Internal air cooling
Technical Specifications
I/O & Electrical
DC link voltage
DC 510 … 720 V
Electronics power supply
DC 24 V -15 % / +20 %
Current demand, max.
1.00 A
DC-link current Iₙ
12.0 A
Rated output current (Iₙ)
2 × 5.0 A
Base load current (Iₕ)
2 × 4.3 A
S6 (40 %) duty current (Iₛ₆)
2 × 6.0 A
Peak current (Iₘₐₓ)
2 × 15.0 A
Communication & Power
DC-link capacitance
165 µF
Rated pulse frequency
8.00 kHz
Physical & Environmental
Dimensions (W × H × D)
75 × 270 × 226 mm
Net weight
3.4 kg
Degree of protection
IP20 / UL open type
Ambient temperature (operation)
0 … 40 °C
Installation altitude
≤ 1 000 m
Cooling air requirement
0.008 m³/s
Sound pressure level (1 m)
60 dB
Power loss, typical
0.19 kW
Connections
Connector (X1, X2) with screw-type terminals; conductor cross-section 0.2 … 6 mm²; PE via M5 screw; shielded cable up to 50 m, unshielded up to 75 m
Certifications
Safety Integrated to SIL 2 (IEC 61508), PL d, Category 3 (EN ISO 13849-1). CE and cURus compliant.
