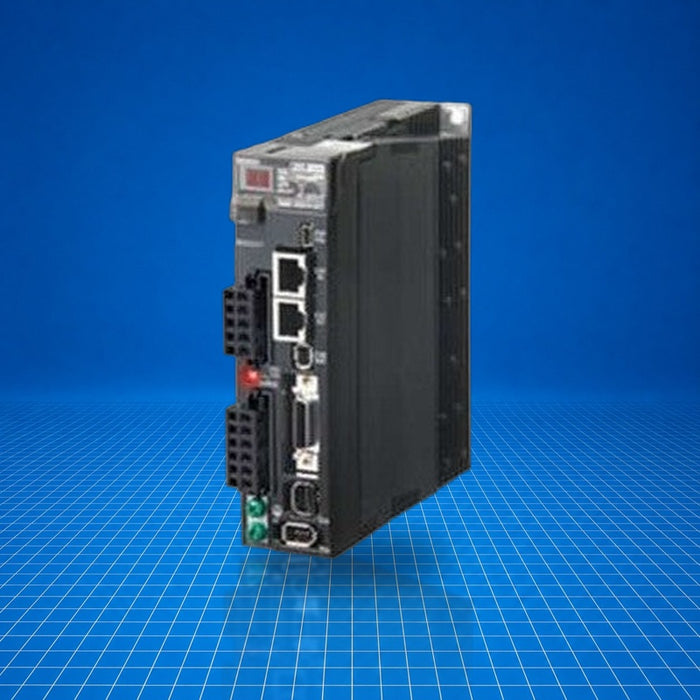

R88D-KN20F-ECT Omron

Original price $1,375.00 - Original price $4,771.47
Original price
$1,375.00
$1,375.00 - $4,771.47
Current price $1,375.00
Surplus - Tested (With Warranty)
Need a Specific Revision?
$1,375.00
2 in stock
New / Open-Box Surplus
Need a Specific Revision?
$4,771.47
5 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (2) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Omron distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The R88D-KN20F-ECT is a three-phase, 400 VAC (380-480 VAC, 323-528 VAC) input AC servo drive in OMRON's G5 Series with built-in EtherCAT (IEC 61158 Type 12, CiA 402) communications. Rated for 2 kW motor output, this drive supports cyclic synchronous position/velocity/torque control, homing, and touch-probe functions. It integrates into EtherCAT networks using RJ45 ports and is intended for high-precision motion control in automated machinery, production lines, and robotics applications. Part number R88D-KN20F-ECT.

Best Suited For

  • EtherCAT-based motion platforms
  • High-precision servo control in machine tools
  • Synchronization in multi-axis systems
  • OEM automated equipment integration
Continuous output current (rms)
6.7 A
Power supply voltage
3-phase 380 to 480 VAC (323 to 528 VAC) 50/60 Hz
Rated (motor) power
2 kW
EtherCAT ports
RJ45 × 2
Control circuit voltage
24 V DC

Technical Specifications

I/O & Electrical

Continuous output current (rms)
6.7 A

Communication & Power

Main circuit power supply
3.8 kVA
Power supply voltage
3-phase 380 to 480 VAC (323 to 528 VAC) 50/60 Hz
Rated current
5.9 A
Heat value (main circuit)
65 W
Control circuit voltage
24 V DC (20.4 to 27.6 V)
Heat value (control circuit)
10 W
Communications standard
IEC 61158 Type 12; IEC 61800-7 CiA 402
Physical layer
100BASE-TX (IEEE 802.3)
Connectors
RJ45 × 2 (shielded)
Communications distance
100 m between nodes max

Physical & Environmental

Ambient operating temperature
0 to 55 °C
Storage temperature
-20 to 65 °C
Humidity (operating/storage)
85 % max (no condensation)
Insulation resistance
≥ 0.5 MΩ at 500 V DC (power to FG)
Dielectric strength
1,500 VAC 1 min (power to FG)
Protective structure
Built-into panel
