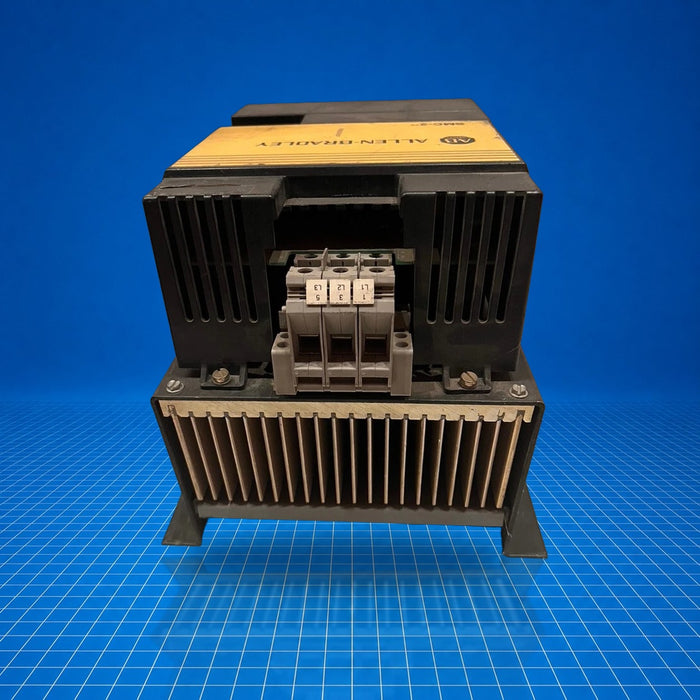

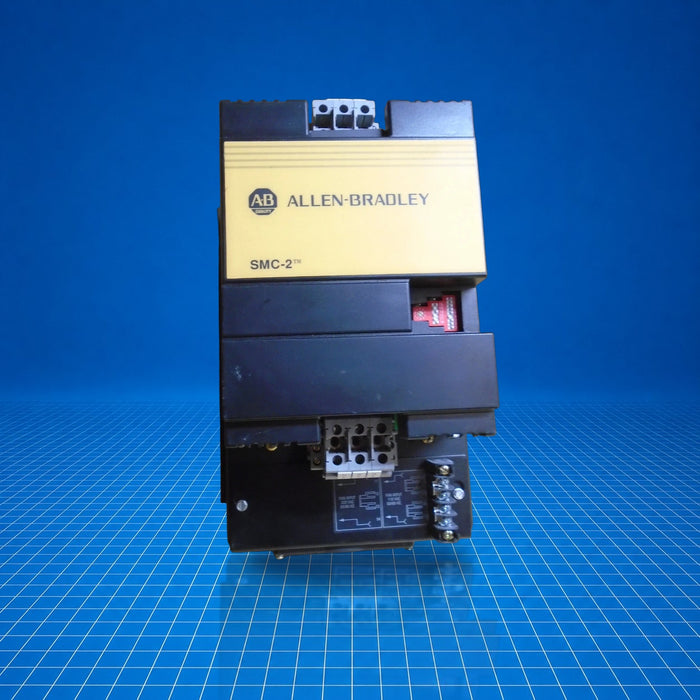

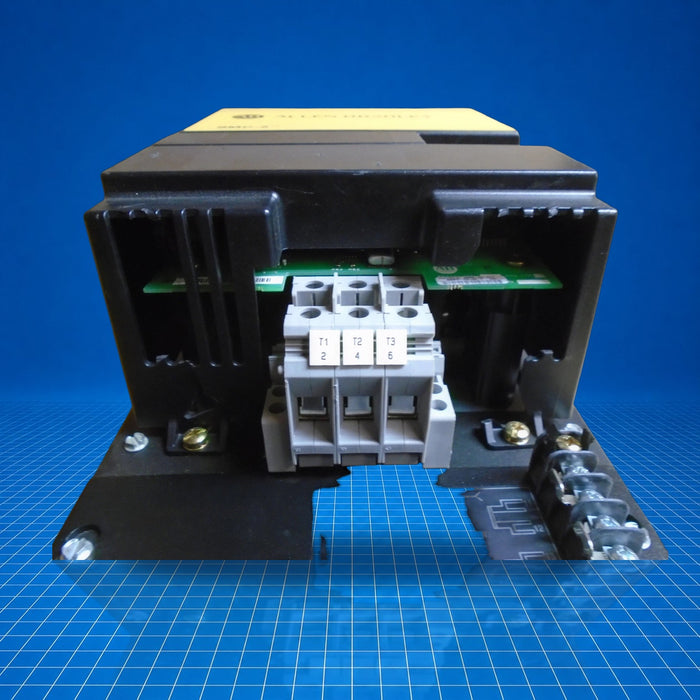

150-A97NB Allen-Bradley
Original price
$687.17
-
Original price
$6,256.50
Original price
$687.17
$687.17
-
$6,256.50
Current price
$687.17
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 150-A97NB is an Allen-Bradley SMC-2 series solid-state motor controller intended for three-phase AC motor starting and control. The controller supports full-voltage, current-limit, and soft-start methods and is typically deployed in industrial motor control panels for conveyors, pumps, fans, compressors, or other medium-duty motor loads. The 150-A97NB integrates into control systems to manage inrush current, reduce mechanical stress, and provide reliable operation in applications requiring adjustable ramping and thermal management.
Best Suited For
- Three-phase AC motor control up to 97 A
- Soft-start, full-voltage, or current-limit starting methods
- Panel-mount motor control in industrial equipment
- Retrofit or replacement in SMC-2 systems
Input line voltage
380-460 V AC
Current rating
97 A
Heat dissipation
285 W
Starting methods
Full-voltage, current-limit, soft-start
Operating temperature
0 to 50 °C
Technical Specifications
I/O & Electrical
Input line voltage
380-460 V AC
Line frequency
50/60 Hz
Current rating
97 A
Communication & Power
Control voltage
100-120 V AC
Heatsink fan rating
45 VA
Heat dissipation
285 W
Physical & Environmental
Enclosure type
Open (IP00)
Operating temperature
0 to 50 °C
Storage temperature
-40 to 85 °C
Relative humidity
5%-95% non-condensing
Weight
27.50 lbs (12.47 kg)
Dimensions (approx W×H×D)
9-49/64 × 13-15/64 × 10-3/32 in (248×336×256.2 mm)
