Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

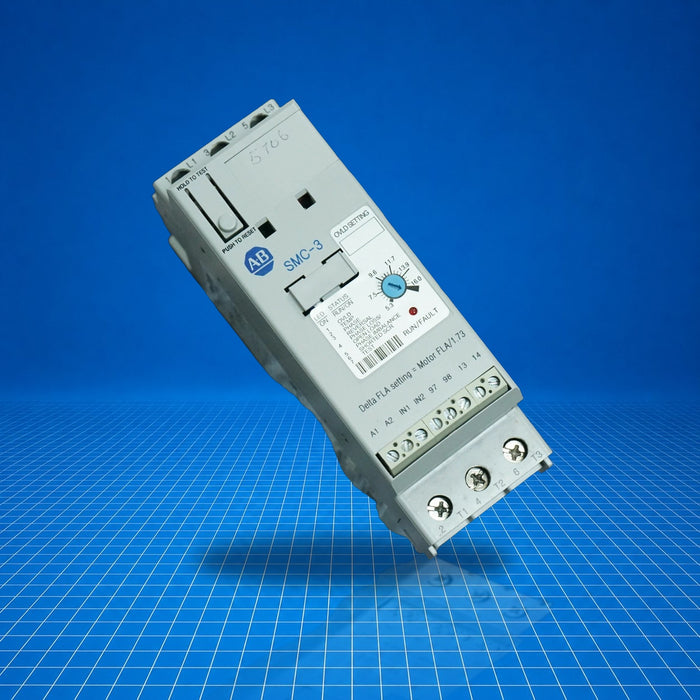

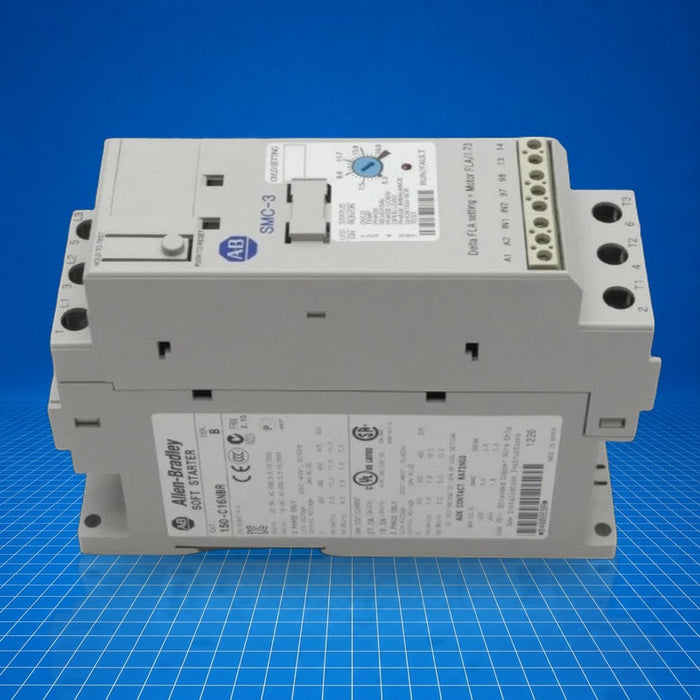

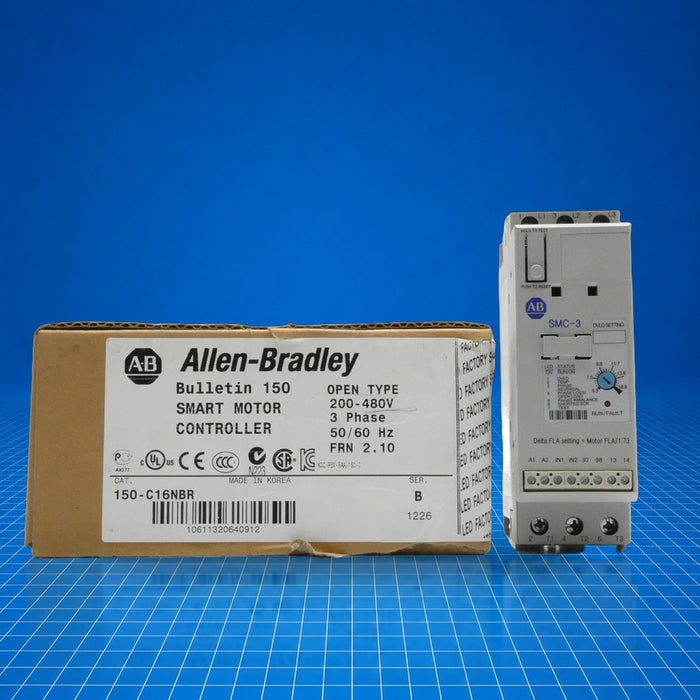

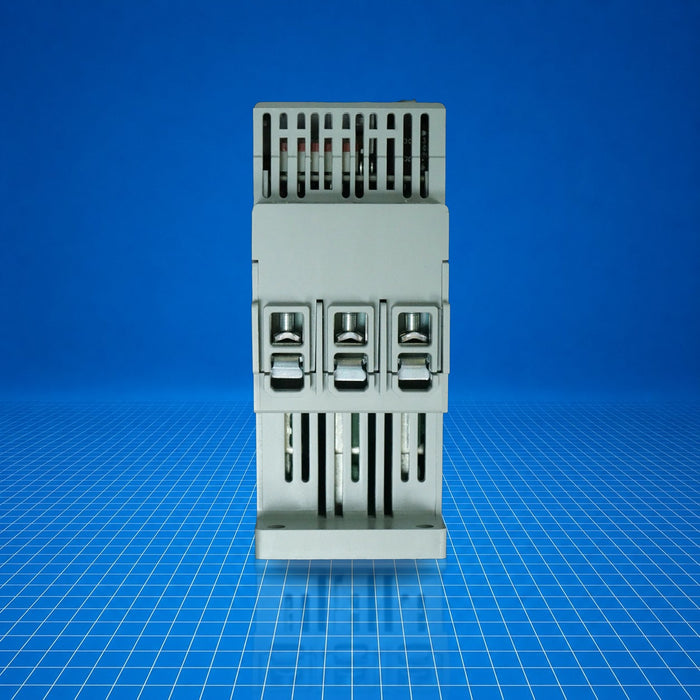

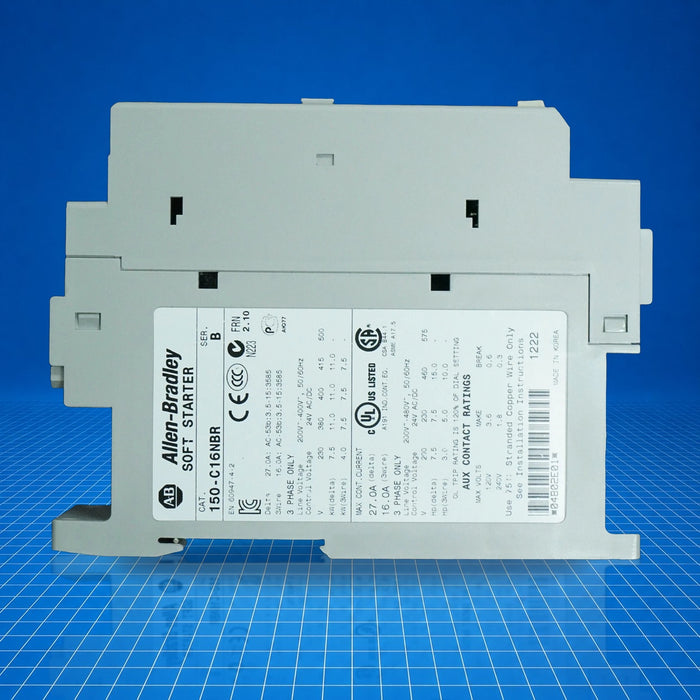

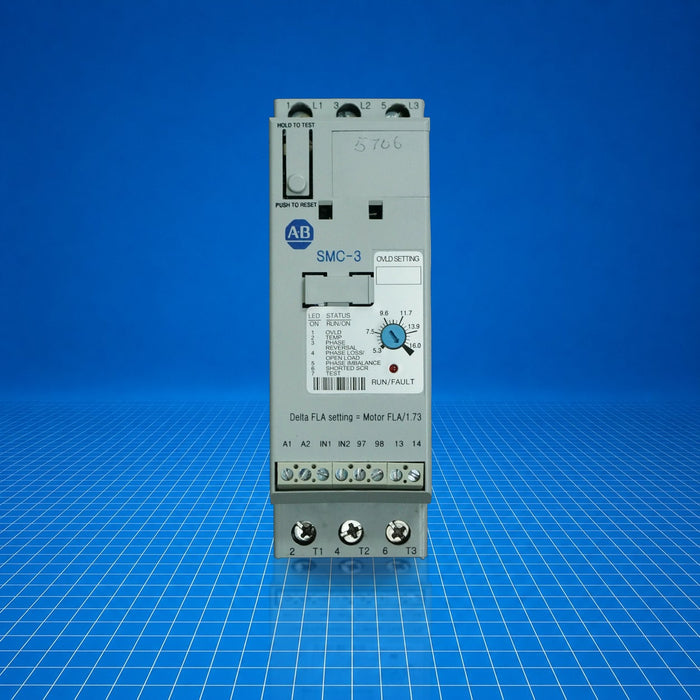

The 150-C16NBR is an Allen-Bradley SMC-3 series smart motor controller designed for open-type installation. It provides single-direction soft-start, soft-stop, selectable initial torque and kick-start functions to manage 3-phase motor loads up to 16 A. It integrates motor overload protection and auxiliary fault contacts. It is suited for general industrial control panels, motor control centers, and retrofit projects where compact, configurable motor starting is required.
Best Suited For
- Open-type panel mounting in motor control centers
- 3-phase motor soft starting applications
- Systems requiring adjustable initial torque or kick-start
- Applications needing integrated overload and auxiliary fault signaling
Motor current rating
16 A
Control voltage
24 V AC/DC
Enclosure
Open type, IP2X
Heat dissipation
14 W
Selectable start/stop modes
Kick-start, initial torque, soft-stop
Technical Specifications
I/O & Electrical
Line connected motor current
5.3…16 A @ 380/400/415/460 V AC, 3-phase
Control supply voltage
24 V AC/DC
Selectable start times
2, 5, 10, 15, 20, 25, or 30 s
Selectable initial torque
15%, 25%, 35%, 65% of locked rotor torque
Selectable kick-start
450% FLA at 0, 0.5, 1.0, or 1.5 s
Communication & Power
Steady state heat dissipation
14 W
Input OFF-state current
<10 mA (control circuit)
DV/DT protection
1000 V/µs (power circuit)
Dielectric withstand
2500 V AC (power circuit)
Physical & Environmental
Operating temperature
-5 to 50 °C (open)
Storage temperature
-25 °C
Humidity
5…95% non-condensing
Weight
0.86 kg
Dimensions (W × H × D)
44.8 mm × 139.7 mm × 110 mm
Certifications
China CCCEurasian Economic CommunityAustralian RCMMorocco DOCUKCA
Certified for China CCC, Eurasian Economic Community, Australian RCM, Morocco DOC, and UKCA as of May 27, 2026.
