150-C16NCD Allen-Bradley
Product image is representative; revision or series may vary.
Contact us to request a specific version.

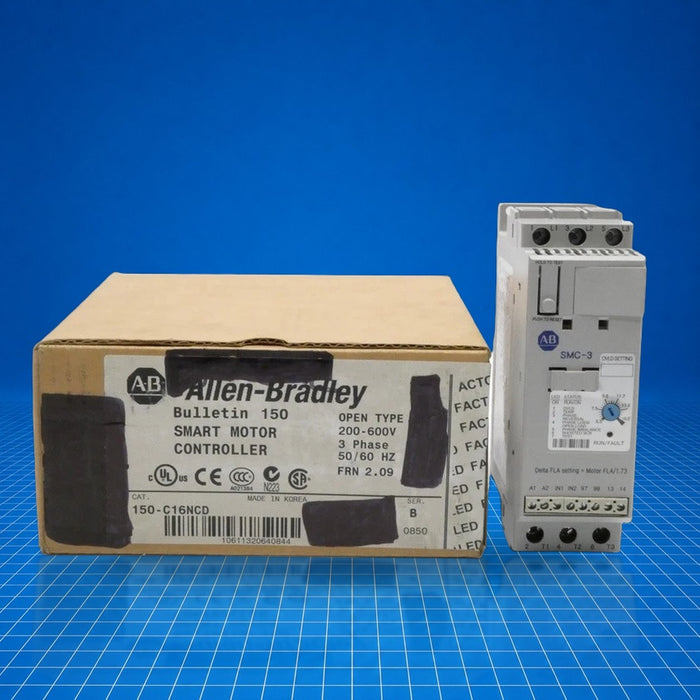

150-C16NCD Allen-Bradley

$989.97 - $1,237.50
$989.97
$989.97 - $1,237.50
$989.97
Surplus - Tested (With Warranty)
Need a Specific Revision?
$989.97
2 in stock
New / Open-Box Surplus
Need a Specific Revision?
$1,237.50
5 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (2) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 150-C16NCD is an Allen-Bradley SMC-3 series smart motor controller intended for single-direction control of three-phase motors. Rated for 5.3 to 16 A motor current at 500 / 575 V AC, it delivers soft-start and soft-stop functionality with adjustable torque, kick-start, and overload trip class settings. It integrates motor overload protection and is typically used in conveyor systems, pumps, compressors, and other industrial motor-driven applications. The 150-C16NCD provides a compact open-type package for panel or on-machine installation.

Best Suited For

  • Three-phase motor control (5.3-16 A, 500/575 V AC)
  • Soft-start/soft-stop motor applications
  • Adjustable overload protection (Class 10/15/20)
  • Open-type panel or machine-mount applications
Motor current range
5.3-16 A
Line voltage
500/575 V AC
Control voltage options
100-240 V AC (also 24 V AC/DC variant exists)
Soft-start/stop
Selectable initial torque, kick-start, soft-stop

Technical Specifications

I/O & Electrical

Rated motor current
5.3…16 A @ 500/575 V AC, 3-phase
Line-connected motor power, max
7.5 kW @ 500 V AC 50 Hz, 3-phase
Delta-connected motor current
9.1…27.6 A @ 500/575 V AC, 3-phase
Selectable overload trip class
10, 15, or 20
Selectable current limit
150%, 250%, 350%, 450% of full-load current
Selectable kick-start
0, 0.5, 1.0, or 1.5 s
Selectable initial torque
15%, 25%, 35%, 65% of locked-rotor torque
Selectable soft-stop
Off, 100%, 200%, or 300% of the start time setting when wired

Communication & Power

Control power
100-240 V AC, 50/60 Hz
Alternate control voltage
24 V AC/DC (not for 150-C16NCD variant)
Rated control power during start
215 mA @ 120 V AC; 180 mA @ 240 V AC; 800 mA @ 24 V DC; 660 mA @ 24 V AC
Steady state heat dissipation
14 W

Physical & Environmental

Operating temperature
-5 °C to 50 °C (open type)
Storage temperature
-25 °C
Humidity
5…95% non-condensing
Altitude
2000 m
Degree of protection
IP2X (open type)
Weight
0.86 kg
Dimensions (W×D×H)
44.8 mm × 110 mm × 139.7 mm
Shock/vibration
15 G shock; 1.0 G peak, 0.15 mm vibration displacement

Certifications

China CCCEurasian Economic CommunityAustralian RCMMorocco DOCUKCA

Certified to China CCC, Eurasian Economic Community, Australian RCM, Morocco DOC, and UKCA as of May 27 2026.
