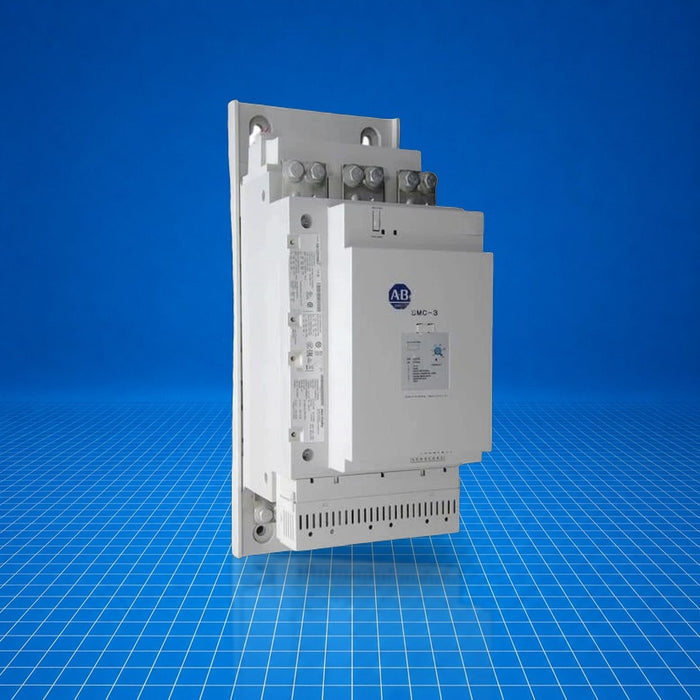

150-C251NBD Allen-Bradley
Original price
$3,300.00
-
Original price
$12,711.44
Original price
$3,300.00
$3,300.00
-
$12,711.44
Current price
$3,300.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 150-C251NBD is an Allen-Bradley SMC-3 series 251 A smart motor controller, open-type enclosure. It regulates motor starting and stopping by providing soft-start, kick-start, soft-stop, current limiting, inside-delta bypass, and built-in overload protection. It controls three-phase motors rated up to 132 kW (delta up to 250 kW) at 380-415 V AC systems, and manages motor control and protection functions in industrial motor applications.
Best Suited For
- 3-phase motor starting and protection
- Inside-delta bypass motor installations
- Facilities requiring adjustable soft-start and soft-stop control
- Applications with integrated overload and current-limit functions
Controller current rating
251 A
Open-type enclosure
Yes
Motor power, line-connected (max)
95-132 kW @ 380/400/415 V AC
Motor power, delta-connected (max)
250 kW @ 380/400/415 V AC
Technical Specifications
I/O & Electrical
Rated control supply voltage
100 V AC @ 50 Hz and 100 V AC @ 60 Hz
Control voltage type
AC/DC
Fan power rating
40 VA
Overload current
84 A
Selectable overload trip class
Trip Class 10, 15, or 20
Selectable start times
2, 5, 10, 15, 20, 25, or 30 s
Selectable current limit
150%, 250%, 350%, and 450% of FLC
Selectable soft stop
Off, 100%, 200%, or 300% of start time setting
Input OFF-state current (IN1, IN2)
<10 mA, <12 mA @ input OFF-state voltage
Input ON-state current (IN1, IN2)
9.8 mA @ 120 V AC; 19.6 mA @ 240 V AC; 7.3 mA @ 24 V AC/DC
Kick-start (450% FLA) selectable time
0, 0.5, 1.0, or 1.5 s
Input OFF-state voltage (max)
40 V AC @ 17 V DC / 12 V AC
Input ON-state voltage (min)
85 V AC @ 19.2 V DC / 19.2 V AC
Physical & Environmental
Operating temperature
-5 to 50 °C (23 to 122 °F) open-type
Storage/transport temperature
-25 °C
Humidity
5-95% non-condensing
Altitude
2000 m
Pollution degree
2
Degree of protection (IP)
IP2X
Weight
30.4 kg
Dimensions (W × D × H)
225 mm × 265.3 mm × 560 mm
Shock
15 G (Opsal)
Vibration
1.0 G peak, 0.15 mm displacement (Opsal)
Cable size, control terminals
0.2-2.5 mm² (24-14 AWG)
Tightening torque, control terminals
0.45-0.9 Nm (4.0-8.0 in-lb)
Mounting hole size
11.5 mm
Power pole holes
Two M10 × 1.5 per power pole
Enclosure
Open-type
Certifications
Eurasion Economic CommunityChina CCCAustralian RCMUKCAMorocco DOC
Certified (as of 2026-05-27): Eurasion Economic Community, China CCC, Australian RCM, UKCA DOC, Morocco DOC.
