150-C30NBD Allen-Bradley
Original price
$618.61
-
Original price
$2,321.98
Original price
$618.61
$618.61
-
$2,321.98
Current price
$618.61
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

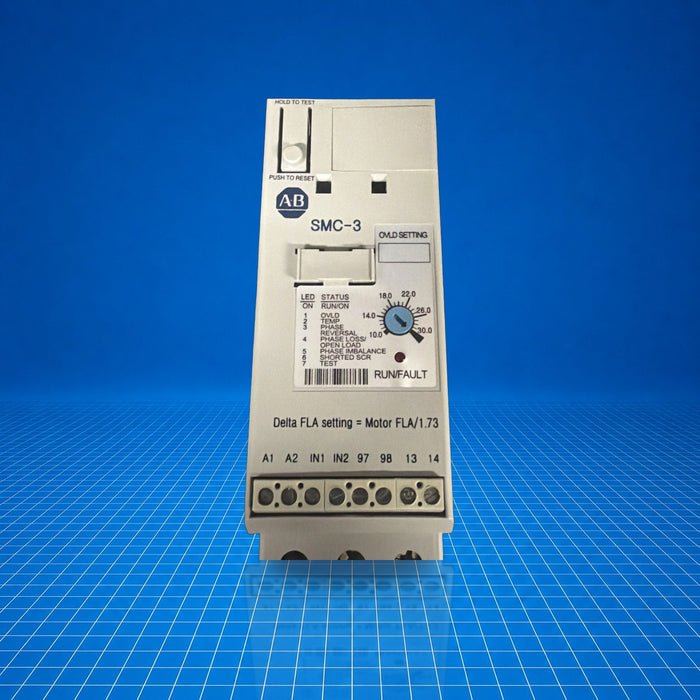

The 150-C30NBD is an Allen-Bradley SMC-3 series solid-state soft starter (smart motor controller) designed for 30 A three-phase motor control in open-type (IP00/NEMA 0) assemblies. It accepts line voltages up to 460 VAC and control voltages from 100…240 VAC, incorporating overload protection, selectable current-limit and soft-start/soft-stop functions. It is suitable for controlled acceleration/deceleration of motors, reducing mechanical and electrical stress in industrial motor applications.
Best Suited For
- Three-phase induction motor starting
- Soft-start applications requiring adjustable current limit
- Retrofit into standard motor control panels
- Open-type installations where IP00 enclosure is acceptable
Line voltage range
200…460 VAC, 3-phase
Control voltage
100…240 VAC
Current rating
30 A
Motor power capacity
up to 15 kW (50 Hz) / 20 HP (60 Hz)
Weight
0.86 kg
Technical Specifications
I/O & Electrical
Current rating
30 A
Motor power (50 Hz)
15 kW
Motor power (60 Hz)
20 HP
Communication & Power
Control voltage
100…240 VAC
Selectable current limit
150 %, 250 %, 350 %, 450 % of FLA
Selectable start times
2, 5, 10, 15, 20, 25, 30 s
Selectable overload trip class
Class 10, 15, 20
Physical & Environmental
Operating temperature
-5 °C to 50 °C
Storage temperature
-25 °C
Altitude
up to 2000 m
Weight
0.86 kg
Degree of protection
IP2X (open-type, IP00)
Certifications
China CCCEECRCMMOROCCO DOCUKCA
Certified to China CCC, Eurasian Economic Community, Australian RCM, Morocco DOC, and UKCA as of May 27 2026.
