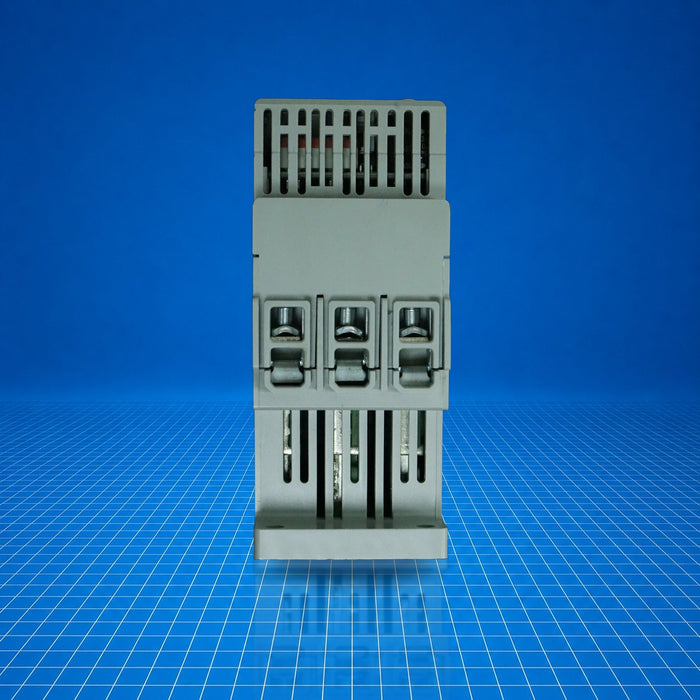

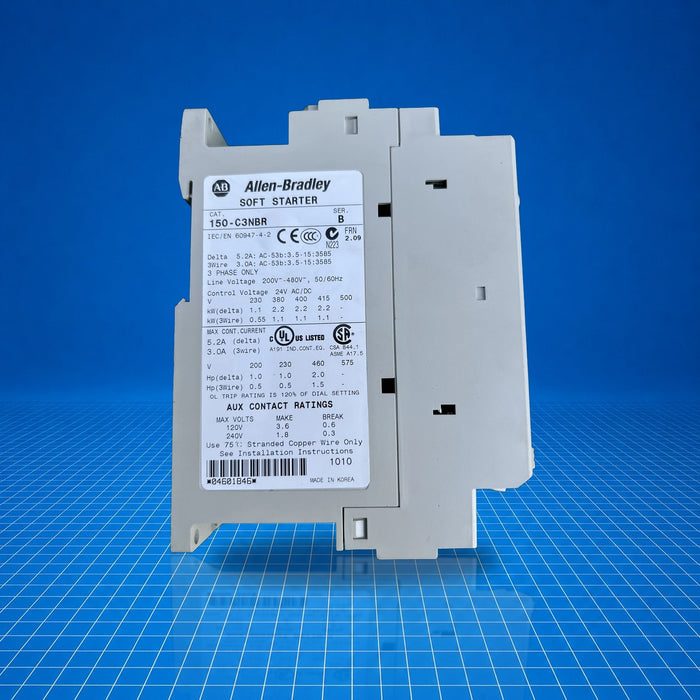

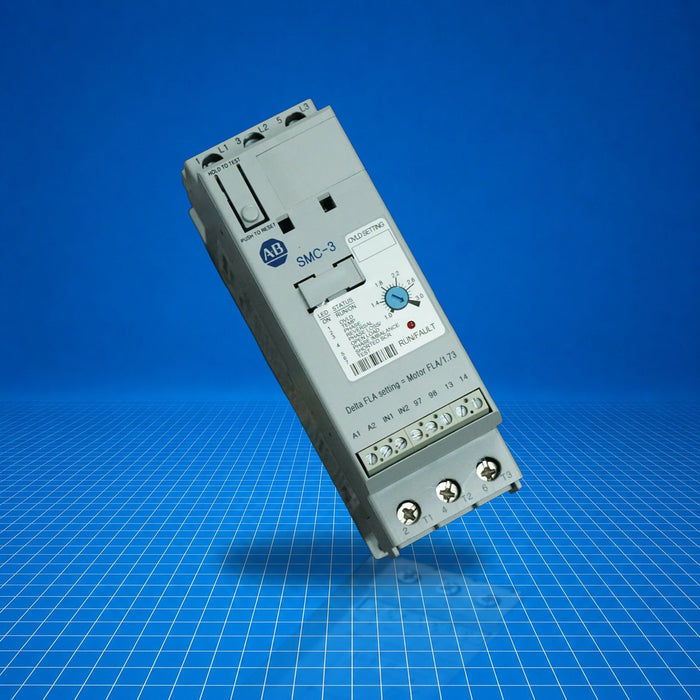

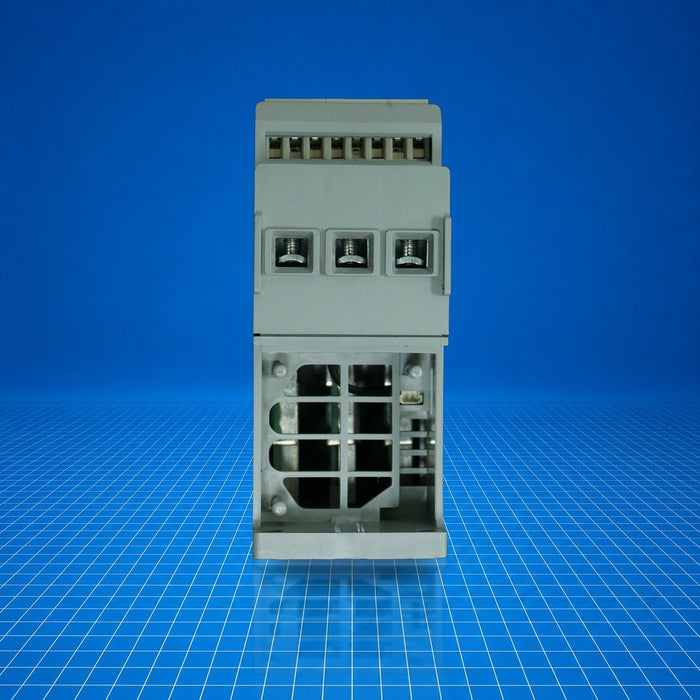

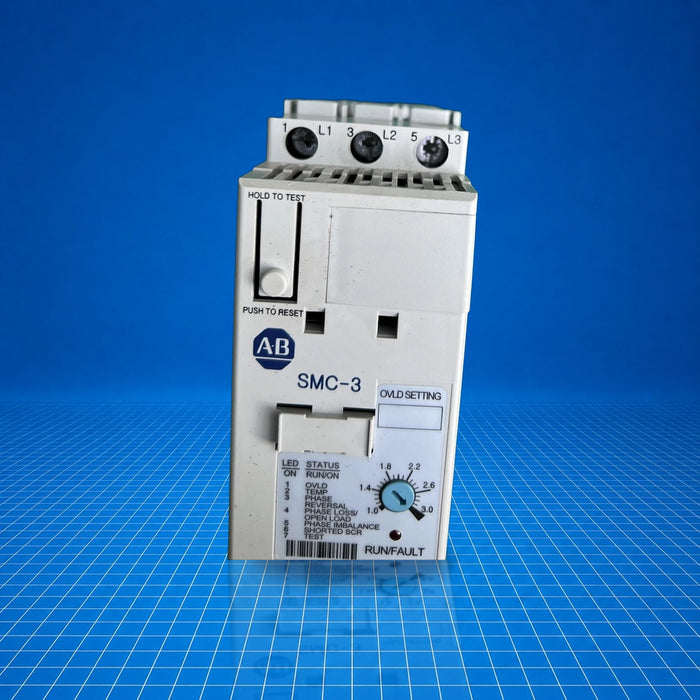

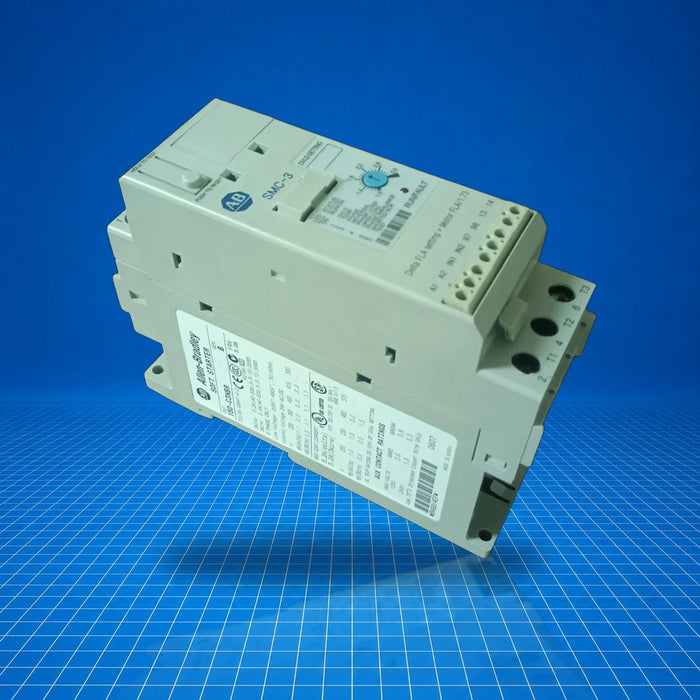

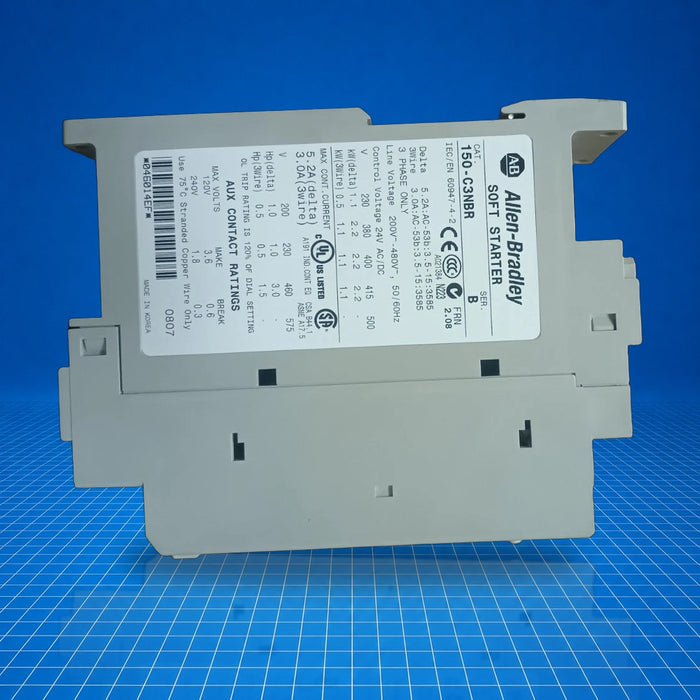

150-C3NBR Allen-Bradley

Name: 150-C3NBR Allen-Bradley
Brand: Allen Bradley
SKU: 150-C3NBR
Price: 359.97 USD
Availability: InStock

$359.97 - $437.97

$359.97

$359.97 - $437.97

$359.97

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (5) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

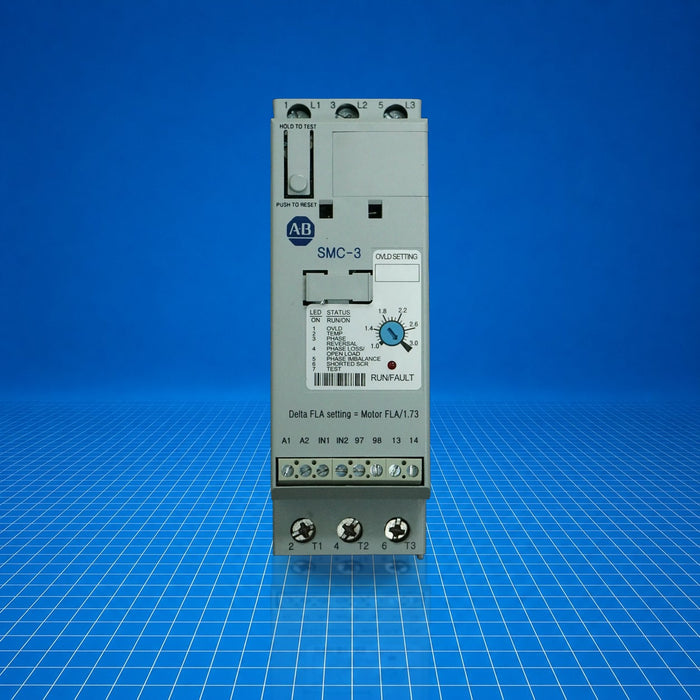

The Allen-Bradley 150-C3NBR is an open-type SMC-3 smart motor controller for single-direction motor starting and stopping. Part of the SMC-3 family, it provides soft-start, soft-stop, internal bypass and adjustable parameters such as kick-start, initial torque and overload trip class. In a control system, it reduces mechanical and electrical stress during motor start-up and shutdown. Typical applications include small three-phase motors up to approximately 3 A, such as pump drives, conveyor motors, and general machinery requiring controlled acceleration and deceleration.

Best Suited For

Starting small three-phase motors (approx. 3 A)
Soft-start and soft-stop applications
Reducing inrush current and mechanical stress
Compact open-type motor control enclosures

Rated motor current

1…3 A

Control supply voltage

24 V AC/DC

Heat dissipation

11 W

Operating temperature

-5 to 50 °C

Internal bypass

True

Technical Specifications

I/O & Electrical

Line connected motor current

1…3 A @ 380/400/415/460 V AC, 3-phase

Line connected motor power, max

1.1 kW @ 380/400/415 V AC @ 50 Hz, 3-phase

Delta connected motor current

1.7…5.1 A @ 380/400/415/460 V AC, 3-phase

Delta connected motor power, max

1 Hp @ 230 V AC, 60 Hz, 3-phase

Control supply voltage

24 V AC/DC

Overload trip class

10, 15, 20

Selectable kick start (450 % FLA)

0, 0.5, 1.0, 1.5 s

Selectable initial torque

15 %, 25 %, 35 %, 65 % of locked-rotor torque

Selectable soft stop

Off, 100 %, 200 %, 300 % of start time

Communication & Power

Steady-state heat dissipation

11 W

Rated control power during start (with fan)

215 mA @ 120 V AC; 180 mA @ 240 V AC; 800 mA @ 24 V DC; 660 mA @ 24 V AC

Rated control power during start (without fan)

205 mA @ 120 V AC; 145 mA @ 240 V AC; 705 mA @ 24 V DC; 580 mA @ 24 V AC

Physical & Environmental

Weight

0.86 kg

Dimensions (W×D×H)

44.8 × 110 × 139.7 mm

Operating temperature

-5 to 50 °C (open)

Storage/transport temperature

-25 °C

Relative humidity

5…95 %, non-condensing

Altitude

2000 m

Degree of protection

IP2X

Shock

15 G

Vibration

1.0 G peak, 0.15 mm displacement

Certifications

China CCCEurasian EECAustralian RCMUKCAMorocco DOC

Certified as of 27 May 2026: China CCC, Eurasian Economic Community, Australian RCM, UKCA DOC, Morocco DOC. Additional certifications may apply on product label.
