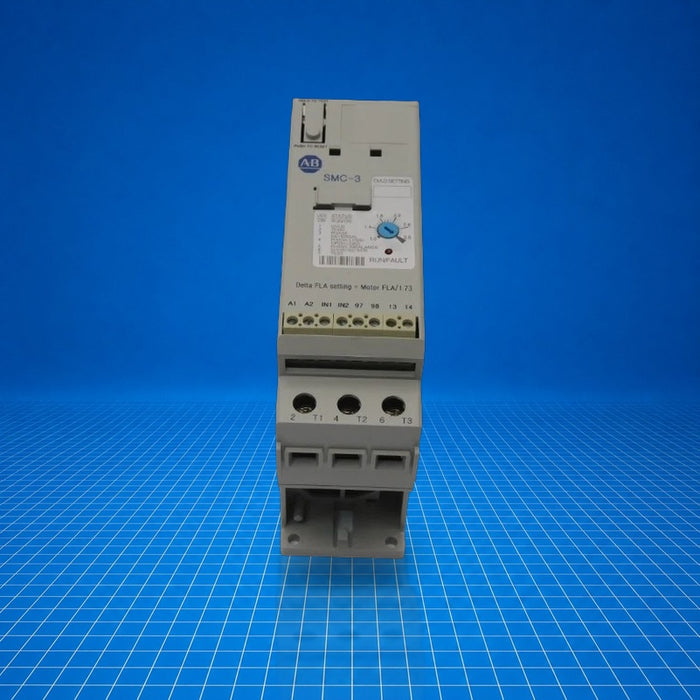

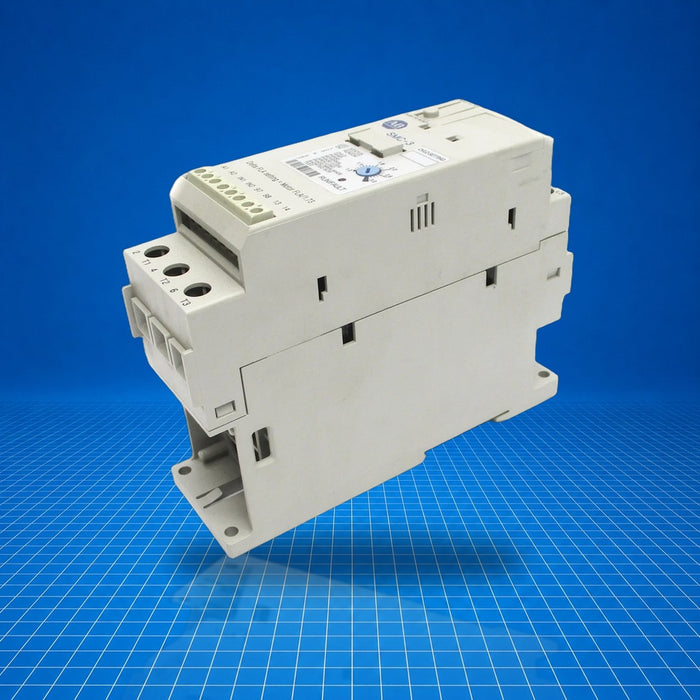

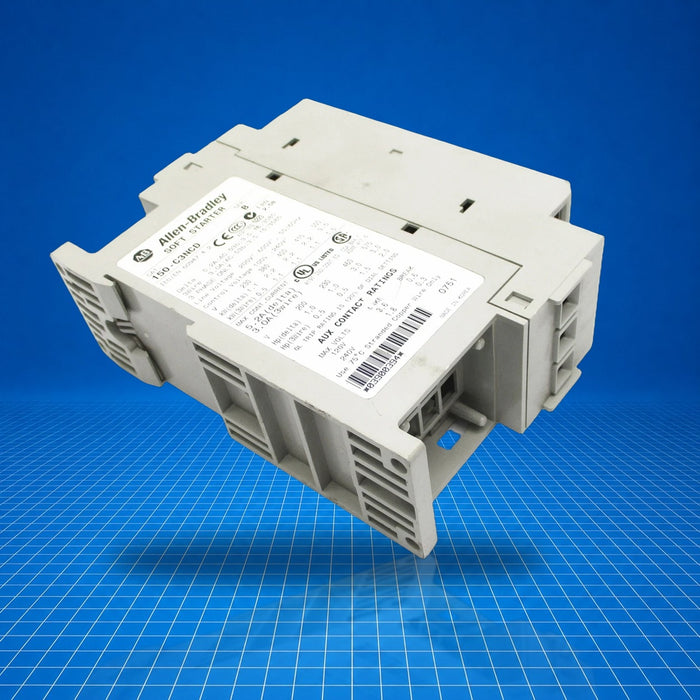

150-C3NCD Allen-Bradley
Original price
$902.00
-
Original price
$1,097.25
Original price
$902.00
$902.00
-
$1,097.25
Current price
$902.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 150-C3NCD is an Allen-Bradley SMC-3 series 3-A smart motor controller. Designed for three-phase 600 V AC motors, it provides soft-start, soft-stop, overload protection and internal bypass functions within an open-type enclosure. The device integrates into motor control systems for inductive load management, particularly suitable for applications requiring controlled acceleration of small motors. Typical industrial uses include fan systems, pump motor control, and general machine tool starter circuits. 150-C3NCD is part of the SMC-3 platform and is specified in technical data publication 150-TD009.
Best Suited For
- Soft-starting small three-phase motors (1-3 A, 500/575 V)
- Pump or fan motor control with overload protection
- Replacement of electromechanical starters
- On-machine open-type starter installation
Motor current range
1.7…5.1 A (delta, 500/575 V AC)
Control voltage
100…240 V AC, 50/60 Hz
Soft-start / Soft-stop features
Initial torque, kick-start, soft stop selectable
Heat dissipation
11 W steady-state
Operating temperature range
-5 °C to 50 °C (open enclosure)
Technical Specifications
I/O & Electrical
Motor current (delta, 500/575 V AC)
1.7…5.1 A
Maximum motor power (50 Hz)
0.75 … 3 kW
Maximum motor power (60 Hz)
1 … 3 HP
Control supply voltage
100…240 V AC, 50/60 Hz
Steady-state heat dissipation
11 W
Communication & Power
Overload current setting
1 A
Selectable start times
2, 5, 10, 15, 20, 25, 30 s
Selectable initial torque
15 %, 25 %, 35 %, 65 % locked-rotor torque
Selectable kick-start
0, 0.5, 1.0, 1.5 s
Selectable soft-stop
Off, 100 %, 200 %, 300 % of start time
Physical & Environmental
Operating temperature
-5 °C to 50 °C (open)
Storage/transport temperature
-25 °C
Humidity
5…95 % non-condensing
Altitude
up to 2000 m
Weight
0.86 kg
Enclosure type
Open type, degree of protection IP2X
Dimensions (W × D × H)
44.8 × 110 × 139.7 mm
Certifications
China CCCEurasion Economic CommunityAustralian RCMMOROCCO DOCUKCA DOC
