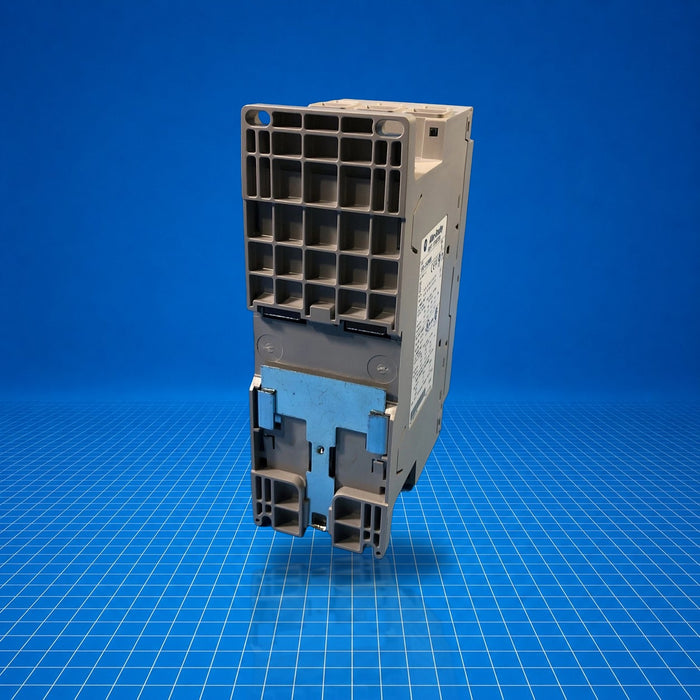

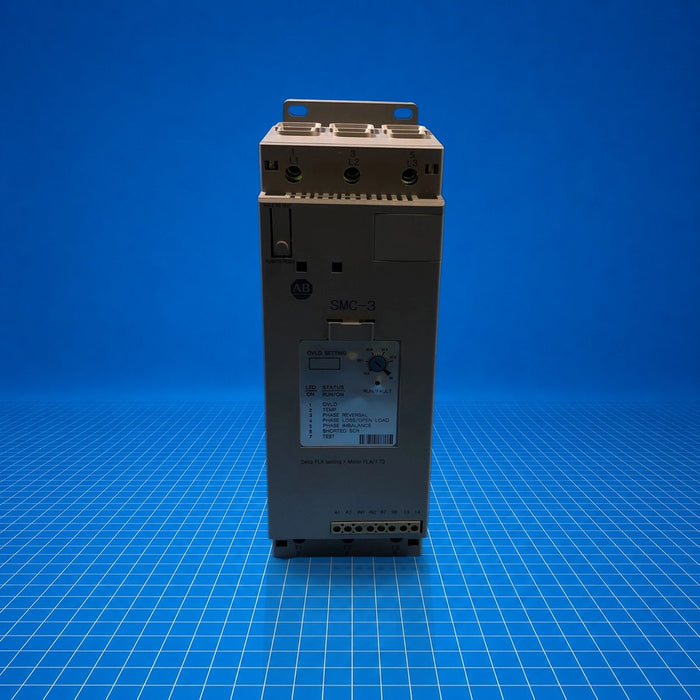

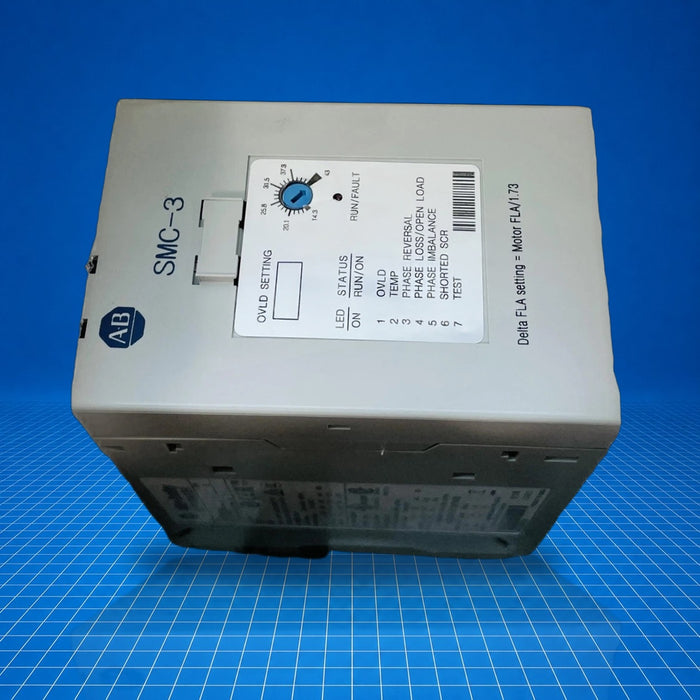

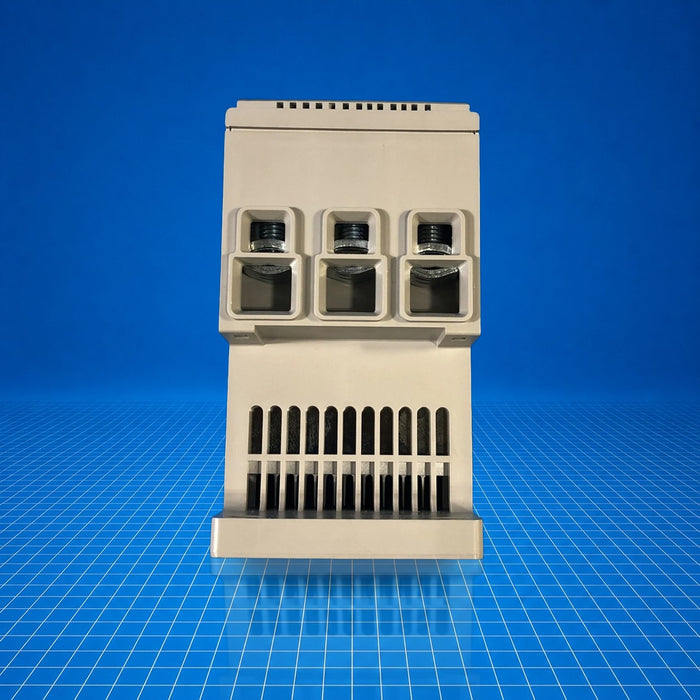

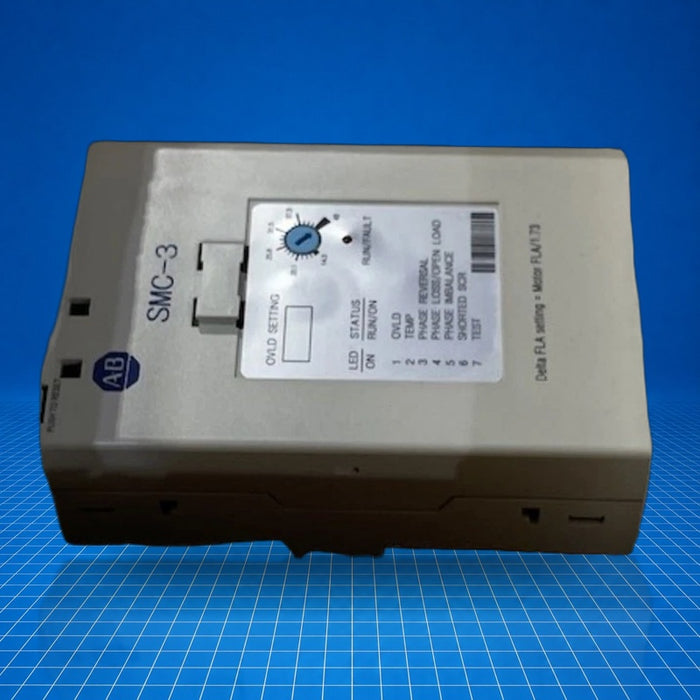

150-C43NBR Allen-Bradley
Original price
$360.00
-
Original price
$1,960.00
Original price
$360.00
$360.00
-
$1,960.00
Current price
$360.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 150-C43NBR is a SMC-3 series smart motor controller by Allen-Bradley, functioning as a single-direction soft starter rated for 43 A. It integrates control and protection for three-phase motors (5 … 15 Hp @ 230 V AC or 7.5 … 25 Hp in delta) within SMC-3 applications. Typical uses include motor startup control and overload protection in manufacturing lines, conveyor drives, and pump systems.
Best Suited For
- Discontinuous motor starting systems
- On-machine compact motor control
- Retrofit of legacy across-the-line starters
- Applications needing adjustable kick-start and soft-stop
Current Rating
43 A
Motor Power (230 V open)
5…15 Hp
Motor Power (230 V delta)
7.5…25 Hp
Steady-state heat dissipation
34 W
Control voltage
24 V AC/DC
Technical Specifications
I/O & Electrical
Input line voltage
200-460 V AC, 3-phase
Rated operating voltage Ue
200 V
Control supply voltage
24 V AC/DC
Overload current
14.3 A
DV/DT protection
1000 V/µs
Repetitive peak voltage
1400 V per UL/CSA/NEMA
Operating frequency
50/60 Hz
Communication & Power
Steady-state heat dissipation
34 W
Physical & Environmental
Operating temperature
Open: -5 °C to 50 °C (23 to 122 °F)
Storage/transport temp
-25 °C
Humidity
5…95% non-condensing
Altitude
2000 m
Pollution degree
2
Degree of protection
IP2X
Weight
2.25 kg
Dimensions (W × D × H)
72 mm × 130 mm × 206 mm
Shock
15 G Opsal
Vibration
1.0 G peak, 0.15 mm displacement
Cable size, line power terminals
2.5…95 mm² (14…3 AWG)
Tightening torque, load power terminals
11.3…12.4 Nm (100…110 in-lb)
Internal bypass
True
Selectable kick start
0, 0.5, 1.0, 1.5 s at 450% FLA
Selectable initial torque
15%, 25%, 35%, 65% of locked rotor torque
Selectable soft stop
Off, 100%, 200%, 300% of start-time setting when wired
Poles
3-phase (designed for 3-phase only)
Mounting hole size
5.3 mm
Enclosure
Open type
Certifications
China CCCEACAustralian RCMUKCAMorocco DOC
Certified for China CCC, Eurasian Economic Community, Australian RCM, UKCA, Morocco DOC (as of May 27 2026).
