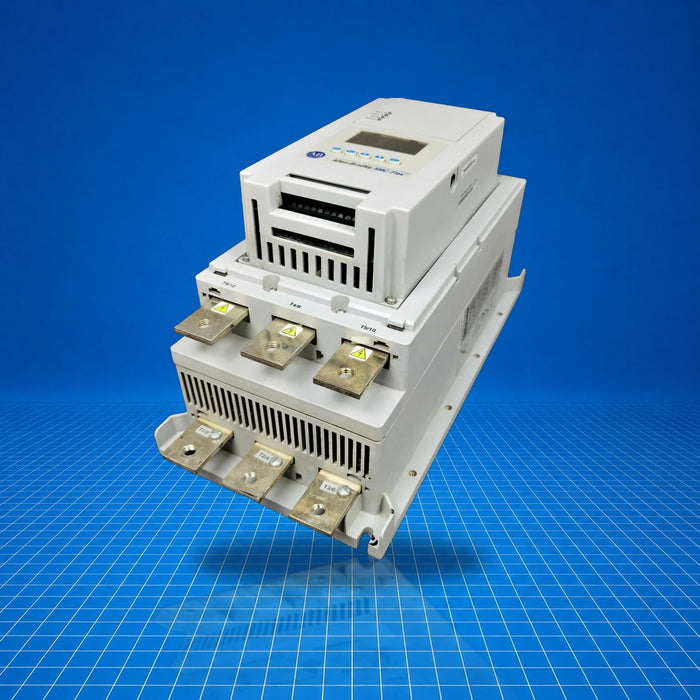

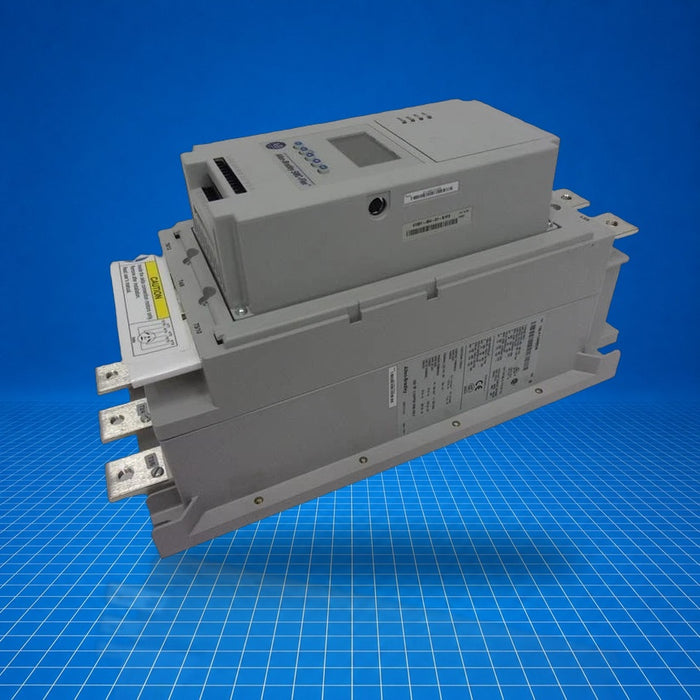

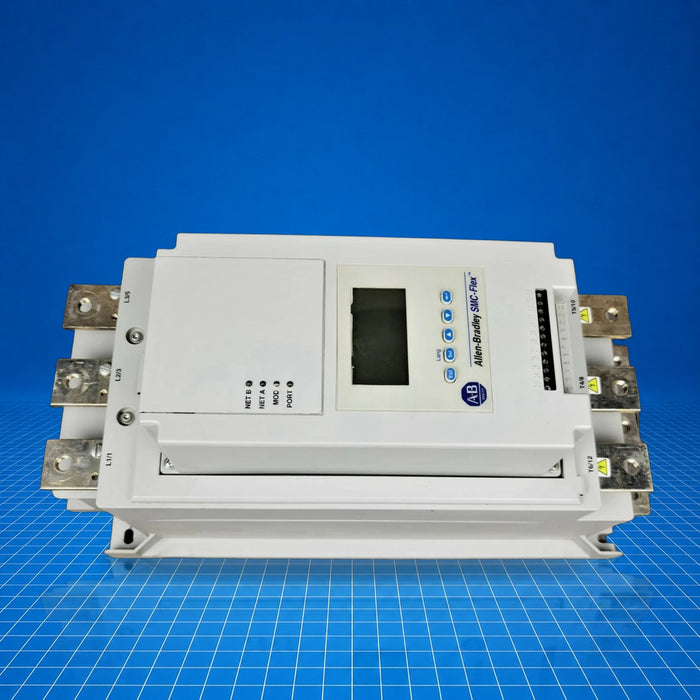

150-F135NBDB Allen-Bradley
Original price
$6,473.25
-
Original price
$13,079.37
Original price
$6,473.25
$6,473.25
-
$13,079.37
Current price
$6,473.25
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 150-F135NBDB is an Allen-Bradley SMC-Flex solid-state soft starter (Bulletin 150 series) rated for 135 A, designed for motor control in three-phase applications (25-100 Hp at 460 V AC). It supports pump-control functionality with built-in display and integrates smart motor control features such as overload protection and auxiliary contacts. The component mounts as an open-type controller commonly used in industrial pump stations, HVAC, and machinery where sequential motor ramp-up and protection are required.
Best Suited For
- Three-phase motor starting in pump control schemes
- Applications requiring adjustable current ramp-up to 135 A
- Motor protection with integrated overload and auxiliary signaling
- Installation in control panels with open-type mounting
Rated Motor Current
135 A
Motor Power (max)
100 Hp @ 460 V AC
Control Voltage
100...240 V AC
Enclosure Style
Open type
Display
Integrated
Technical Specifications
I/O & Electrical
Rated operational voltage
200...480 V AC (-15%, +10%)
Operating frequency
50/60 Hz
Overload current (line-connected)
34 A
Overload current (delta-connected)
59 A
Trip current rating
117% of motor FLC
Integrated motor overload protection
True
Communication & Power
Control voltage
100...240 V AC
Transformer control module (rating)
75 VA @ 100...240 V AC (-15%, +10%)
Heatsink fan rating
20 VA @ 110/120 V AC or 220/240 V AC
Physical & Environmental
Operating temperature
-5 to 50 °C (open type)
Storage/transport temperature
-20 °C
Humidity
5…95% (noncondensing)
Weight
15 kg
Dimensions (W×D×H)
196.4 × 212.2 × 443.7 mm
Steady-state heat dissipation (control + fan)
104 W
Ingress protection
IP2X (with terminal covers)
Certifications
China CCCEurasian Economic CommunityAustralian RCMUKCA-DOCMorocco DOC
