Product Overview

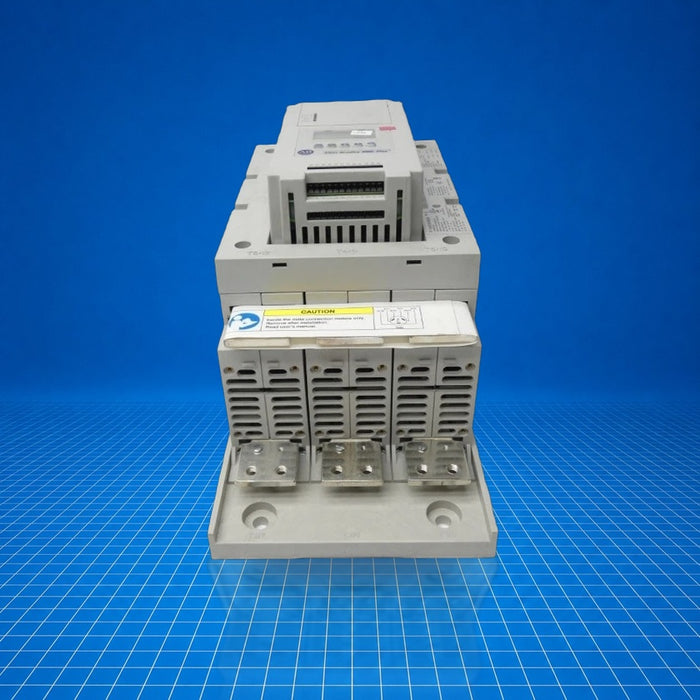

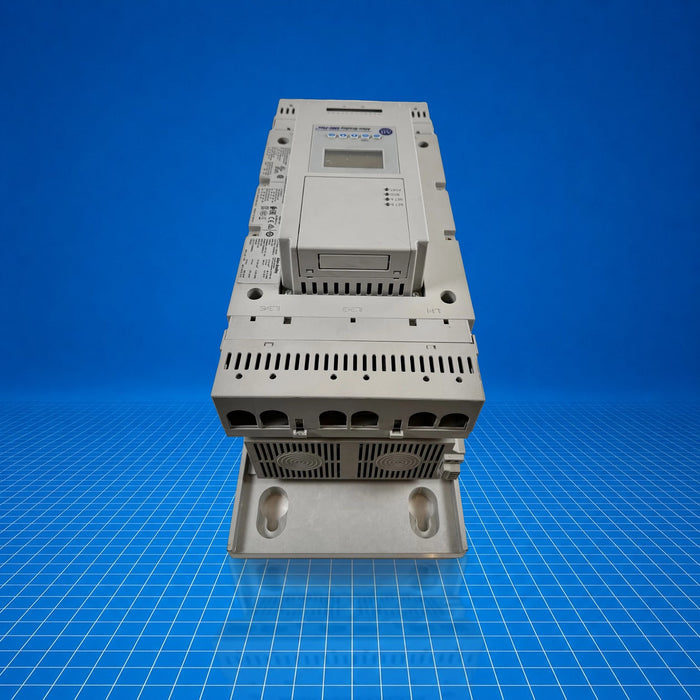

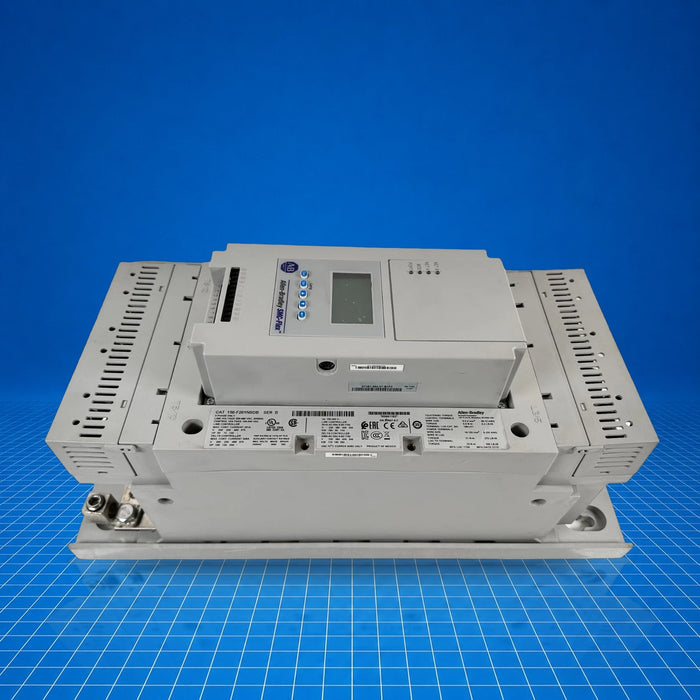

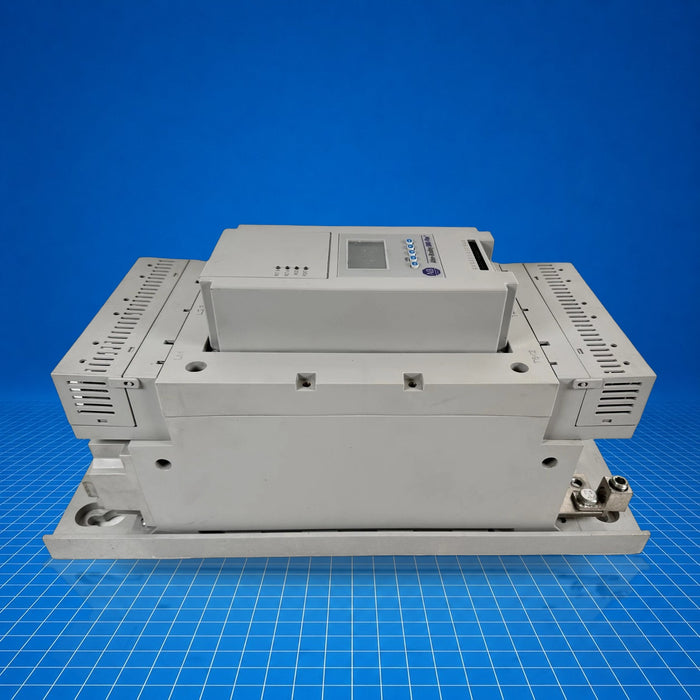

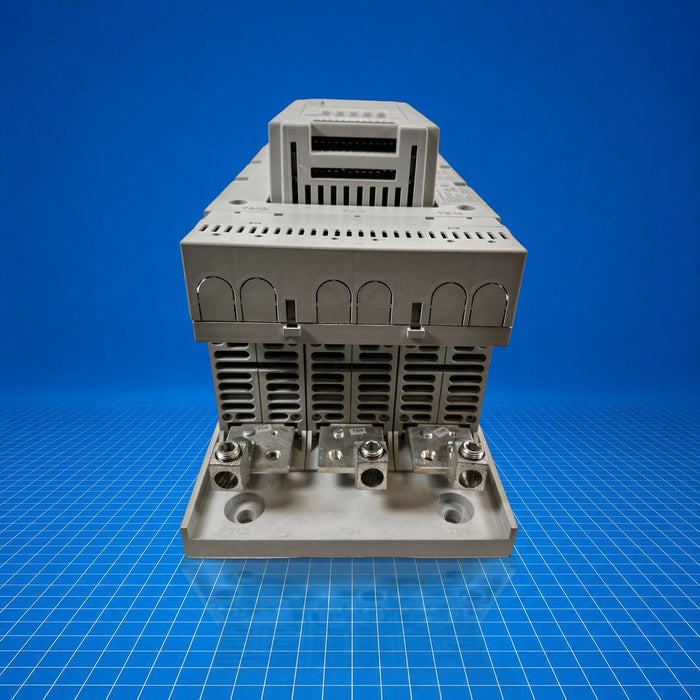

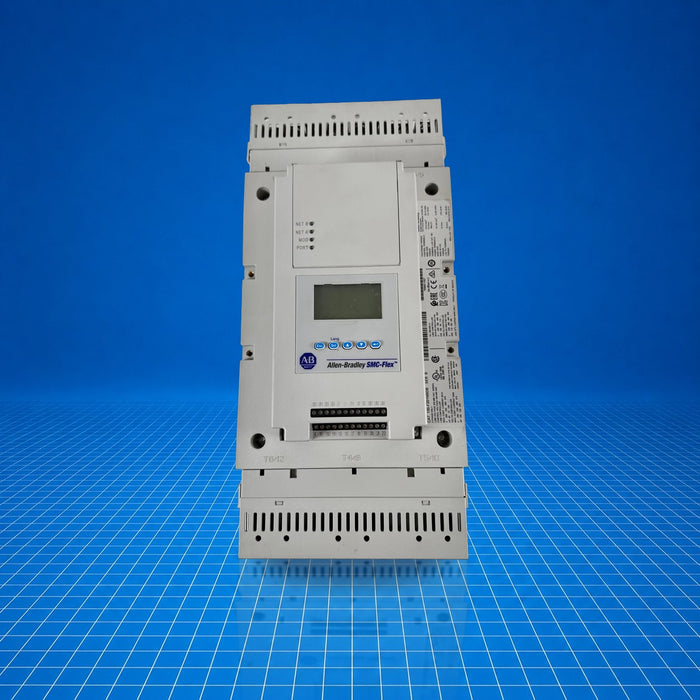

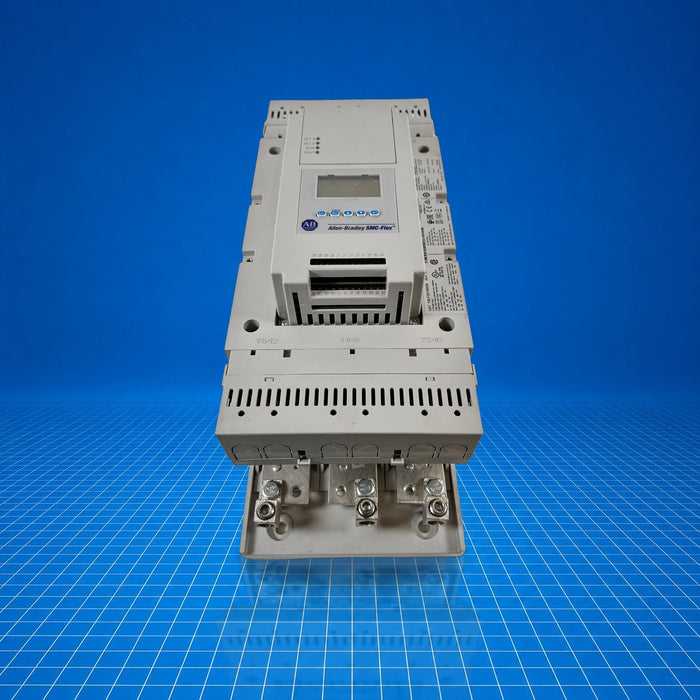

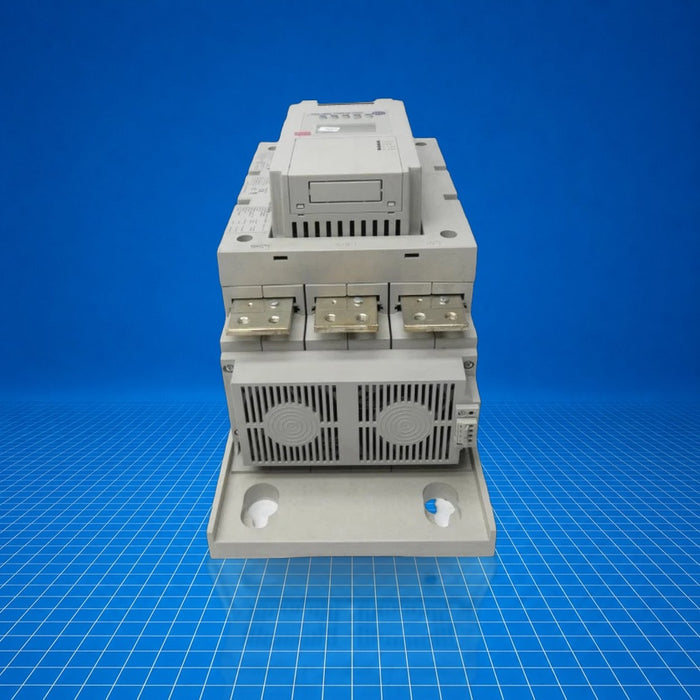

The 150-F201NBDB is an Allen-Bradley SMC-Flex solid-state soft starter (single-direction) designed for open-type installation. Rated for 201 A and up to 150 HP (@ 460 V AC), it serves to control squirrel-cage induction motors in demanding industrial environments. It provides pump control functionality and features integrated motor overload protection, RC snubber for dv/dt suppression, and internal bypass. The 150-F201NBDB soft starter supports a range of motor starting modes, enabling flexible control in machinery, pump systems, conveyors, and general motor starting applications.
Best Suited For
- Starting large motors (up to 150 HP @ 460 V AC)
- Pump control applications
- Open-type enclosure motor control installations
- Applications requiring motor overload and dv/dt protection
Controller Type
Soft starter (SMC-Flex)
Rated Current
201 A
Motor Power Rating
150 HP @ 460 V AC
Input Voltage Range
200…480 V AC, 3-phase
Control Voltage
100…240 V AC
Technical Specifications
I/O & Electrical
Rated current
201 A
Motor power rating
150 HP @ 460 V AC
Input line voltage
200…480 V AC, 3-phase
Control voltage
100…240 V AC
Overload current (line-connected)
67 A
Overload current (delta-connected)
116 A
Trip classes
10, 15, 20 and 30
Trip current rating
117 % of motor FLC
dv/dt protection
RC snubber network for power circuit
Transient protection
Metal oxide varistors: 220 J (optional)
Integrated motor overload protection
True
Communication & Power
Heatsink fan power rating
40 VA @ 110/120 V AC or 220/240 V AC
Transformer control module
75 VA @ 100…240 V AC (-15 %, +10 %)
Physical & Environmental
Enclosure type
Open type
Operating temperature
-5 °C to 50 °C (23 °F to 122 °F)
Storage/transport temperature
-20 °C
Humidity
5…95 % (non-condensing)
Altitude
≤ 2000 m
Pollution degree
2
Weight
30.4 kg
Dimensions (W × D × H)
225 mm × 253.8 mm × 560 mm
Steady-state heat dissipation
180 W
Certifications
China CCCEurasian Economic CommunityAustralian RCMUKCA DOCMorocco DOC
