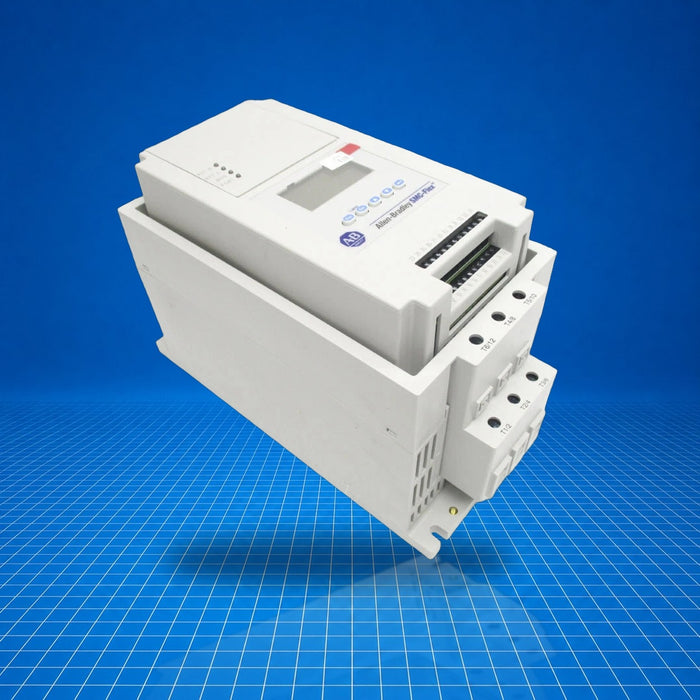

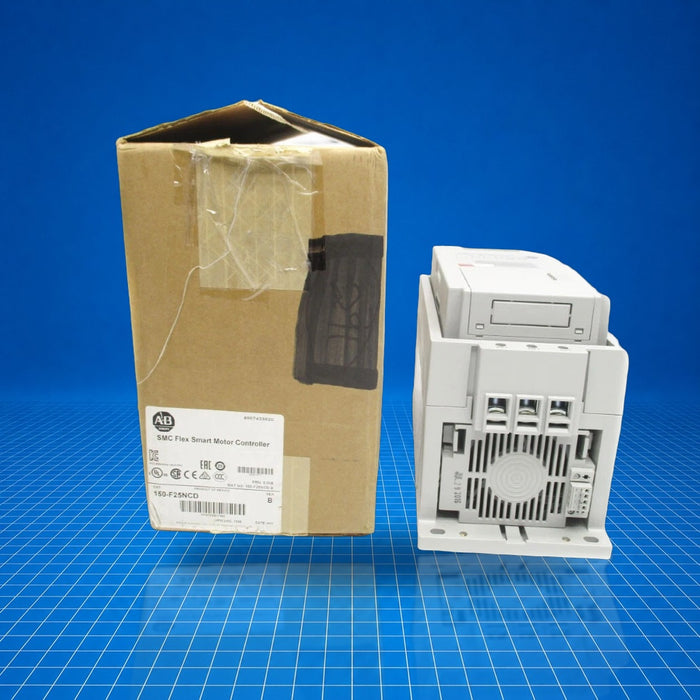

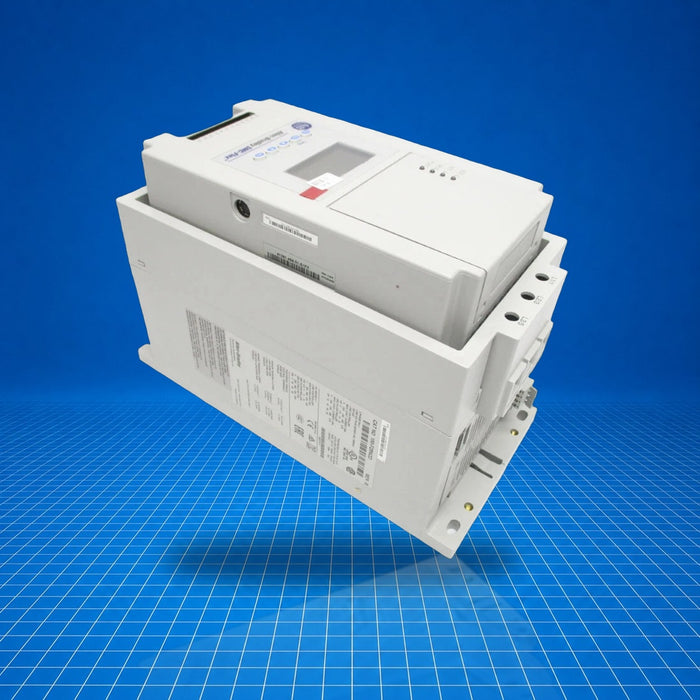

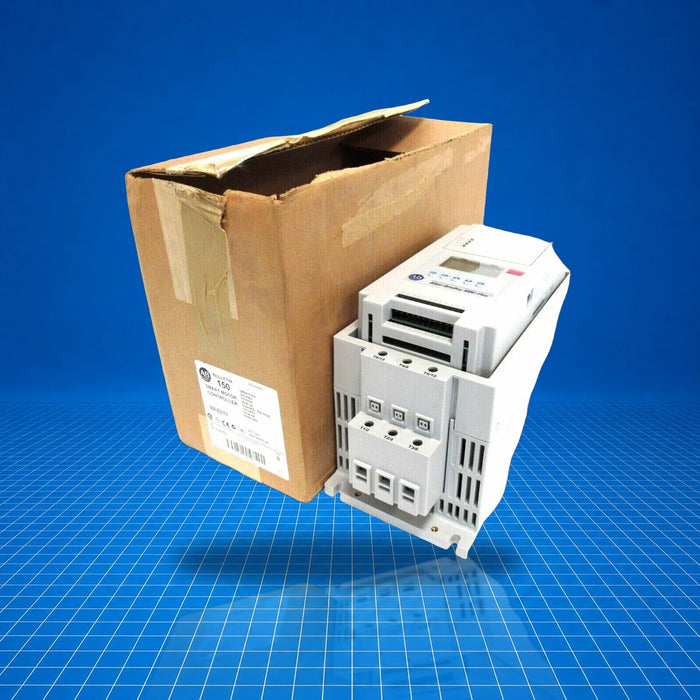

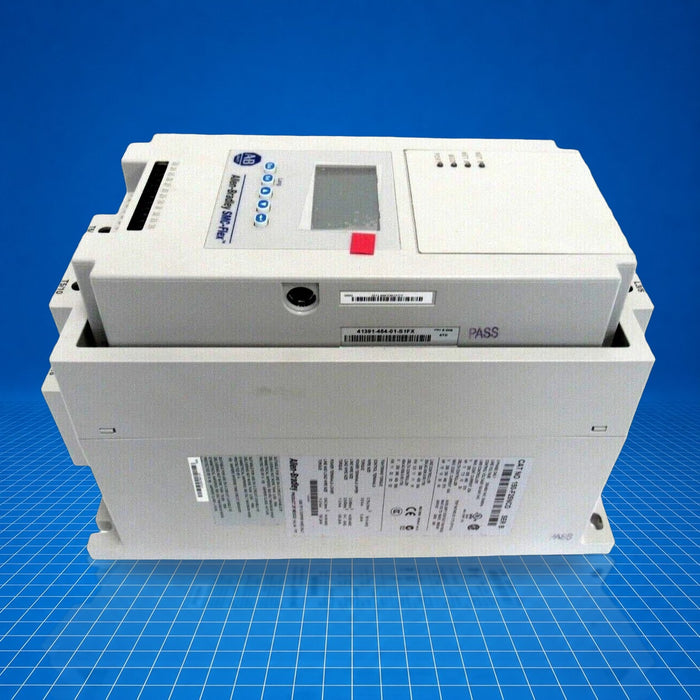

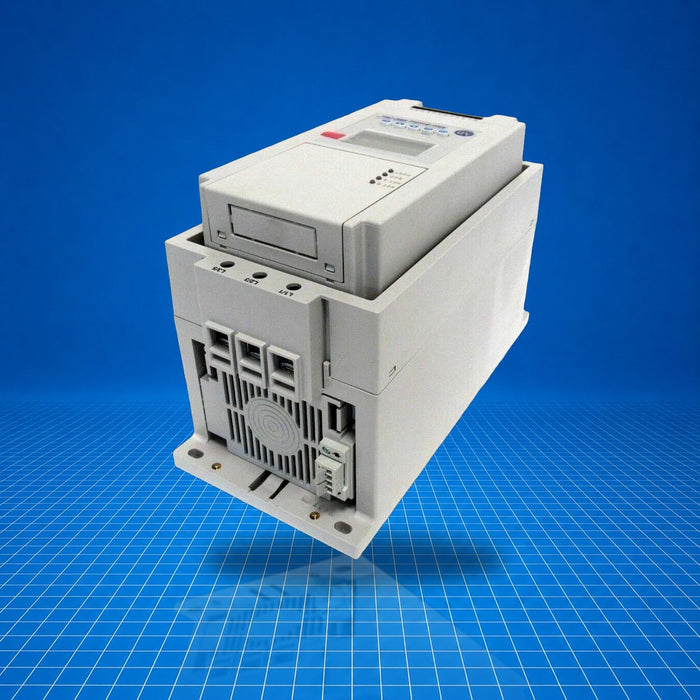

150-F25NCD Allen-Bradley
Original price
$3,580.85
-
Original price
$5,250.00
Original price
$3,580.85
$3,580.85
-
$5,250.00
Current price
$3,580.85
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 150-F25NCD is an SMC-Flex series non-combination solid-state motor controller (soft starter) by Allen-Bradley. It supports open-type mounting and is rated for 25 A line-connected motors (5-15 Hp @ 460 V AC). It accepts 200-600 V AC operational voltage with control voltage of 100-240 V AC. Typical applications include motor starting and protection in conveyors, pumps, and general industrial motor control.
Best Suited For
- Starting 5-15 Hp three-phase motors
- Open-type installation in motor control centers or panels
- Applications requiring adjustable trip class (10-30)
- Systems operating 200-600 V AC line voltage
- Scenarios where soft-start and motor overload protection are needed
Controller rating
25 A (5-15 Hp @ 460 V AC)
Line voltage range
200-600 V AC
Control voltage
100-240 V AC
Heat dissipation
70 W steady-state with control and fan power
Operating temperature
-5 to 50 °C (open type)
Technical Specifications
I/O & Electrical
Controller type
Soft starter (solid-state)
Trip classes
10, 15, 20 and 30
Trip current rating
117 % of motor FLC
Internal bypass
True
Communication & Power
Overload current (line-connected)
5 A
Overload current (delta-connected)
8.6 A
Control voltage
100-240 V AC
Transformer control module
75 VA @ 100-240 V AC (-15 %, +10 %)
Heatsink fan rating
20 VA @ 110/120 or 220/240 V AC
Physical & Environmental
Weight
5.7 kg
Dimensions (W × D × H)
150 × 203 × 321 mm (5.90 × 8 × 12.60 in)
Operating temperature
-5 to 50 °C (23 to 122 °F)
Storage temperature
-20 °C
Humidity
5-95 % noncondensing
Protection (power circuit)
IP20 per IEC
Altitude
2000 m
Shock / Vibration
15 G / 1.0 G peak, 0.15 mm displacement
Enclosure
Open type
Certifications
China CCCEurAsian EECAustralian RCM
Certified for China CCC, Eurasian Economic Community, and Australian RCM as of April 29, 2026.
