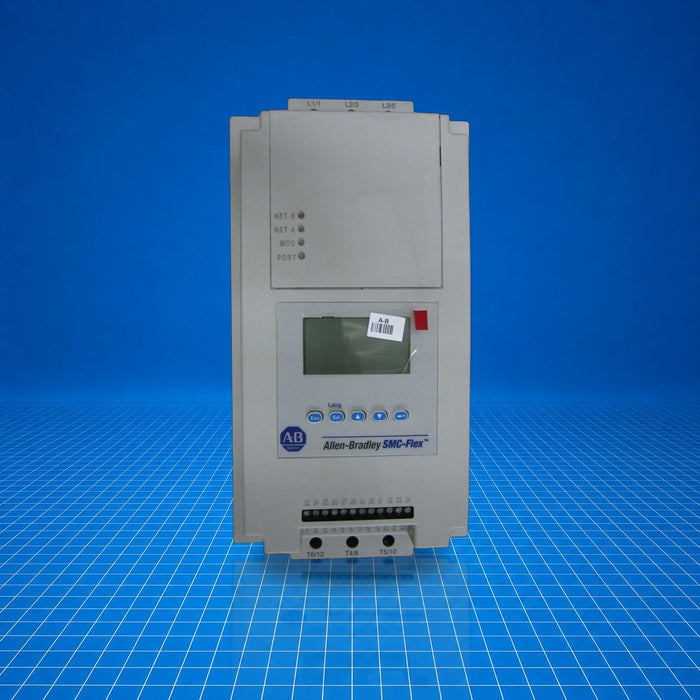

150-F25NCDB Allen-Bradley
Original price
$0.00
-
Original price
$3,937.50
Original price
$3,937.50
$0.00
-
$3,937.50
Current price
$3,937.50
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Allen-Bradley 150-F25NCDB is a SMC Flex Smart Motor Controller in the Bulletin 150 family of soft starters. It provides single-direction motor starting and stopping by ramping motor voltage to reduce mechanical and electrical stress. Rated for approximately 5-15 hp at 460 V AC when line-connected, it supports solid-state control and includes internal bypass. Installed typically on open panels, it's used in pump, fan or conveyor applications where reduced inrush current and controlled starting/stopping are required. 150-F25NCDB integrates motor protection and control for compact motor management.
Best Suited For
- Soft-start control of 5-15 hp motors at 460 V AC
- Open-panel, non-enclosed installations
- Applications requiring internal bypass to minimize heating
- Pump and fan load motor control
Controller type
Soft starter
Rated motor power
5-15 hp @ 460 V AC
Steady-state heat dissipation
70 W
Operating temperature
-5 to 50 °C (23 to 122 °F)
Enclosure type
Open, IP20
Technical Specifications
I/O & Electrical
Controller rating
25 A, 5-15 Hp @ 460 V AC
Rated control voltage
100…240 V AC
Rated operational voltage (power circuit)
200…600 V AC (-15%, +10%)
Communication & Power
Control circuit OFF-state current
<10 mA AC, <3 mA DC
Overload current (line-connected)
5 A
Overload current (delta-connected)
8.6 A
Physical & Environmental
Steady-state heat dissipation
70 W
Operating temperature
-5 to 50 °C (23 to 122 °F)
Storage/transport temp
-20 °C
Humidity
5…95 % non-condensing
Pollution degree
2
Altitude
2000 m
Weight
5.7 kg
Dimensions (W×D×H)
150 × 203 × 321 mm
