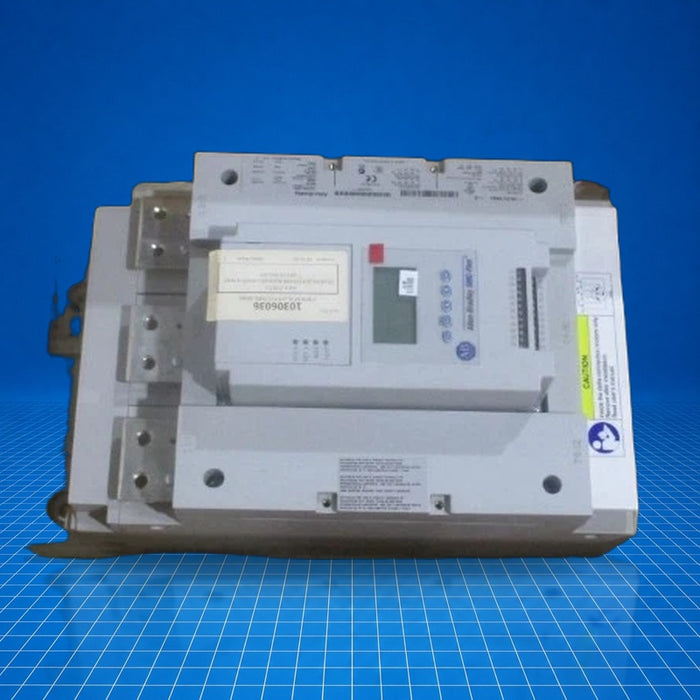

150-F317NBD Allen-Bradley
Original price
$13,200.00
-
Original price
$18,125.00
Original price
$13,200.00
$13,200.00
-
$18,125.00
Current price
$13,200.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 150-F317NBD is an Allen-Bradley SMC-Flex open-style soft motor controller designed to protect and control three-phase AC motors up to 317 A / 250 hp (at 460 V). It provides controlled motor starting to limit inrush current and incorporates electronic overload and undervoltage trip functionality. This controller is part of the SMC-Flex family, typically used in pump, fan, compressor, and other motor-driven industrial applications where soft start functionality is required. 150-F317NBD integrates into motor control systems for improved operational control and reduced mechanical stress.
Best Suited For
- Pump, fan, compressor motor soft starting
- Industrial three-phase AC motor control up to 250 hp
- Retrofit or new-build motor starting panels
- Applications requiring electronic overload protection
Controller Type
Soft starter (SMC-Flex)
Motor Rating
317 A / 250 hp @ 460 V AC
Control Voltage
100-240 V AC
Enclosure Type
Open
Display
Integral LCD
Technical Specifications
I/O & Electrical
Motor current rating
313…625 A (FLA range)
Maximum motor power
200…355 kW (50 Hz) / 300…500 hp (60 Hz)
Input line voltage
200…480 V AC, 3-phase, 50/60 Hz
Control voltage
100…240 V AC
Trip classes
10, 15, 20, 30
Overload current (line connected)
106 A
Overload current (delta connected)
183 A
Trip current rating
117 % of motor FLC
Communication & Power
Display included
Yes (LCD)
Transformer control module
75 VA @ 100…240 V AC (-15 %, +10 %)
Heatsink fan rating
60 VA @ 110/120 V AC or 220/240 V AC
DV/DT protection
RC snubber network (power circuit)
Physical & Environmental
Weight
45.8 kg
Dimensions (H × W × D)
600 × 290 × 276.5 mm (23.62 × 11.42 × 10.89 in)
Operating temperature
-5 °C to 50 °C (23 °F to 122 °F)
Storage/transport temperature
-20 °C
Humidity
5…95 % (non-condensing)
Shock
5.5 g
Vibration
1.0 g peak, 0.15 mm displacement
Altitude
up to 2000 m
Pollution degree
2
Enclosure protection
Open type, IP2X with terminal covers
Certifications
China CCCEurasian Economic CommunityAustralian RCMUKCA
