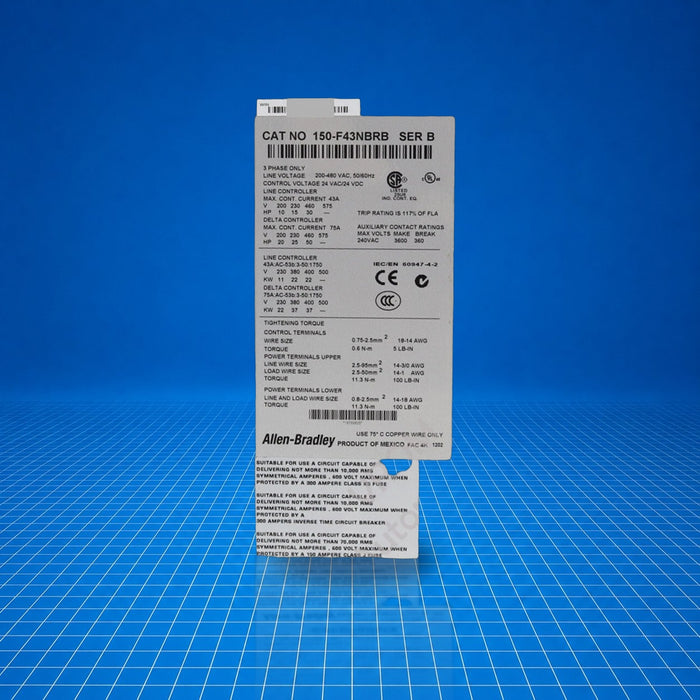

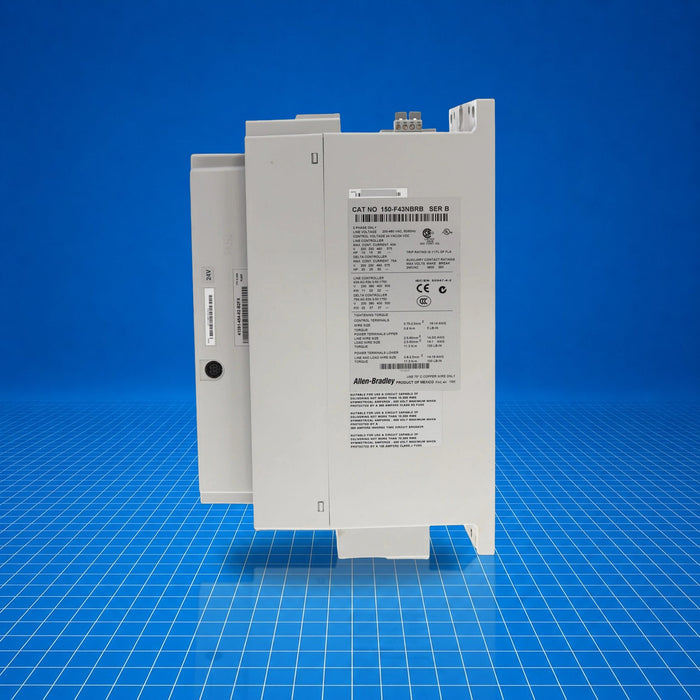

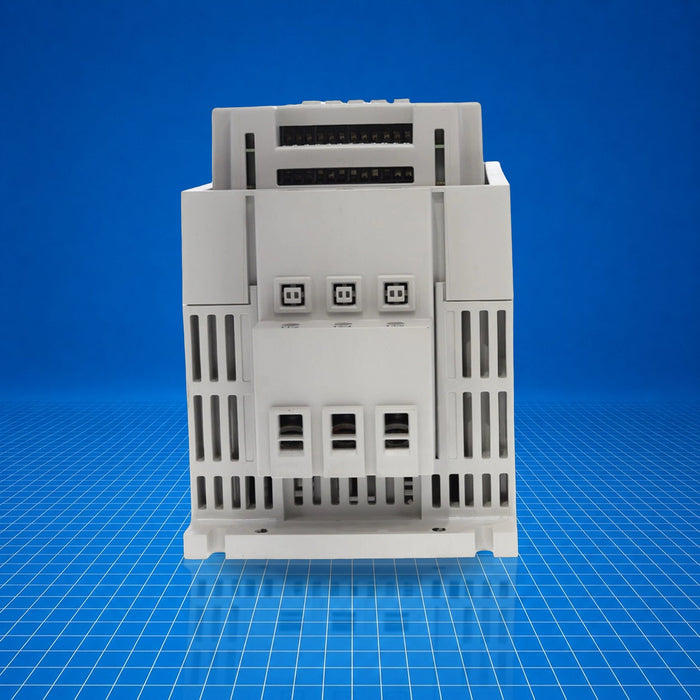

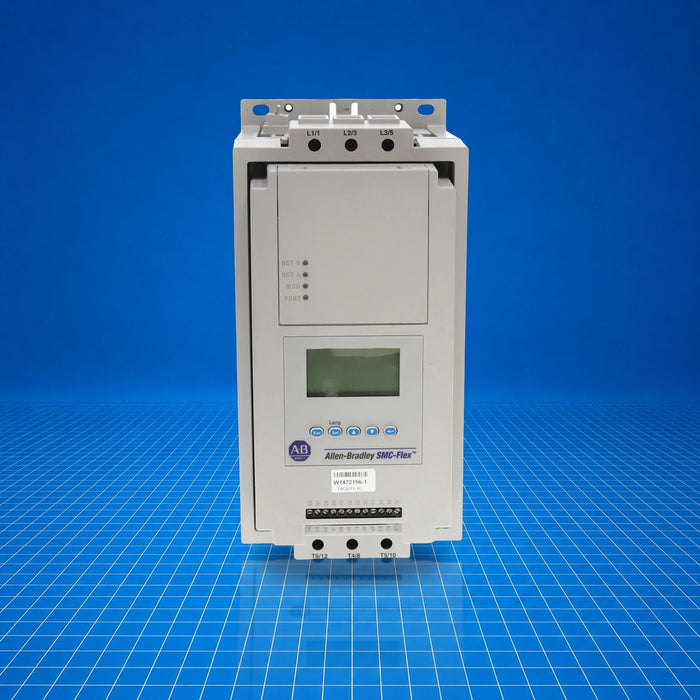

150-F43NBRB Allen-Bradley
Original price
$0.00
-
Original price
$5,292.00
Original price
$5,292.00
$0.00
-
$5,292.00
Current price
$5,292.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 150-F43NBRB is an Allen-Bradley SMC Flex soft starter under the 150 family, providing single-direction motor control. Rated for up to 43 A continuous output (7.5-30 hp at 460 V AC), it integrates internal bypass and basic protective features. In a control system, it reduces inrush current during motor start, offering controlled ramp-up and motor overload protection. It is suitable for industrial motor control applications such as conveyors, pumps, fans, and compressors. Part number 150-F43NBRB.
Best Suited For
- Starting three-phase motors of 7.5-30 hp at 460 V AC
- Reduction of inrush current in conveyor or pump applications
- On-machine installation where open-type units are acceptable
- Systems requiring internal bypass after motor start
Controller rating
43 A (7.5-30 hp @ 460 V AC)
Steady-state heat dissipation
81 W
Control supply voltage
24 V AC/DC
Operating temperature range
-5 to 50 °C (23 to 122 °F)
Enclosure type
Open (IP20 power circuit)
Technical Specifications
I/O & Electrical
Rated control supply voltage
24 V AC/DC
Rated operational voltage (power)
200-480 V AC (-15%, +10%)
Controller rating
43 A (7.5-30 hp @ 460 V AC)
Line connected motor current
8.6-43 A @ 500/575 V AC, 3-phase
Delta connected motor current
14.9-74 A @ 500/575 V AC, 3-phase
Communication & Power
Steady-state heat dissipation with control and fan
81 W
Internal bypass
True
Physical & Environmental
Operating temperature
-5 to 50 °C (23 to 122 °F)
Storage/transport temperature
-20 °C
Humidity
5…95 % (non-condensing)
Altitude
2000 m
Pollution degree
2
Weight
5.7 kg
Dimensions (W×D×H)
150 × 203 × 321 mm
Shock
15 G opsal
Vibration
1.0 G peak, 0.15 mm displacement
Certifications
CCCEurAsian EACRCM
Certified for China CCC, Eurasian Economic Community, Australian RCM as of 2026-04-29.
