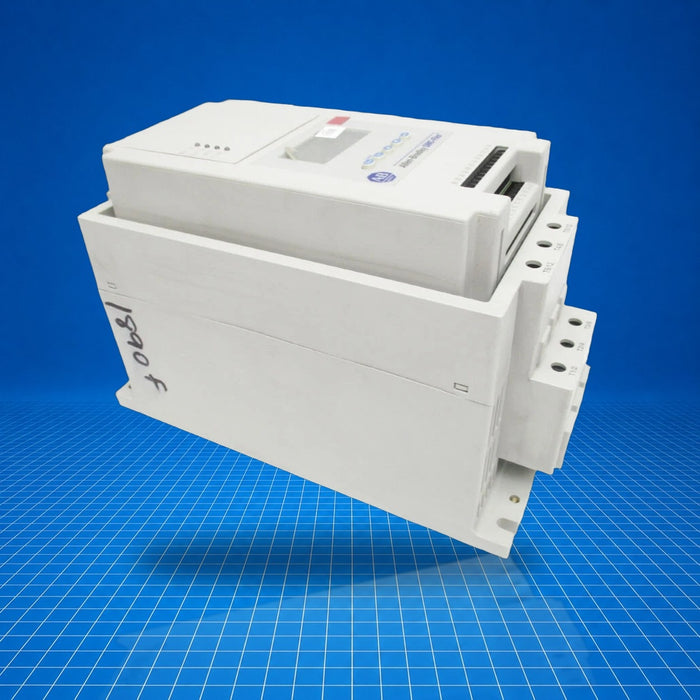

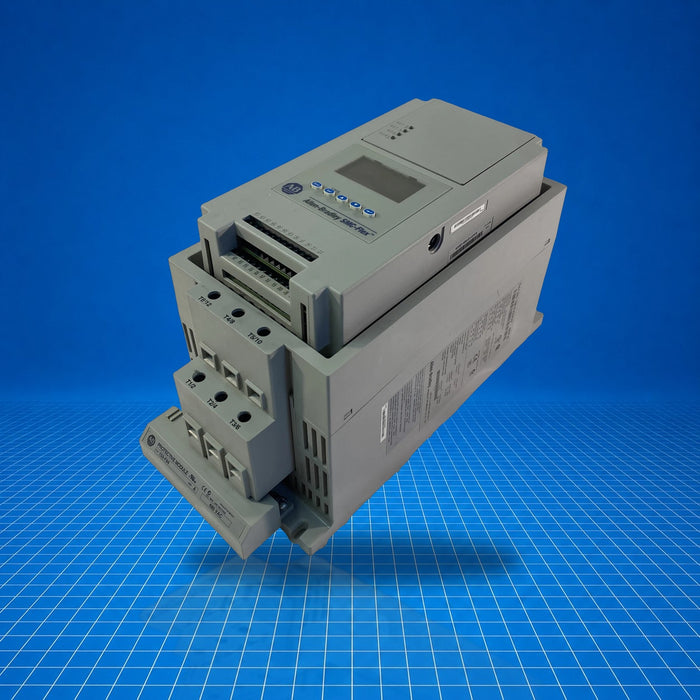

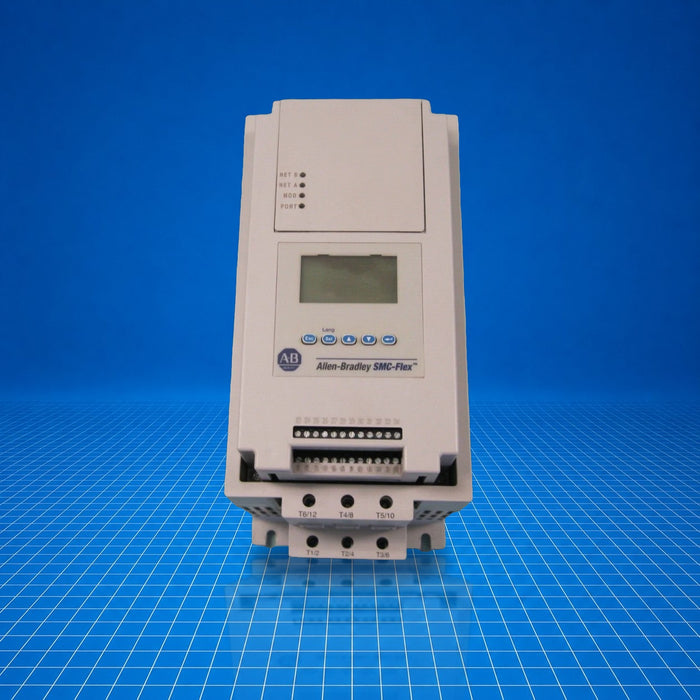

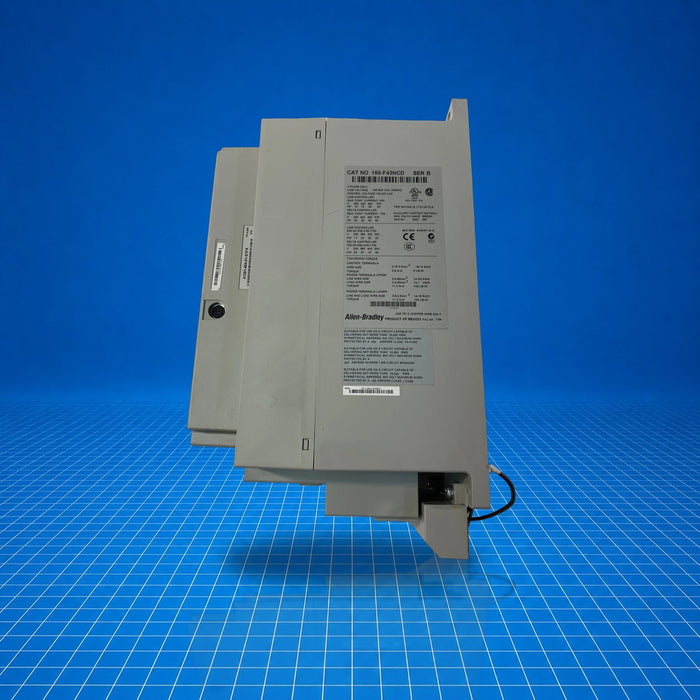

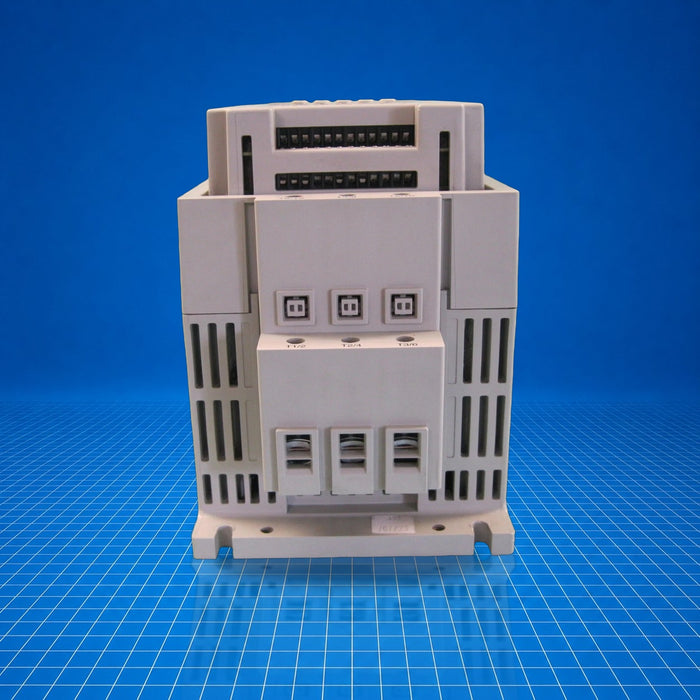

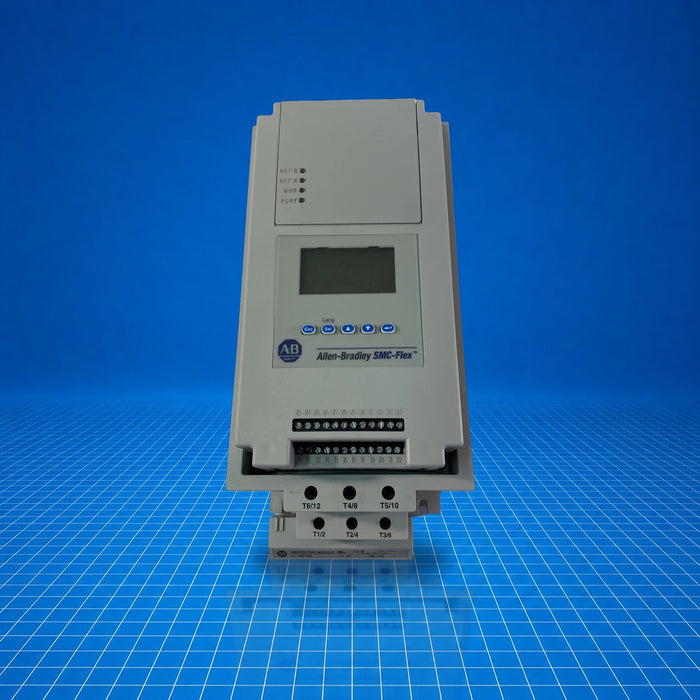

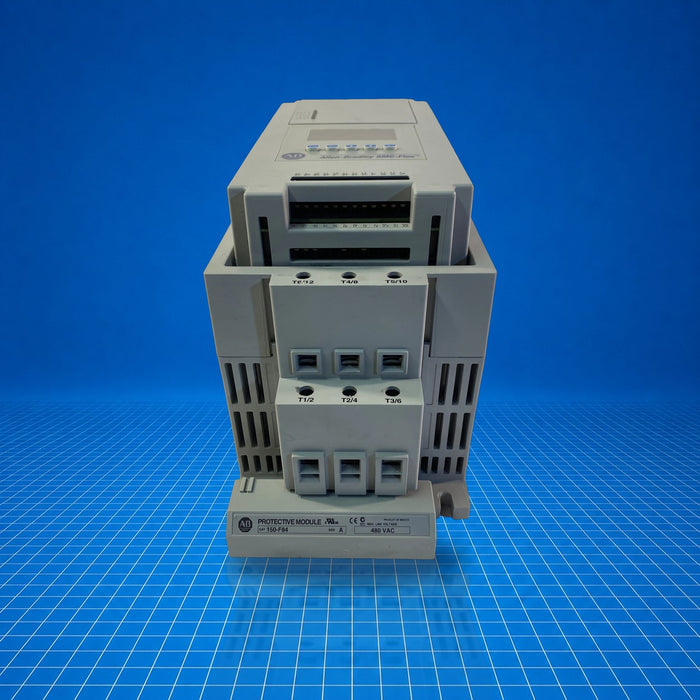

150-F43NCD Allen-Bradley
Original price
$3,600.00
-
Original price
$7,282.50
Original price
$3,600.00
$3,600.00
-
$7,282.50
Current price
$3,600.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 150-F43NCD is an Allen-Bradley SMC-Flex solid-state soft starter designed to control three-phase AC motors by reducing inrush current during start-up. It integrates an internal bypass contactor, built-in display, and keypad for local start/stop control. Typical in industrial HVAC, pump, and conveyor applications, it supports motor currents up to 43 A and motor ratings up to 30 hp at 460 V or 40 hp at 575 V. 150-F43NCD provides motor protection and smooth commissioning within control panels or motor control centers.
Best Suited For
- Reducing inrush in medium-voltage motor starting
- On-machine start/stop control via integrated display
- Retrofit of legacy across-the-line starters
- Indoor panel mounting in IP20 environments
Controller current rating
43 A
Motor power rating
30 hp @ 460 V, 40 hp @ 575 V
Voltage range
200-600 V AC (-15%, +10%)
Enclosure & protection
Open type, IP20
Technical Specifications
I/O & Electrical
Controller current rating
43 A
Motor power rating
30 hp @ 460 V, 40 hp @ 575 V
Number of power poles
3
Communication & Power
Control circuit voltage
100-240 V AC
Rated operational voltage
200-600 V AC (-15%, +10%)
Line frequency
50/60 Hz
Physical & Environmental
Operating temperature
-5 to 50 °C (23 to 122 °F)
Weight
5.7 kg (12.6 lb)
Dimensions (W×H×D)
150 × 321 × 203 mm (5.91 × 12.60 × 8.00 in)
Steady-state heat dissipation
81 W
Shock
15 G (Opsal)
Vibration
1.0 G peak, 0.15 mm displacement
Altitude
Up to 2000 m
Humidity
5-95%, non-condensing
Pollution degree
2
EMC emissions
Radiated emission Class A
EMC immunity
Surge transient per EN/IEC 60947-4-2
Protection against electrical shock
IP20 per IEC (power circuit)
Certifications
China CCCEurasian Economic CommunityAustralian RCM
Certified to China CCC, Eurasian Economic Community, Australian RCM as of April 29, 2026.
