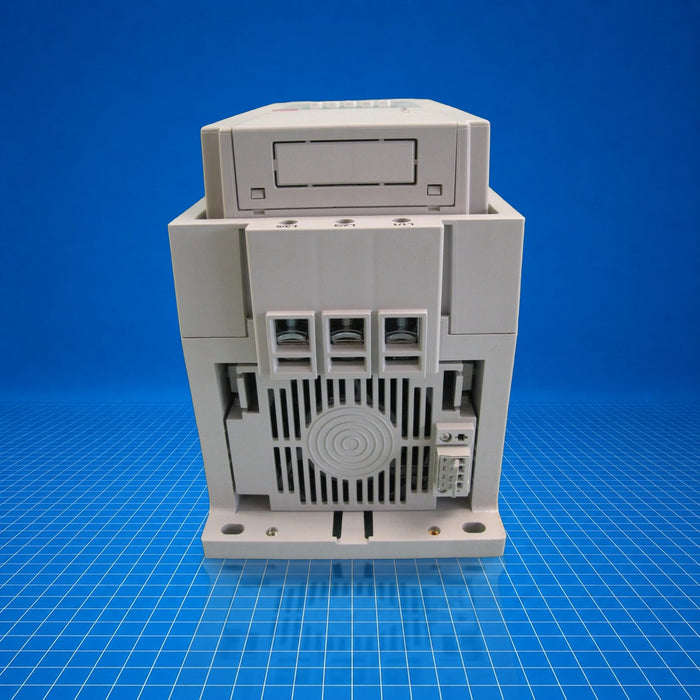

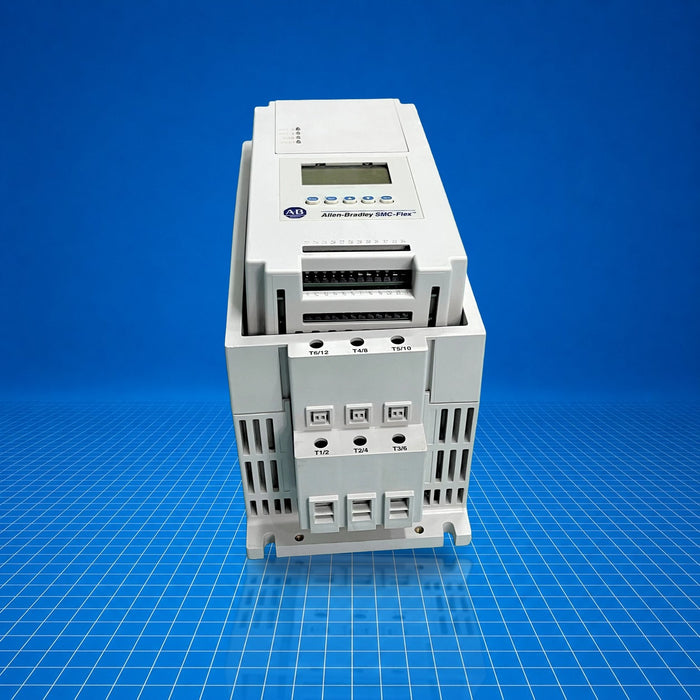

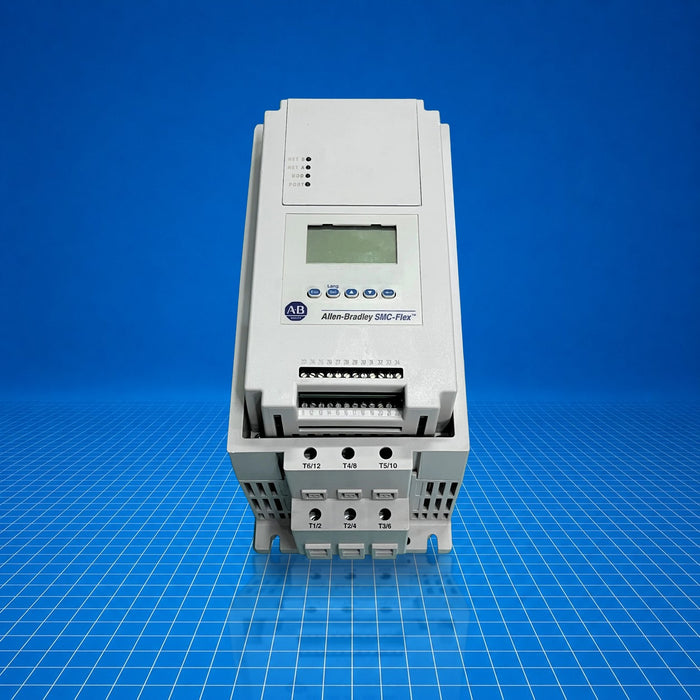

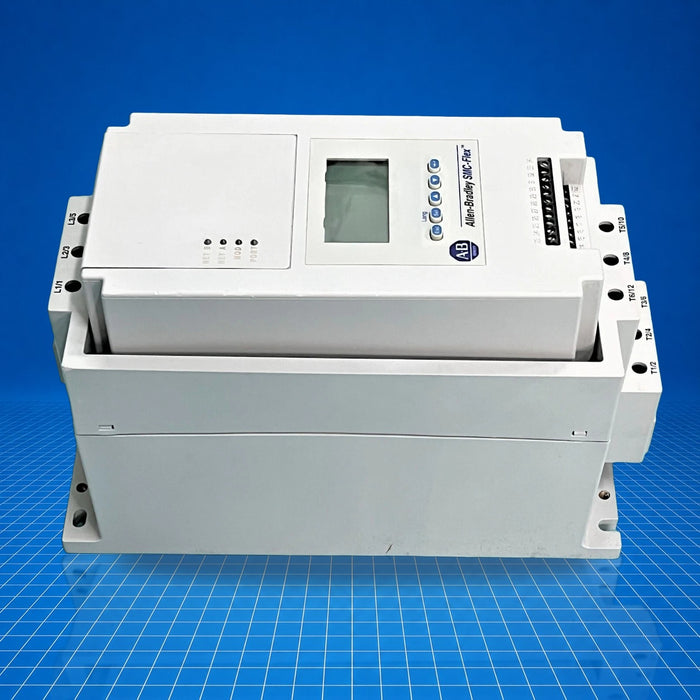

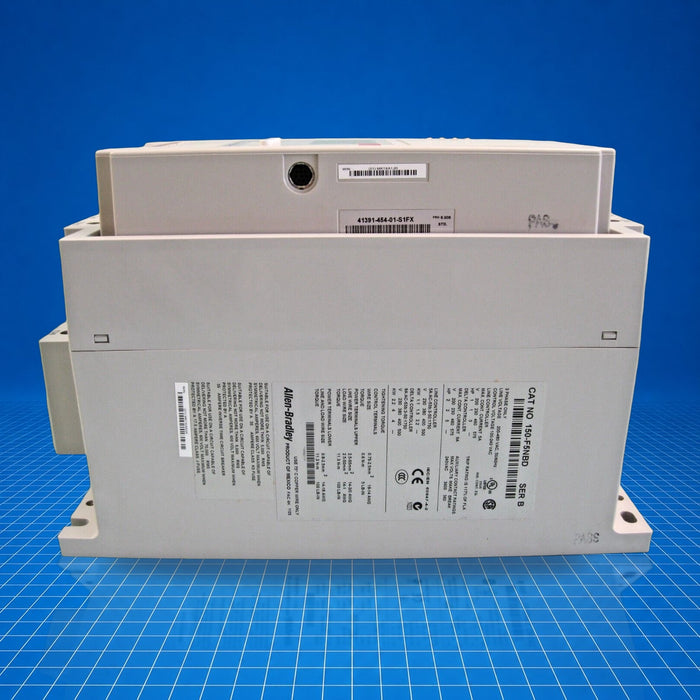

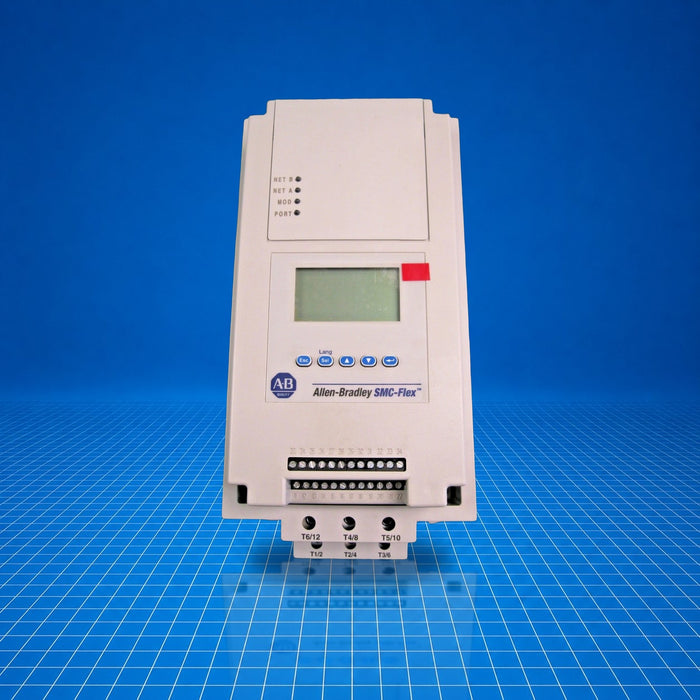

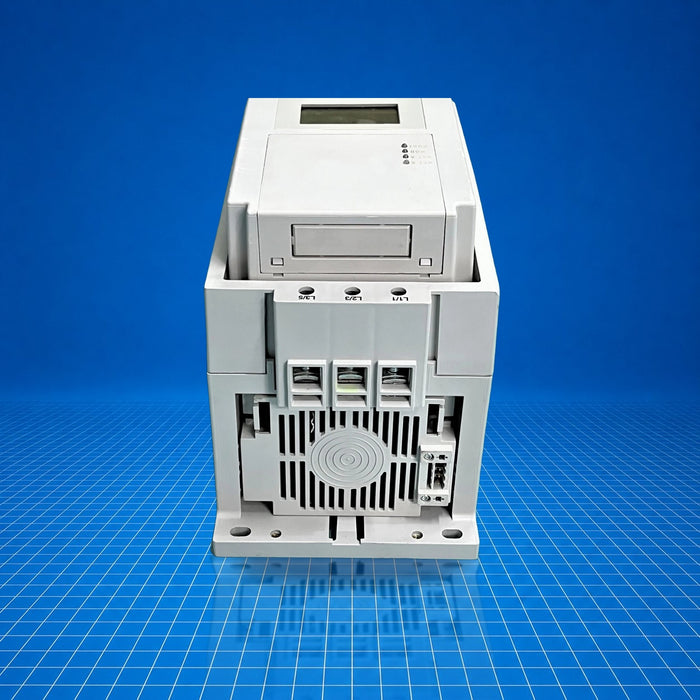

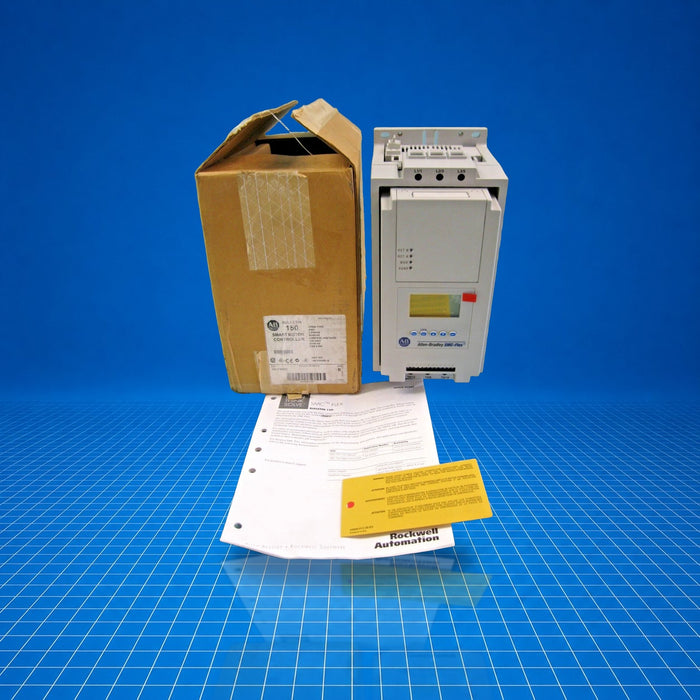

150-F5NBD Allen-Bradley
Original price
$3,647.67
-
Original price
$5,015.00
Original price
$5,015.00
$3,647.67
-
$5,015.00
Current price
$5,015.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Allen-Bradley 150-F5NBD is an open-type SMC-Flex solid-state soft starter in the Bulletin 150 family. It provides soft start, current-limit start, kick-start, soft stop and integrated motor protection for three-phase motors (up to 5 A, 0.5-3 Hp at 460 V AC). It accepts a line voltage of 200-480 V AC (50/60 Hz) and control voltage of 100-240 V AC. It is typically applied for in-line or inside-the-delta motor starting in industrial machinery and pump systems. 150-F5NBD
Best Suited For
- In-line soft starting of 0.5-3 Hp three-phase motors
- Pump control applications
- Industrial machinery with open-type mounting
- Environments requiring adjustable trip classes and internal bypass
Motor current
1…5 A
Motor power (460 V AC, 60 Hz)
0.5…3 Hp
Control voltage
100…240 V AC
Line voltage
200…480 V AC
Technical Specifications
I/O & Electrical
Line voltage (input)
200…480 V AC, 3-phase, 50/60 Hz
Control voltage
100…240 V AC
Motor current range
1…5 A
Motor power (460 V AC, 60 Hz)
0.5…3 Hp
Trip classes
10, 15, 20 and 30
Integrated motor overload protection
True
Internal bypass
True
Communication & Power
Steady-state heat dissipation
70 W
Overload current (line-connected)
1 A
Overload current (delta-connected)
1.7 A
Heatsink fan rating
20 VA @ 110/120 V AC or 220/240 V AC
Transformer control module
75 VA @ 100…240 V AC (-15%, +10%)
Physical & Environmental
Operating temperature
-5 to 50 °C (23 to 122 °F)
Storage/transport temperature
-20 °C
Humidity
5…95% (non-condensing)
Altitude
≤ 2000 m
Protection against electrical shock
IP20 per IEC
Weight
5.7 kg
Dimensions (W×D×H)
150 × 203 × 321 mm
Certifications
China CCCEurasian Economic CommunityAustralian RCMMorocco DOC
Certified as of April 28, 2026 for China CCC, Eurasian Economic Community, Australian RCM, Morocco DOC.
