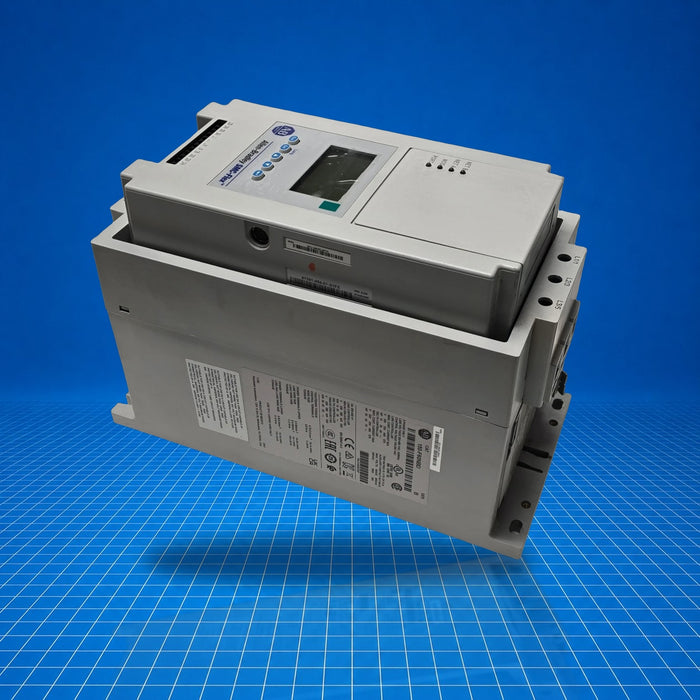

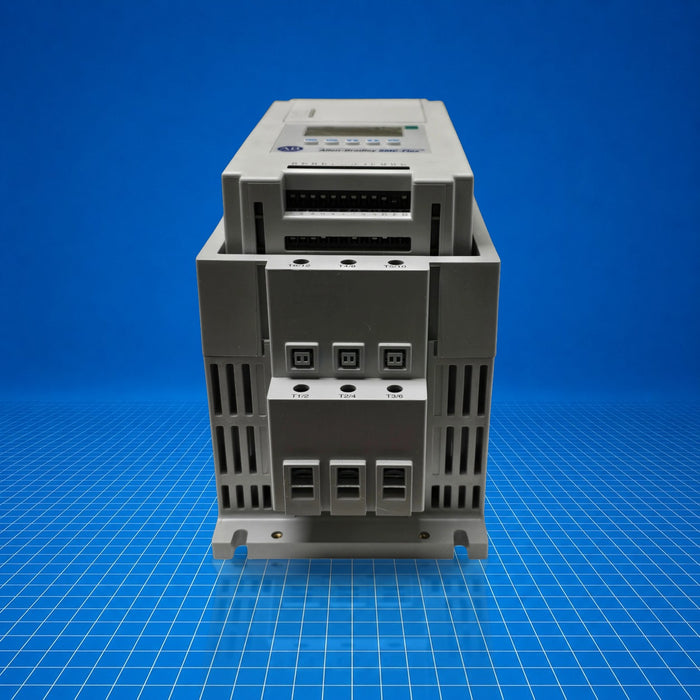

150-F60NBD Allen-Bradley
Original price
$3,168.74
-
Original price
$5,280.00
Original price
$5,280.00
$3,168.74
-
$5,280.00
Current price
$5,280.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

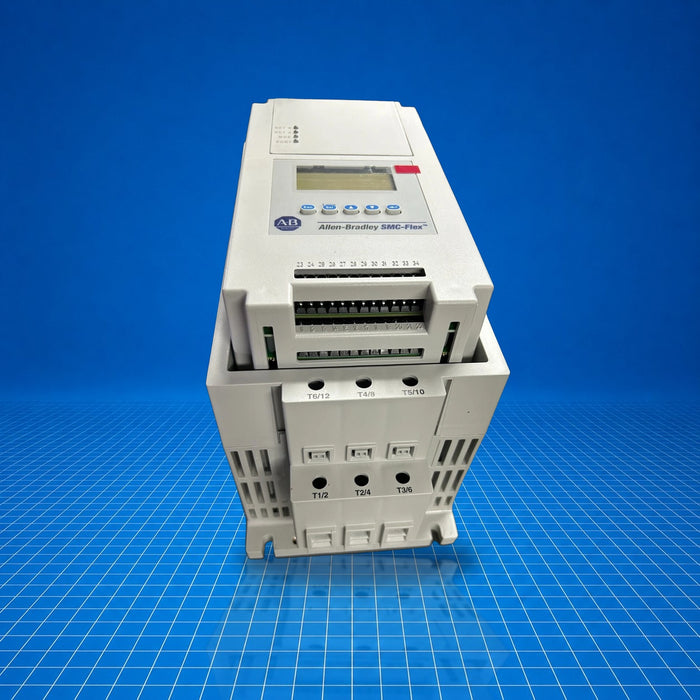

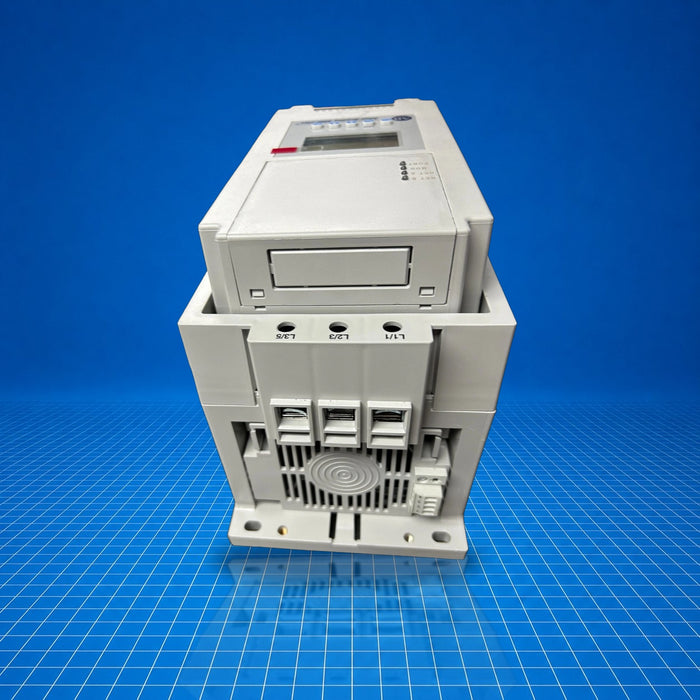

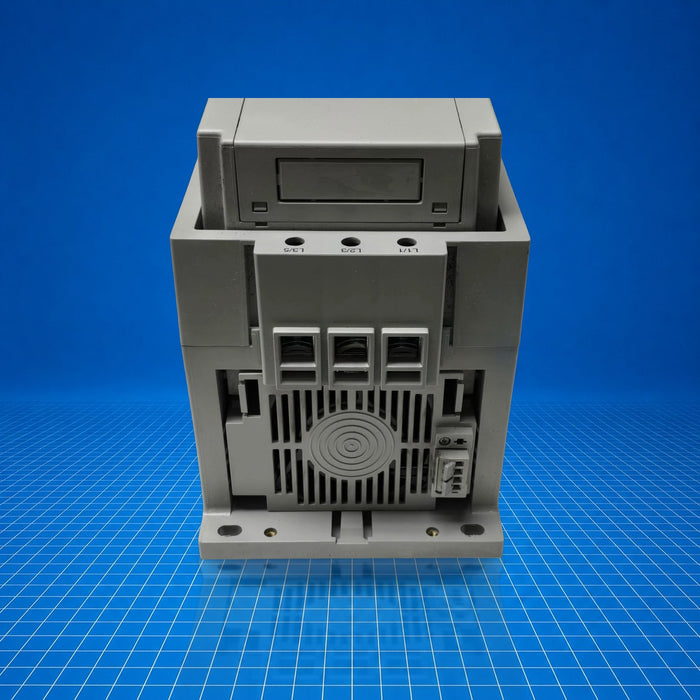

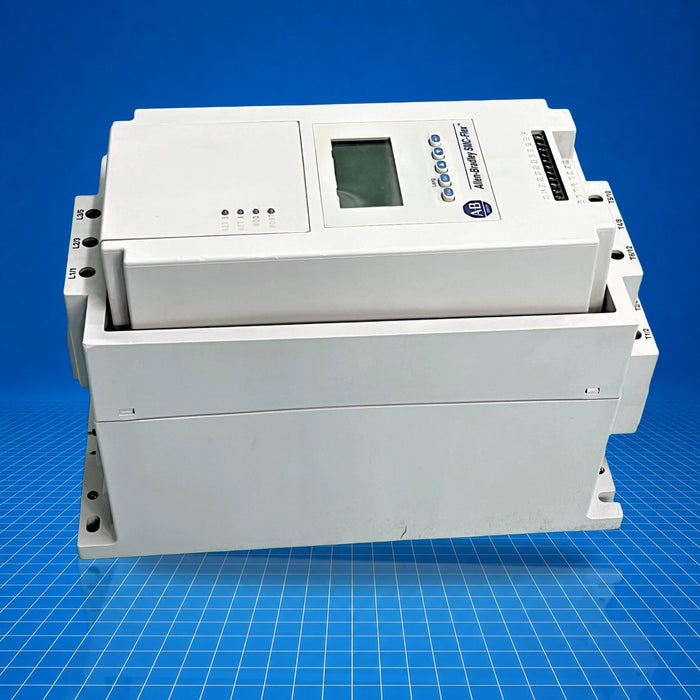

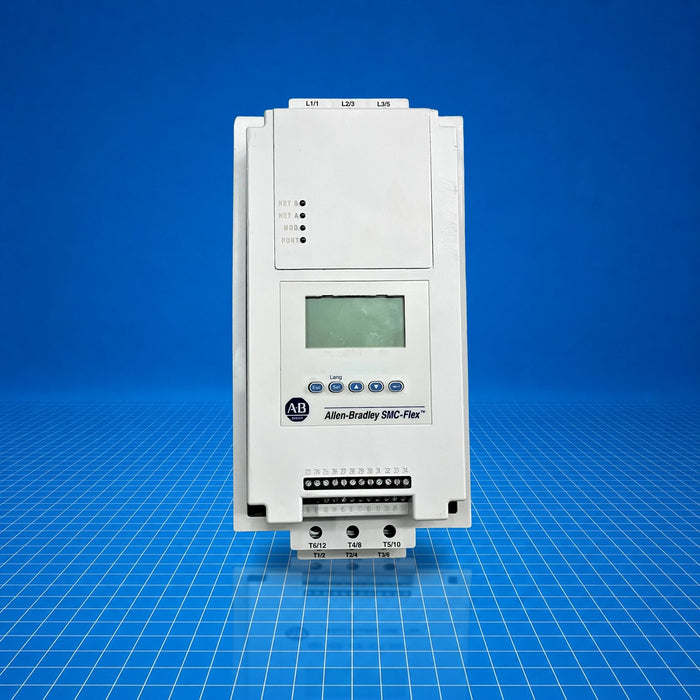

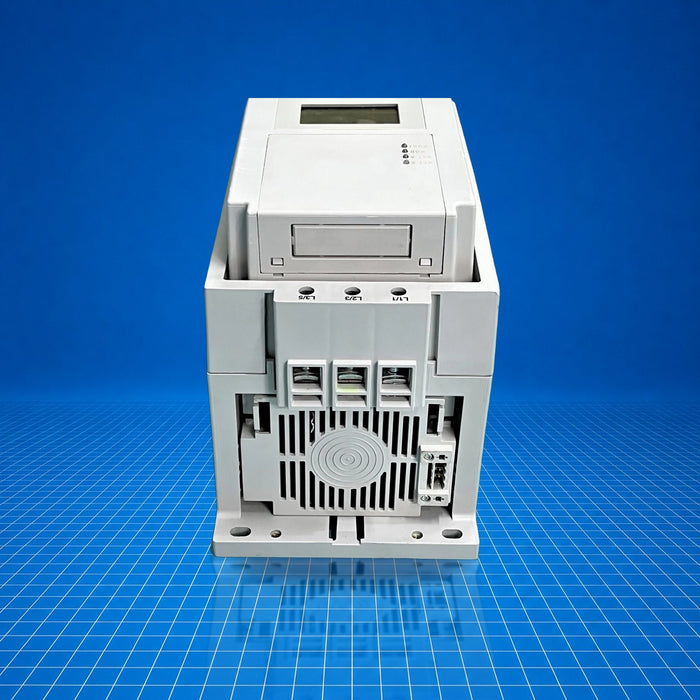

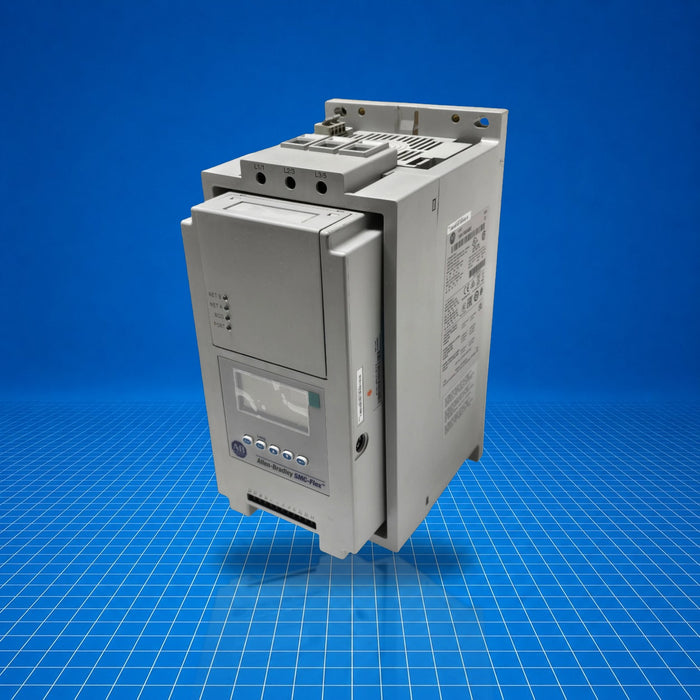

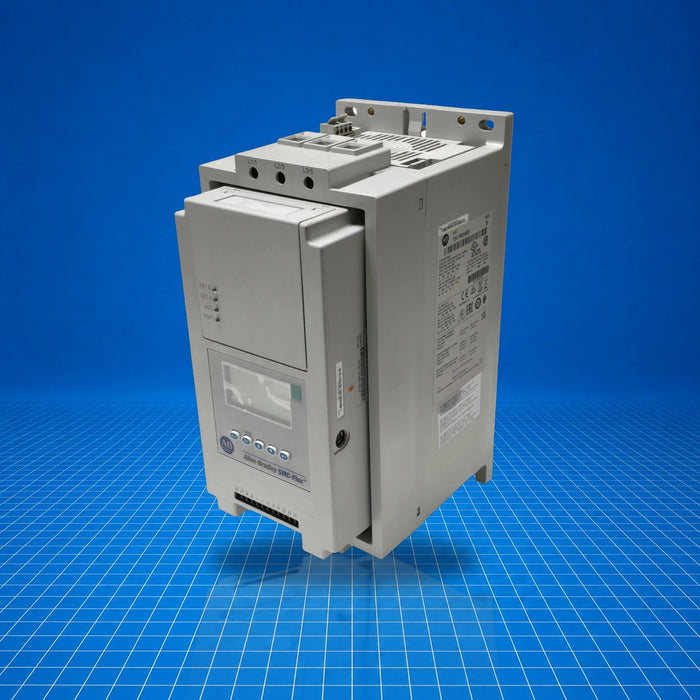

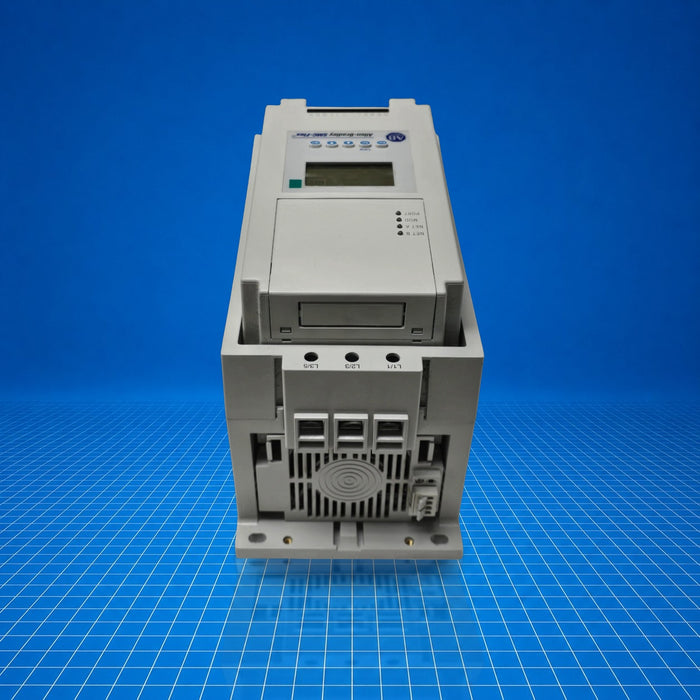

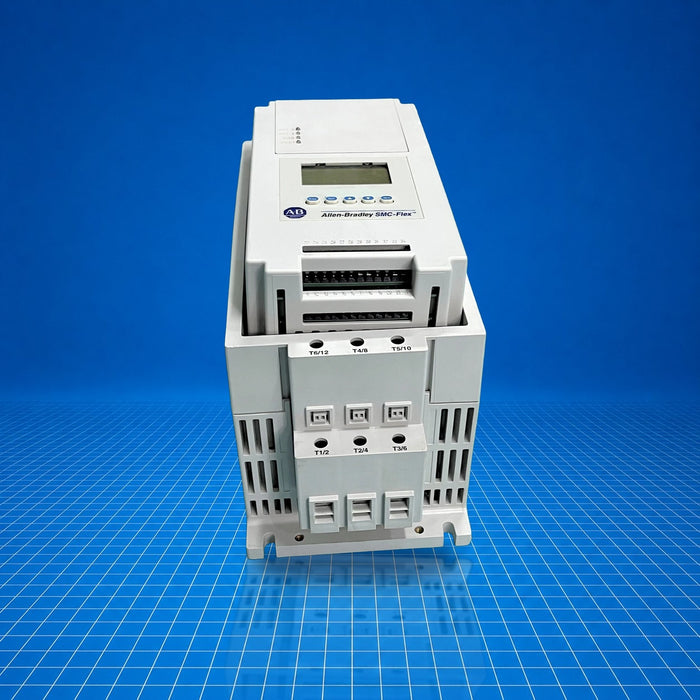

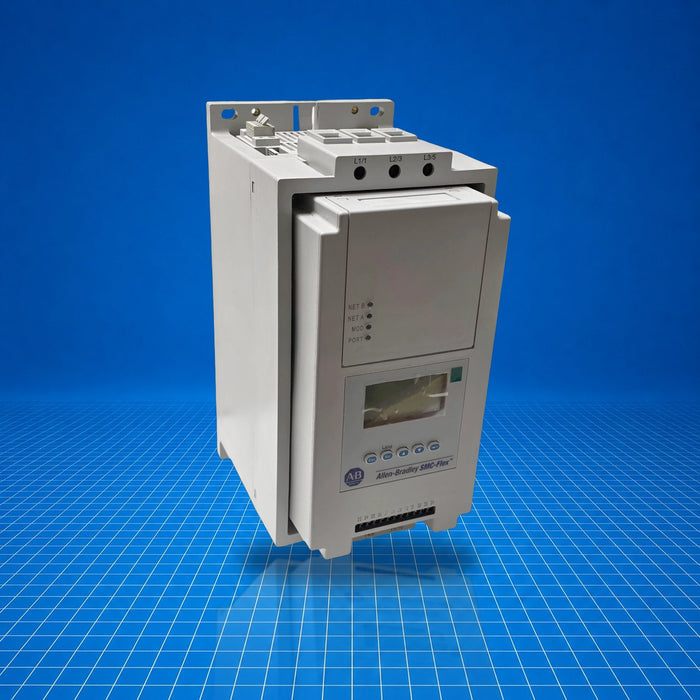

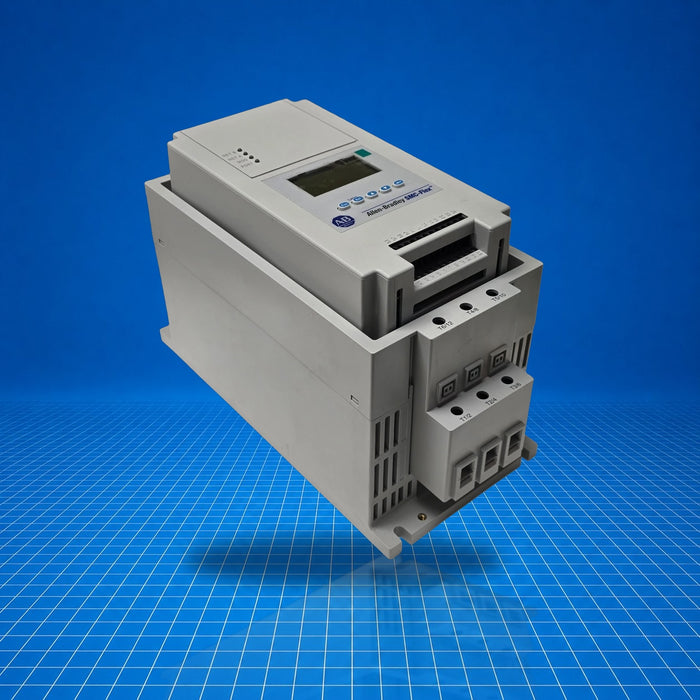

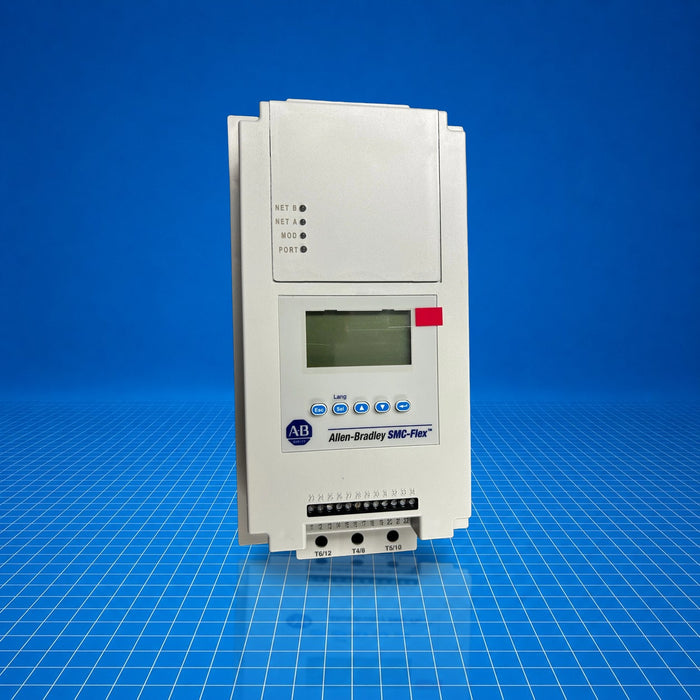

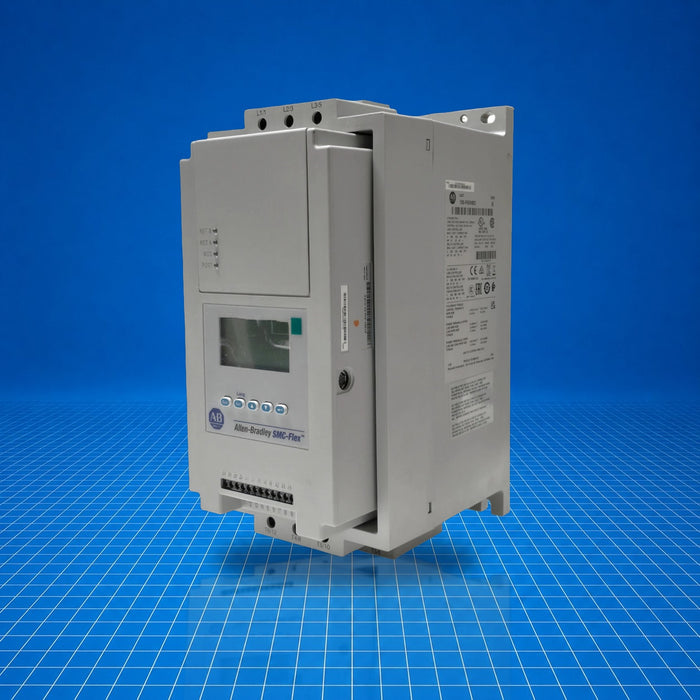

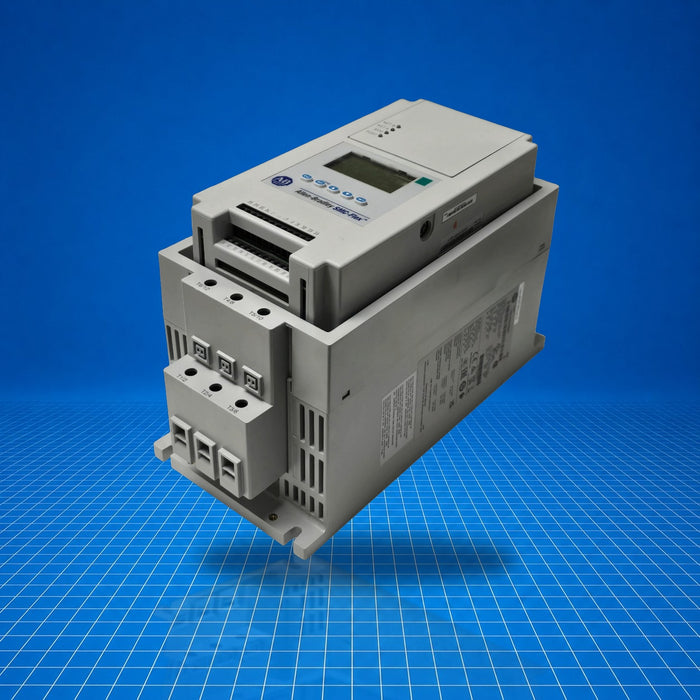

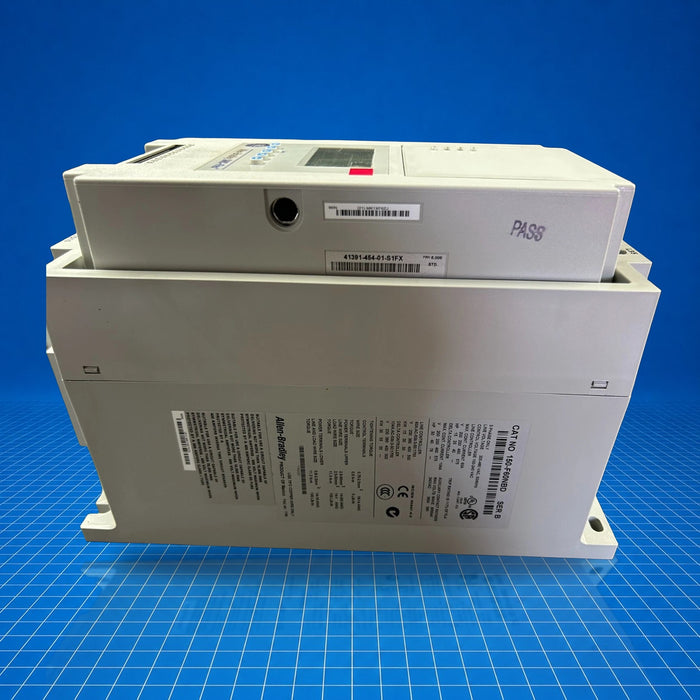

The 150-F60NBD is an Allen-Bradley SMC Flex soft motor starter (soft starter) designed for open-type installation in three-phase motor control systems. It provides soft starting and stopping of motors up to 40 hp (60 A) at 460 V AC, with integrated motor overload protection and optional smart motor braking. It interfaces with standard 100-240 V AC control voltage and employs built-in status indication and fault monitoring. Typical use cases include pump, fan, and conveyor control where reduced starting torque and controlled ramping are required.
Best Suited For
- Starting three-phase motors up to 40 hp (60 A) at 460 V AC
- Applications requiring integrated motor overload protection
- Systems needing smart motor braking (SMB) without external equipment
- Open-type control panels where soft starting and stopping are required
Controller rating
60 A / 40 hp @ 460 V AC
Control voltage
100 … 240 V AC
Soft starter type
SMC Flex open-type
Heat dissipation
97 W (steady-state with control and fan)
Operating temperature
-5 °C to 50 °C (23 °F to 122 °F)
Technical Specifications
I/O & Electrical
Input line voltage
200 … 480 V AC (three-phase)
Motor current (line-connected)
12 … 60 A @ 500/575 V AC, 3-phase
Motor current (delta-connected)
20.8 … 104 A @ 500/575 V AC, 3-phase
Control supply voltage
100 … 240 V AC
Overload current line devices
12 A
Overload current delta devices
20.8 A
Communication & Power
Soft starter features
Integrated motor overload protection; optional SMB braking control
Control voltage type
AC
Trip classes
10, 15, 20, 30
Trip current rating
117 % of motor FLC
Heatsink fan power
20 VA @ 110/120 V AC or 220/240 V AC
Transformer control module
75 VA @ 100 … 240 V AC (-15 %, +10 %)
Inrush current control module
5 A @ 24 V DC (-15 %, +10 %)
Physical & Environmental
Weight
5.7 kg
Dimensions (W × D × H)
150 × 203 × 321 mm (5.90 × 8 × 12.60 in)
Enclosure type
Open type, IP 20 for power circuit
Operating temperature
-5 °C to 50 °C (23 °F to 122 °F)
Storage temperature
-20 °C
Humidity
5 … 95 % non-condensing
Altitude
Up to 2000 m
Pollution degree
2
Shock / Vibration
15 G / 1 G peak, 0.15 mm displacement (Opsal)
Certifications
China CCCEurasian Economic CommunityAustralian RCM
