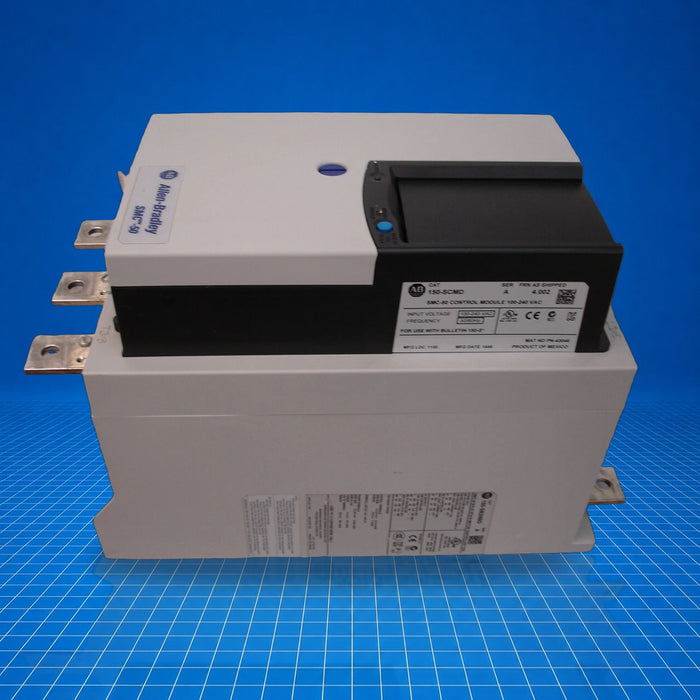

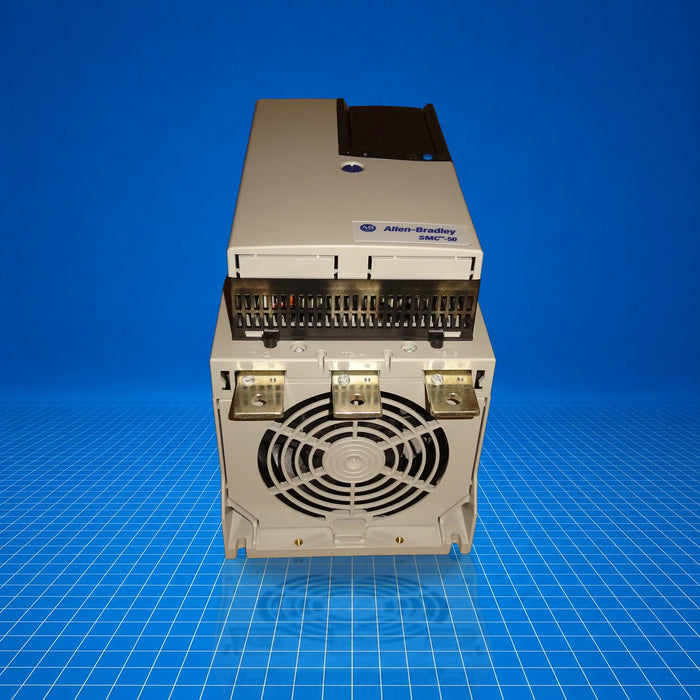

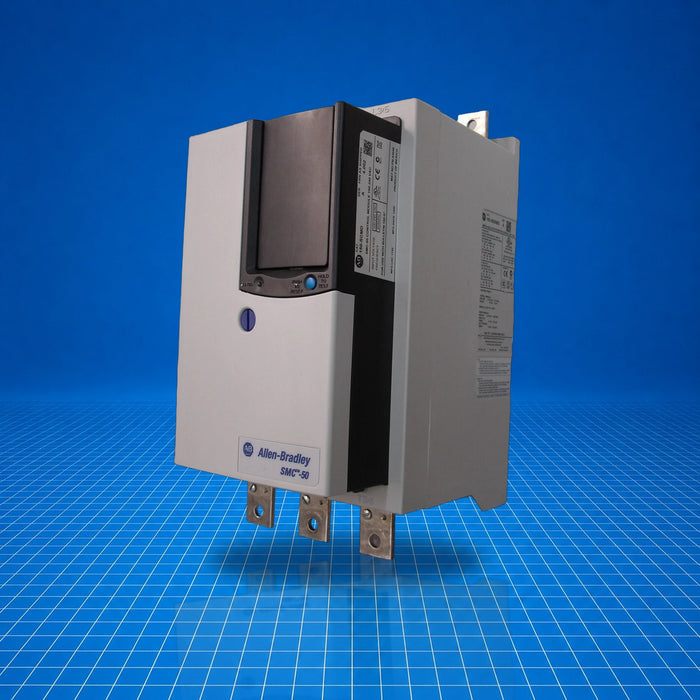

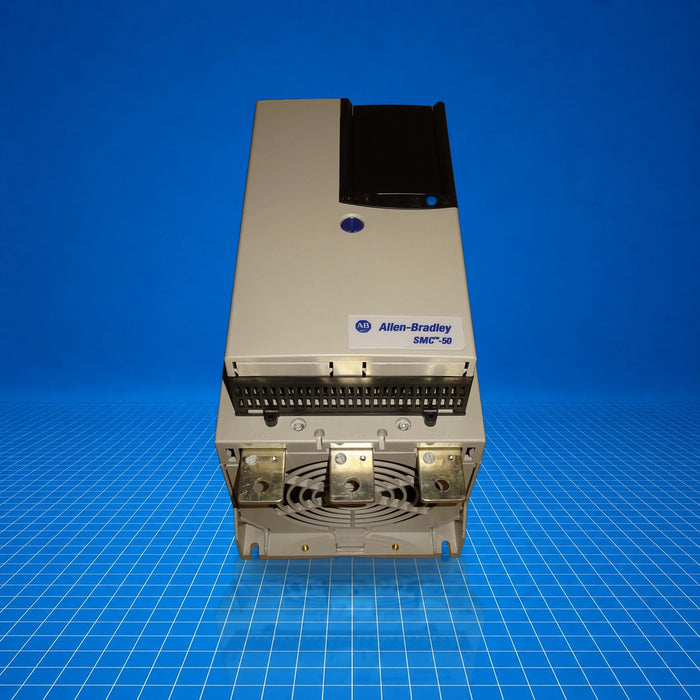

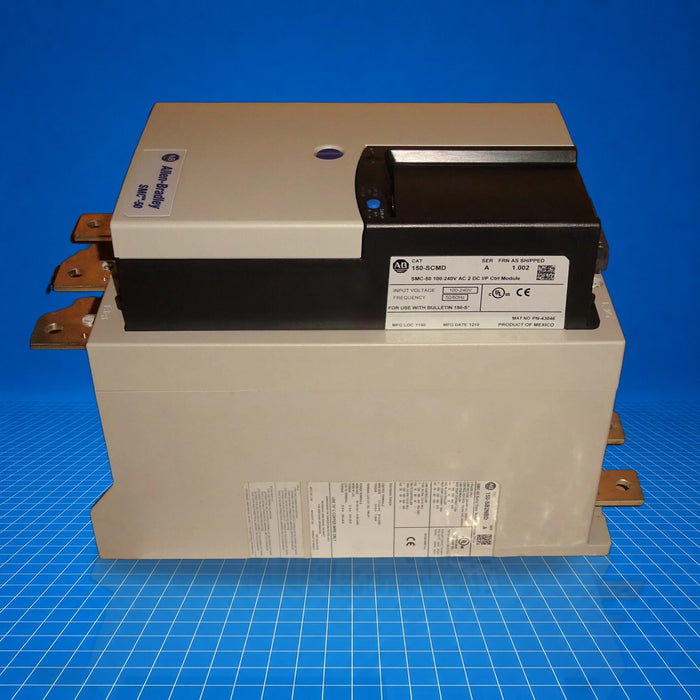

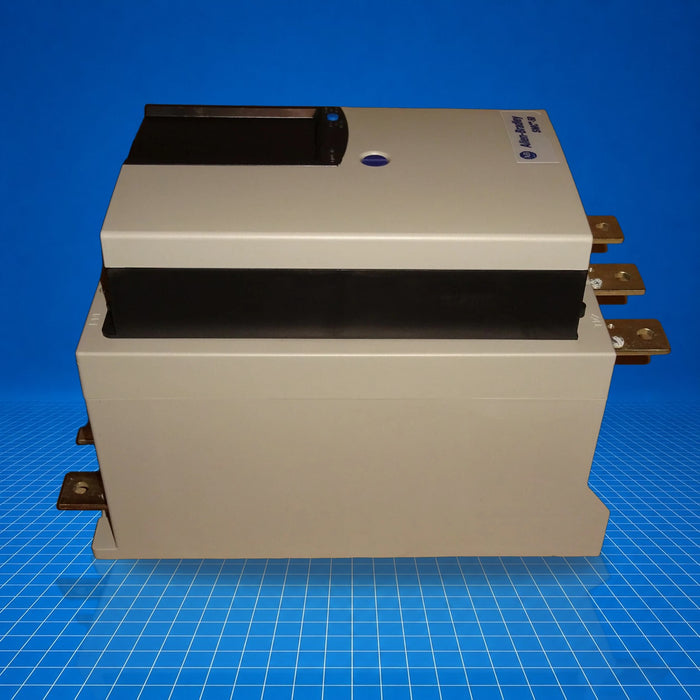

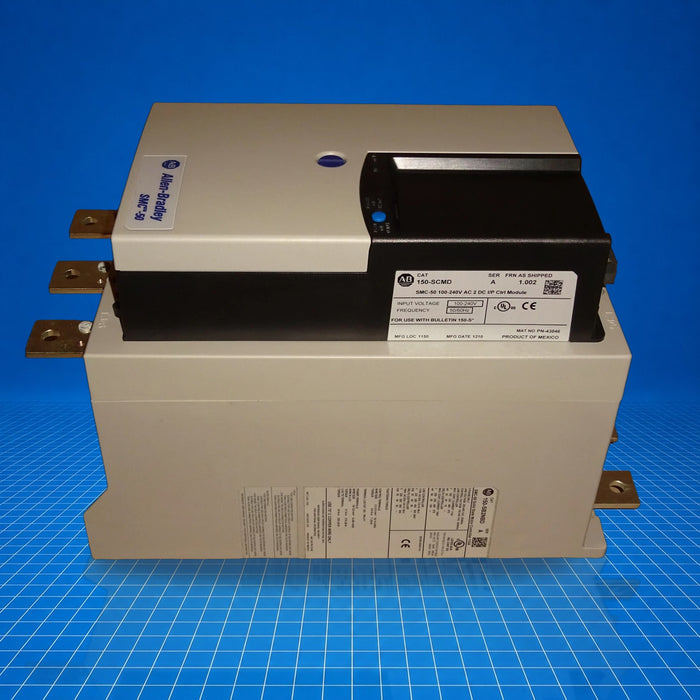

150-SB2NBD Allen-Bradley
Original price
$4,200.00
-
Original price
$6,149.99
Original price
$6,149.99
$4,200.00
-
$6,149.99
Current price
$6,149.99
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 150-SB2NBD is an Allen-Bradley SMC-50 solid-state smart motor controller (soft starter) for three-phase induction motors. It provides electronic overload protection and torque control within a control system, enabling reduced inrush current and smoother motor starts. It supports motor currents up to 110 A (normal line duty) and motor ratings of approximately 15-30 Hp at 60 Hz. It is intended for OEM panels, machine tool drives, and industrial motor control applications requiring soft starting.
Best Suited For
- Starting three-phase squirrel-cage induction motors
- Applications requiring soft-start current control
- Systems needing built-in electronic overload protection
- Installation in OEM panels or machinery enclosures
Controller rating
110 A
Line voltage range
200-460 V AC
Control voltage
100-240 V AC
Motor horsepower (60 Hz)
15-30 Hp
Ambient temperature (operating)
40 to 65 °C
Technical Specifications
I/O & Electrical
Controller rating
110 A
Line voltage range
200-460 V AC
Control voltage
100-240 V AC
Motor horsepower (60 Hz)
15-30 Hp
Line-connected motor current (normal duty)
37-110 A @ 400/415/460 V AC, 3-phase
Base power draw (control module with fan)
75 W @ 24 V DC
Communication & Power
Trip current rating
118% of motor FLC
Power structure heat dissipation
330 W (continuous duty)
Control power ride-through
22 ms
Control module battery type
CR 2032
Physical & Environmental
Operating ambient temperature
40 to 65 °C
Storage/transport temperature
-25 °C
Rated surrounding temperature (without derating)
-20 °C
Humidity
5-95% (non-condensing)
Altitude
≤ 2000 m (6560 ft) without derating
Pollution degree
2
Enclosure
Open type
Mounting orientation
Vertical
Ambient atmospheric protection
ANSI/ISA-71.04-2013 Class G3
Protection against electrical shock
IP2X (optional terminal cover)
Shock
15 G
Vibration
1.0 G peak, 0.15 mm displacement
Dimensions L×W×H (line/wye)
304.8 mm × 609.6 mm × 762 mm
Power terminal lug hole
10.5 mm Ø per power pole
Certifications
ULCSA/NEMAIEC
Certified as of April 28 2026; refer to product label for current certifications.
