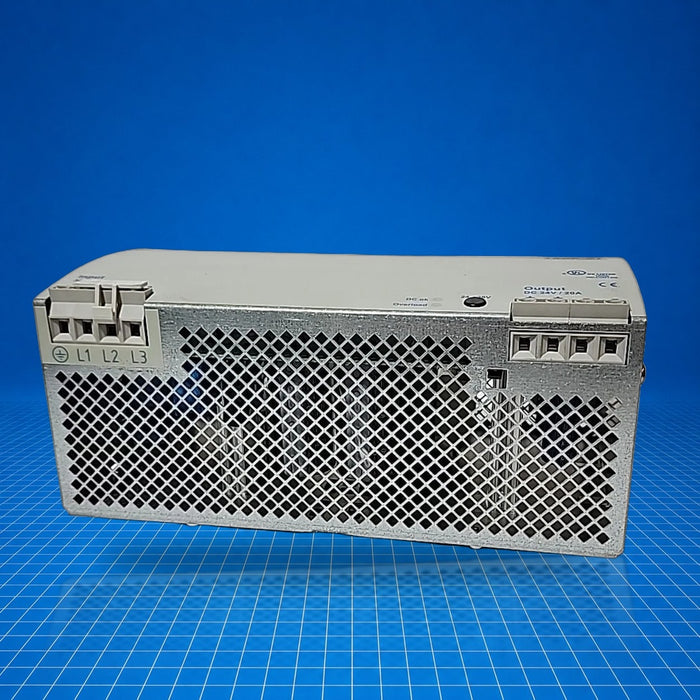

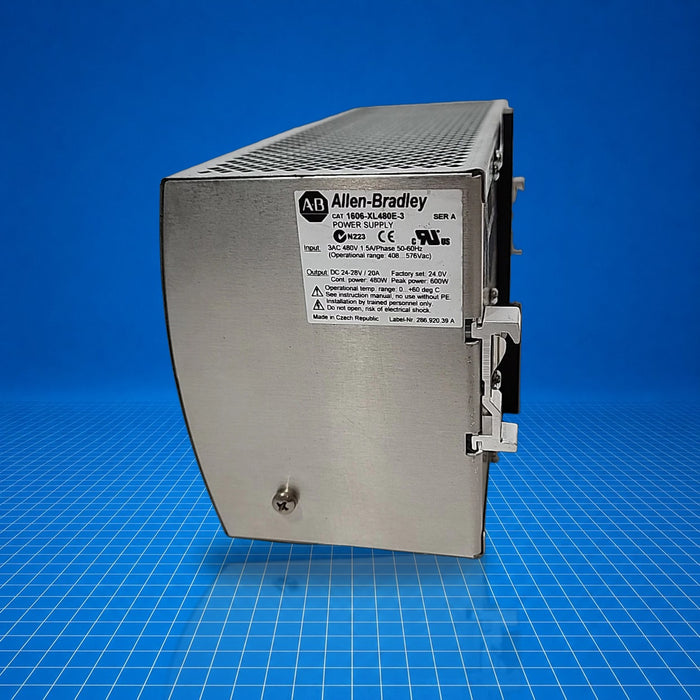

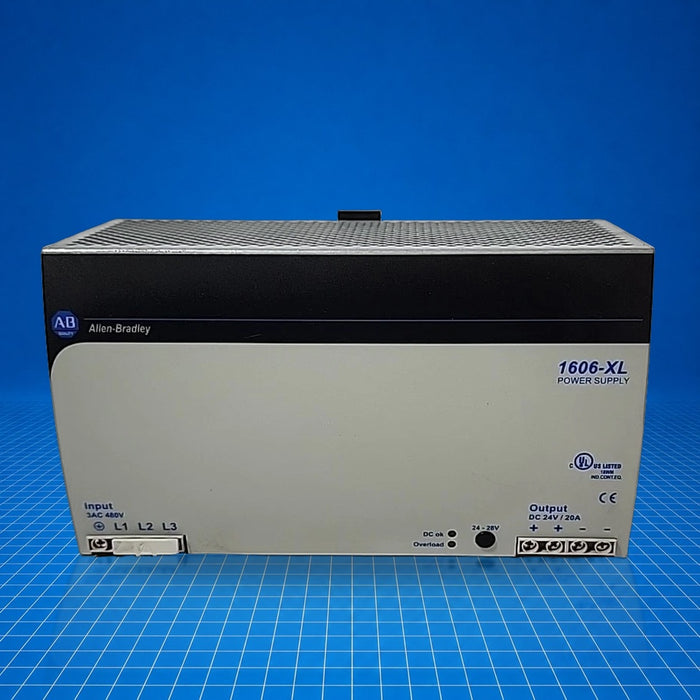

1606-XL480E-3 Allen-Bradley
Original price
$595.96
-
Original price
$811.25
Original price
$595.96
$595.96
-
$811.25
Current price
$595.96
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1606-XLS480E-3 is an Allen-Bradley XLS series three-phase power supply. It converts 380-480 V AC (or up to 600 V DC) into adjustable 24-28 V DC at up to 20 A, delivering up to 480 W. It provides a hold-up capability of 4 seconds at 50 % power and includes a DC-OK relay contact. It supports spring-type terminal connections and is suitable for machine-level and panel-level control power applications.
Best Suited For
- Panel-level DC bus supply in three-phase systems
- Backup hold-up capability during brief AC interruptions
- Marine or certified installations with ABS/GL/RINA ratings
- Machines requiring 24 V DC at up to 20 A from high-voltage supply
Output voltage
24…28 V DC
Output current
20 A nominal
Input voltage
3 AC 380…480 V (47…63 Hz)
Power output
480 W
Efficiency
95.0 % typical
Technical Specifications
I/O & Electrical
Output voltage
24…28 V DC
Output current
20 A nominal
Power output
480 W
Hold-up time
4 s at 50 % reserve
DC-OK relay contact
Yes
Ripple and noise, max
100 mV pp
Communication & Power
Power factor, typical
0.94
Input inrush current limiter
Active
Input inrush current
3 A/3 A
Physical & Environmental
Dimensions (W × H × D)
65 × 124 × 127 mm (2.56 × 4.88 × 5 in.)
Connection terminals
Spring
IP rating
IP20
Operating temperature
-25…+70 °C
Derating
12 W/°C above 40 °C
MTBF
690 kh (SN29500, 40 °C)
Weight
870 g
Certifications
EACRCMABS/GL/RINA
Certified as of 19 May 2026: Eurasian Economic Community, Australian RCM, Marine ABS/GL/RINA.
