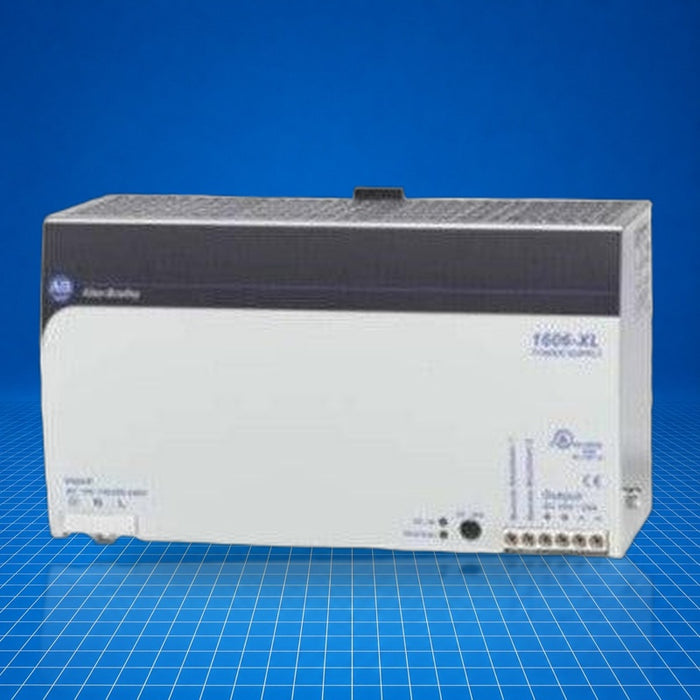

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
1606-XL480F-3H Allen-Bradley
Original price
$0.00
-
Original price
$863.78
Original price
$863.78
$0.00
-
$863.78
Current price
$863.78
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Allen-Bradley 1606-XL480F-3H is a three-phase AC/DC switched-mode power supply from the Power Supply XL family, offering 480 W output at 48…56 V DC (preset to 48.1 V). It converts 3-phase 400 V AC or DC 450…700 V inputs to regulated DC output. Installed on DIN rail or wall mount, it provides power to control panels, PLC racks or field devices. Discontinued as of October 30 2017, it has a direct replacement in the 1606-XLS performance series (e.g. 1606-XLS480F-3).
Best Suited For
- Industrial control panels requiring 48 V DC power from three-phase sources
- Legacy installations using Bulletin 1606-XL power systems
- Applications with high power-hold-up requirement (>11 ms)
- Systems where continuity of power is critical during brief input disturbances
Output power
480 W
Output voltage preset
48.1 V DC
Input type
3-phase 400 V AC / DC 450…700 V
Hold-up time
>11 ms
Lifecycle status
Discontinued (Oct 30 2017)
Technical Specifications
I/O & Electrical
Input voltage (AC)
3Ø 400 V AC
Input voltage (DC)
450…700 V DC
Output voltage
48…56 V DC (48.1 V preset)
Rated output current
10 A (at 48 V), 9 A (at 56 V)
Efficiency
typ. 92 %
Hold-up time
>11 ms
Rated input current
3 × 1.5 A
Operating temperature range
0…+70 °C, >60 °C with derating
Physical & Environmental
Dimensions (W × H × D)
220 × 124 × 102 mm
Weight
1800 g
MTBF
310 000 hours
Enclosure rating
(not specified)
Mounting
DIN-rail or wall mount
