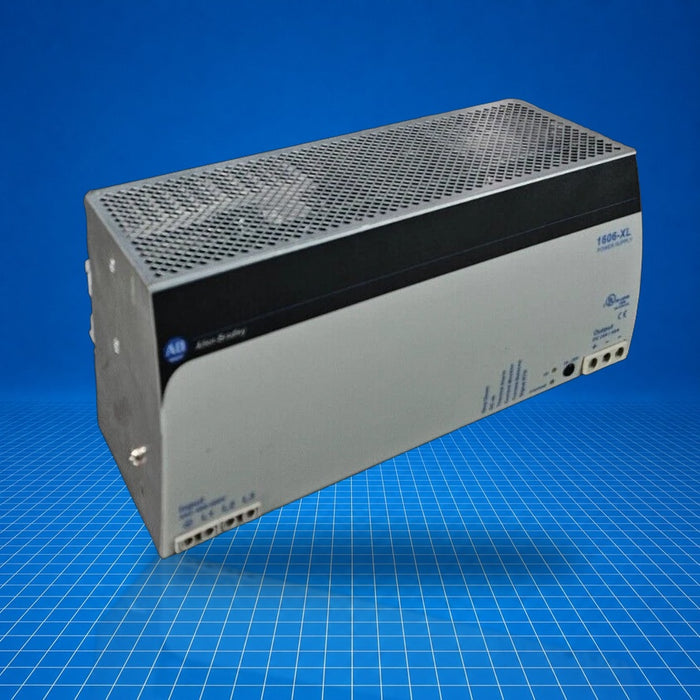

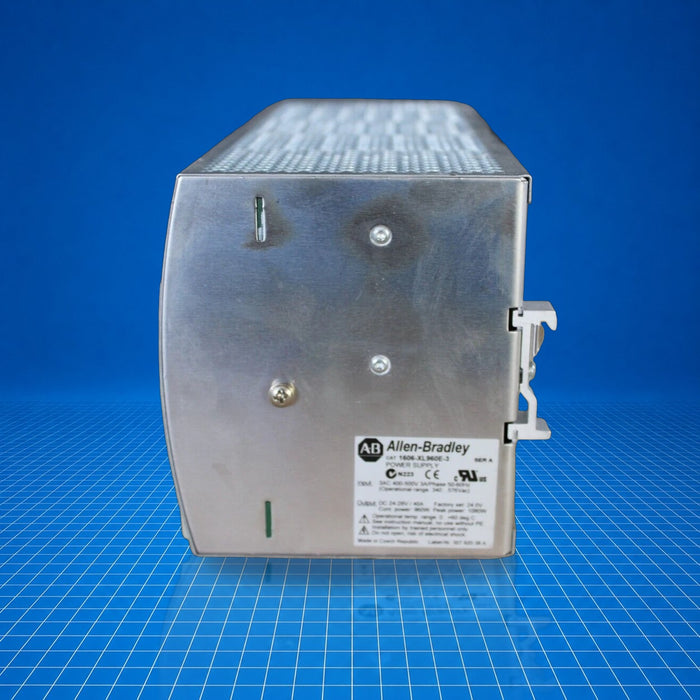

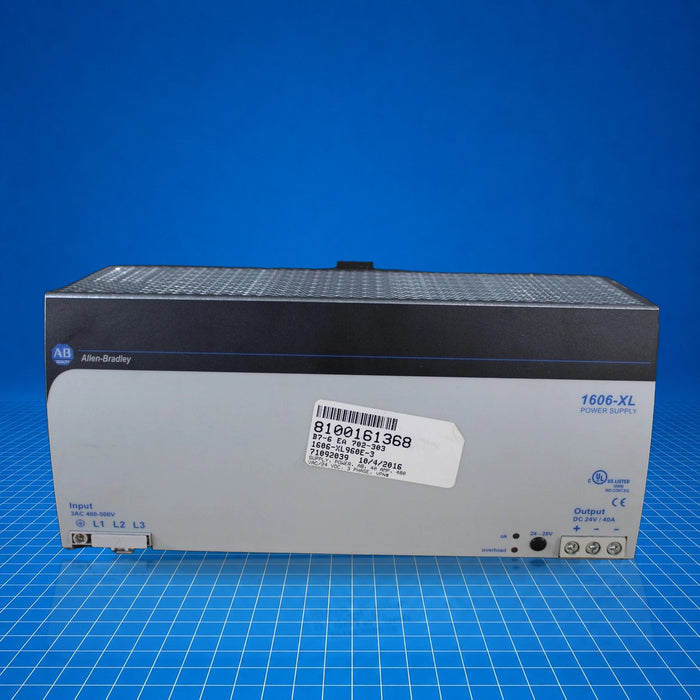

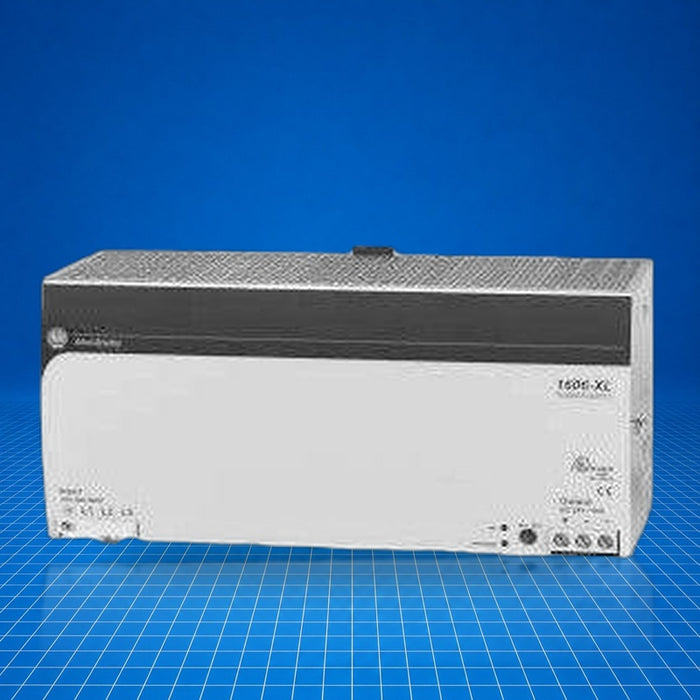

1606-XL960E-3 Allen-Bradley
Original price
$1,702.48
-
Original price
$2,861.98
Original price
$1,702.48
$1,702.48
-
$2,861.98
Current price
$1,702.48
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1606-XL960E-3 is a three-phase, 960 W industrial switched-mode power supply from Allen-Bradley's discontinued 1606-XL family. It accepts 3-phase 400…500 V AC (±15 %) at 47…63 Hz and delivers an adjustable 24…28 V DC output, typically rated at 24 V/40 A (with short-term capacity of up to 45 A at 24 V). Designed for DIN-rail or back-panel installation, it integrates into control power systems supplying PLC racks, I/O modules and field devices. The XL960E-3 is often used in parallel configurations for increased power reserve or redundancy, common in mid-to-large automated installations.
Best Suited For
- Supplying control power in three-phase industrial panels
- Parallel operation for redundant power systems
- Feeding PLC racks and distributed I/O modules
- Replacing in legacy installations using 1606-XL family
Output power
960 W
Output current
40 A nominal (24 V)
Input voltage
3 × 400…500 V AC (-15 %/+15 %)
Adjustable output
24…28 V DC
Short-term output
45 A (24 V, <1 min)
Technical Specifications
I/O & Electrical
Input voltage range
3 AC 400…500 V AC, -15 %/+15 %, 47…63 Hz
Output voltage
24…28 V DC, adjustable
Output current
40 A nominal at 24 V; 45 A short-term
Hold-up time
>16 ms (3 Ø 400 V AC)
Efficiency
typical 89 %
Input current
3.0 A (nominal)
Physical & Environmental
Operating temperature
0…+70 °C (derate > 60 °C)
Storage temperature
-25…+85 °C
Inrush current
< 30 A
Derating
24 W/°C
Mounting
DIN-rail or back-panel
Dimensions (W × H × D)
- see Bulletin spec
