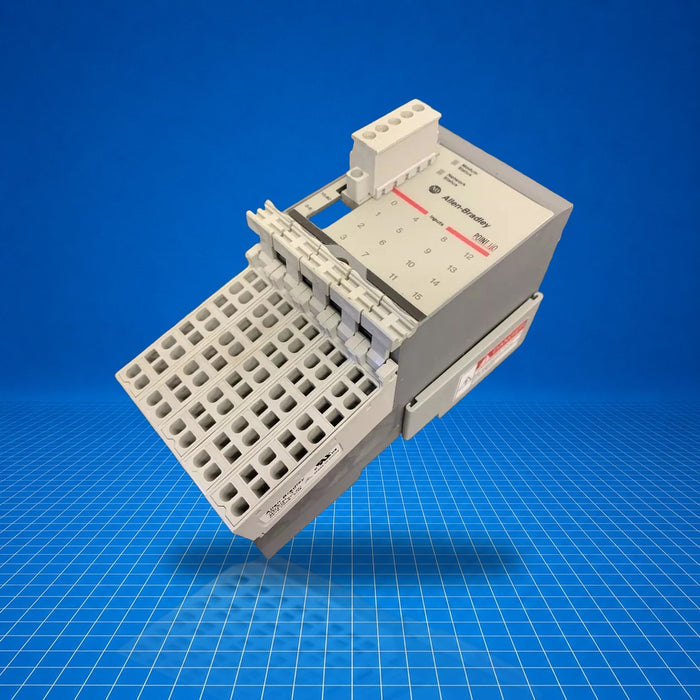

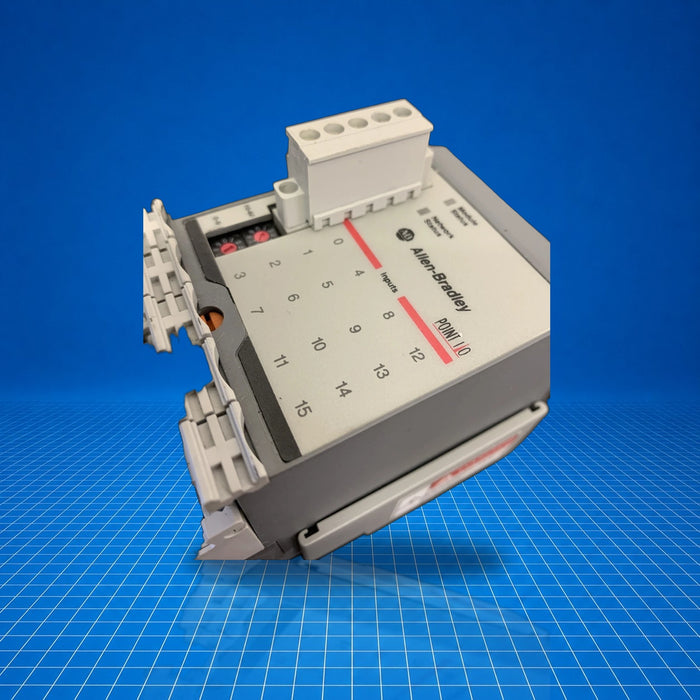

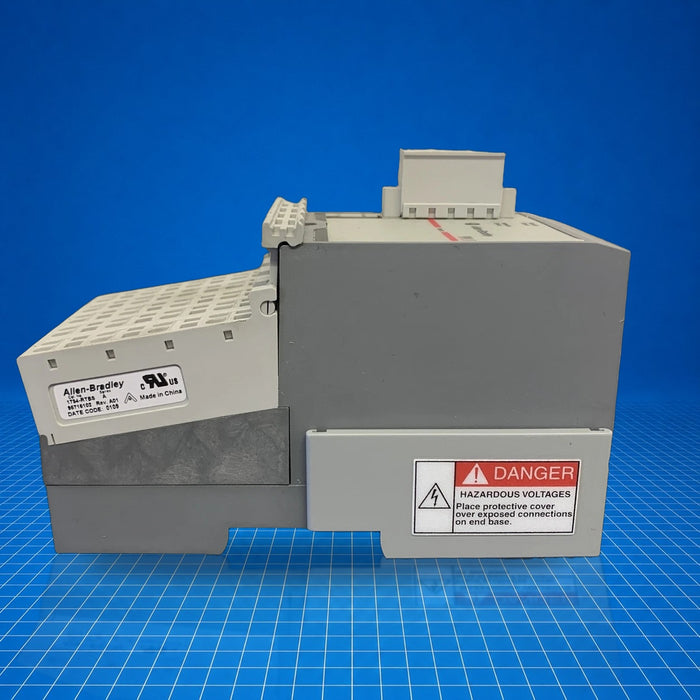

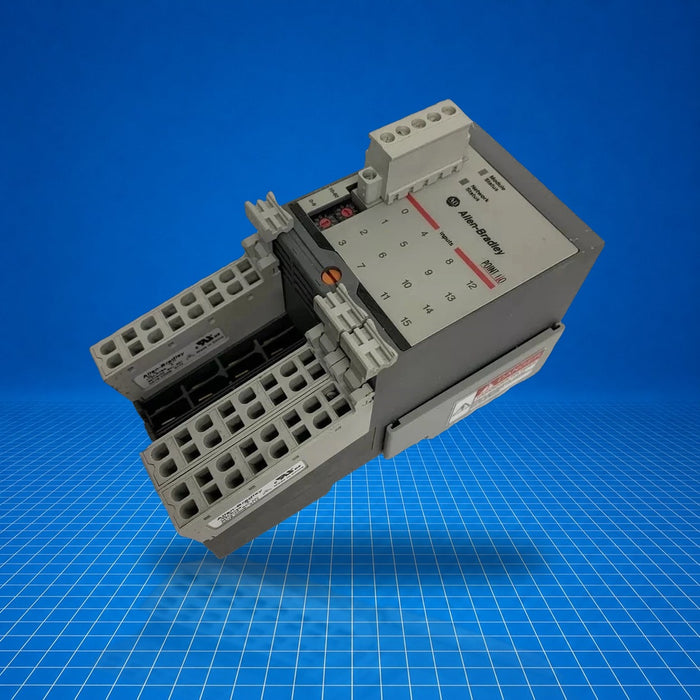

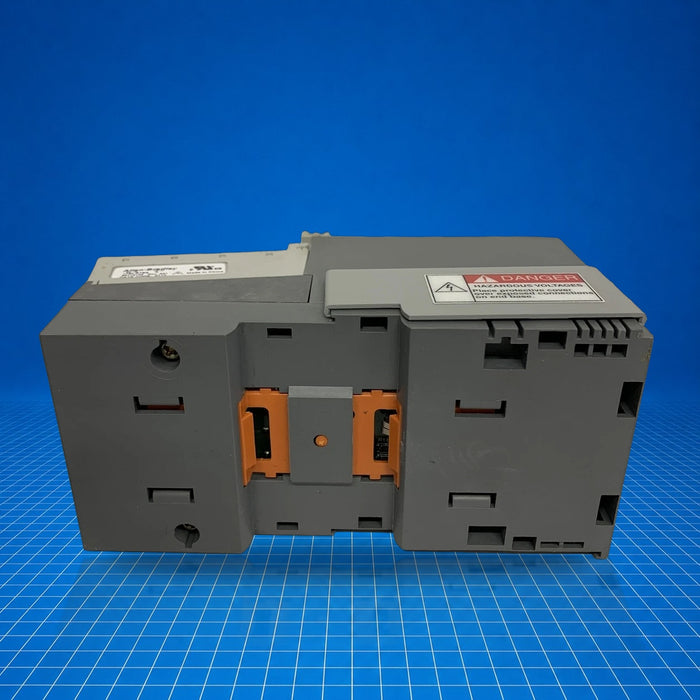

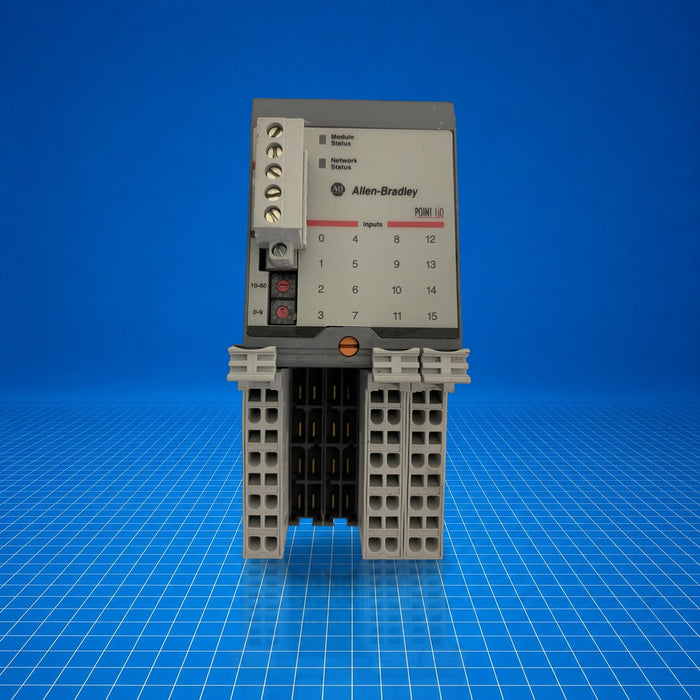

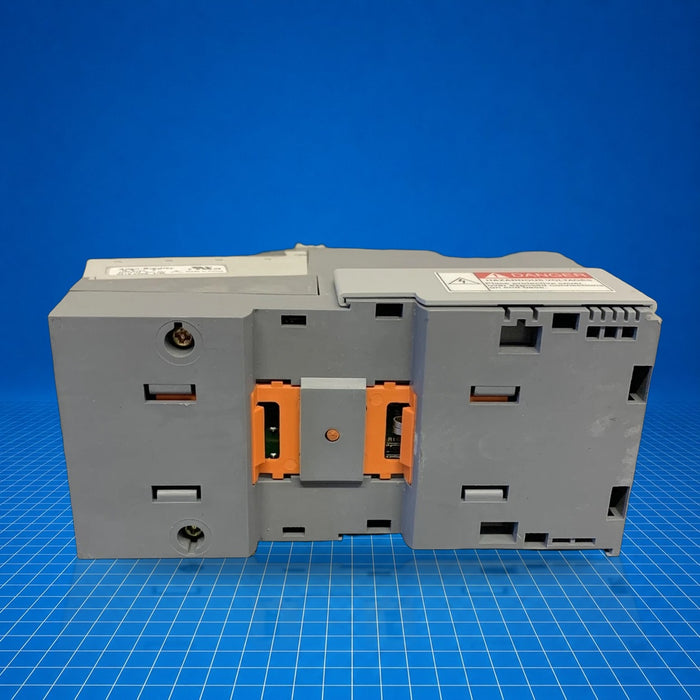

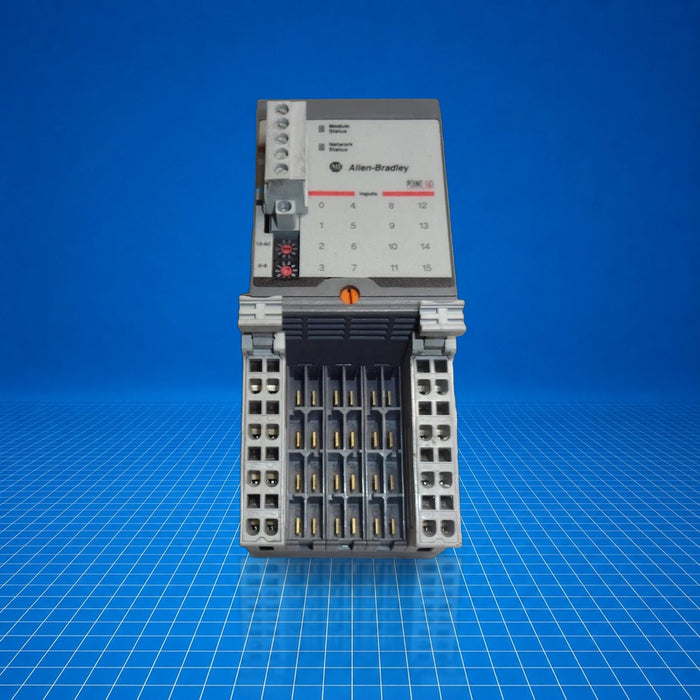

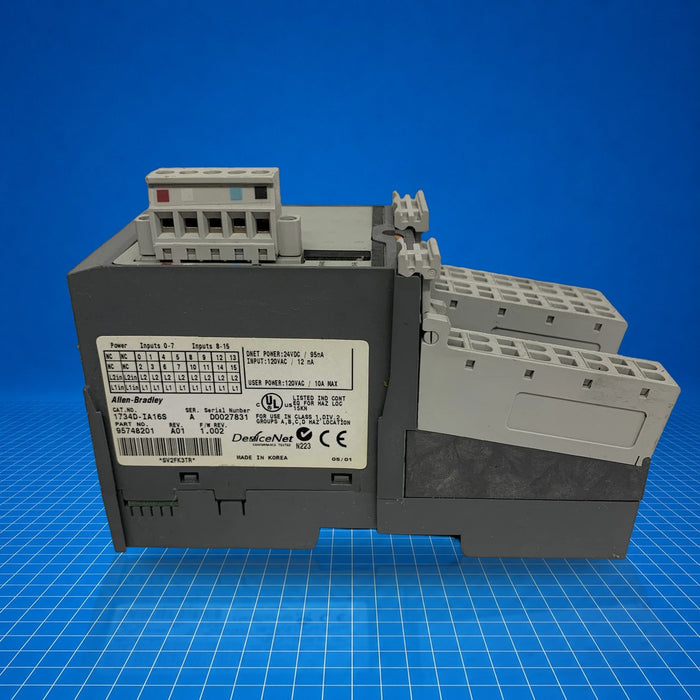

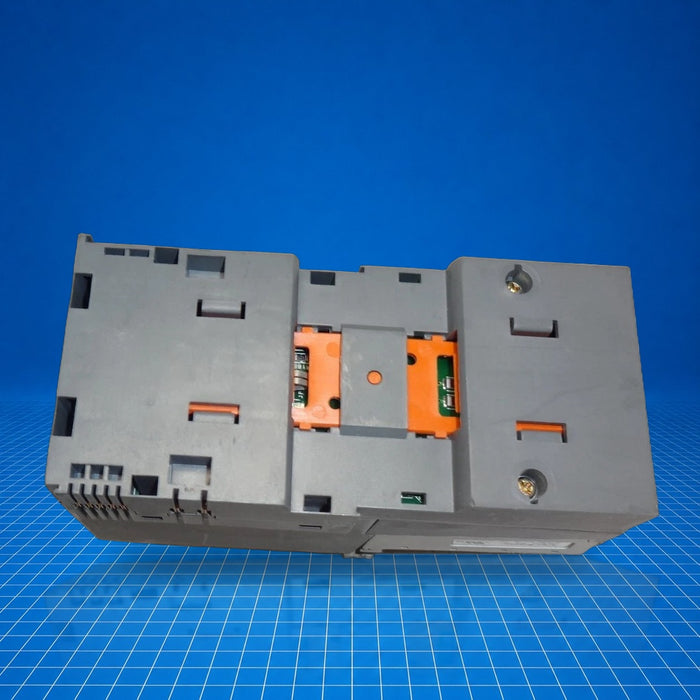

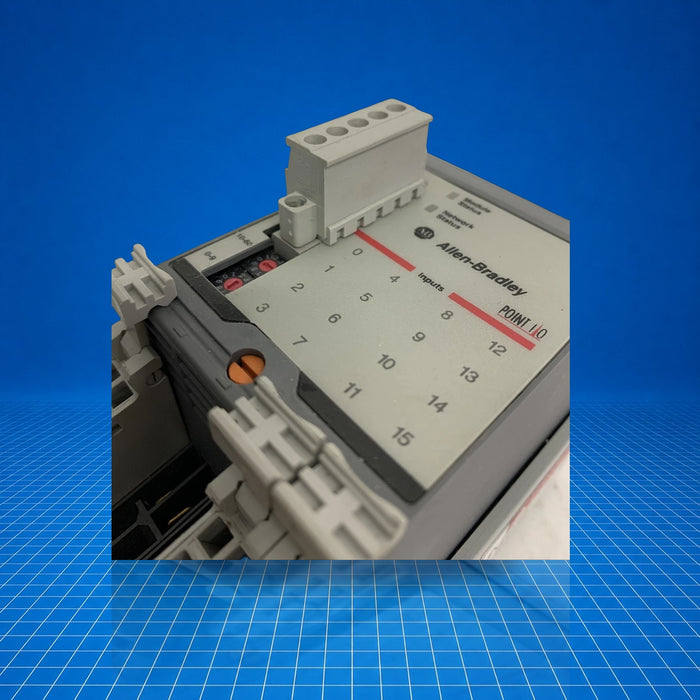

1734D-IA16 Allen-Bradley
Original price
$0.00
-
Original price
$1,505.98
Original price
$1,505.98
$0.00
-
$1,505.98
Current price
$1,505.98
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

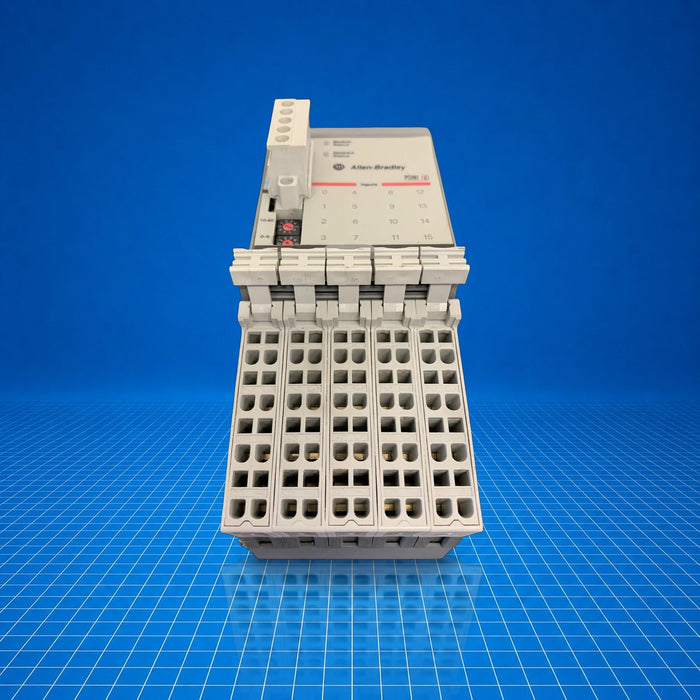

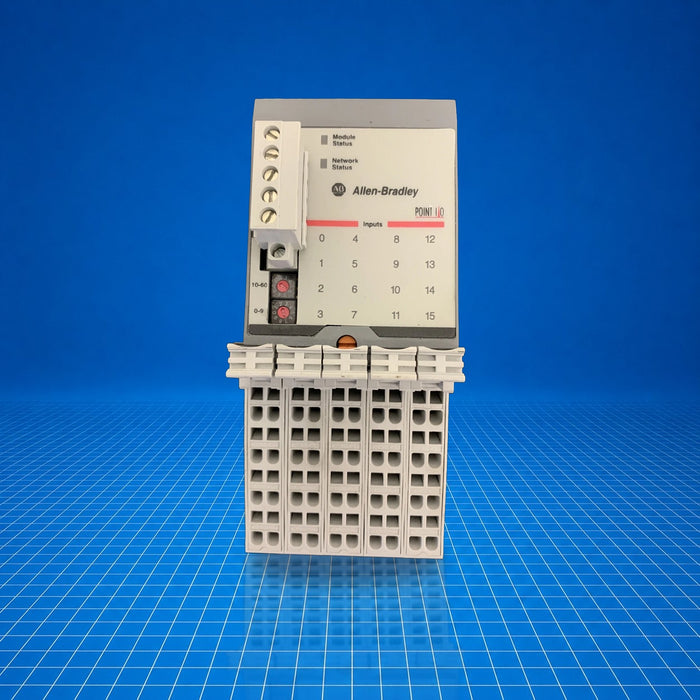

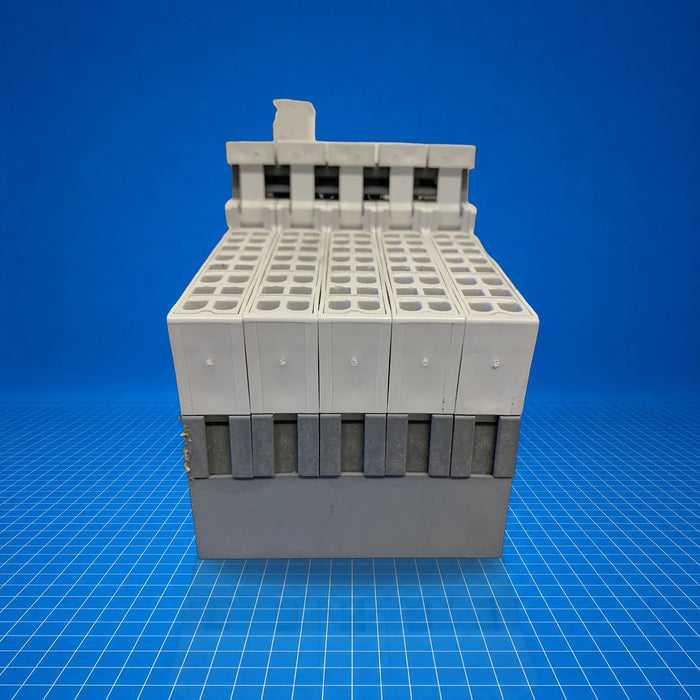

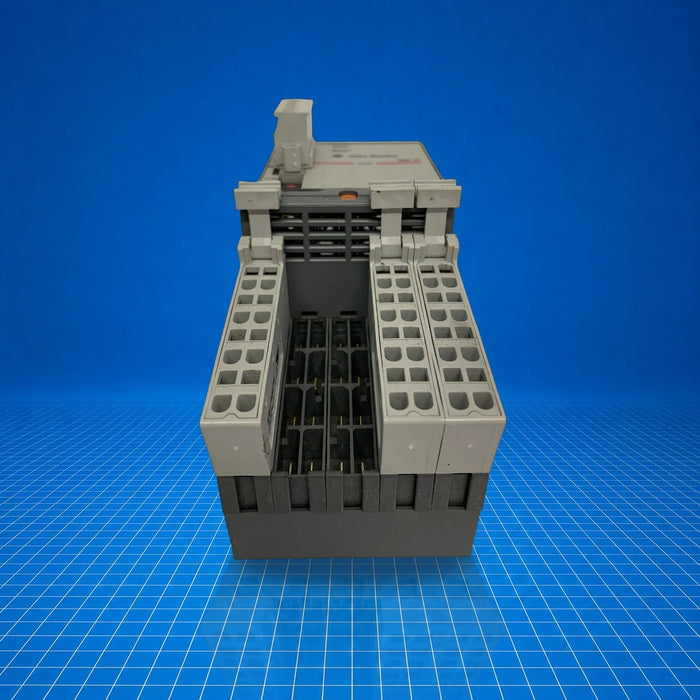

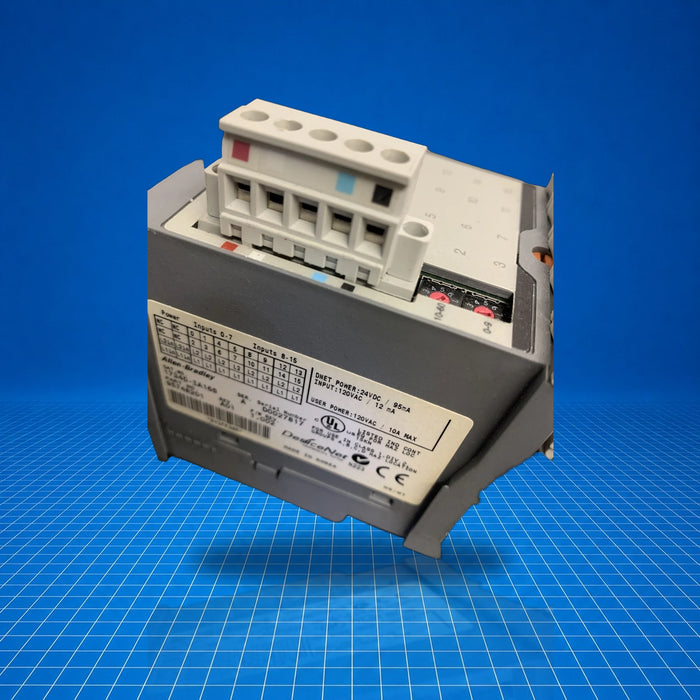

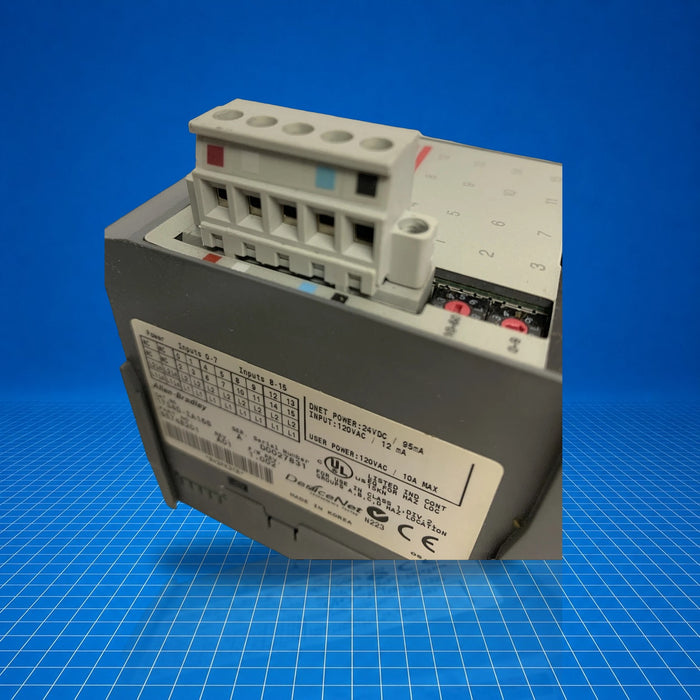

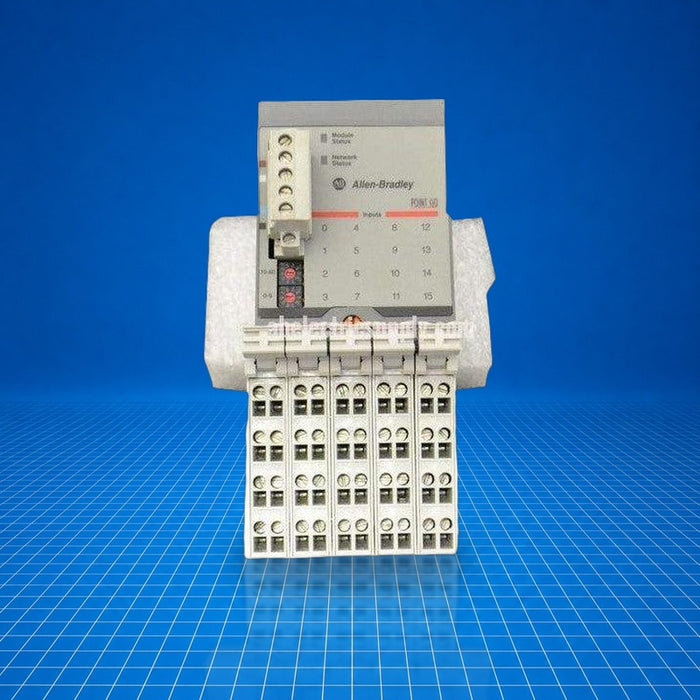

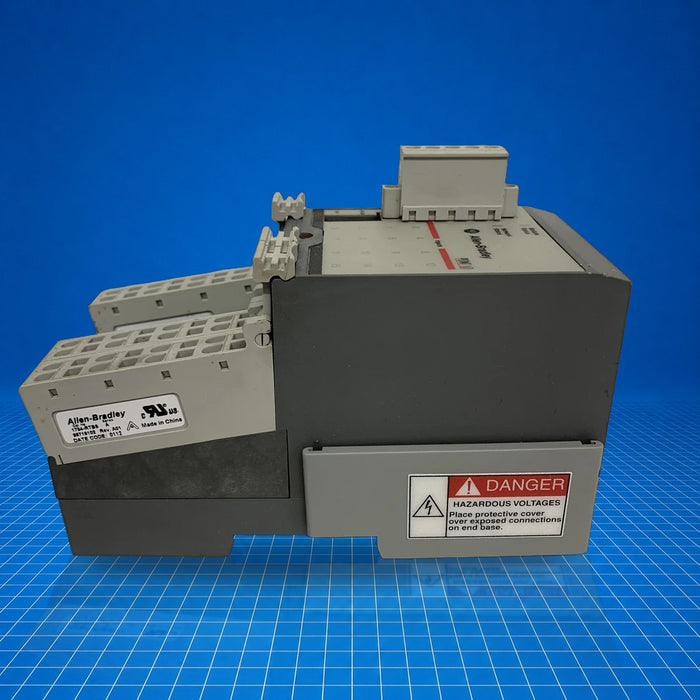

The 1734D-IA16 is an Allen-Bradley POINTBlock AC input module within the Point I/O family. It provides sixteen AC input channels and integrates DeviceNet communication and PointBus expansion. In a control system the 1734D-IA16 acquires field-level AC signals (typically 85-132 VAC) and communicates input status over DeviceNet, enabling distributed I/O configurations. Typical industrial applications include machine-level discrete sensing, modular assembly systems, and retrofit expansions where DeviceNet-based distributed input integration is required.
Best Suited For
- Distributed DeviceNet systems
- Machine-level AC discrete sensing
- Retrofit or expansion I/O with PointBus chaining
- DIN-rail mounting environments
Channels
16 AC inputs
Communication
DeviceNet (non-isolated)
PointBus expansion
Supports up to 12 additional modules
Input voltage range
85-132 VAC nominal
Power dissipation
2 W (approx)
Technical Specifications
I/O & Electrical
Number of inputs
16 AC channels
Input voltage range
85…132 VAC nominal (120 VAC)
On-state voltage min/max
65…132 VAC (ON); off-state up to 43 VAC
PointBus/Bus output current
1 A @ 5 V DC
Communication & Power
Communication interface
DeviceNet, non-isolated
Internal power generation
+5 V DC from DeviceNet 24 V DC (via dc/dc converter)
Physical & Environmental
Mounting
DIN-rail (wiring base), panel mount via wiring base
Dimensions
~76.2 × 60 × 133.4 mm (3.00 × 2.36 × 5.25 in) (manufacturer listing)
Weight
~0.26 kg (0.56 lb)
Operating temperature
-20…55 °C (-4…131 °F)
Shock and vibration
Vibration up to 5 g, shock up to 15 g
Certifications
UL ListedcULusCE
UL Listed, cULus, CE compliance.
