1746-N3 Allen-Bradley

Name: 1746-N3 Allen-Bradley
Brand: Allen Bradley
SKU: 1746-N3
Price: 420.0 USD
Availability: InStock

$0.00 - $420.00

$420.00

$0.00 - $420.00

$420.00

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (5) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

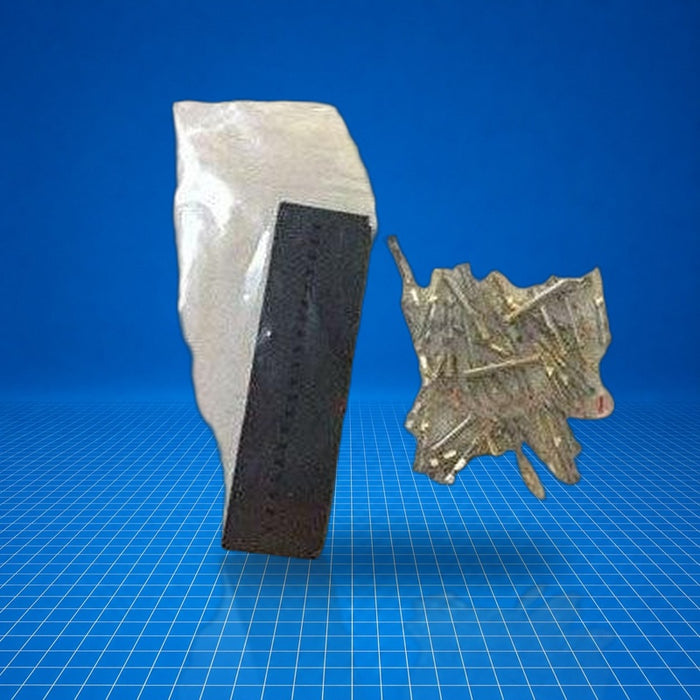

The 1746-N3 is an Allen-Bradley SLC 500 series 40-point plug-in connector kit, used to terminate the cable connecting field I/O devices to 32-point SLC 500 digital I/O modules. It includes a keyed 40-pin socket header with 45 socket crimp contacts. This connector supports plug-in compatibility with SLC 500 modules such as 1746-IB32, -IV32, -OB32, -OB32E and -OV32, enabling field wiring up to standard terminal blocks, typically in industrial discrete input/output applications.

Best Suited For

Connecting SLC 500 32-point digital I/O modules
Termination of field I/O wiring to 1492-IFM40 terminal blocks
On-module connector replacement or assembly
SLC 500 discrete I/O installations requiring keyed I/O termination

Connector type

40-pin plug-in connector

Included contacts

45 socket crimp contacts

Compatible modules

1746-IB32, -IV32, -OB32, -OB32E, -OV32

Wire gauge supported

24 AWG

Max cable length (inputs/outputs)

10 m (inputs), 3 m (outputs)

Technical Specifications

I/O & Electrical

Wire gauge

24 AWG

Max input wire length

10 m

Max output wire length

3 m

Physical & Environmental

Operating temperature

0 °C to +60 °C (32 °F to +140 °F)

Storage temperature

-40 °C to +85 °C (-40 °F to +185 °F)

Dimensions (H×D×W)

118 mm × 87 mm × 35 mm (tab height: 138 mm)

Approximate shipping weight

230 g (0.51 lbs)

Operating vibration

10-500 Hz, 5 G, 0.030 in peak-to-peak

Operating shock

30 G panel-mounted (20 G DIN-rail)

Non-operating shock

40 G panel-mounted (30 G DIN-rail)

Certifications

UL 508 ListedC-UL (CSA C22.2 No. 142)CEClass I Div 2

UL 508 listed; C-UL per CSA C22.2 No. 142; CE compliant; Class I, Division 2, Groups A, B, C, D (UL 1604). Emissions and immunity per EN50081-2, IEC1000-4-2/-3/-4/-5/-6 levels specified.
