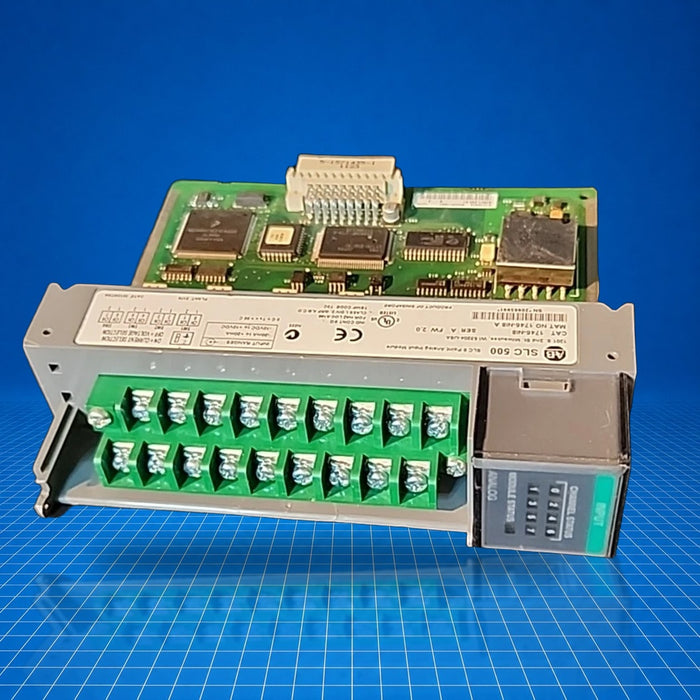

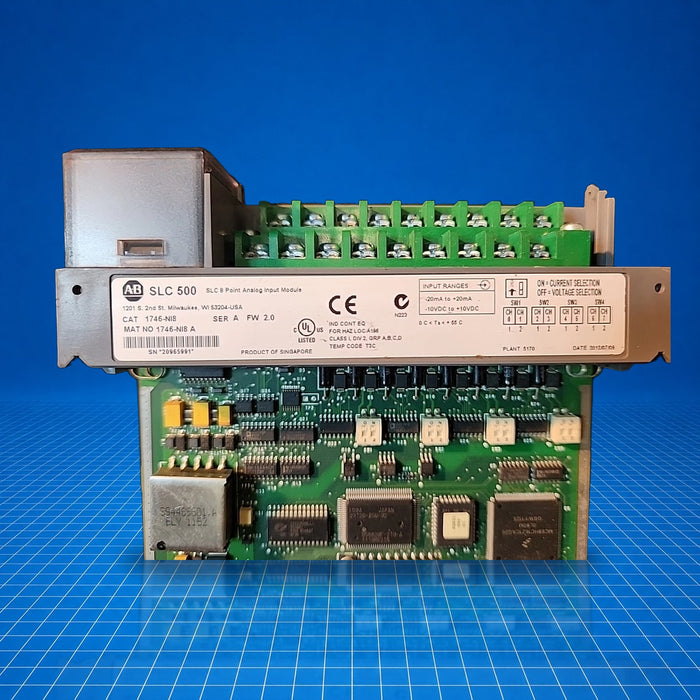

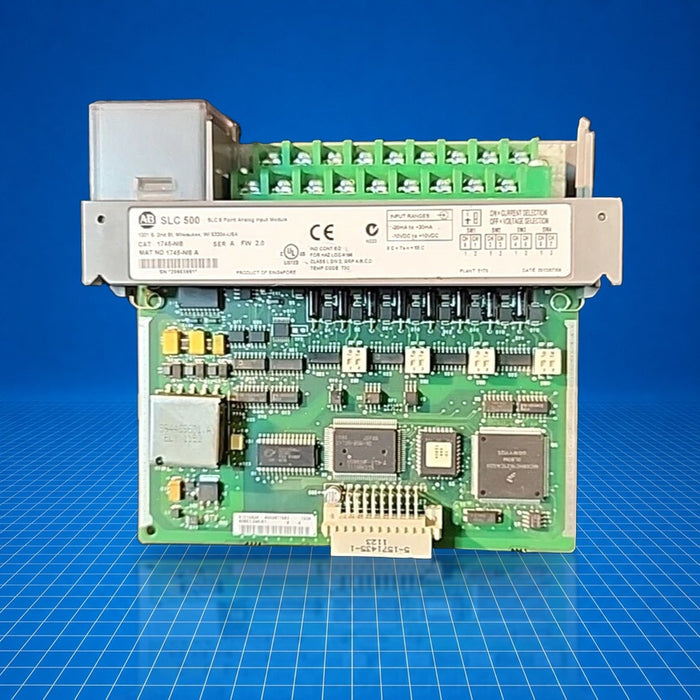

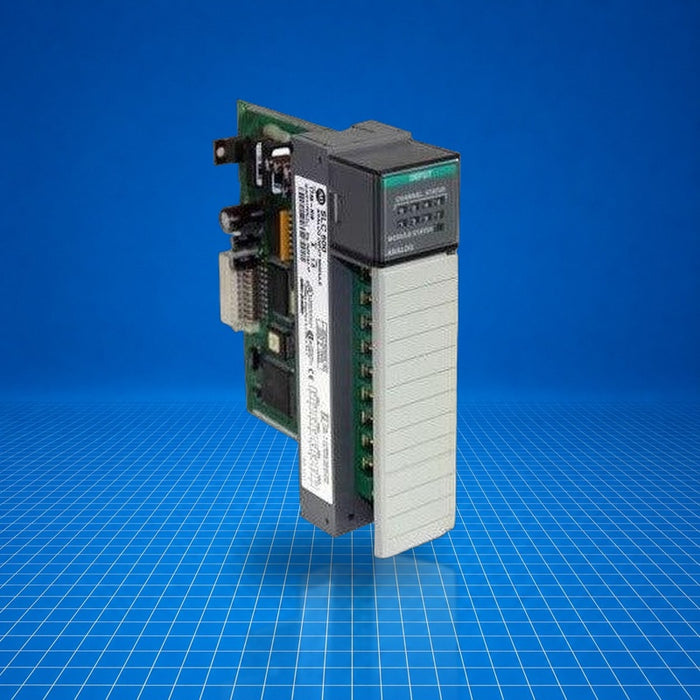

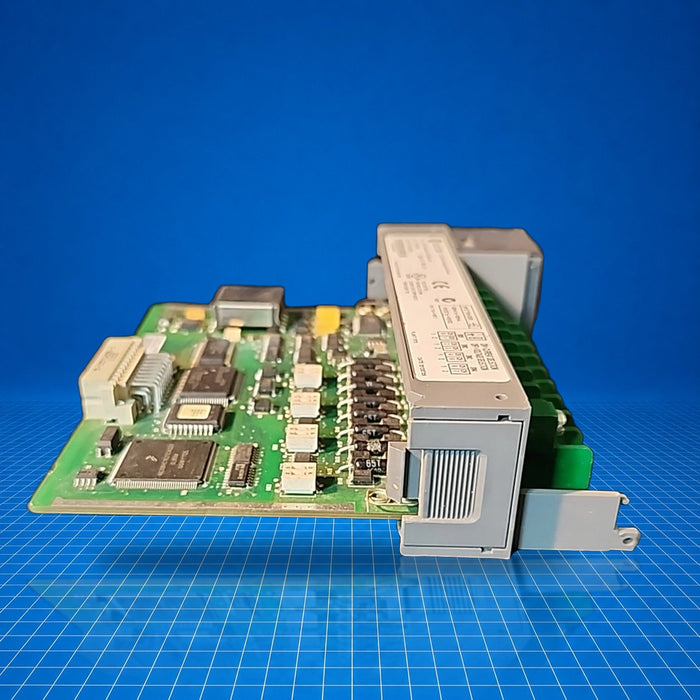

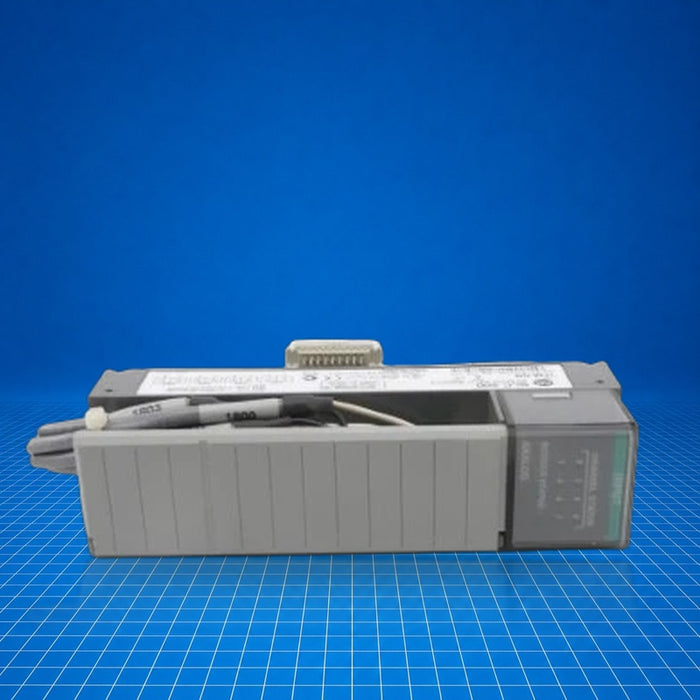

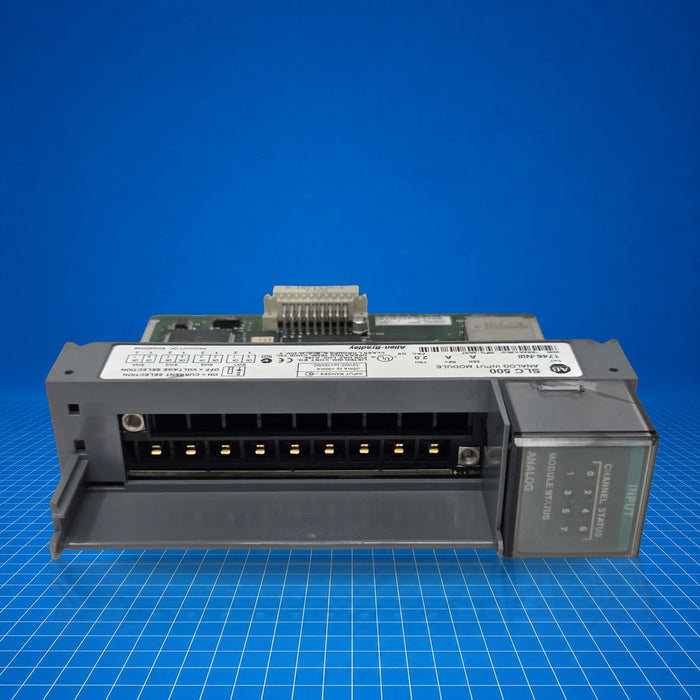

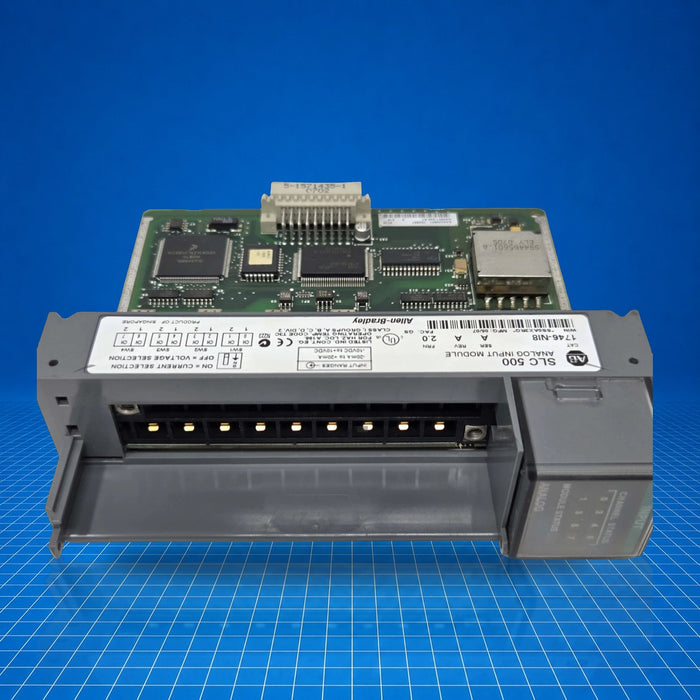

1746-NI8 Allen-Bradley
Original price
$450.00
-
Original price
$1,569.23
Original price
$450.00
$450.00
-
$1,569.23
Current price
$450.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

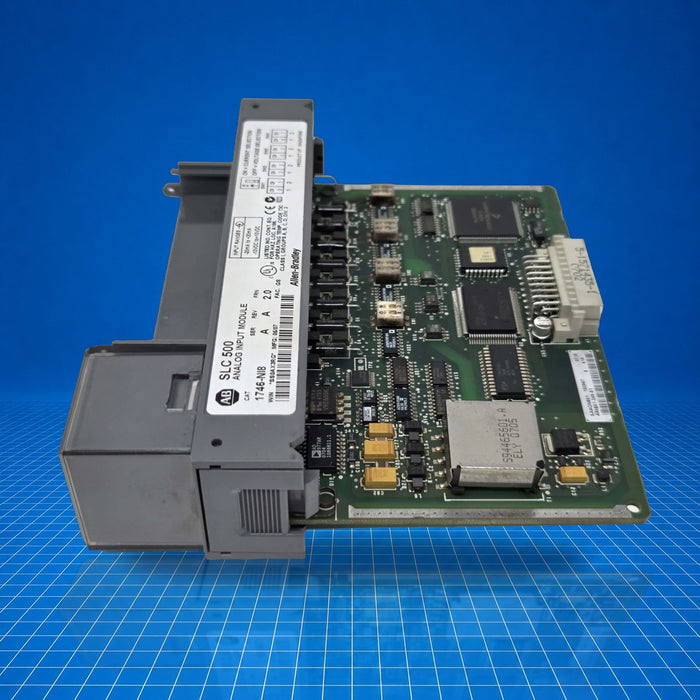

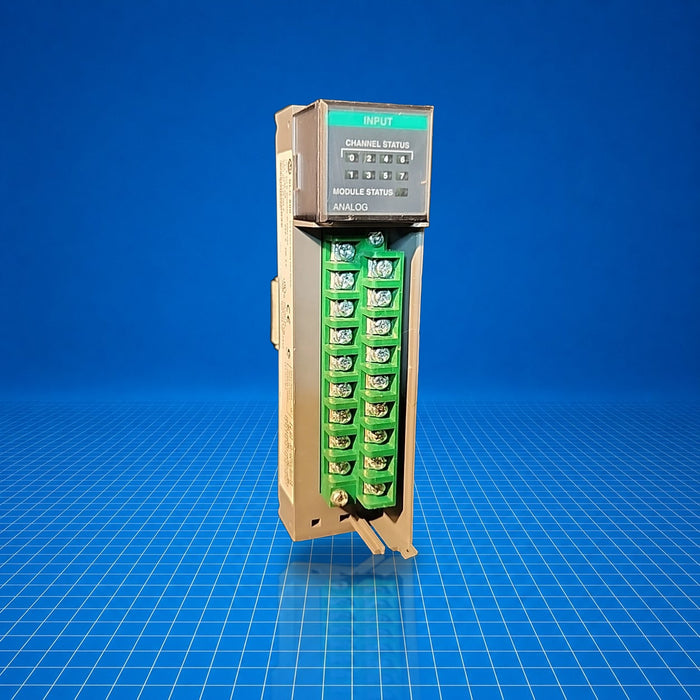

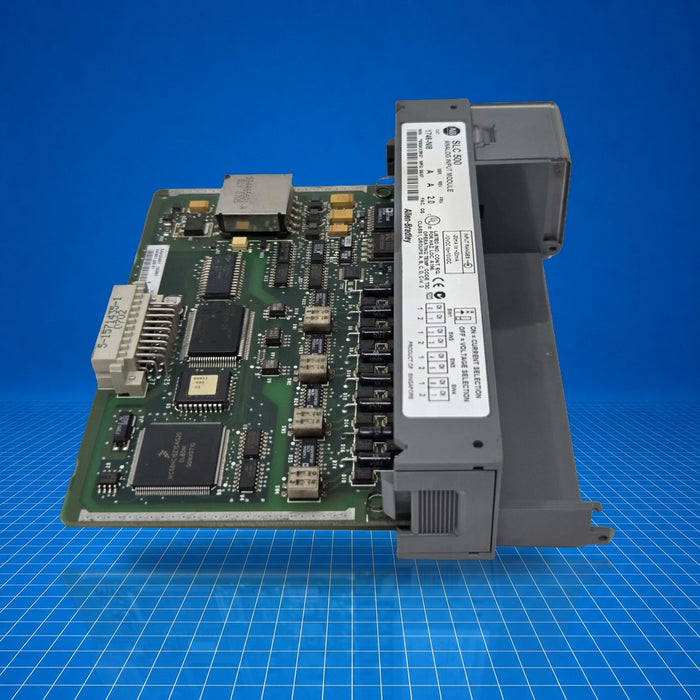

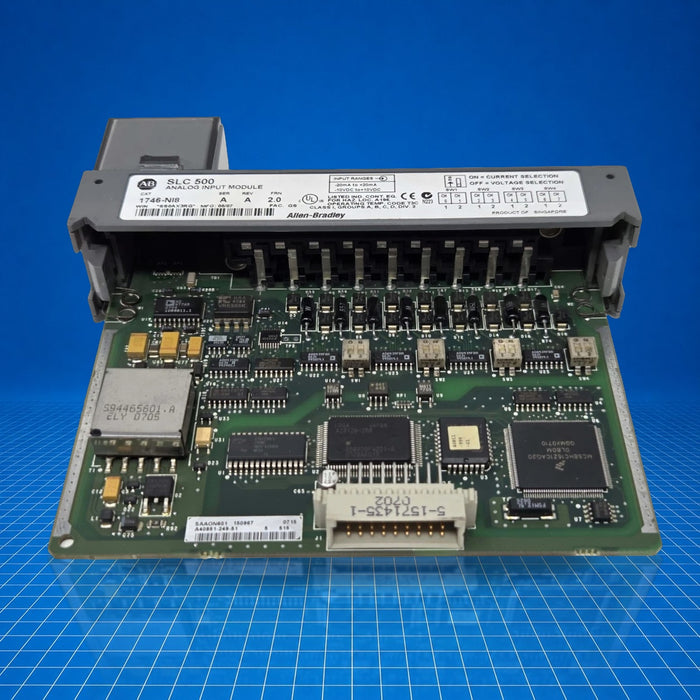

The 1746-NI8 is an analog input module for Allen-Bradley SLC 500 programmable logic controllers. It provides eight isolated analog input channels capable of sensing ±10 V or ±20 mA signals, and integrates into any SLC 500 I/O chassis slot (excluding slot 0). The module performs on-board A/D conversion using successive approximation with programmable digital low-pass filtering and continuous autocalibration. Typical industrial applications include process monitoring, analog sensor data acquisition, and integration of field instrumentation into SLC 500 control systems.
Best Suited For
- SLC 500-based analog signal acquisition
- Process control requiring ±10 V or ±20 mA inputs
- Retrofitting or maintenance of legacy SLC systems
- Mixed-channel analog input handling in compact I/O racks
Channels
8
Input signal
±10 V or ±20 mA
Isolation
500 V AC / 750 V DC pulse
Backplane power
3.4 W
Technical Specifications
I/O & Electrical
Number of channels
8
Input signal ranges
-10 V to +10 V DC or -20 mA to +20 mA
Isolation
50 V DC continuous; 530 V AC / 750 V DC pulse (1 s)
A/D conversion
Successive-approximation, switched-capacitor
Input filtering
Programmable low-pass (1, 2, 5, 10, 20, 50, 75 Hz)
Communication & Power
Backplane current consumption
200 mA @ 5 V DC; 100 mA @ 24 V DC
Backplane power consumption
3.4 W total (1.0 W @5 V; 2.4 W @24 V)
Physical & Environmental
Channel-to-chassis common-mode rejection
≥ 75 dB at DC; ≥ 100 dB at 50/60 Hz
Auto-calibration
Continuous
Mounting
SLC 500 chassis slot (not slot 0)
