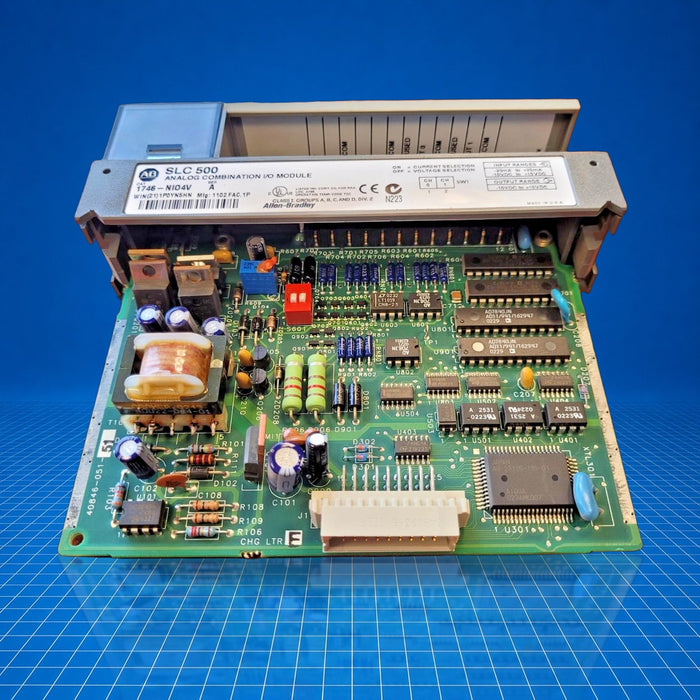

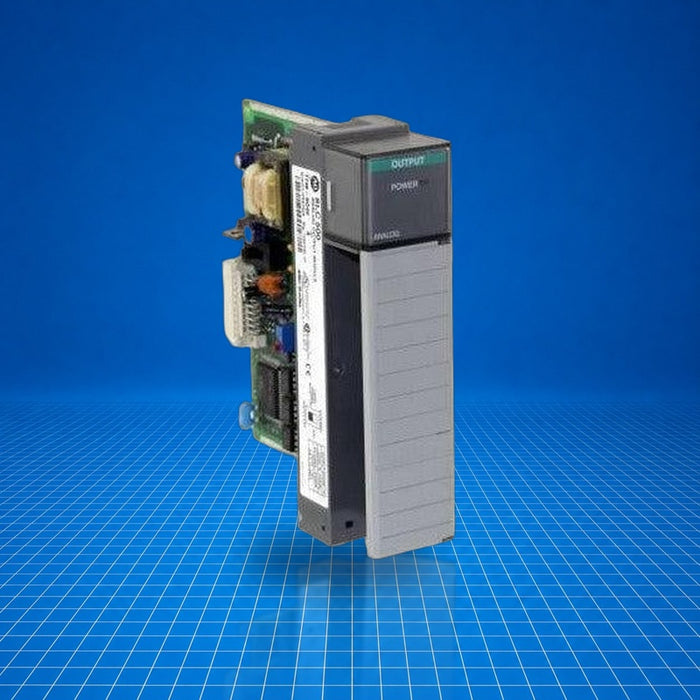

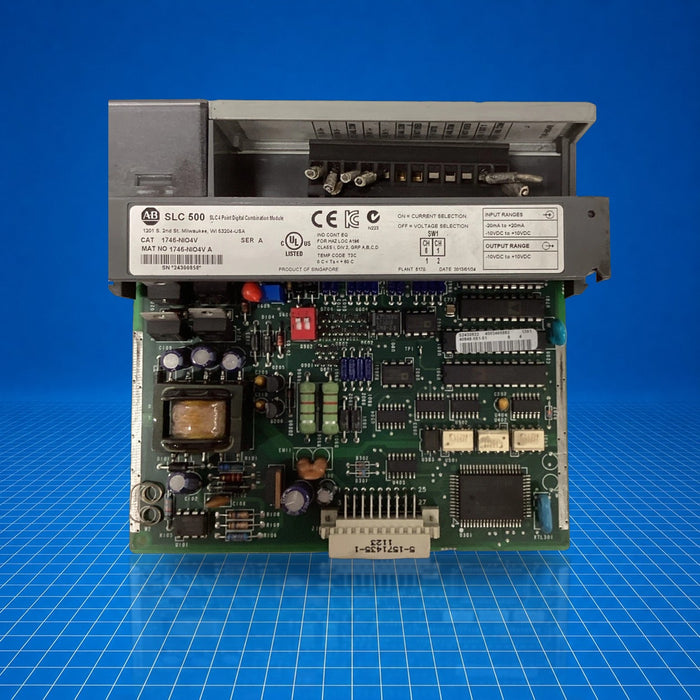

1746-NIO4V Allen-Bradley
Original price
$450.00
-
Original price
$1,749.98
Original price
$450.00
$450.00
-
$1,749.98
Current price
$450.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1746-NIO4V from Allen-Bradley is an SLC 500-Series analog combination module providing two analog inputs and two analog voltage outputs. It integrates into SLC 500 controllers via the digital backplane interface and isolates I/O at 500 V AC / 710 V DC. Typical use cases include process signal monitoring and control-such as reading analog sensor data while outputting control voltages in small- to medium-scale industrial automation applications. 1746-NIO4V is part of the SLC 500 I/O family and now discontinued.
Best Suited For
- Analog signal acquisition and control in SLC 500 systems
- Simultaneous reading of mA or voltage sensors and outputting control voltage
- Integration into legacy SLC 500 racks
- Maintenance or rebuild of existing SLC 500 installations
Inputs/Outputs
2 inputs / 2 voltage outputs
Input signal range
-20 mA to +20 mA or -10 V to +10 V
Output signal range
-10 V to +10 V
Backplane current (5 V)
55 mA
Bandwidth
10 Hz
Technical Specifications
I/O & Electrical
Input signal range
-20 mA to +20 mA or -10 V to +10 V
Output signal range
-10 V to +10 V
Number of channels
2 input, 2 output
Isolation
500 V AC / 710 V DC
Communication & Power
Module interface
Digital backplane
Backplane current (5 V)
55 mA
