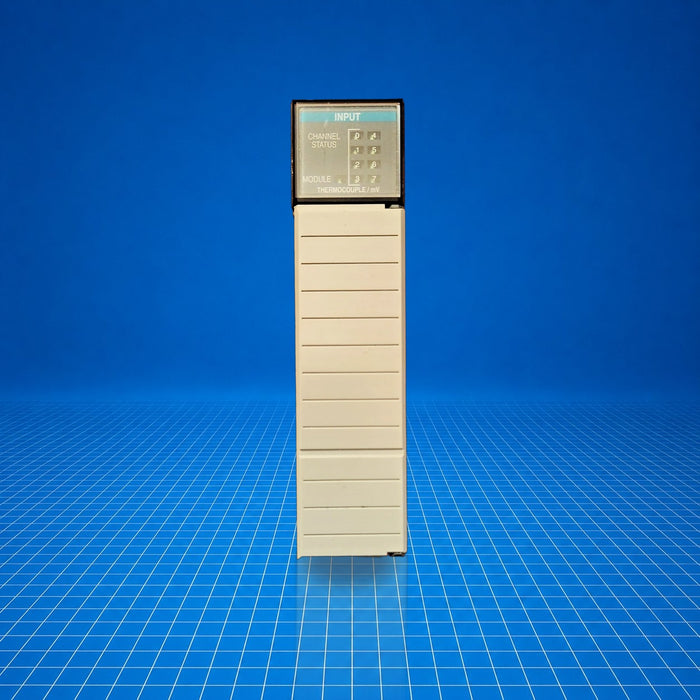

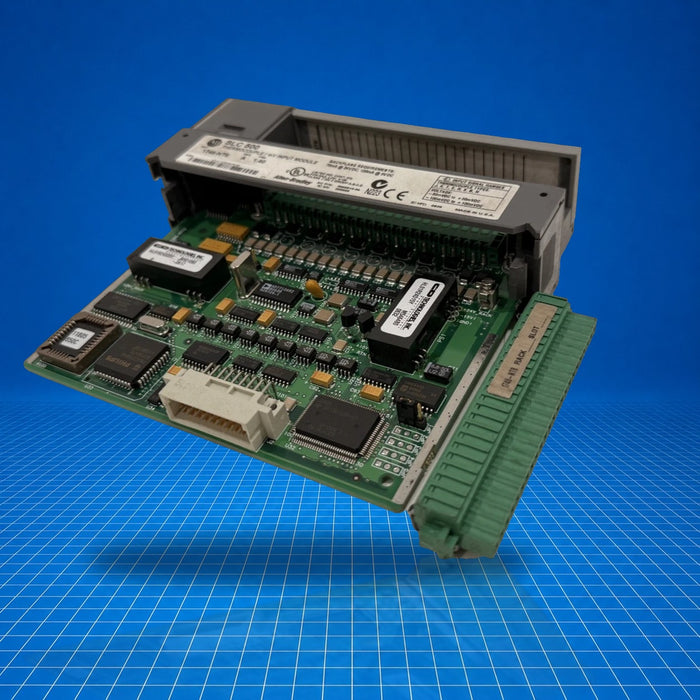

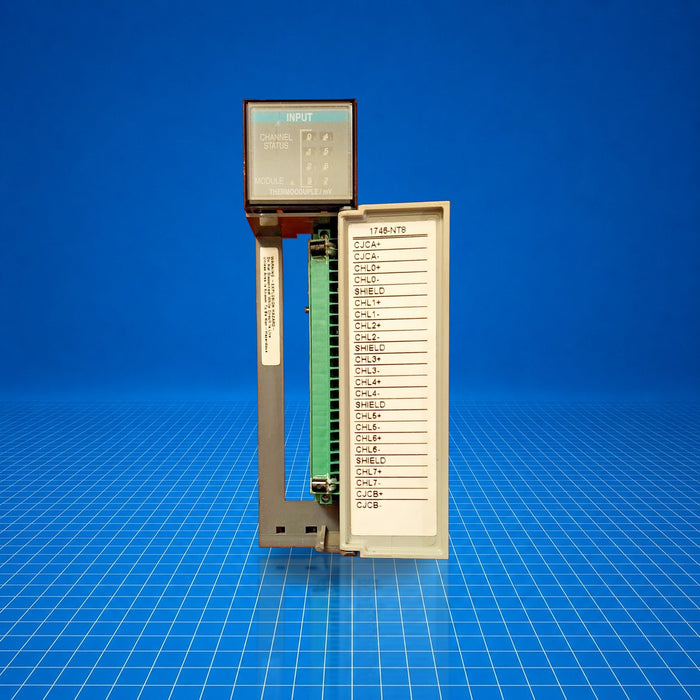

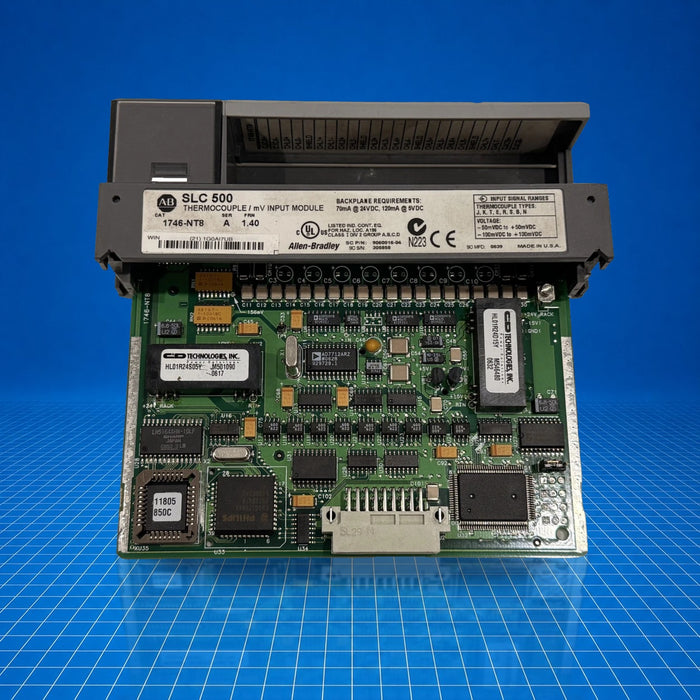

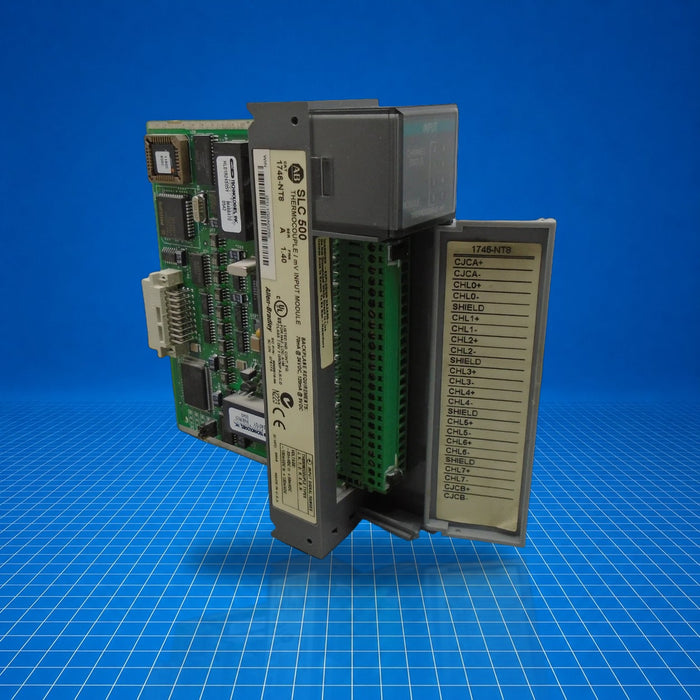

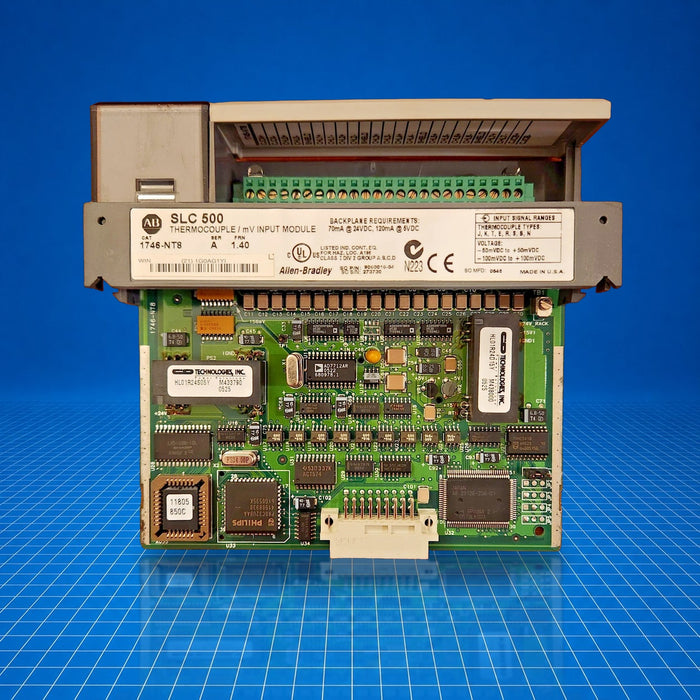

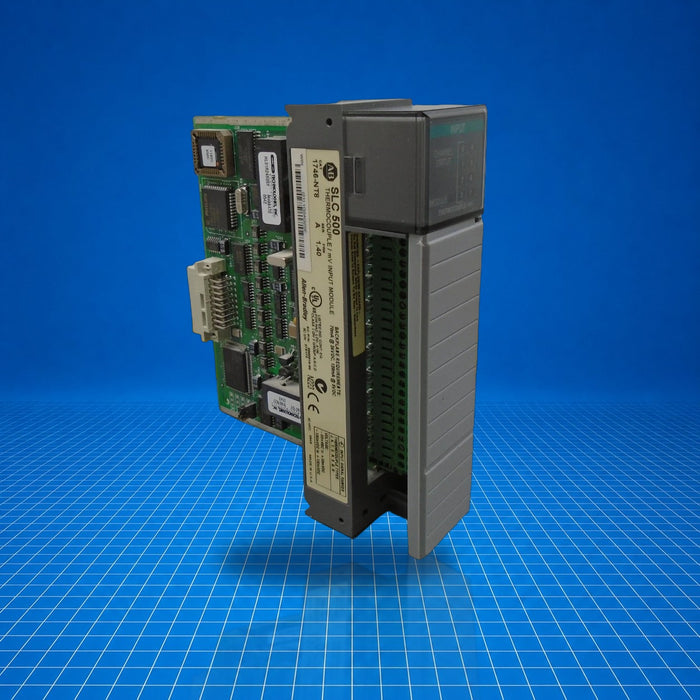

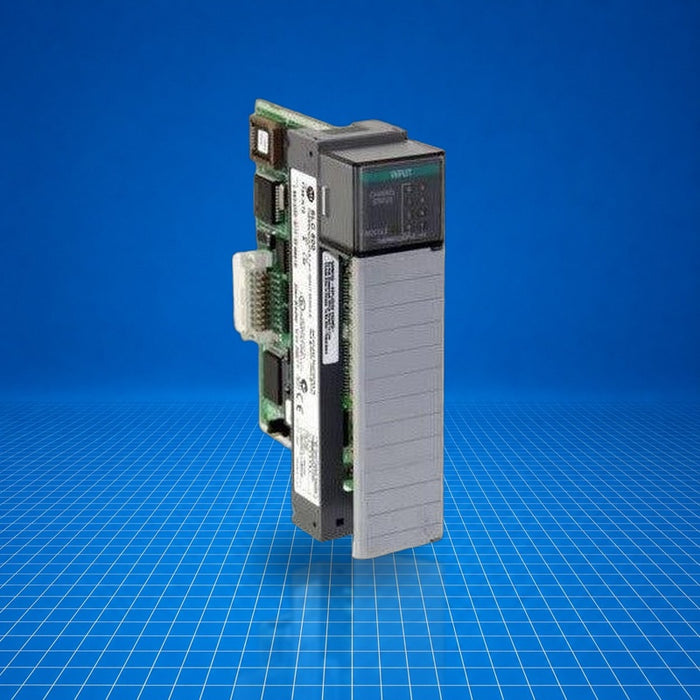

1746-NT8 Allen-Bradley
Original price
$600.00
-
Original price
$1,374.97
Original price
$600.00
$600.00
-
$1,374.97
Current price
$600.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The Allen-Bradley 1746-NT8 is an SLC 500 thermocouple/millivolt analog input module providing eight isolated analog input channels for thermocouple types J, K, T, E, S, R, B, N and ±50 mV/±100 mV signals. Designed for use in SLC 500 racks (not slot 0), it performs analog-to-digital conversion via sigma-delta modulation with configurable low-pass filtering and open-circuit detection. It includes cold-junction compensation and interfaces directly with SLC 5/01-5/05 processors. 1746-NT8 supports industrial temperature measurement and process monitoring applications.
Best Suited For
- Thermocouple temperature acquisition in SLC 500 systems
- Millivolt signal monitoring (±50 mV, ±100 mV)
- Process feedback in PID control loops
- Retrofitting or maintaining legacy SLC 500 systems
Channels
8
Signal types
Thermocouple: J, K, T, E, S, R, B, N; ±50 mV; ±100 mV
Backplane current
120 mA @ 5 V; 70 mA @ 24 V
Update time
356 ms-4.05 s
Conversion method
Sigma-delta modulation
Technical Specifications
I/O & Electrical
Input types supported
Thermocouple types J, K, T, E, S, R, B, N; ±50 mV; ±100 mV
Number of channels
8
Open-circuit detection
Zero, Upscale, Downscale
Communication & Power
Backplane current
120 mA @ 5 V; 70 mA @ 24 V
Backplane power consumption
2.28 W max (0.6 W @ 5 V, 1.68 W @ 24 V)
Update time
356 ms-4.05 s
A/D conversion method
Sigma-delta modulation
Physical & Environmental
Operating temperature
0 to 60 °C
Storage temperature
-40 to 85 °C
Certifications
UL ListedcULusCE
